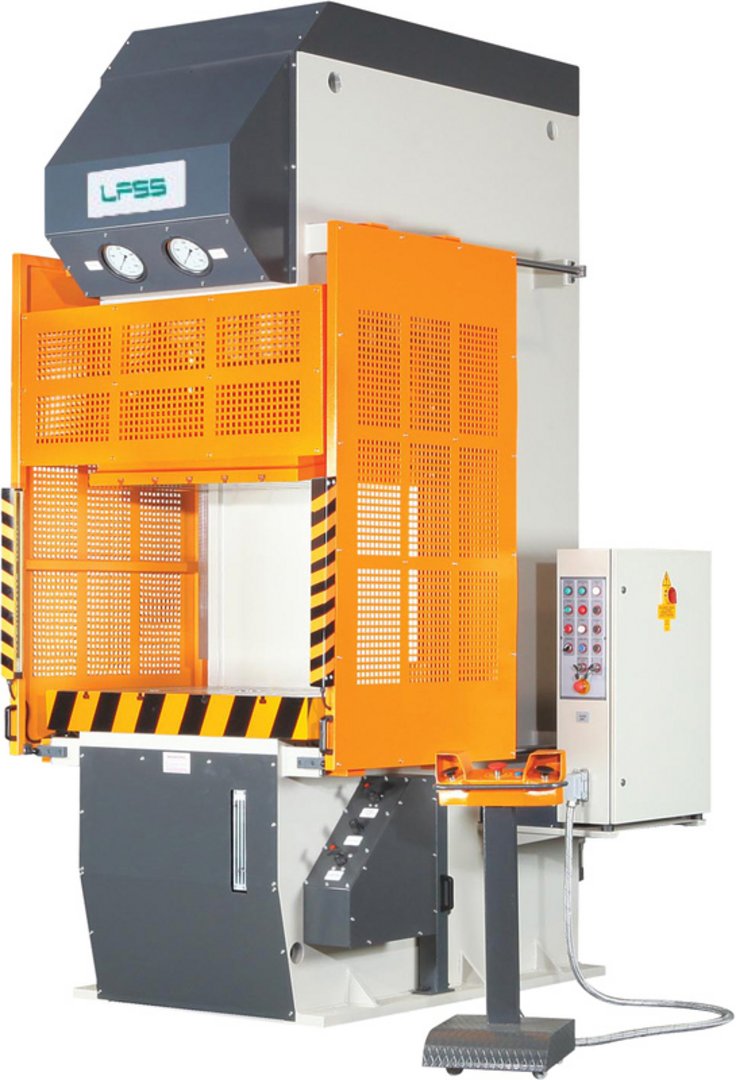

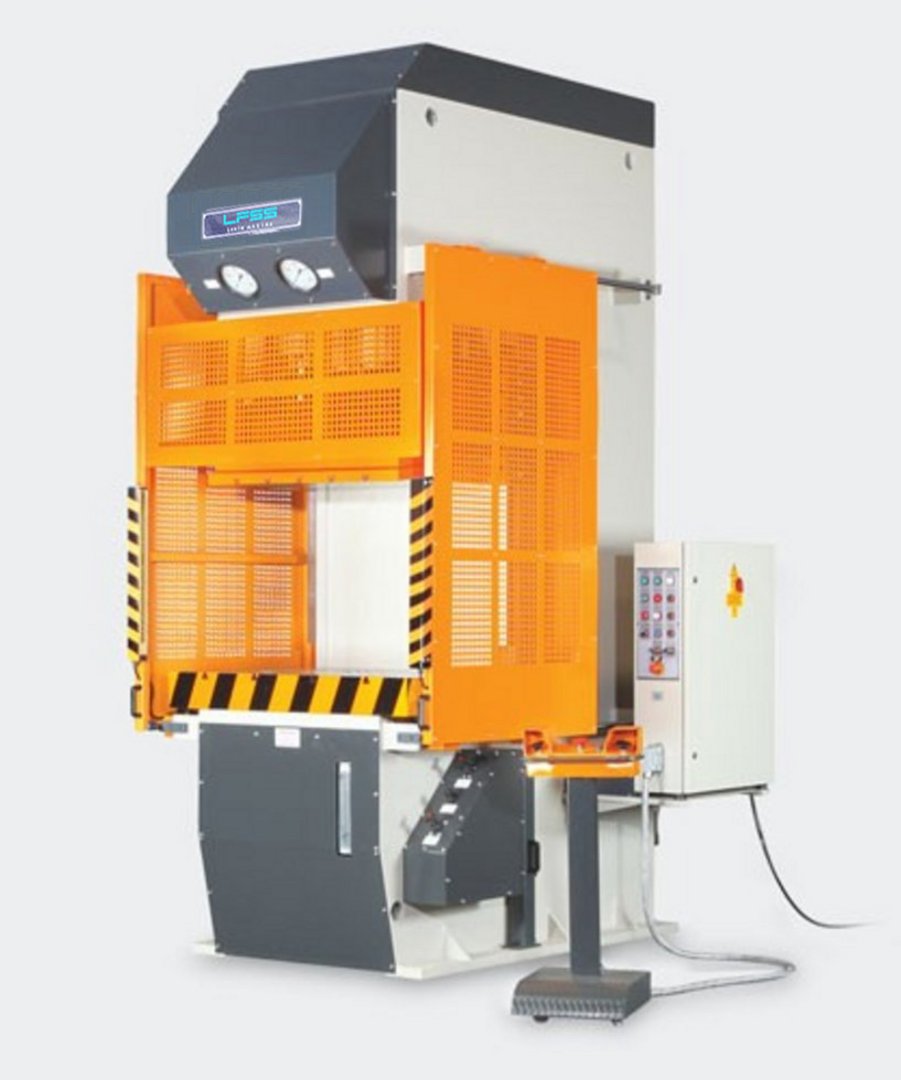

hydraulic single column drawing press HESSE by LFSS HKP-Z 150
| Model | HKP-Z 150 |
| Brand | HESSE by LFSS |
| Condition | new |
| pressing capacity | 150 to |
| Table | 1200 x 750 mm |
| Origin | Türkiye |
General characteristics
| pressing capacity | 150 to |
| Stroke | 500 mm |
| Ram | 950 x 650 mm |
| Table | 1200 x 750 mm |
| Daylight | 750 mm |
| Rapid speed | 100 mm/s |
| Working speed | 5 mm/s |
| Retraction speed | 165 mm/s |
| Motor | 11 kW |
| Working pressure | 254 bar |
| Die cushion pressing force | 32 to |
| Die cushion stroke | 200 mm |
| Table Drill Ø | 120 mm |
| Draw cushion working pressure | 160 bar |
| Draw cushion retraction speed | 40 mm/sec. |
Dimensions and weight
| Length | 2225 mm |
| Width | 1600 mm |
| Height | 3850 mm |
| Weight | 10000 kg |
Description
light curtain
cushion
manual and automatic working
manual stroke adjustment by camshaft switch
maintenance free self lubricating 4-fold ram guiding
polster plate with T-slots
according to "CE" rules
