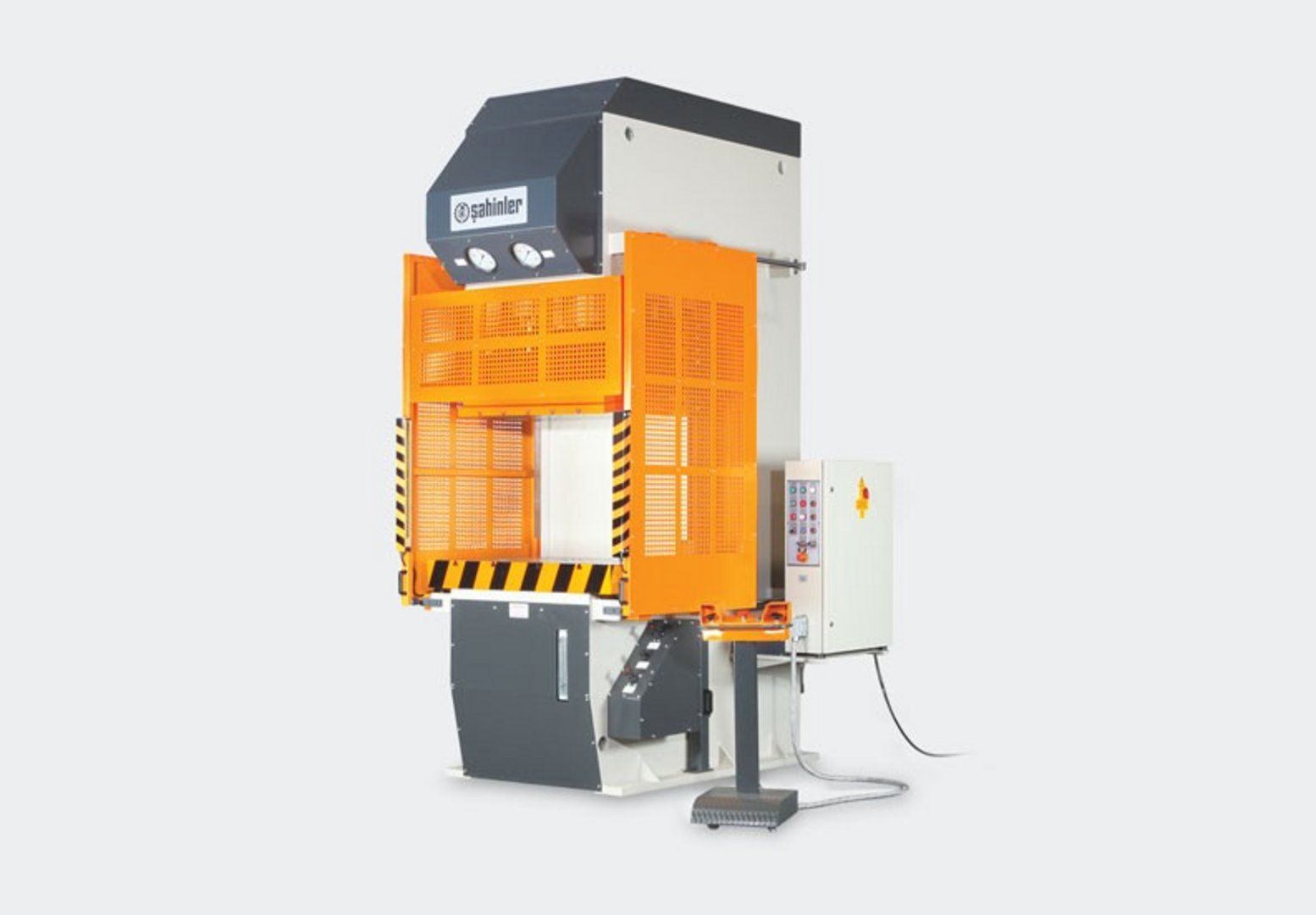

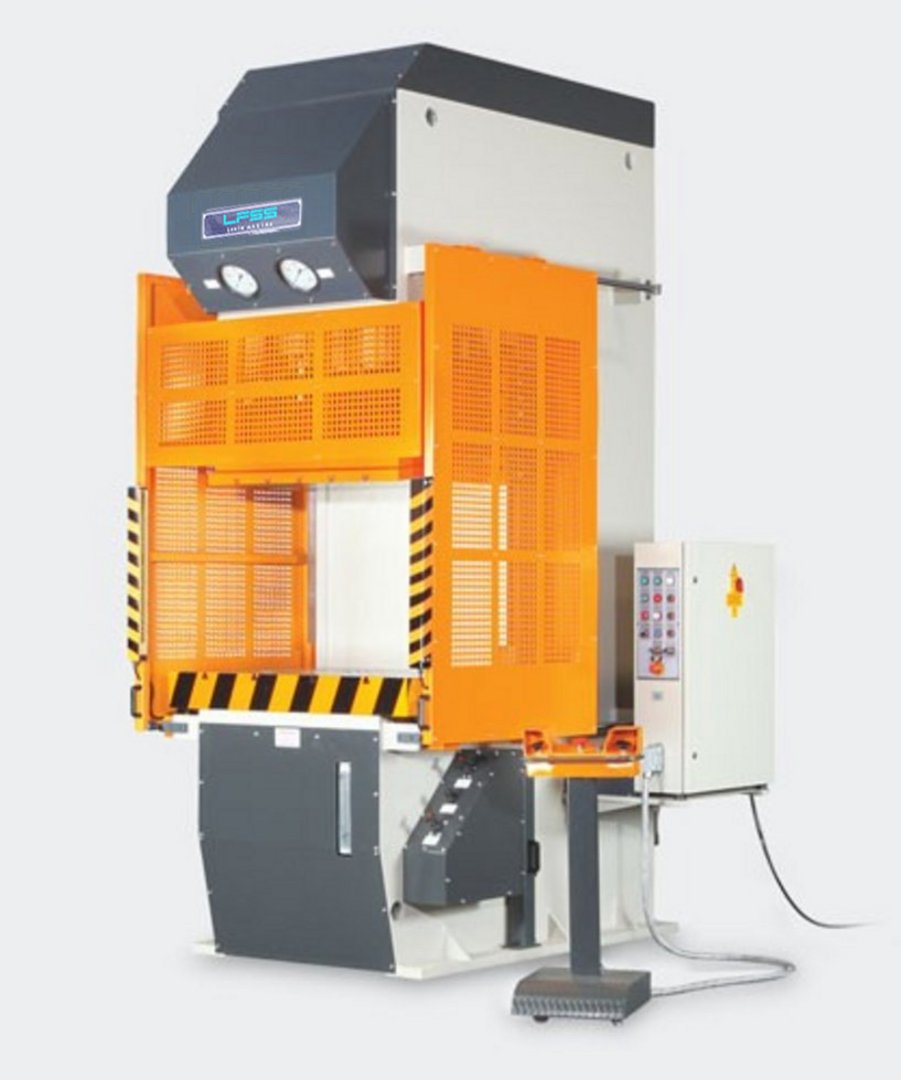

hydraulic single column drawing press HESSE by LFSS HKP-Z 100

Model HKP-Z 100
Brand HESSE by LFSS
Condition new
pressing capacity 100 to
Table 700 x 1100 mm
Origin Türkiye

General characteristics

pressing capacity 100 to
Stroke 500 mm
Ram 600 x 900 mm
Table 700 x 1100 mm
Daylight 750 mm
Throat depth 320 mm
Rapid speed 100 mm/s
Working speed 8 mm/s
Retraction speed 165 mm/s
Motor 11 kW
Working pressure 240 bar
Die cushion pressing force 30 to
Die cushion stroke 200 mm
Table Drill Ø 120 mm
Draw cushion working pressure 170 bar
Draw cushion retraction speed 52 mm/sec.
Draw cushion surface 700 x 400 mm

Dimensions and weight

Description

2-hand control
Control over SPS
Adjustable die cushion stroke
Lubricant-free ram guide
light barriers
User Manual in German

according to CE rules
