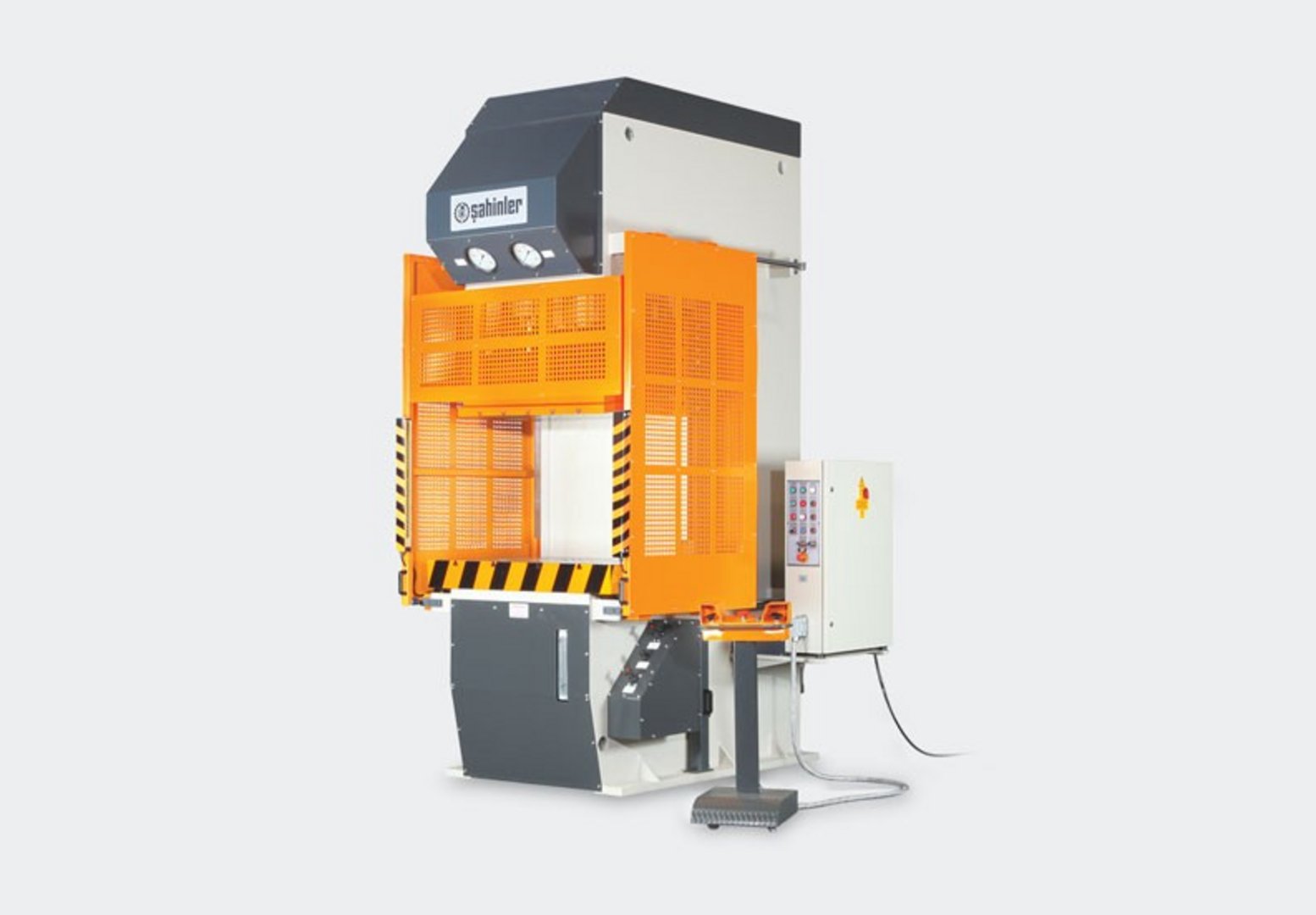

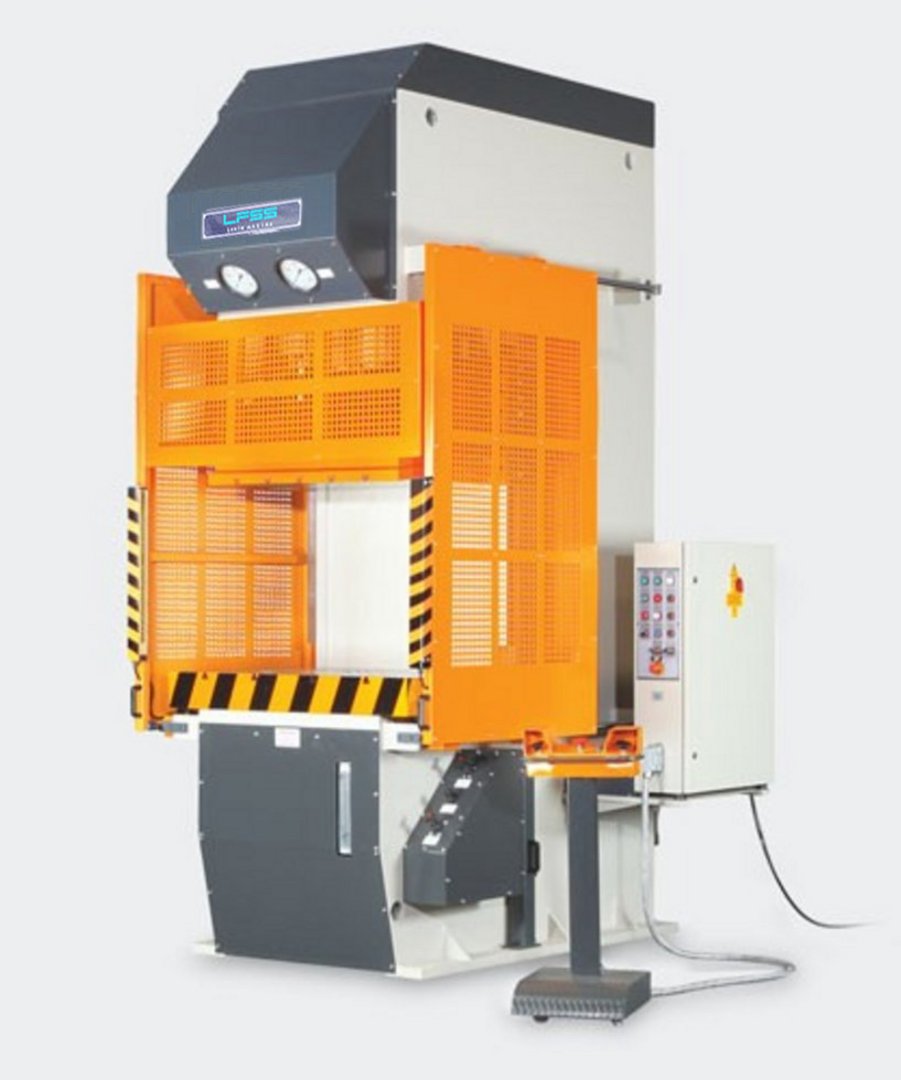

hydraulic single column drawing press HESSE by LFSS HKP-Z 60
| Model | HKP-Z 60 |
| Brand | HESSE by LFSS |
| Condition | new |
| pressing capacity | 60 to |
| Table | 600х1000 mm |
| Origin | Türkiye |
General characteristics
| pressing capacity | 60 to |
| Stroke | 350 mm |
| Ram | 550х850 mm |
| Table | 600х1000 mm |
| Daylight | 600 mm |
| Rapid speed | 100 mm/s |
| Working speed | 10 mm/s |
| Retraction speed | 165 mm/s |
| Motor | 11 kW |
| Working pressure | 170 bar |
| Die cushion pressing force | 24 to |
| Die cushion stroke | 150 mm |
| Table Drill Ø | 100 mm |
| Draw cushion working pressure | 156 bar |
| Draw cushion retraction speed | 65 mm/sec. |
| Draw cushion surface | 300х300 mm |
Dimensions and weight
| Length | 1950 mm |
| Width | 1750 mm |
| Height | 2900 mm |
| Weight | 5350 kg |
Description
light curtain
cushion
manual and automatic working
manual stroke adjustment by camshaft switch
maintenance free self lubricating 4-fold ram guiding
polster plate with T-slots
according to "CE" rules
