General characteristics
| pressing capacity | 125 to |
| Stroke | 500 mm |
| Ram | 800 x 400 mm |
| Table | 900 x 600 mm |
| Daylight | 600 mm |
| Throat depth | 300 mm |
| Rapid speed | 115 mm/s |
| Reduced speed | 42 mm/s |
| Working speed | 7 mm/s |
| Retraction speed | 70 mm/s |
| Motor | 15 kW |
Dimensions and weight
| Length | 1400 mm |
| Width | 1950 mm |
| Height | 2600 mm |
Description
4 guides for the slide
T-slots in the table
Rexroth hydraulic unit
Monitored electrovalves
Air/oil heat exchanger
Pressure switch
Double pushbuttons control
Stroke adjustment by limit switch microns
Siemens CPU
Lateral fixed protrection grates
CE certification following "IV enclosure"
Options (prices on request):
Blank holder
Prismatic guides
Frontal light curtain
CNC control Siemens with touchscreen
Hydraulic pump with variable flow
Proportional valves
Lateral sliding guides with security microns
Further information
Product video

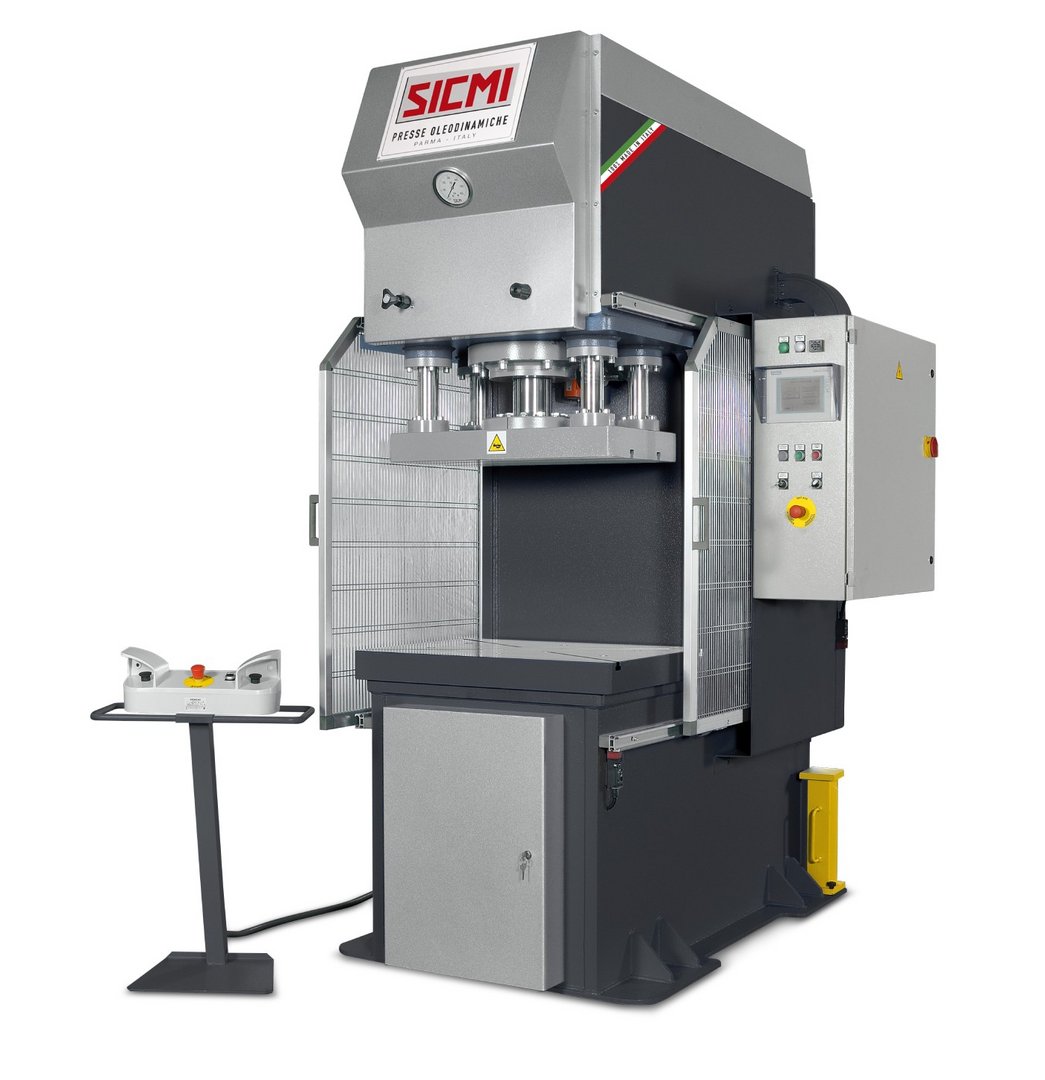

Hydraulic single column press MCL 125
