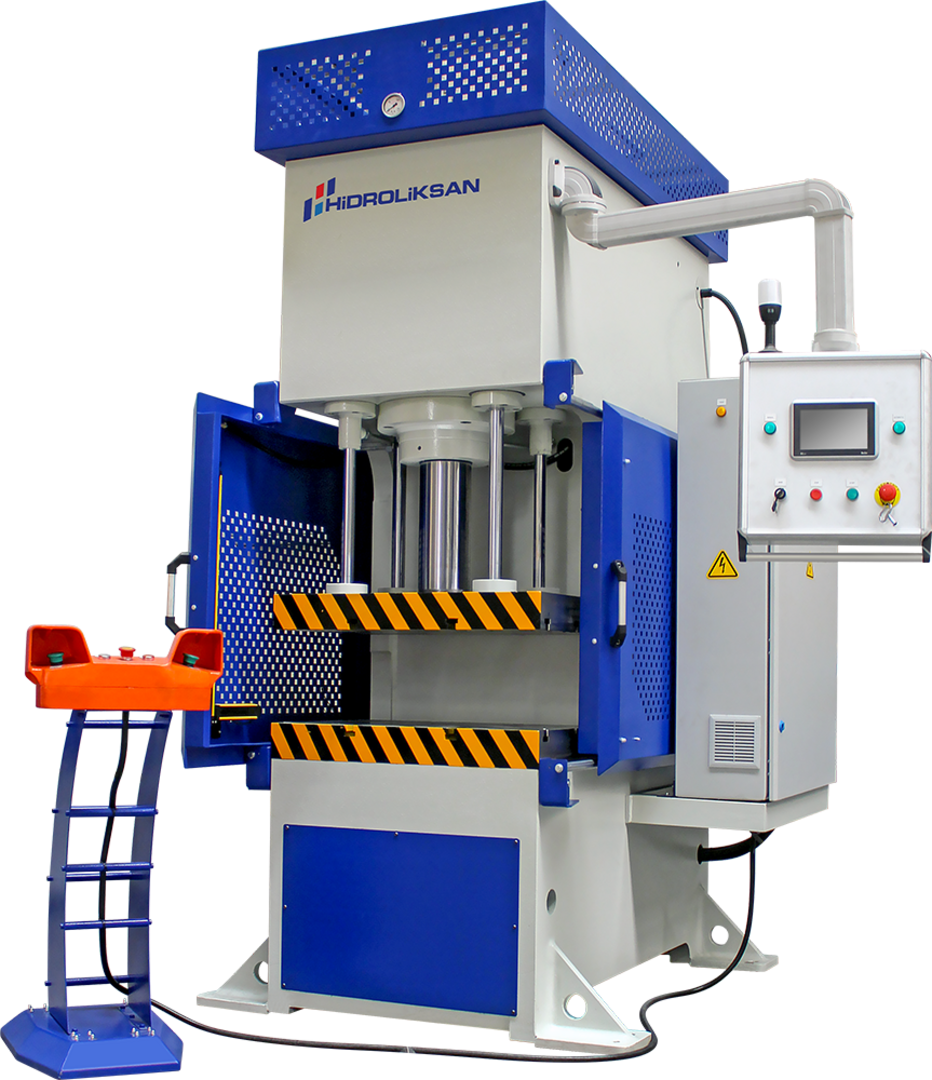

Hydraulic single column press HIDROLIKSAN CFSS 100
| Model | CFSS 100 |
| Brand | HIDROLIKSAN |
| Condition | new |
| pressing capacity | 100 to |
| Table | 800 x 500 mm mm |
| Origin | Türkiye |
General characteristics
| pressing capacity | 100 to |
| Stroke | 400 mm |
| Table | 800 x 500 mm mm |
| Daylight | 500 mm |
| Rapid speed | 110 mm/s |
| Working speed | 10 mm/s |
| Retraction speed | 160 mm/s |
| Motor | 11 kW |
| Working pressure | 250 bar |
Dimensions and weight
| Length | 1900 mm |
| Width | 1700 mm |
| Height | 2930 mm |
| Weight | 5500 kg |
Description
Welded monoblock frame
Cylinders hardened and chrome-plated
2 auxiliary cylinders and 2 round guides
T-slots can be configured according to customer requirements
Pump, valves, and filters from Bosch Rextroth
Hydraulic overload valve
Hydraulic proportional valve
Cooler
Siemens electrical components
8 additional signal inputs and outputs
7-inch touchscreen
Siemens S7 PLC
Stroke, pressure, speed, and dwell time adjustable via the PLC
Remote maintenance access
Sick light guards
Safety covers
Safety PLC from Siemens or Sick
Category 4 sensors and photoelectric switch
Two-hand control panel
Reset and emergency stop buttons
Equipped according to CE regulations
Further information
Brochures
Product video
Hydraulic single column press CFSS 100
