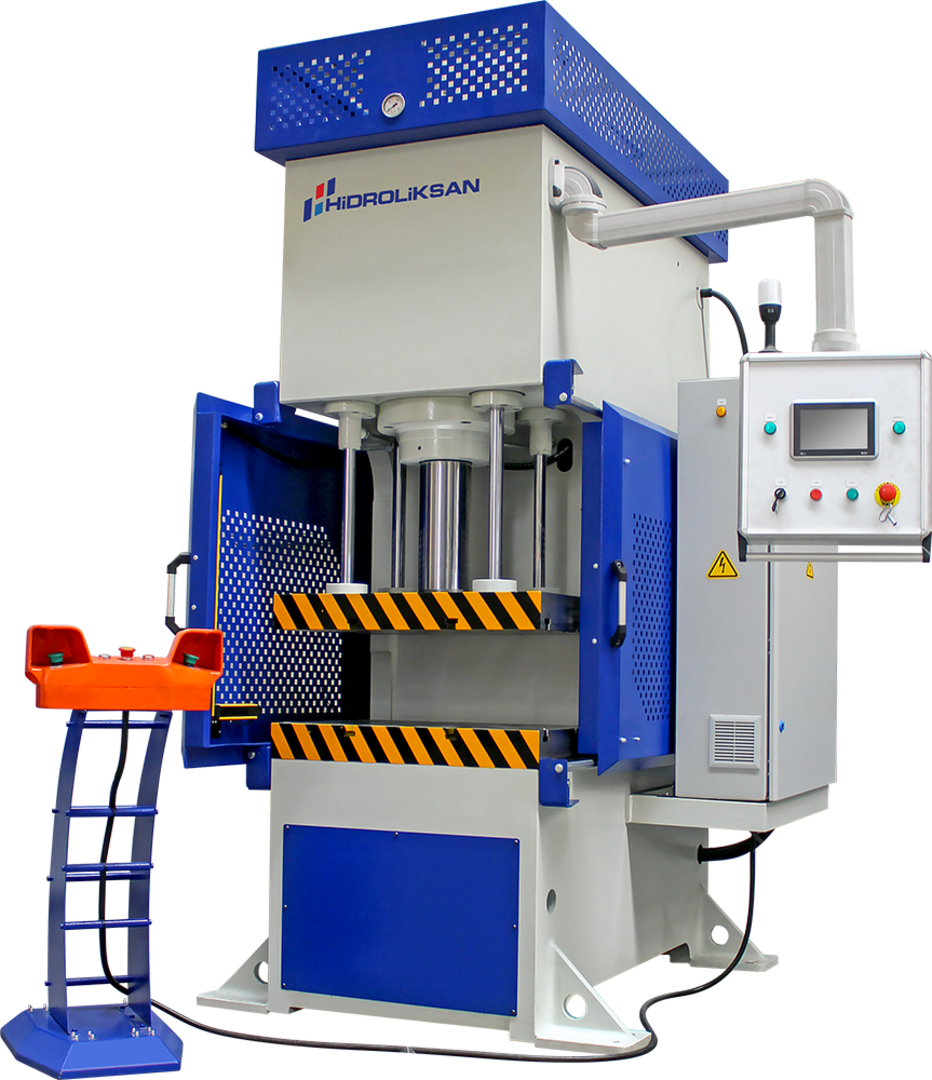

Hydraulic single column press HIDROLIKSAN CFSS 100 Servo
| Model | CFSS 100 Servo |
| Brand | HIDROLIKSAN |
| Condition | new |
| pressing capacity | 100 to |
| Table | 900 x 500 mm |
| Origin | Türkiye |
General characteristics
| pressing capacity | 100 to |
| Stroke | 600 mm |
| Table | 900 x 500 mm |
| Daylight | 800 mm |
| Throat depth | 400 mm |
| Rapid speed | 220 mm/s |
| Working speed | 1 - 20 mm/s |
| Retraction speed | 250 mm/s |
| Motor | 14 kW |
| Working pressure | 30 - 239 bar |
Dimensions and weight
| Length | 1900 mm |
| Width | 1700 mm |
| Height | 4400 mm |
| Weight | 6000 kg |
Description
Welded monoblock frame
Cylinders hardened and chrome-plated
2 auxiliary cylinders and 2 round guides
Pump, valves, and filters from Bosch Rextroth
Hydraulic overload valve
Cooler
Siemens electrical components
8 additional signal inputs and outputs
10-inch touchscreen
PLC Siemens S7 1200
Stroke, pressure, speed, and dwell time adjustable via the PLC
Remote maintenance access
Sick light guards
Safety covers
Safety PLC from Siemens or SickTwo-hand control panel
Reset and emergency stop buttons
Equipped according to CE regulations
