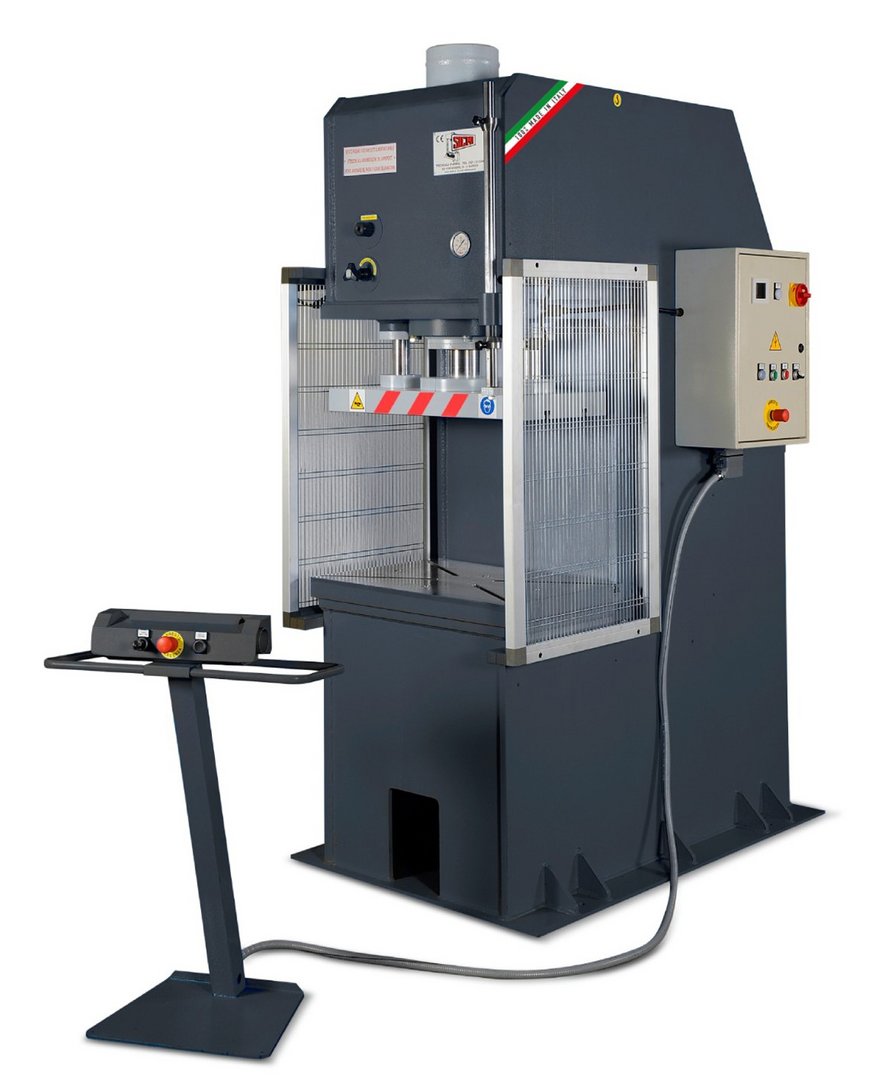

Hydraulic single column press SICMI PCL 70 A
| Model | PCL 70 A |
| Brand | SICMI |
| Condition | new |
| pressing capacity | 70 to |
| Table | 700x500 mm |
| Origin | Italy |
General characteristics
| pressing capacity | 70 to |
| Stroke | 500 mm |
| Ram | 700x350 mm |
| Table | 700x500 mm |
| Daylight | 500 mm |
| Throat depth | 250 mm |
| Rapid speed | 24 mm/s |
| Working speed | 5 mm/s |
| Motor | 4 kW |
Dimensions and weight
| Length | 1500 mm |
| Width | 1000 mm |
| Height | 2500 mm |
| Weight | 2100 kg |
Description
2-fold round guidance
table and ram with T-slots
2 hand operation
Siemens PLC
manometer
users manual
| 4-fold round guidings | € | on Request |
| Light barrier | € | on Request |
| Siemens control for programming of stroke and press time | € | on Request |
|
Siemens touchscreen-control, 50 programs storeable, for programming: • Upstroke and downstroke quota |
€ | on Request |
| Working hour counter | € | on Request |
| Stroke counter | € | on Request |
| Deompression valve | € | on Request |
| Oil cooler with decompreission valve | € | on Request |
| Pressure switch | € | on Request |
Further information
Brochures
Product video
Hydraulic single column press PCL 70 A
