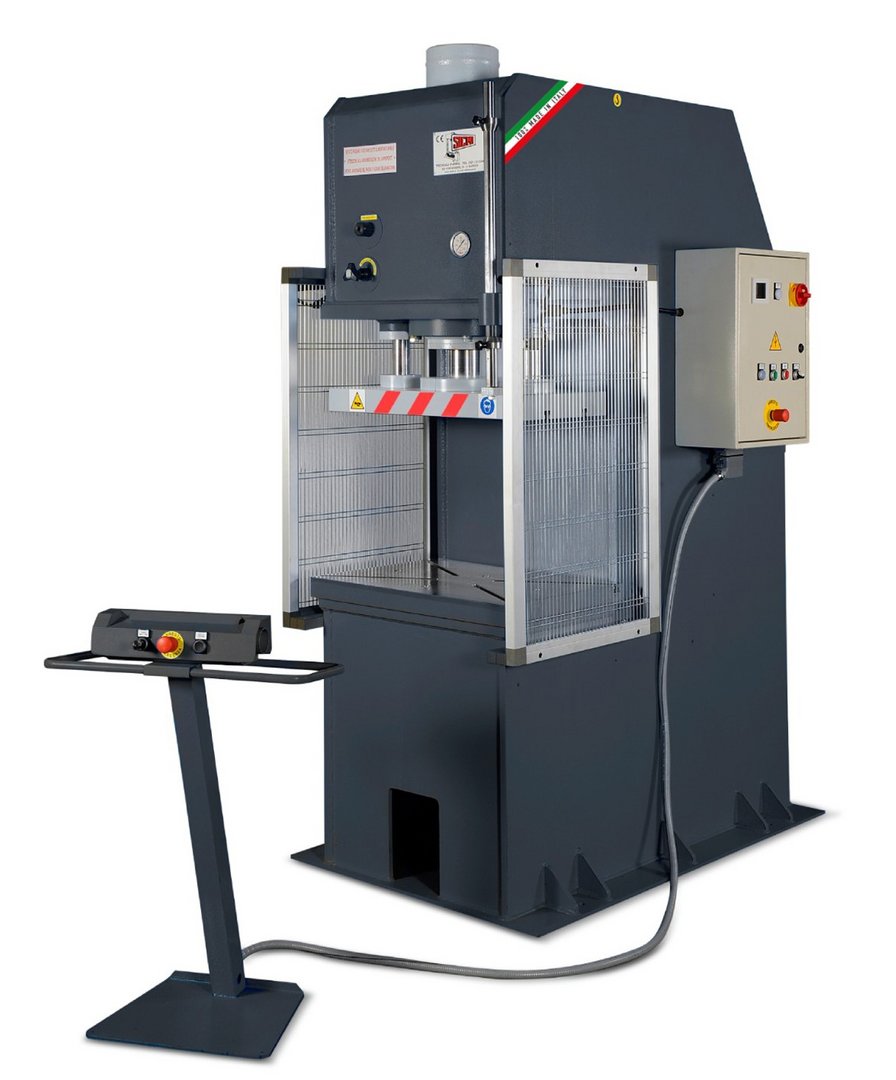

Hydraulic single column press SICMI PCL 200 A
| Model | PCL 200 A |
| Brand | SICMI |
| Condition | new |
| pressing capacity | 200 to |
| Table | 1000x600 mm |
| Origin | Italy |
General characteristics
| pressing capacity | 200 to |
| Stroke | 500 mm |
| Ram | 870x500 mm |
| Table | 1000x600 mm |
| Daylight | 500 mm |
| Throat depth | 300 mm |
| Rapid speed | 21 mm/s |
| Working speed | 3 mm/s |
| Motor | 7.5 kW |
Dimensions and weight
| Length | 2300 mm |
| Width | 1500 mm |
| Height | 3000 mm |
| Weight | 8200 kg |
Description
2-fold round guidance
table and ram with T-slots
2 hand operation
Siemens PLC
manometer
users manual
| Options: | ||
| Light barrier | € | on Request |
| Siemens control for programming of stroke and press time | € | on Request |
|
Siemens touchscreen-control, 50 programs storeable, for programming: • Upstroke and downstroke quota |
€ | on Request |
| Working hour counter | € | on Request |
| Stroke counter | € | on Request |
| Deompression valve | € | on Request |
| Oil cooler with decompreission valve | € | on Request |
| Pressure switch | € | on Request |
Further information
Brochures
Product video
Hydraulic single column press PCL 200 A
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
