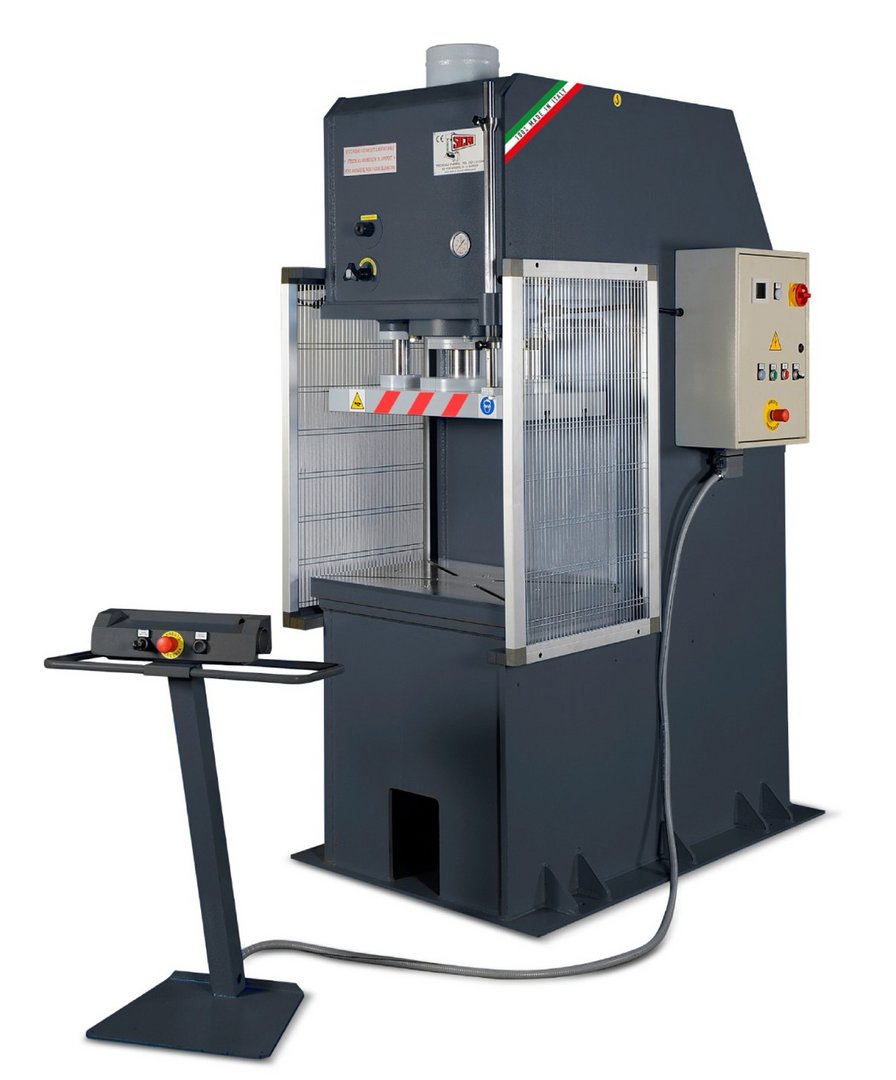

Hydraulic single column press SICMI PCL 300 A
| Model | PCL 300 A |
| Brand | SICMI |
| Condition | new |
| pressing capacity | 300 to |
| Table | 1200x800 mm |
| Origin | Italy |
General characteristics
| pressing capacity | 300 to |
| Stroke | 500 mm |
| Ram | 1000x500 mm |
| Table | 1200x800 mm |
| Daylight | 600 mm |
| Throat depth | 400 mm |
| Rapid speed | 22 mm/s |
| Working speed | 2 mm/s |
| Motor | 7.5 kW |
Dimensions and weight
| Length | 2300 mm |
| Width | 1500 mm |
| Height | 3100 mm |
| Weight | 11200 kg |
Description
4-fold round guidance
table and ram with T-slots
2 hand operation
Siemens PLC
manometer
users manual
| Light barrier | € | on Request |
| Siemens control for programming of stroke and press time | € | on Request |
|
Siemens touchscreen-control, 50 programs storeable, for programming: • Upstroke and downstroke quota |
€ | on Request |
| Working hour counter | € | on Request |
| Stroke counter | € | on Request |
| Deompression valve | € | on Request |
| Oil cooler with decompreission valve | € | on Request |
| Pressure switch | € | on Request |
Further information
Brochures
Product video
Hydraulic single column press PCL 300 A
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
