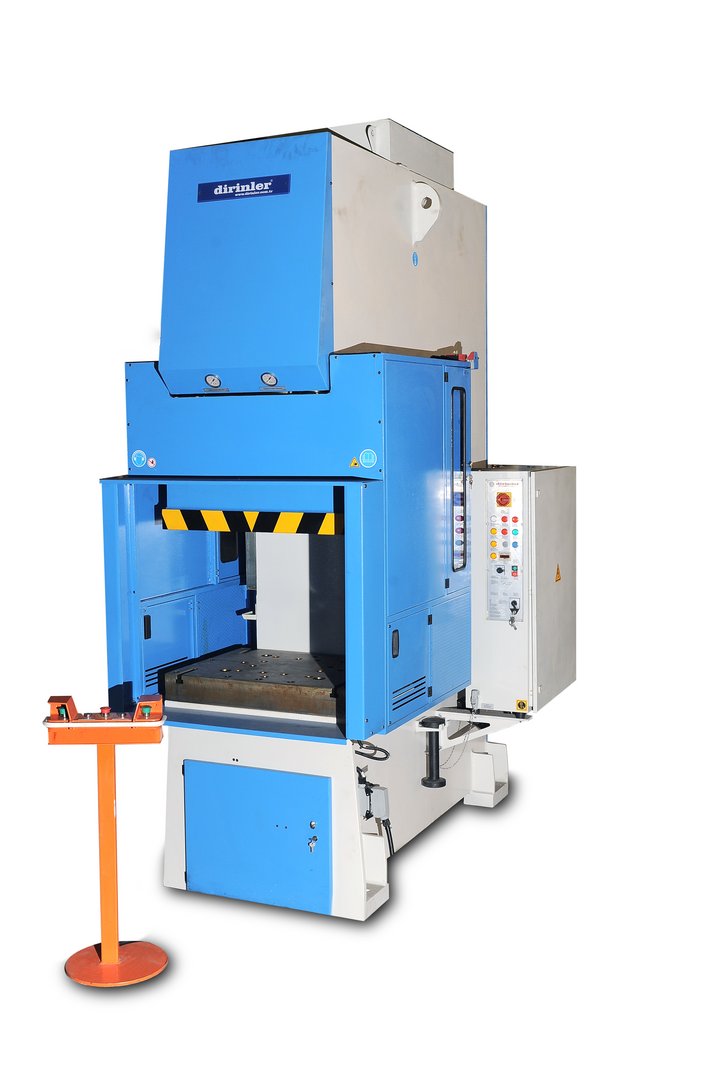

Hydraulic single column press HESSE by DIRINLER CDHC 1000
| Model | CDHC 1000 |
| Brand | HESSE by DIRINLER |
| Condition | new |
| pressing capacity | 100 to |
| Table | 850x640 mm |
| Origin | Türkiye |
General characteristics
| pressing capacity | 100 to |
| Stroke | 400 mm |
| Ram | 850x630 mm |
| Table | 850x640 mm |
| Daylight | 685 mm |
| Rapid speed | 250 mm/s |
| Working speed | 10-20 mm/s |
| Motor | 11 kW |
Dimensions and weight
| Length | 2030 mm |
| Width | 1150 mm |
| Height | 3565 mm |
| Weight | 7700 kg |
Description
NC control with touchscreen
8-fold ram guide
table and ram with T-slots
2 hand operation
pressure adjustment
stroke adjustment
die cushion
central lubrication system
light guard
user manual in German or English
according to CE rules
