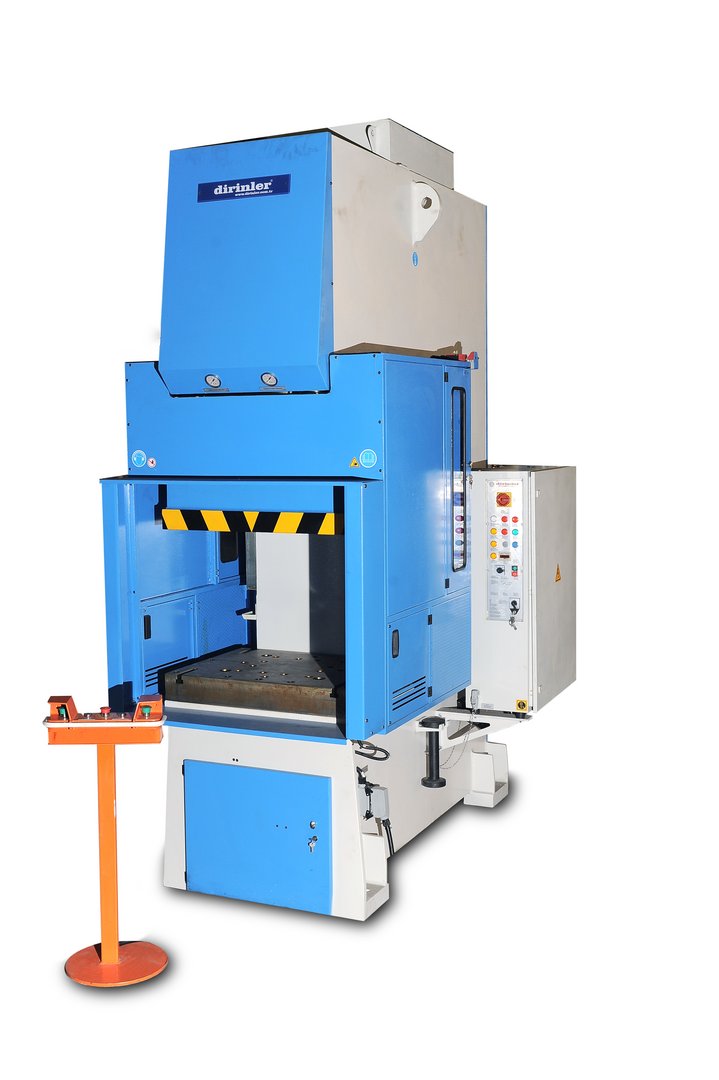

Hydraulic single column press HESSE by DIRINLER CDHC 1600
| Model | CDHC 1600 |
| Brand | HESSE by DIRINLER |
| Condition | new |
| pressing capacity | 160 to |
| Table | 1000x750 mm |
| Origin | Türkiye |
General characteristics
| pressing capacity | 160 to |
| Stroke | 400 mm |
| Ram | 1000x680 mm |
| Table | 1000x750 mm |
| Daylight | 765 mm |
| Rapid speed | 250 mm/s |
| Working speed | 10-20 mm/s |
| Motor | 22 kW |
Dimensions and weight
| Length | 2400 mm |
| Width | 1525 mm |
| Height | 3900 mm |
| Weight | 10500 kg |
Description
NC control with touchscreen
8-fold ram guide
table and ram with T-slots
2 hand operation
pressure adjustment
stroke adjustment
die cushion
central lubrication system
light guard
user manual in German or English
according to CE rules
