General characteristics
| pressing capacity | 100 to |
| Stroke | 500 mm |
| Ram | 700 x 350 mm |
| Table | 800 x 600 mm |
| Daylight | 500 mm |
| Throat depth | 300 mm |
| Rapid speed | 25 mm/s |
| Working speed | 4 mm/s |
| Motor | 4 kW |
Dimensions and weight
| Length | 1900 mm |
| Width | 1200 mm |
| Height | 2600 mm |
| Weight | 2100 kg |
Description

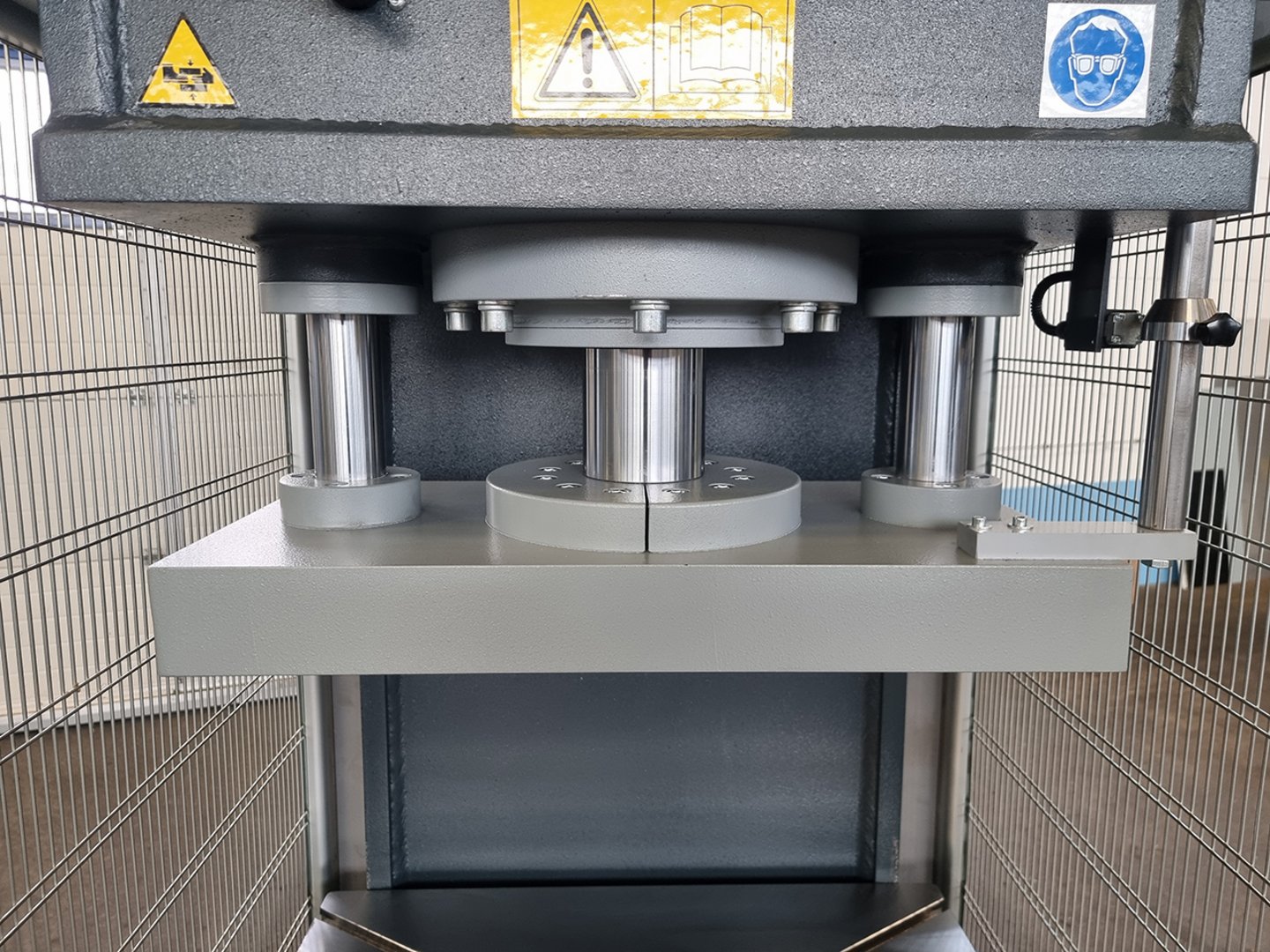

2-fold round guidance
table and ram with T-slots

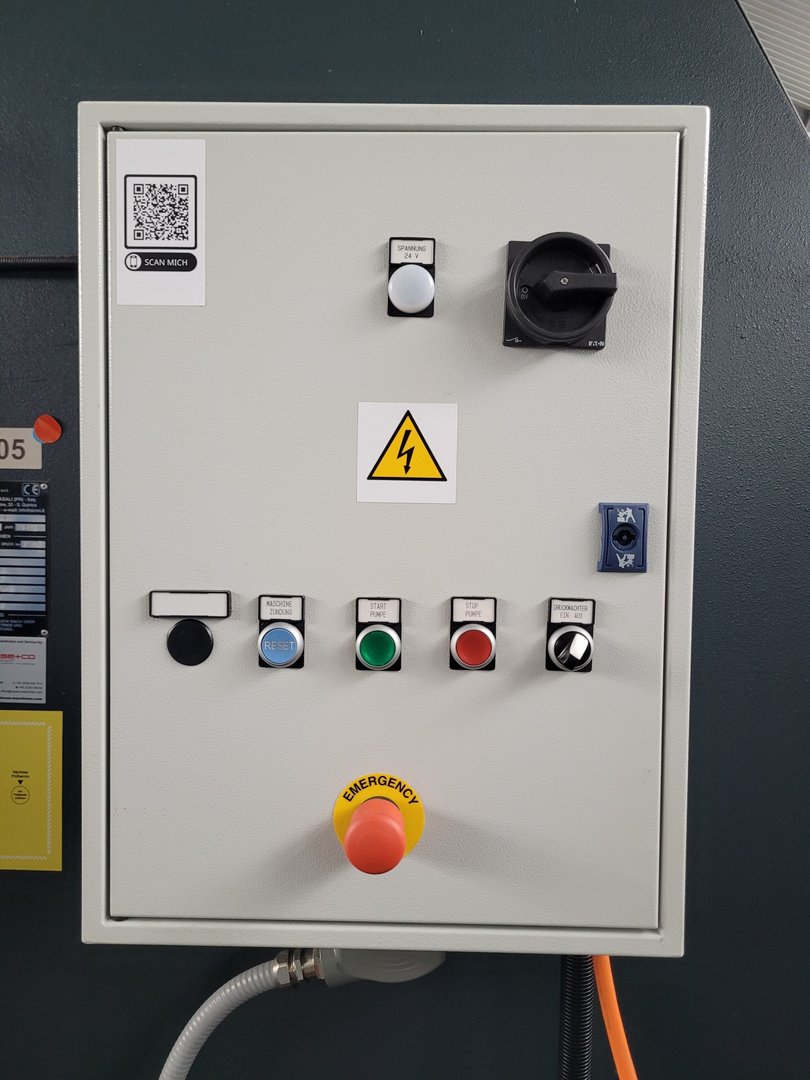

2 hand operation
Siemens PLC

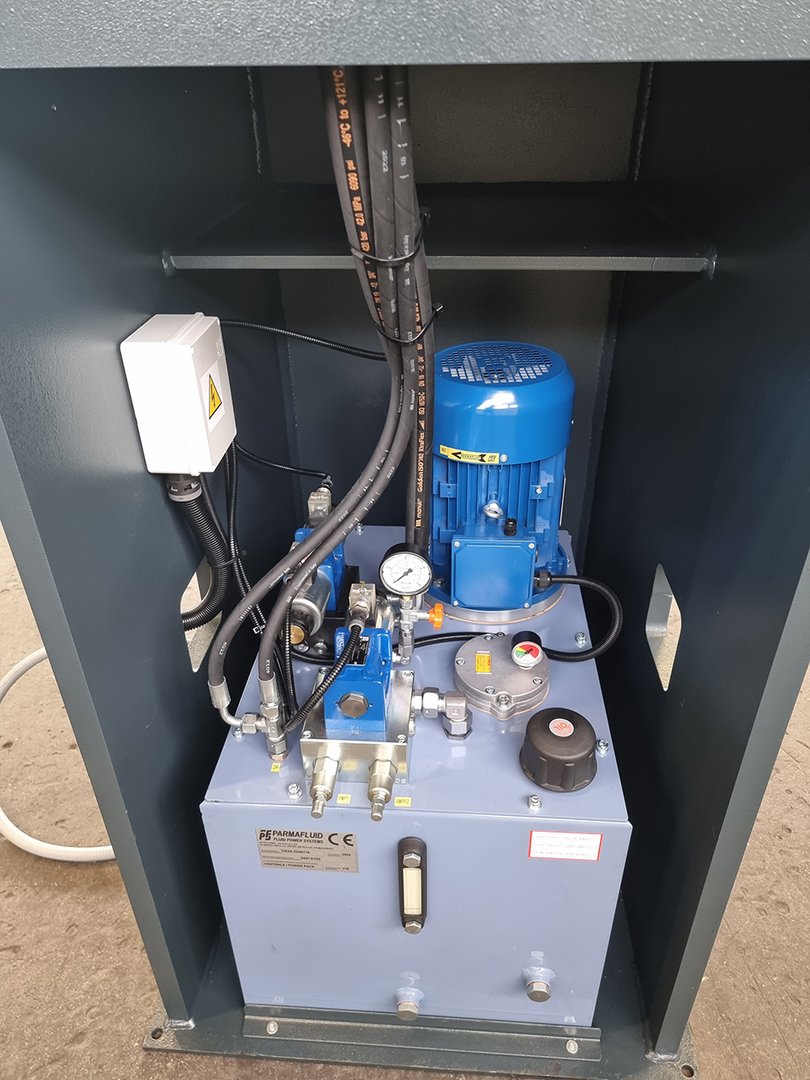

manometer
users manual
incl. pressure switch
Options:
time of delivery with options 2 - 3 months from order
| 4-fold round guidings | € | 1.900,- |
| Light barrier | € | 7.300,- |
| Siemens control for programming of stroke and press time | € | 4.000,- |
|
Siemens touchscreen-control, 50 programs storeable, for programming: • Upstroke and downstroke quota |
€ | 9.000,- |
| Working hour counter | € | 400,- |
| Stroke counter | € | 400,- |
| Deompression valve | € | 700,- |
| Oil cooler with decompreission valve | € | 3.700,- |
| Pressure switch | € | incl. |
Further information
Brochures
Product video

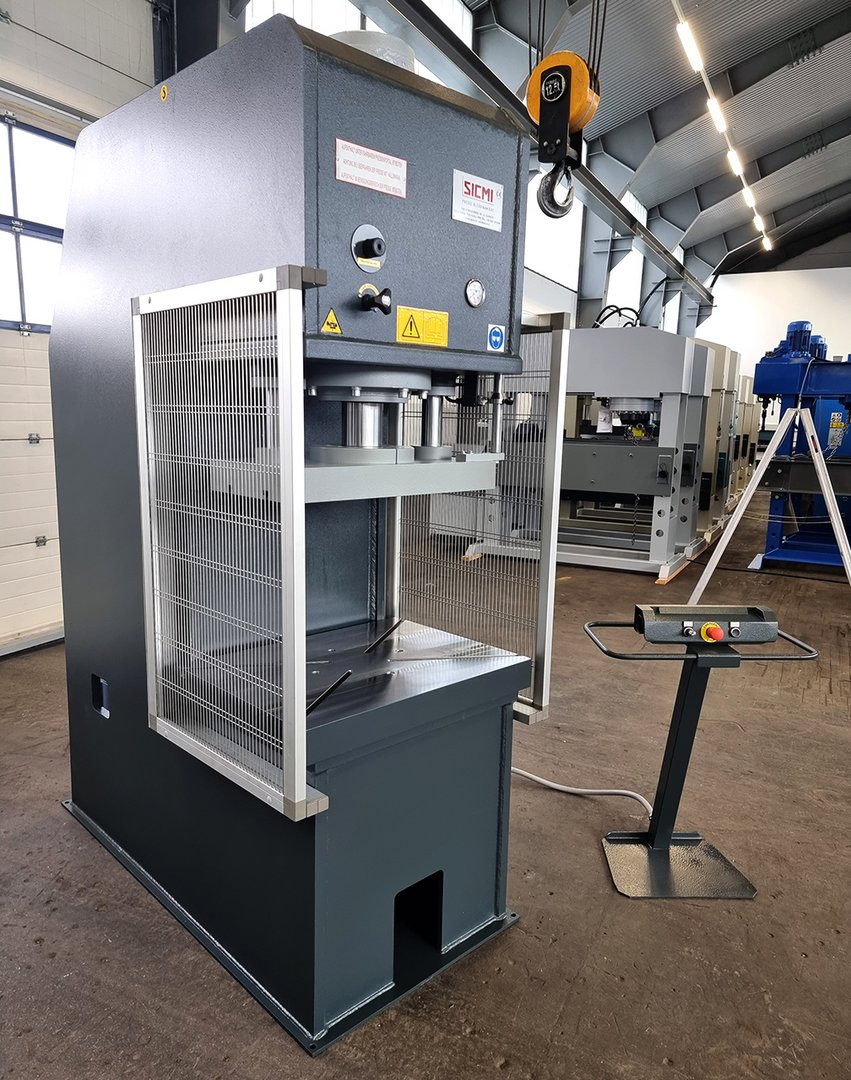

Hydraulic single column press PCL 100 A
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
