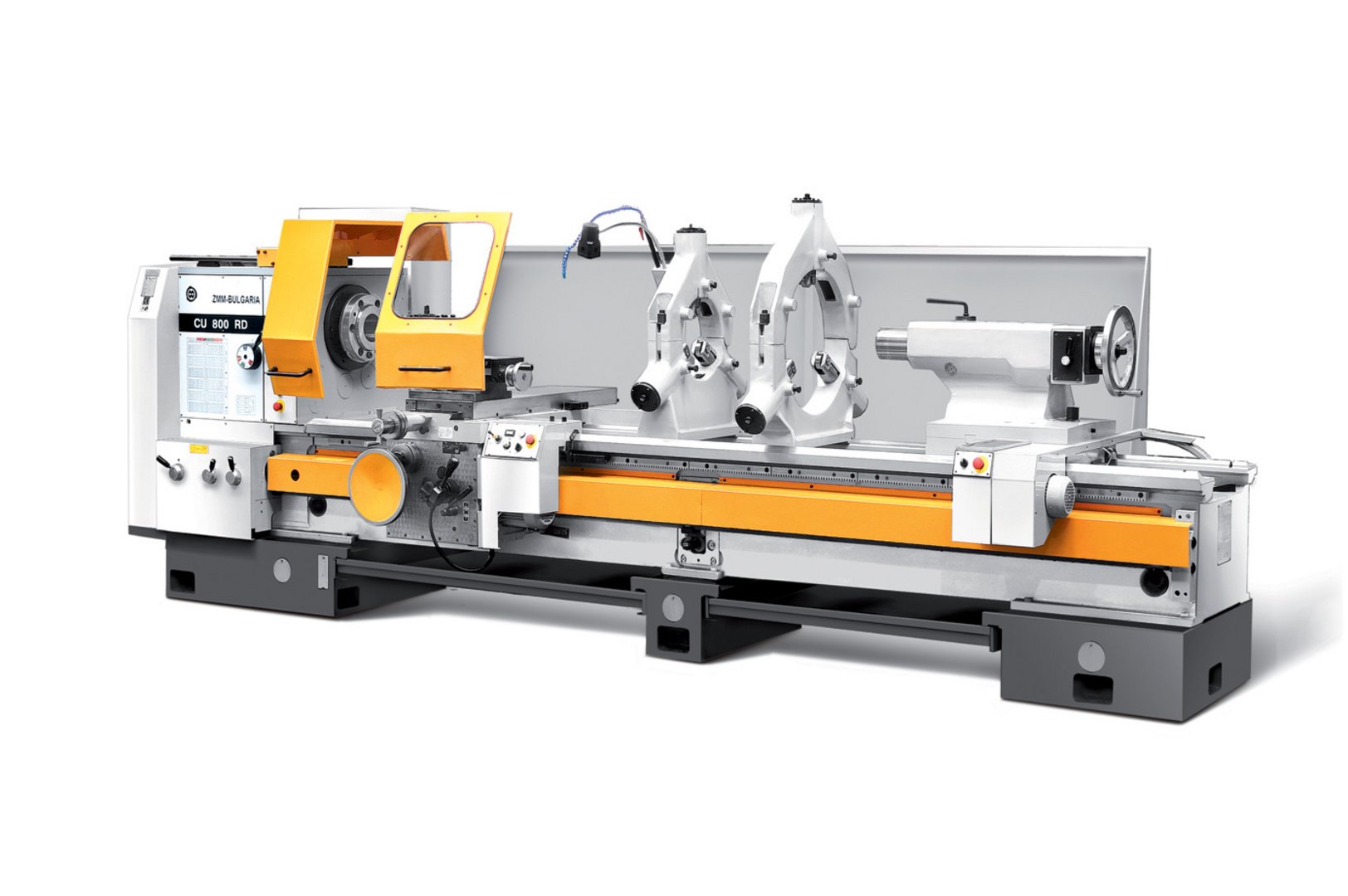

Centre lathes ZMM CU 1000 RD
| Model | CU 1000 RD |
| Brand | ZMM |
| Condition | new |
| Swing over bed | 1090 mm |
| Distance between centers | 3000 mm |
| Origin | Bulgaria |
General characteristics
| Swing over bed | 1090 mm |
| Distance between centers | 3000 mm |
| Centre height | 500 mm |
| Spindle bore | 155 mm |
| swing over cross slide | 690 mm |
| Width of bed | 700 mm |
| Spindle nose / DIN55027 | 15 |
| Spindle taper | 160 M |
| Revs continuous variable in gear steps | 4 |
| Revs continuous variable | 3,7 - 15,6; 14,7 - 62; 58 - 250; 235 - 1.000 rpm |
| Number of feeds | 160 |
| Longitudinal feed range | 0.032 - 38.9 mm/r |
| Cross feed range | 0.016 - 19.45 mm/r |
| Metric thread range | 0.5 - 480 mm |
| Inch thread range | 60 - 1/16 Tpi |
| Module thread range | 0.125 - 120 |
| DP thread range | 240 |
| Cross slide travel | 525 mm |
| Top slide travel | 270 mm |
| Tailstock quill diameter | 125 mm |
| Tailstock quill taper | 6 MK |
| Tailstock travel | 260 mm |
| Motor power | 30 kW |
Dimensions and weight
| Weight | 8050 kg |
Description
driven by variable speed control (4 steps)
3-axes digital readout FAGOR with CSS (constant surface speed)
quick change toolpost Amestra with 4 holders (3 square, 1 round)
3-jaw chuck Bison 3204/DIN6350, Ø 500 mm
spindle dead center
coolant equipment
full length rear splash guard
leadscrew and shaft protection
safety guard for the chuck
toolholder guard
levelling bolts and plates
tailstock quill reducer
electric motor movement of tailstock
low voltage machine lamp
operating manual
machine according to "CE"
Further turning lengths:
| turning length 1.500 mm | € 106.960,- |
| turning length 4.000 mm | € 129.290,- |
| turning length 5.000 mm | € 140.230,- |
| turning length 6.000 mm | € 156.330,- |
Further information
Brochures
Product video
Centre lathes CU 1000 RD
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
