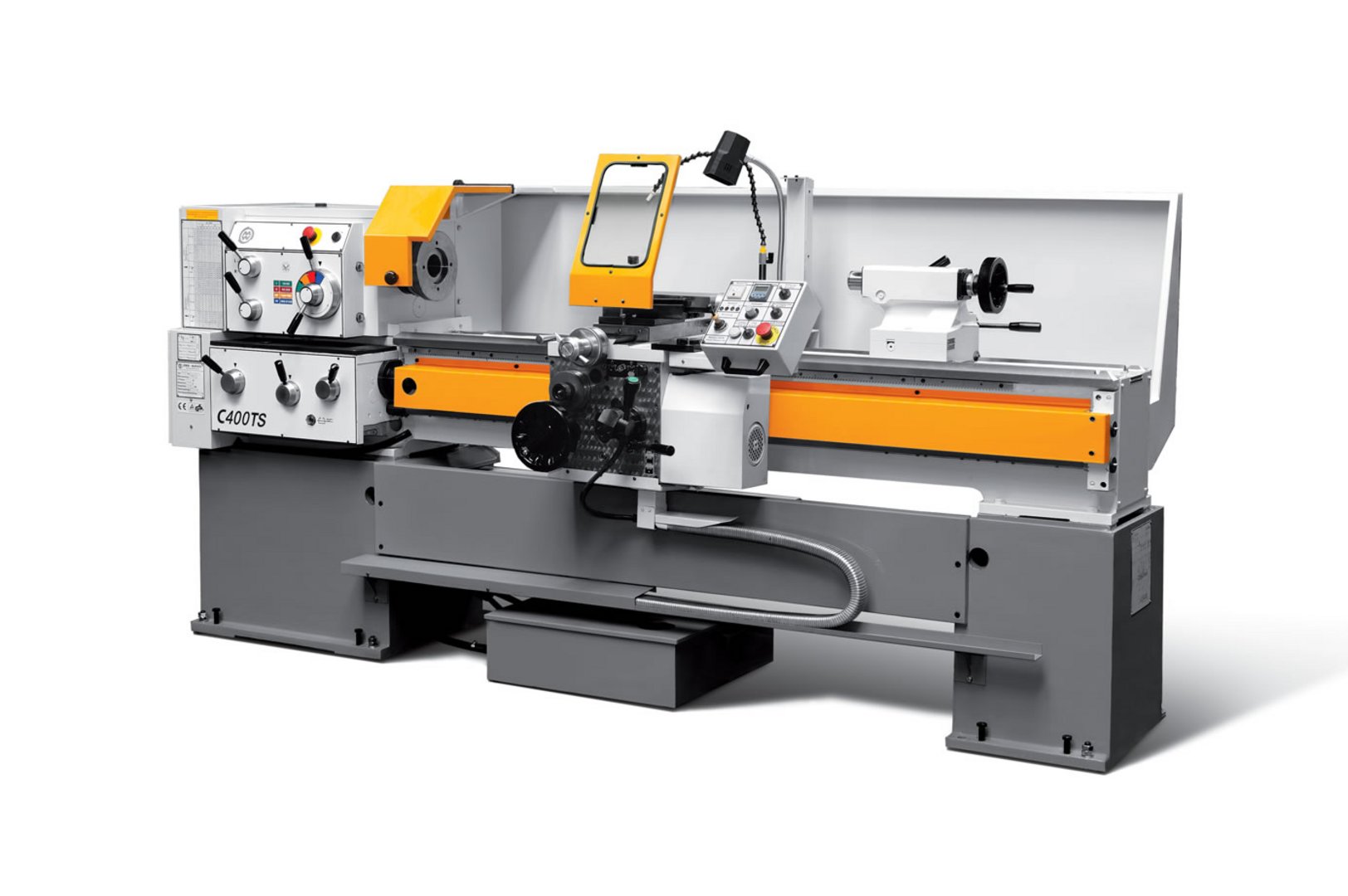

Centre lathes ZMM C 400 TS
| Model | C 400 TS |
| Brand | ZMM |
| Condition | new |
| Swing over bed | 400 mm |
| Distance between centers | 750 mm |
| Origin | Bulgaria |
General characteristics
| Swing over bed | 400 mm |
| Distance between centers | 750 mm |
| Centre height | 200 mm |
| Spindle bore | 52 mm |
| swing over cross slide | 235 mm |
| Width of bed | 320 mm |
| Spindle nose / DIN55027 | 6 |
| Spindle taper | 6 M |
| Revs continuous variable in gear steps | 4 |
| Revs continuous variable | 18-98; 48-265; 144-790; 385-2.120 U/min rpm |
| Number of feeds | 80 |
| Longitudinal feed range | 0.015 - 0.6 mm/r |
| Cross feed range | 0.0075 - 0.3 mm/r |
| Number of threads | 40 |
| Metric thread range | 0.25 - 7.5 mm |
| Inch thread range | 120 - 4 Tpi |
| Module thread range | 0.0625 - 1.875 |
| DP thread range | Array |
| Cross slide travel | 235 mm |
| Top slide travel | 110 mm |
| Tailstock quill diameter | 50 mm |
| Tailstock quill taper | 4 MK |
| Tailstock travel | 100 mm |
| Motor power | 7.5 kW |
Dimensions and weight
| Weight | 1530 kg |
Description
driven by variable speed control (4 steps)
3-axes digital readout FAGOR with CSS (constant surface speed)
quick change toolpost Amestra with 4 holders (3 square, 1 round)
3-jaw chuck Bison 3204/DIN6350, Ø 200 mm
spindle dead center
coolant equipment
full length rear splash guard
leadscrew and shaft protection
safety guard for the chuck
toolholder guard
levelling bolts and plates
quick release tailstock
low voltage machine lamp
operating manual
machine according to "CE"
Further turning lengths:
| turning length 1.000 mm | € 39.950,- |
| turning length 1.500 mm | € 40.980,- |
Further information
Brochures
Product video
Centre lathes C 400 TS
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
