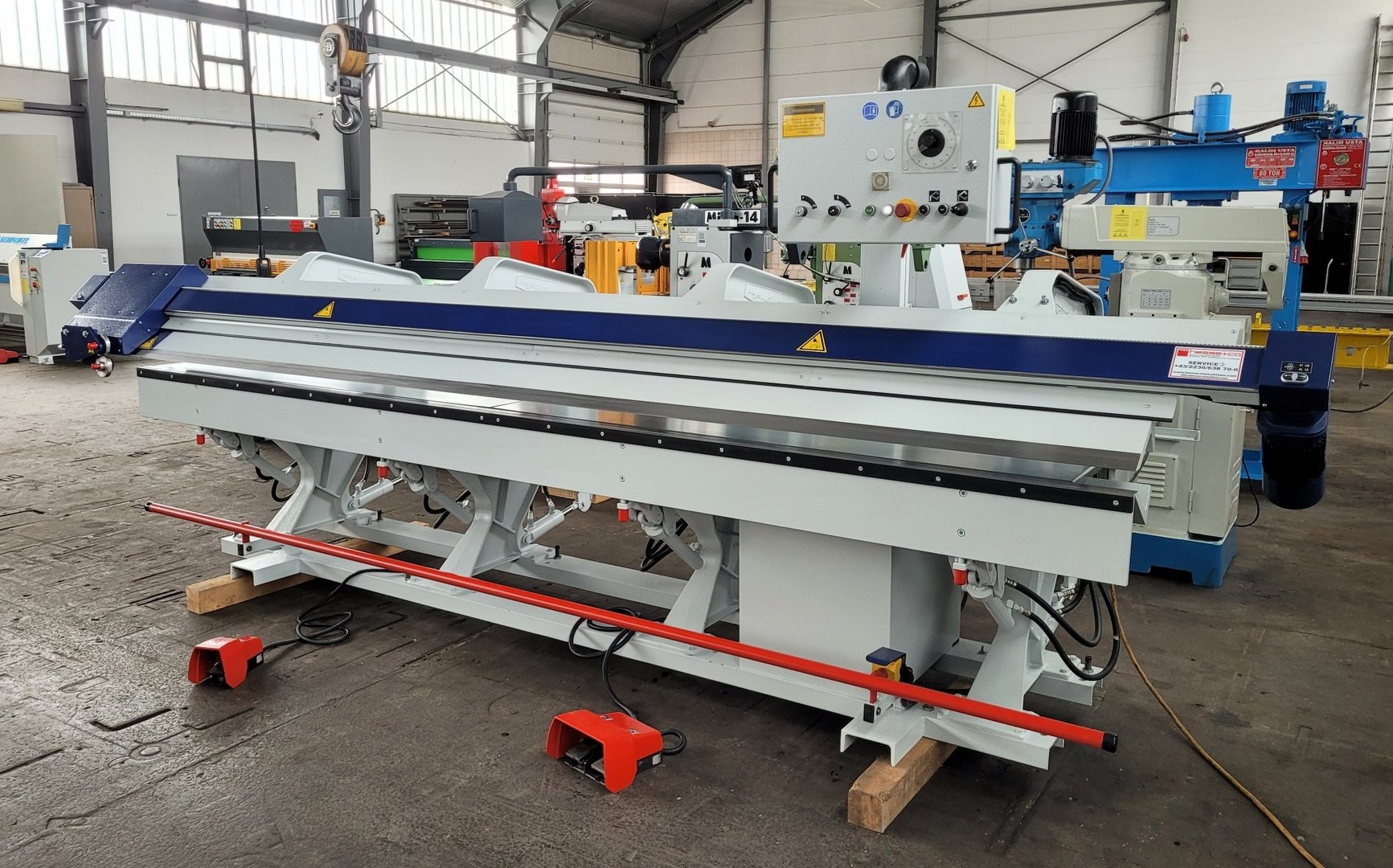

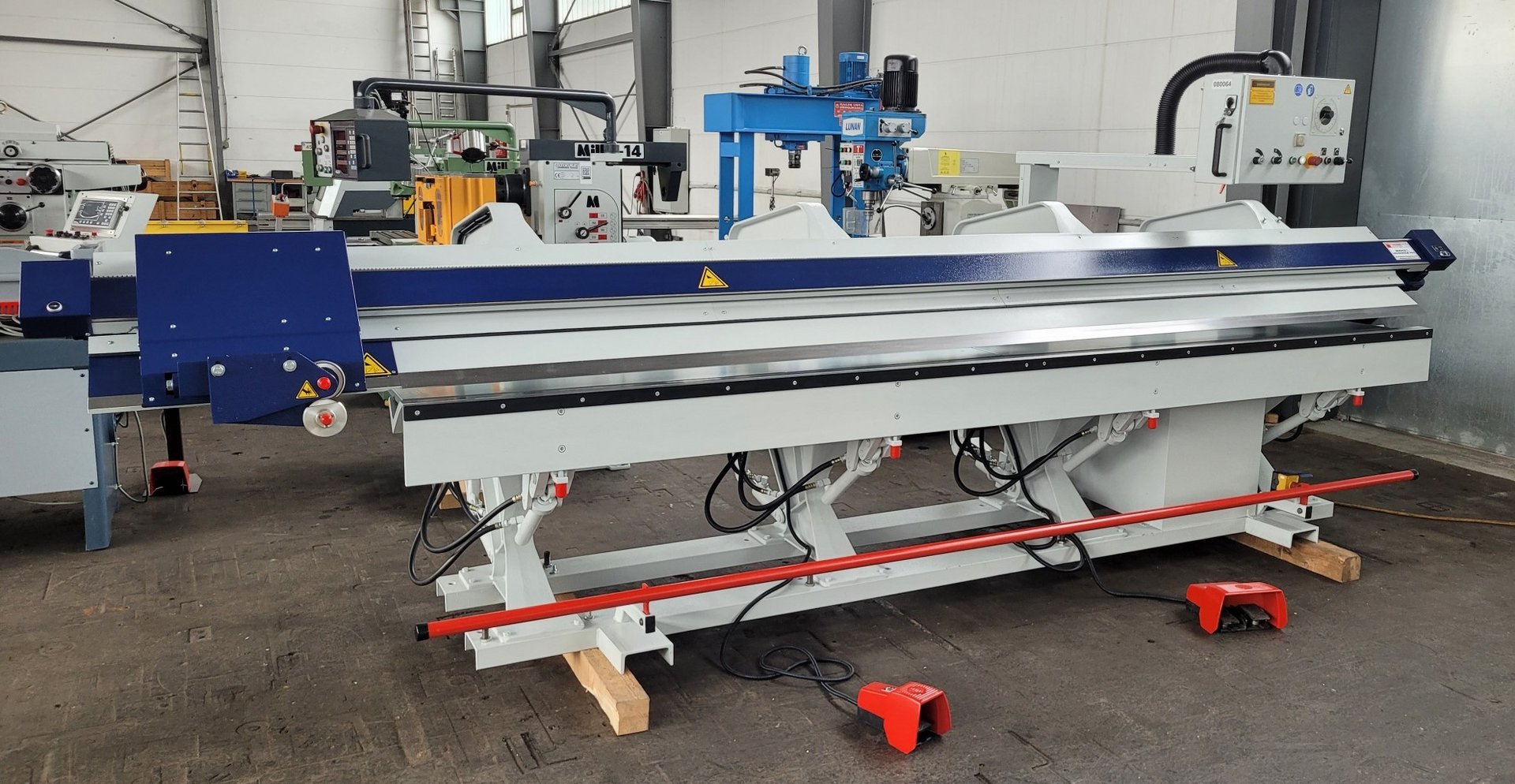

Hydraulic long folding machine BIEGEMASTER BMTH 4.1,25 V
| Model | BMTH 4.1,25 V |
| Brand | BIEGEMASTER |
| Condition | used |
| Bending length | 4010 mm |
| Bending capacity steel 400 N/mm² | 1.25 mm |
| Stock number | 80064 |
| Origin | Germany |
General characteristics
| Bending length | 4010 mm |
| Bending capacity steel 400 N/mm² | 1.25 mm |
| Bending capacity Alu 190 N/mm² | 2 mm |
| Cutting capacity electrical shear | 1.25 mm |
| No. of stand and tension arm units | 4 |
| No. of driven linkage assemblies | 4 |
| Sheet insertion depth | 1000 mm |
| Opening of upper beam | 190 mm |
| Working height | 835 mm |

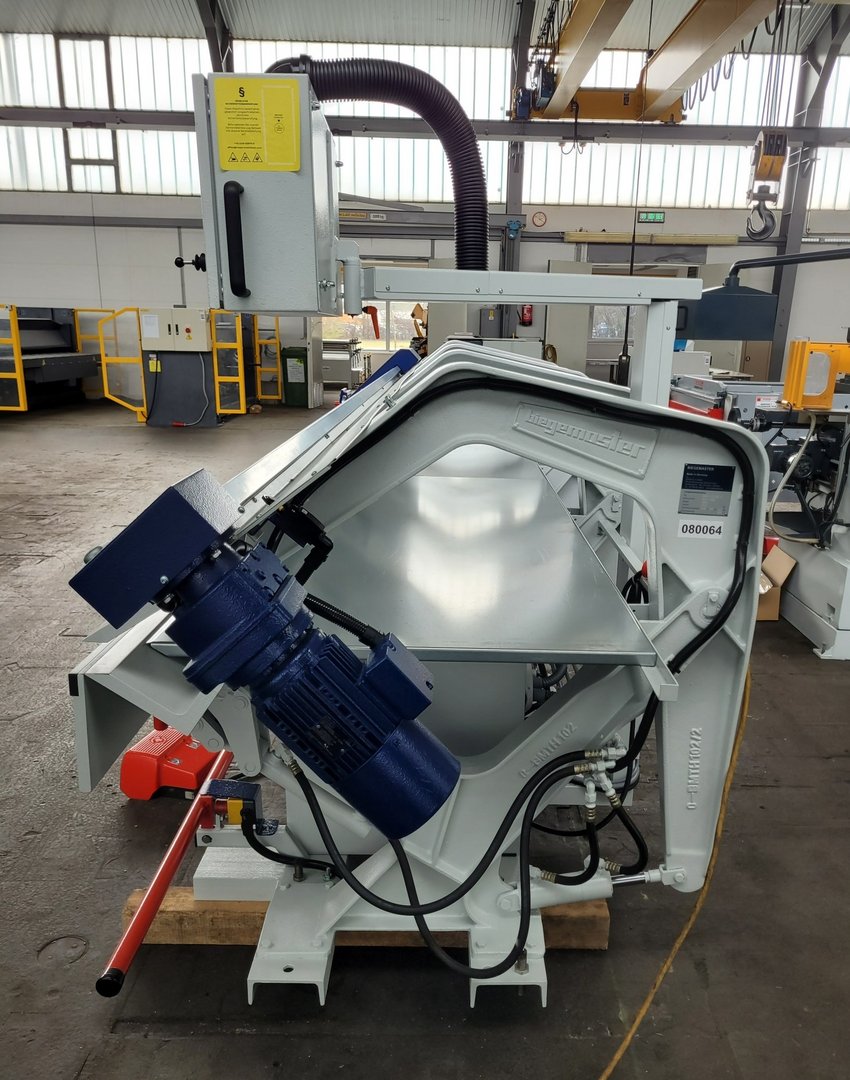

| Motor | 2.2 kW |
Dimensions and weight
| Length with electrical shear | 5200 mm |
| Width | 1300 mm |
| Height | 1900 mm |
| Weight | 1550 kg |
Description
Refurbished by the manufacturer in 2025 / Machine body built in 1992

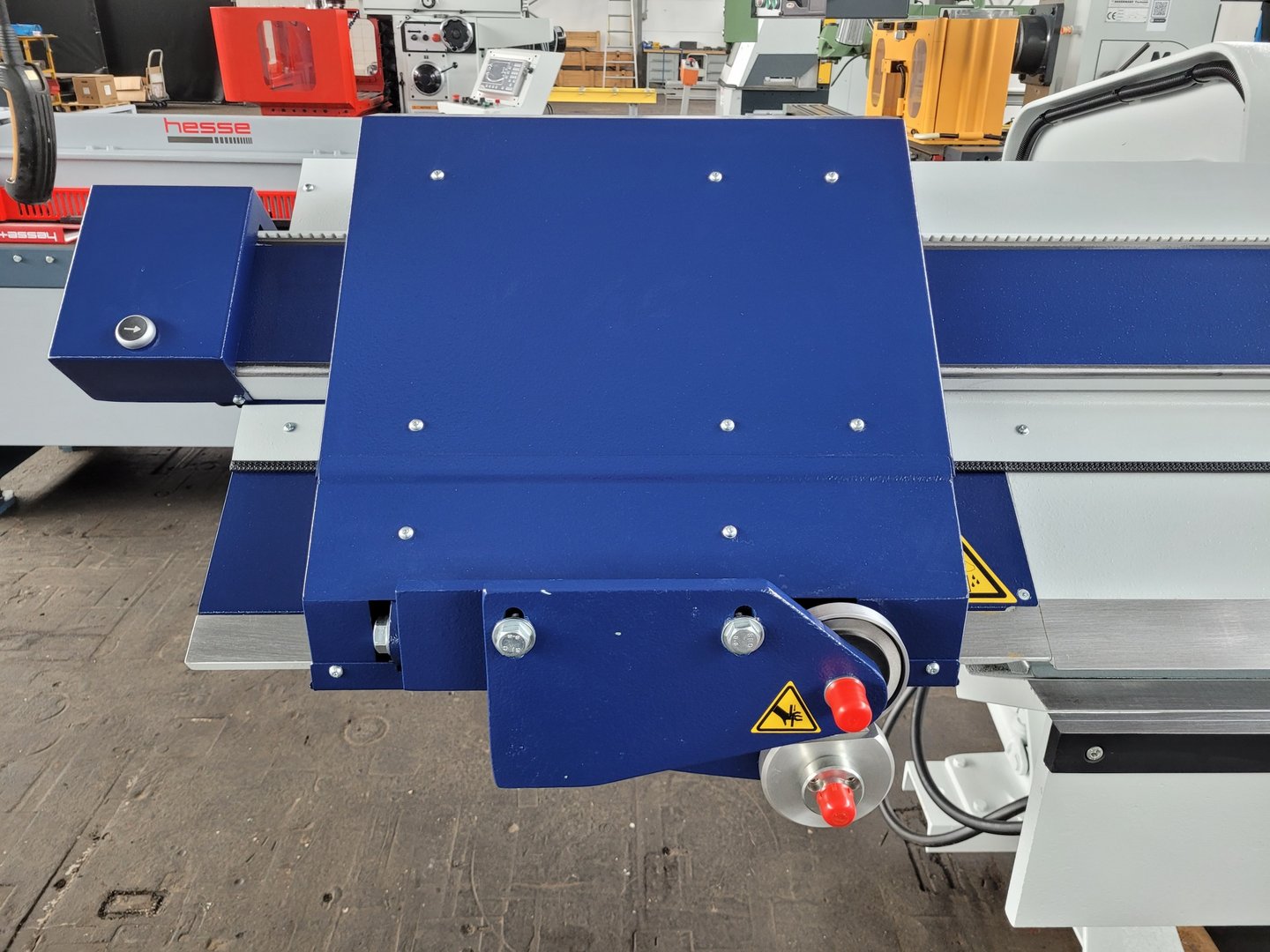

Electric cutting device

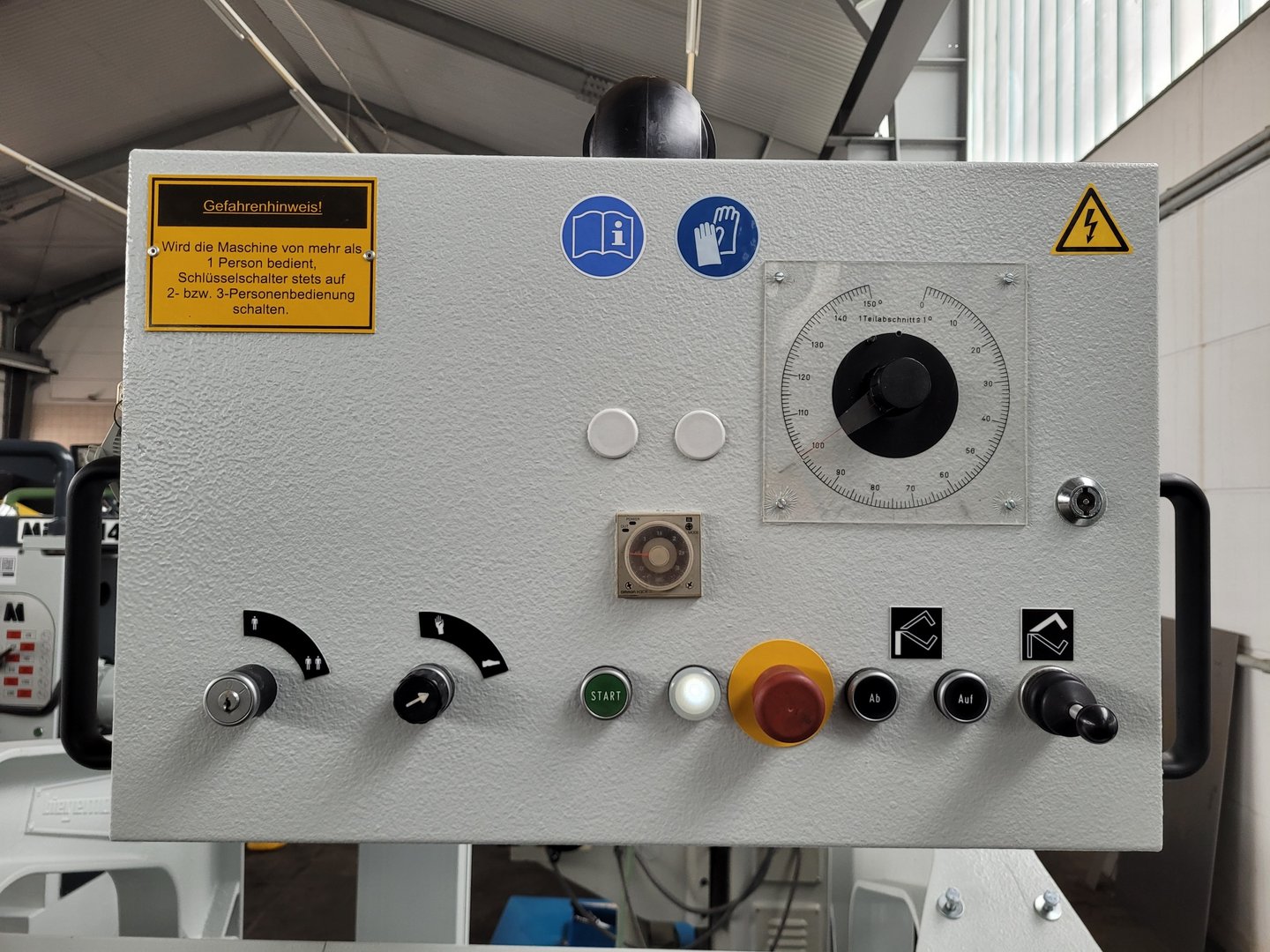

Angle pre-selection via rotary control
Opening of upper beam continous variable adjustable
Foot pedal
2-operator mode by 2nd foot pedal
Operating instructions in GERMAN incl. CE declaration of conformity
Further information
Product video
Hydraulic long folding machine BMTH 4.1,25 V
