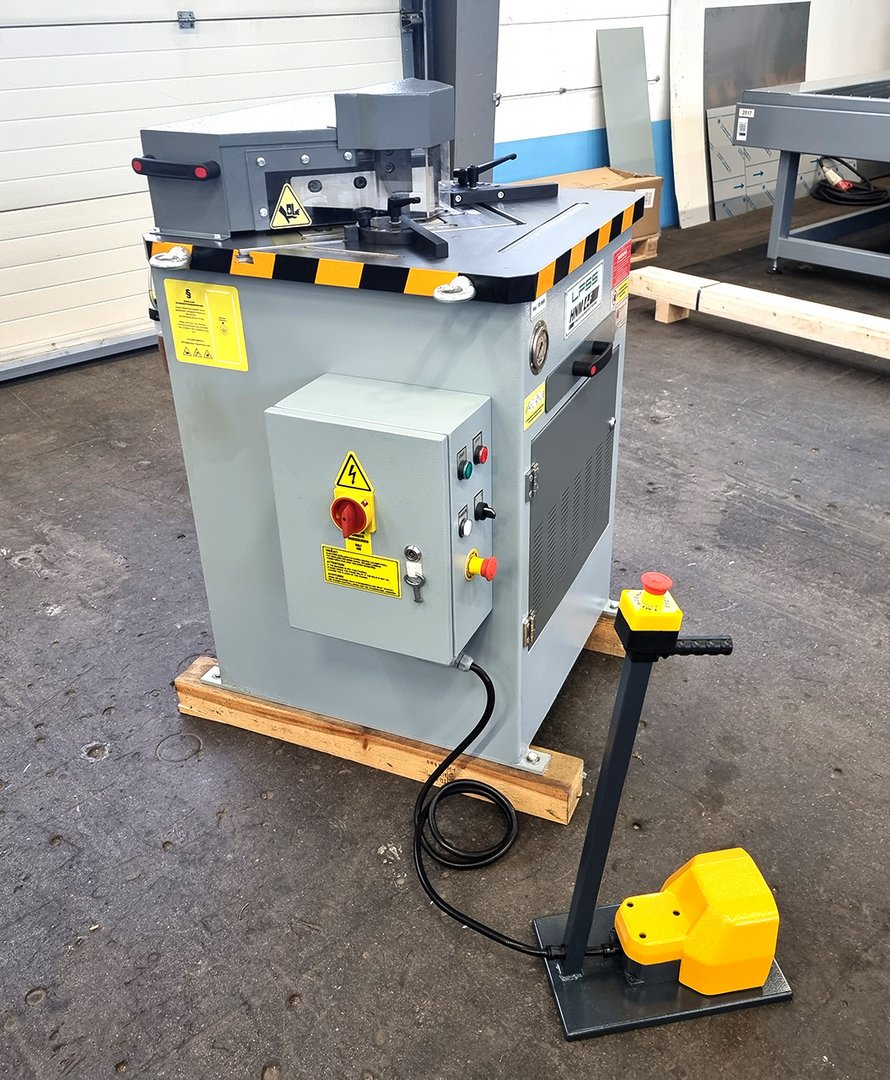

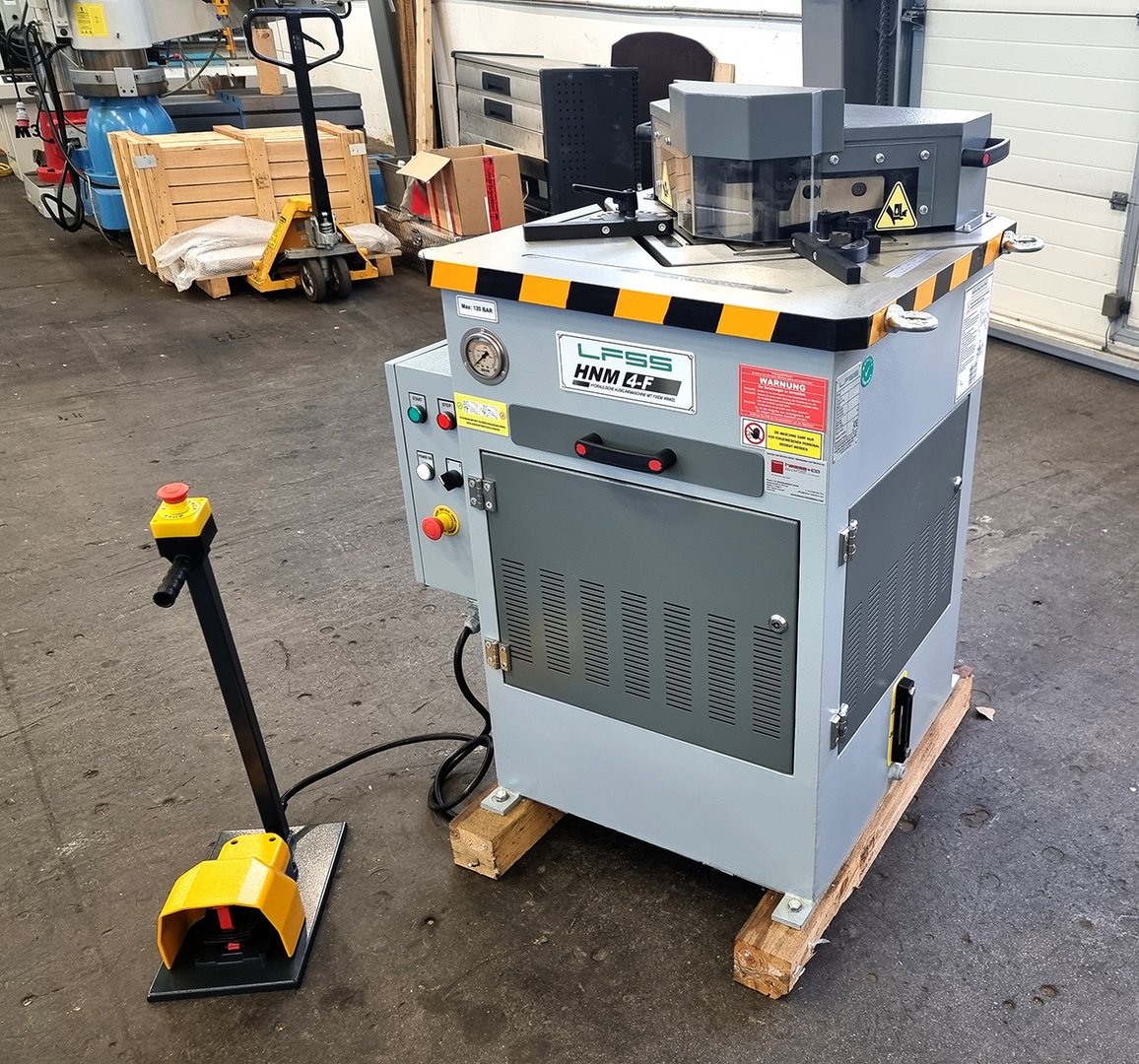

Notching machine with fixed angle HESSE by LFSS HNM-4 F
| Model | HNM-4 F |
| Brand | HESSE by LFSS |
| Condition | new |
| Year of manufacture | 2025 |
| Sheet thickness (420 N/mm²) | 4 mm |
| Blade length | 197 mm |
| Stock number | 90086 |
| Origin | Türkiye |
General characteristics
| Blade length | 197 mm |
| Sheet thickness (420 N/mm²) | 4 mm |
| Sheet thickness (600 N/mm²) | 2 mm |
| Strokes | 20 1/min |
| Angle | 90 ° |
| Motor | 4 kW |
Dimensions and weight
| Length | 890 mm |
| Width | 780 mm |
| Height | 1115 mm |
| Weight | 550 kg |
Description
Hydraulic drive
Automatic adjustment of the blade gap

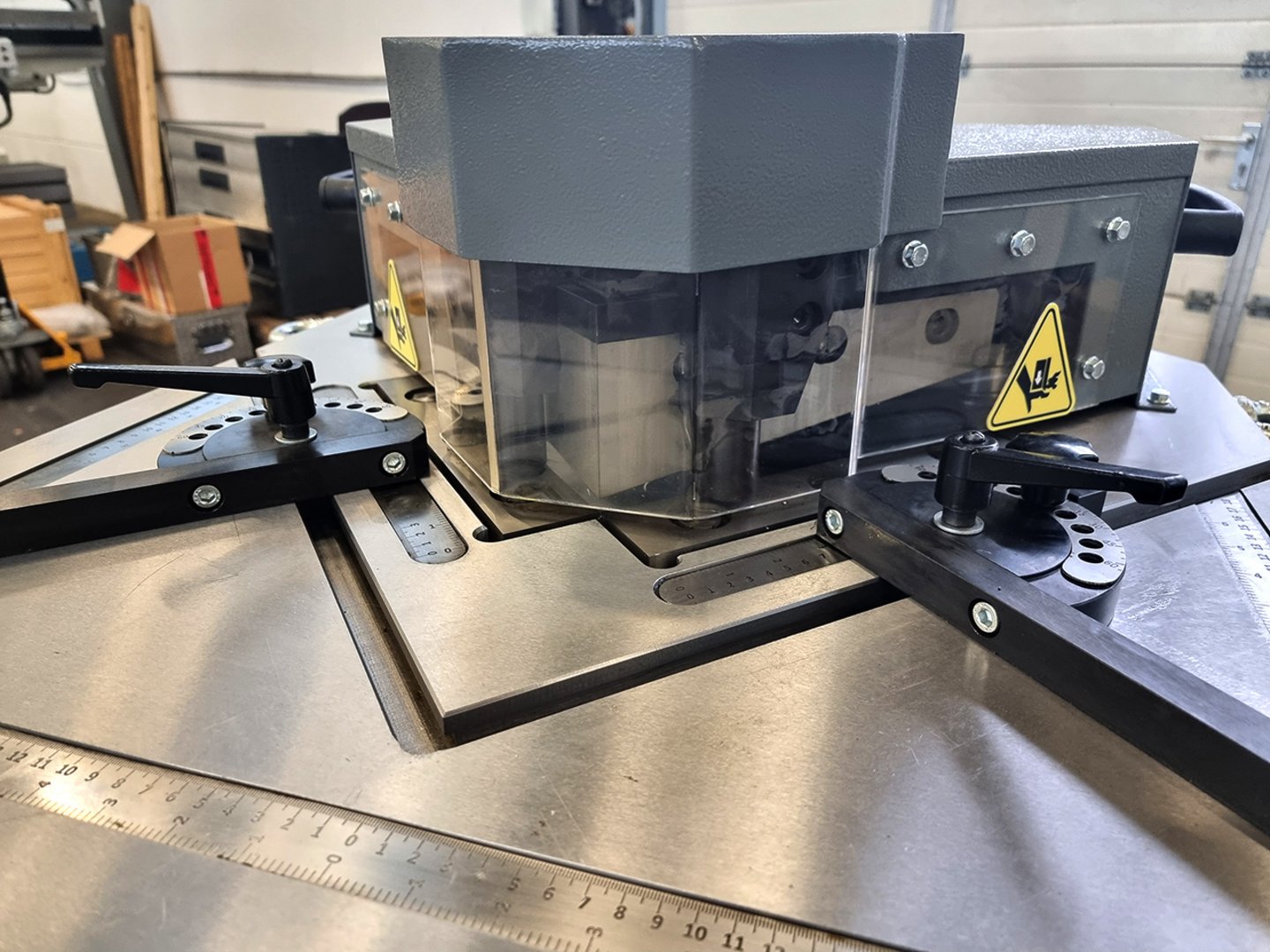

2 downholder
2 gauges angle adjustable
Protection cover, acrylic glass
Foot pedal
Waste box
According to "CE" regulations
User manual in English or German
