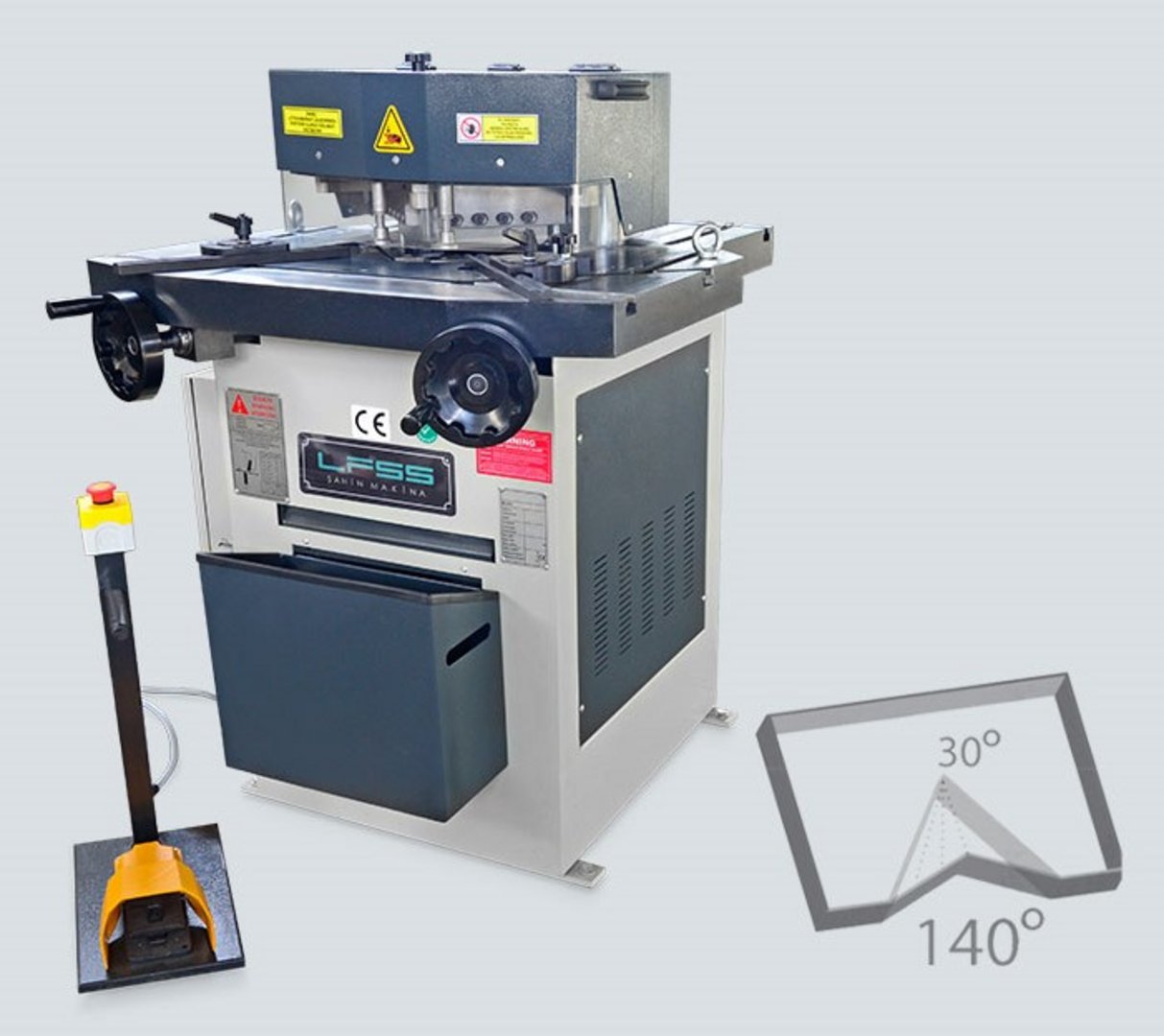

Notching machine with variable angle HESSE by LFSS HNM-6 V
| Model | HNM-6 V |
| Brand | HESSE by LFSS |
| Condition | new |
| Sheet thickness (420 N/mm²) | 4 - 6 mm |
| Blade length | 200 mm |
| Origin | Türkiye |
General characteristics
| Blade length | 200 mm |
| Sheet thickness (420 N/mm²) | 4 - 6 mm |
| Sheet thickness (600 N/mm²) | 2 - 3 mm |
| Strokes | 30 1/min |
| Angle | 30 - 140 ° |
| Motor | 4 kW |
Dimensions and weight
| Length | 900 mm |
| Width | 1150 mm |
| Height | 1240 mm |
| Weight | 1150 kg |
Description
Hydraulic drive
Variable cutting angle 30 - 140°
Automatic adjustment of blade gap
4 downholder
2 gauges angle adjustable
Protection cover, acrylic glass
Foot pedal
Waste box
According to "CE" regulations
User manual in English or German
