General characteristics
| Working area | 1500x3000 mm |
| Plasma source | HYPERTHERM Powermax 45 |
| Max. thickness - mild steel | 6 mm |
| Max. piercing thickness - mild steel | 12 mm |
| Max. tickness for separating cut | 25 mm |
| Recommended thickness (unalloyed steel): | 4 mm |
| Current | 45 A |
| Current / power-on time | 45 A 50 % ED, 32 A 100 % ED A |
| Rapid speed | 24 m/min |
| Repeat accuracy | 1/10 mm |
| Volume water tray: | 630 lt |
| Max. weight on table | 400 kg/m² |
Dimensions and weight
| Length | 3560 mm |
| Width | 1960 mm |
| Height | 1500 mm |
| Weight | 650 kg |
Description

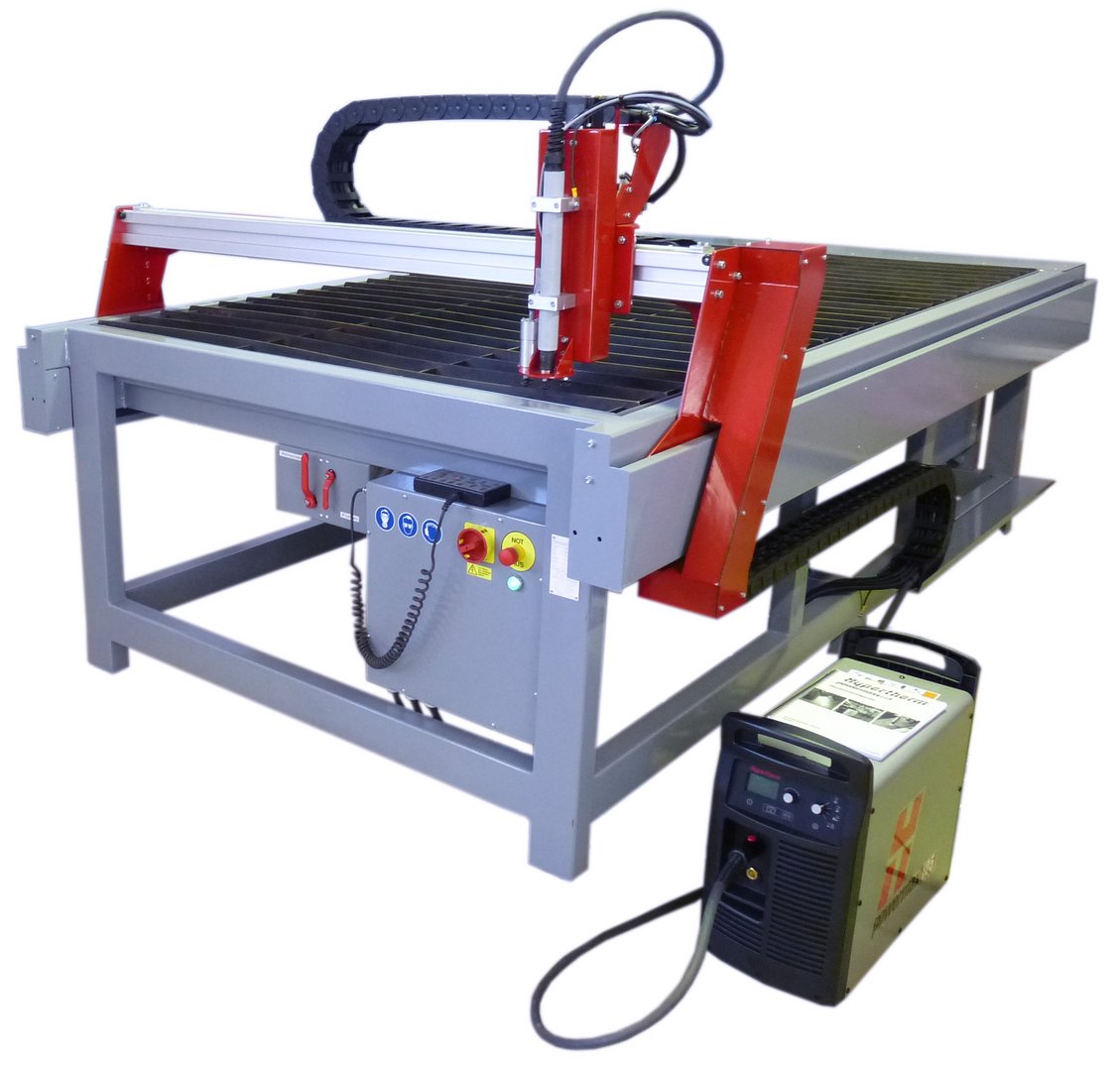

compressed air powered plasma source HYPERTHERM Powermax 45
CNC-workbench software (external PC not included)
adjustable rollers
precision profile rail guide (HiWin)
zero backlash HTD drive belt
driven by step motors

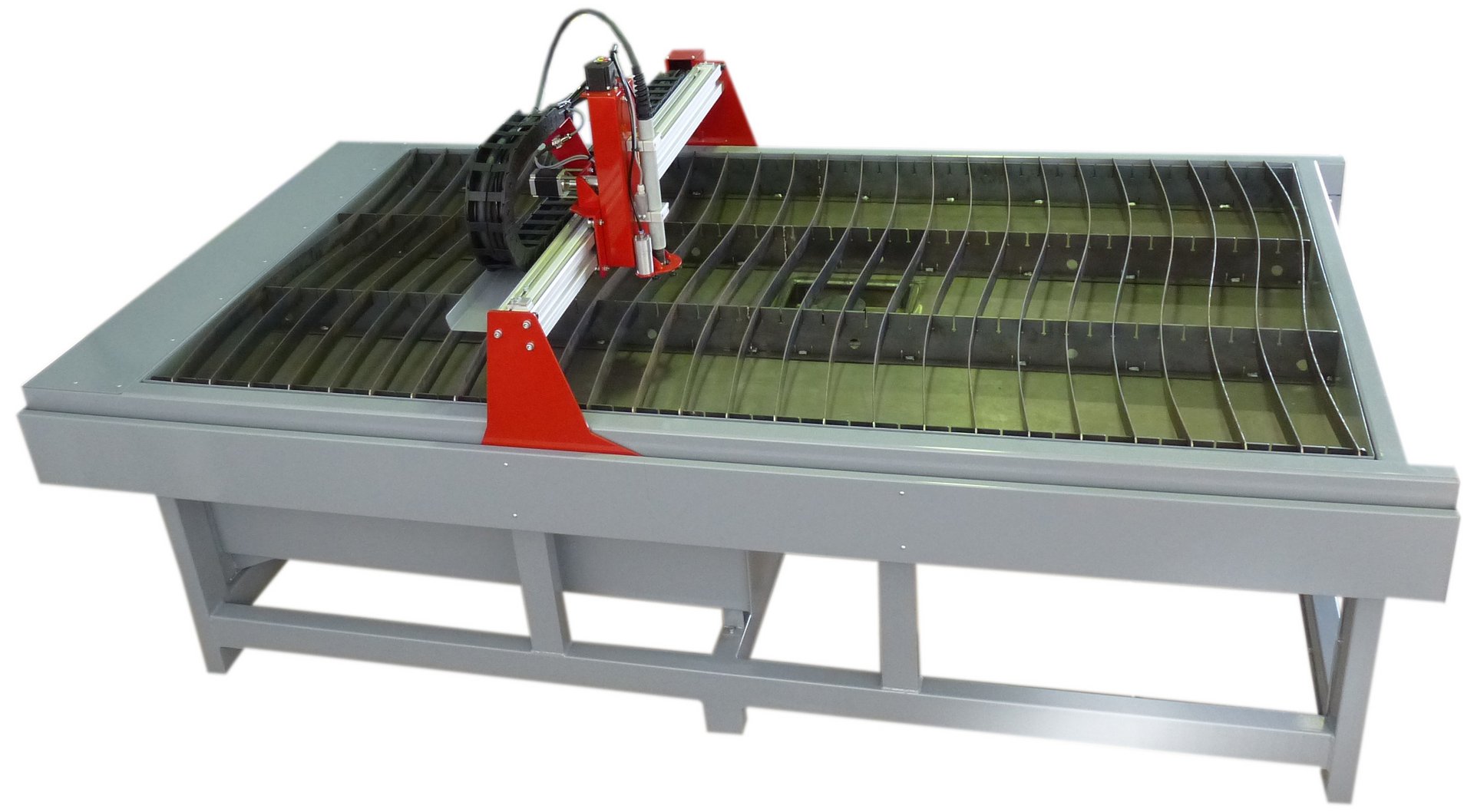

solid frame construction
seperate renewable support grate
water trough to catch flying sparks

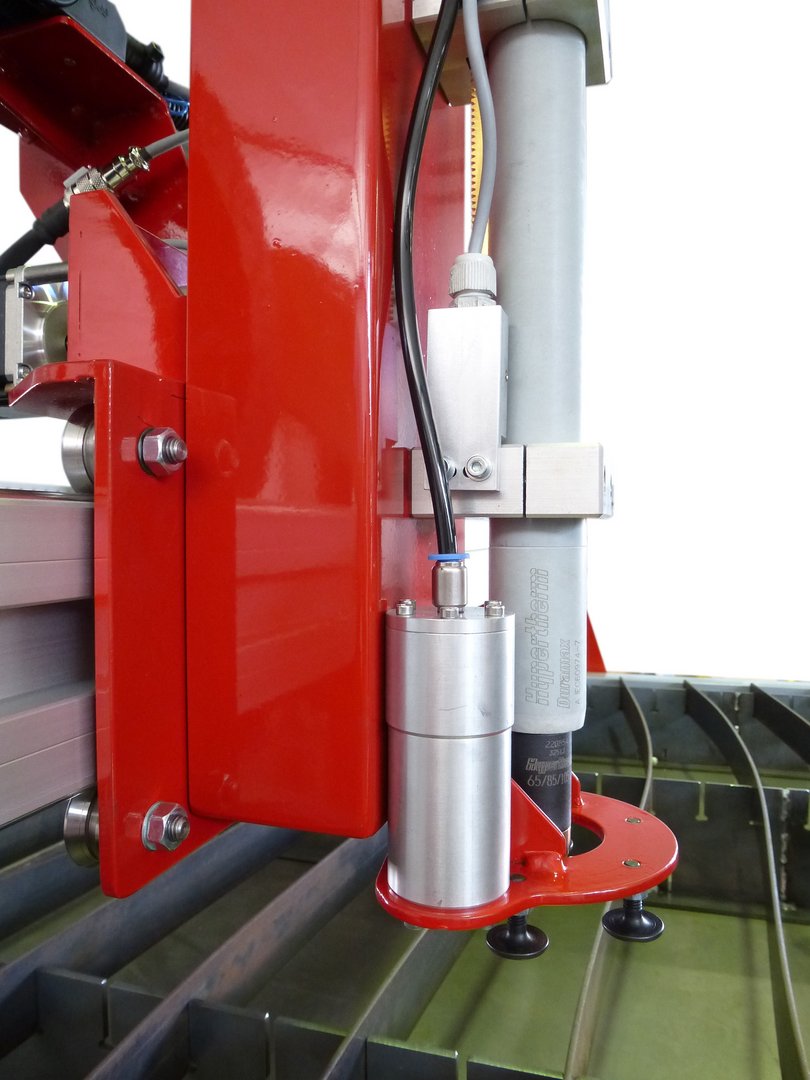

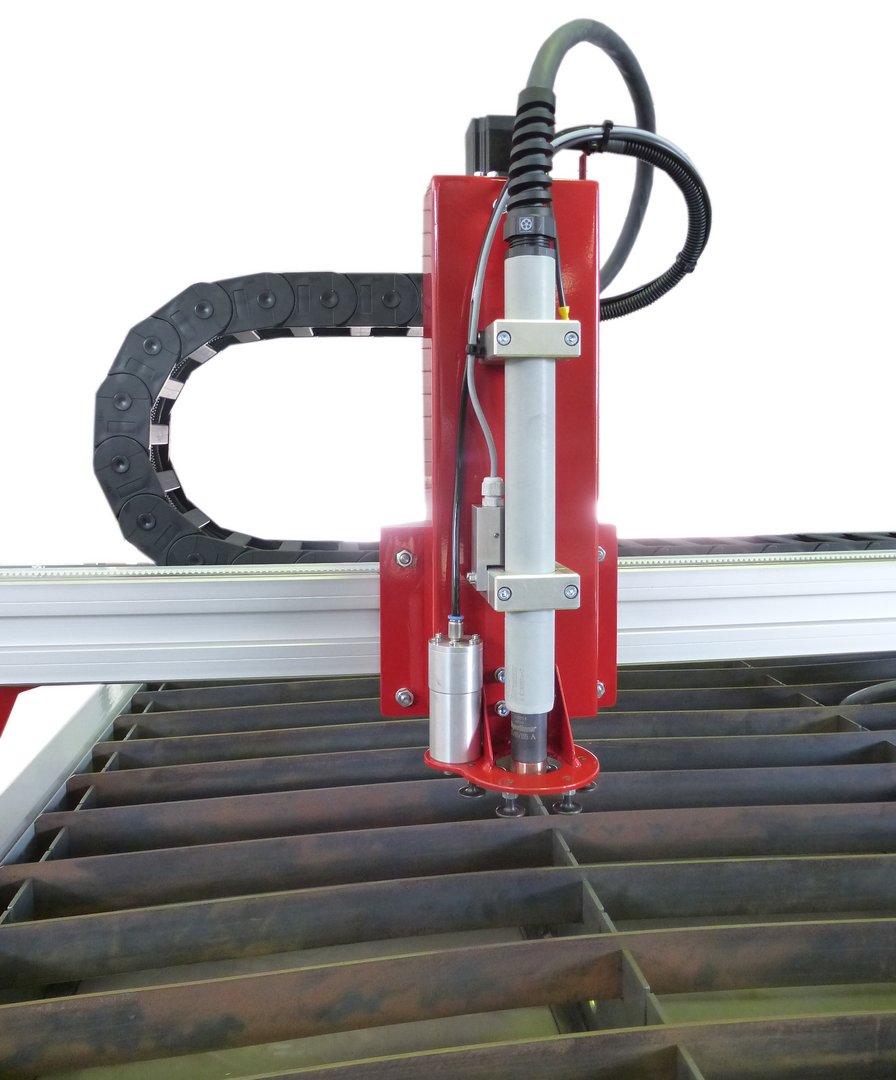

swimming burner bearing in combination with exchangeable slide screws, enables constant cutting height

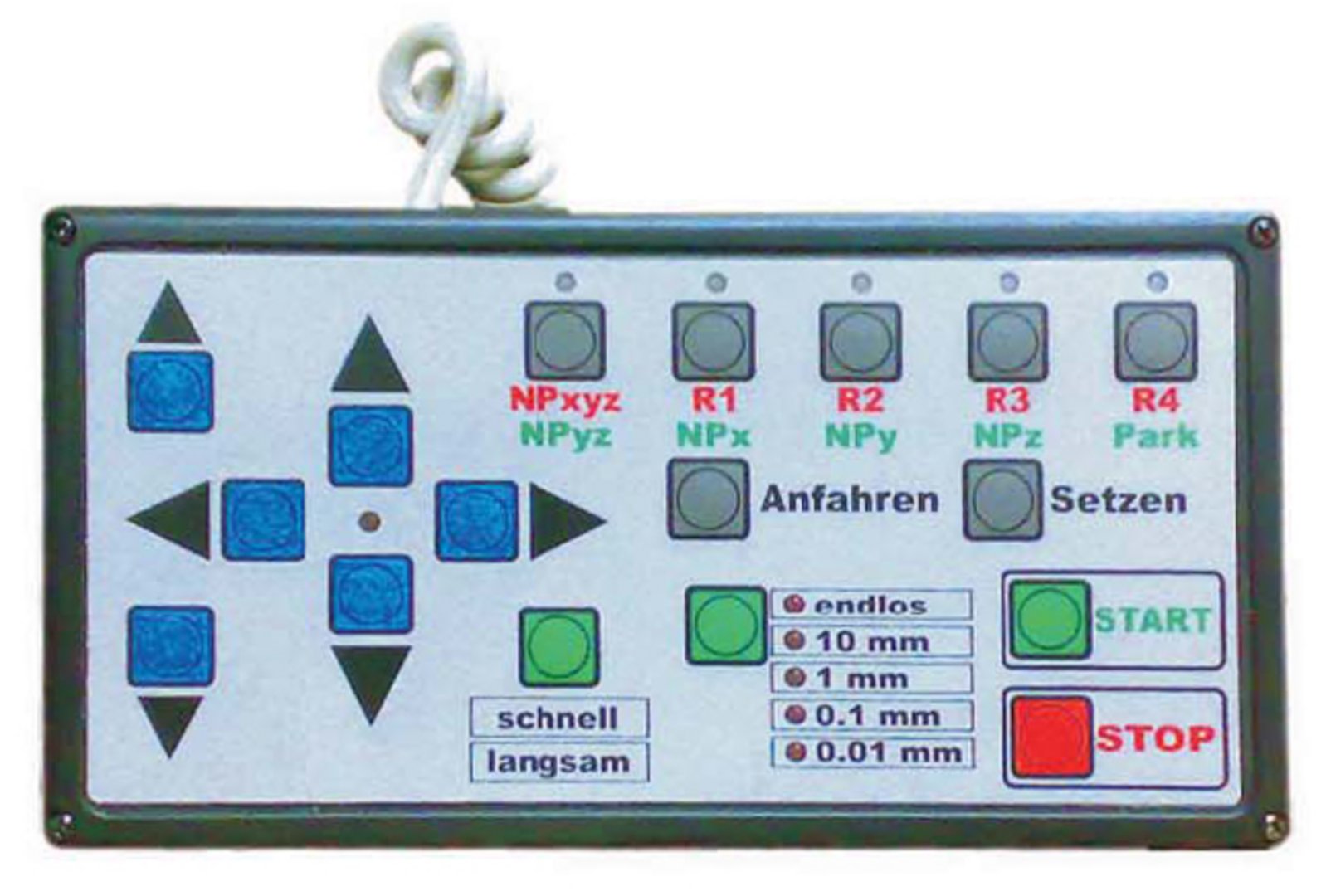

hand operation unit for comfortable processing and set up on the workpiece
users manual in GERMAN
according to CE rules
alternative plasma sources:
| HYPERTHERM | PMX 65 Sync | PMX 85 Sync | PMX 105 Sync | PMX 125 |
| plasma type | comp. air | comp. air | comp. air | comp. air |
| plunge power | 16 mm | 20 mm | 22 mm | 25 mm |
| seperating cut | 32 mm | 38 mm | 50 mm | 57 mm |
| recommended thickness (unalloyed steel) | 6 mm | 16 mm | 19 mm | 22 mm |
| max. thickness (unalloyed steel) | 16 mm | 20 mm | 22 mm | 25 mm |
| price | € 29.960,- | € 31.580,- | € 33.240,- | € 36.420,- |
(Hypertherm MaxPro200 and KJELLBERG plasma sources available on reques)
options:
| water tank to quickly fill and drain the trough | € | 3.500,- |
| height adjustment by arc voltage | € | 2.450,- |
| set-up laser | € | 240,- |
| pneumatic marking pin | € | 770,- |
| pneumatic engraver | € | 1.920,- |
| suction bridge (prepared for suction diam.160mm, important for galvanized and thin sheets) | € | 1.020,- |
| suction- and filter unit Caremaster IFA 1,1 kW, fan power 2.500 m³/h |
€ | 2.950,- |
| higher gantry 200 mm | € | 710,- |
| higher gantry 300 mm | € | 900,- |
| automatic nesting | € | 500,- |
| PlasmaScan camera system | € | 830,- |
| ohmic contacting for MaxPro200 | € | 280,- |
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
