General characteristics
| Bending length | 2000 mm |
| Max. bending capacity - mild steel | 11 |
| Max. plate thickness without prebending at D=5x upper roll diam. - mild steel | 11 mm |
| Max. plate thickness without prebending at D=1,3x upper roll diam. - mild steel | 7 mm |
| Max. plate thickness with prebending at D=5x upper roll diam. - mild steel | 8 mm |
| Max. plate thickness with prebending at D=1,3x upper roll diam. - mild steel | 6.4 mm |
| Upper roll diameter | 225 mm |
| Lower roll diameter | 215 mm |
| Lateral roll diameter | 165 mm |
| Bending speed | 8 m/min |
Dimensions and weight
| Length | 3950 mm |
| Width | 1200 mm |
| Height | 1200 mm |
| Weight | 4450 kg |
Description
Hardened and polished rollers
Numerical control Siemens PGS-Classic with touchscreen
Cone bending with electronic control and inclination of the bottom roller
oil cooler
Simultaneous rotation and roller movement
Simultaneous roller and support movement
Possibility to bend variable radii (ovals, ellipses, etc.)
Hydraulic micro-positioning by the PLC for higher accuracy
Infinitely variable speed for roller movement
Infinitely variable speed for rotation
Prepared for retrofitting supports (up to 5 axes)
Prepared for retrofitting loading/unloading stations
Prepared for retrofitting CNC controls
Extra large, double hinged drop end
Electronic parallelism system for the synchronization of the rollers
Hydraulic lifting of the top roll (for models with a top roll diameter of 205 mm or more)
Double linear guide for the movement of the lower rolls
Ultra wide rolls blocks
"MCS" bearing system for the lower rolls (4 large bearings on each shaft)
Central lubrication system
Pressure manometer for constant pinch roll control
Extra torque and special braking system
Safety cord with emergency stop
Equipped according to "CE" regulations
Option:
CNC control Siemens PSG-Absolute with 15" touch screen
(automatic calculation of the process for simple
and complex shapes)
Further information
Product video

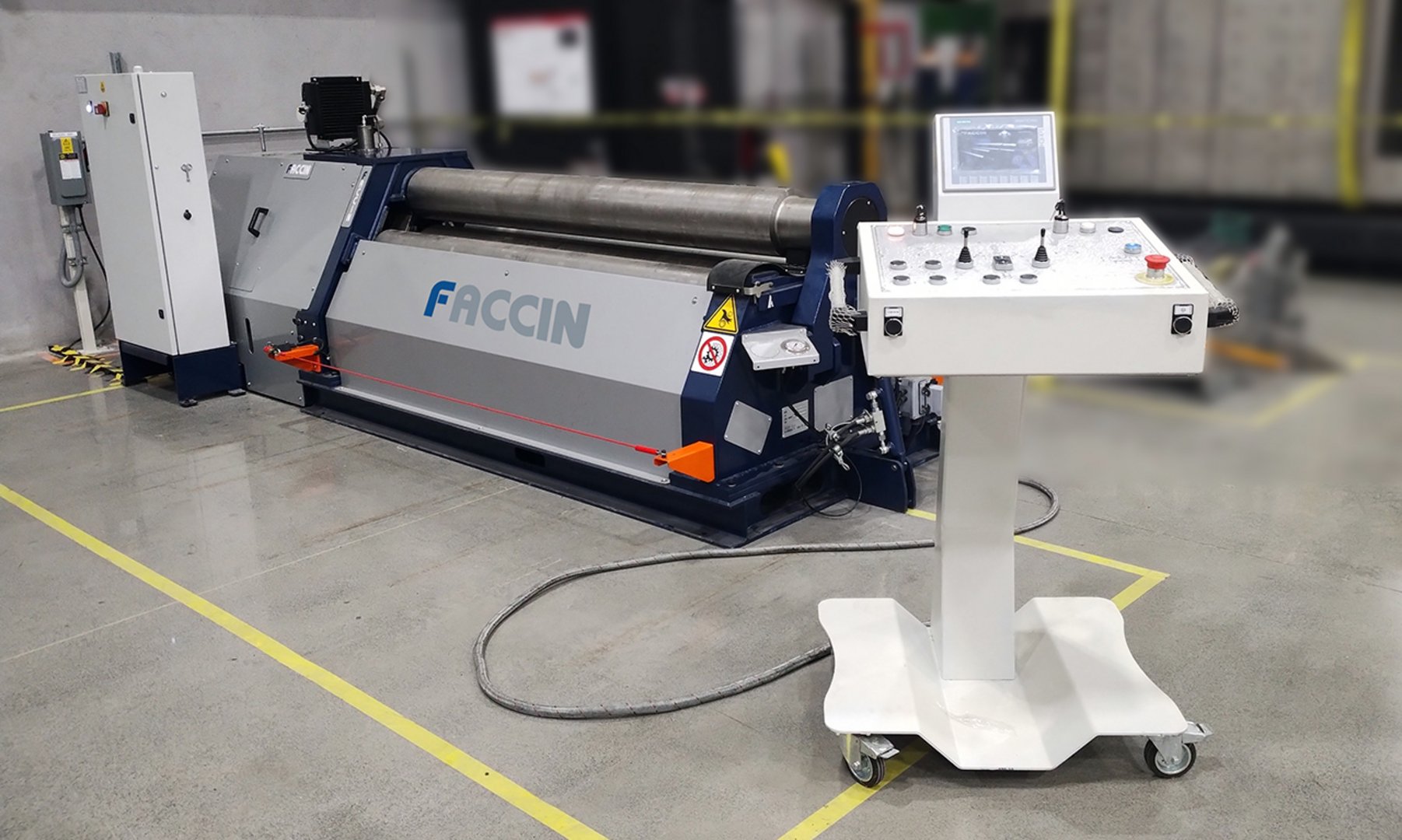

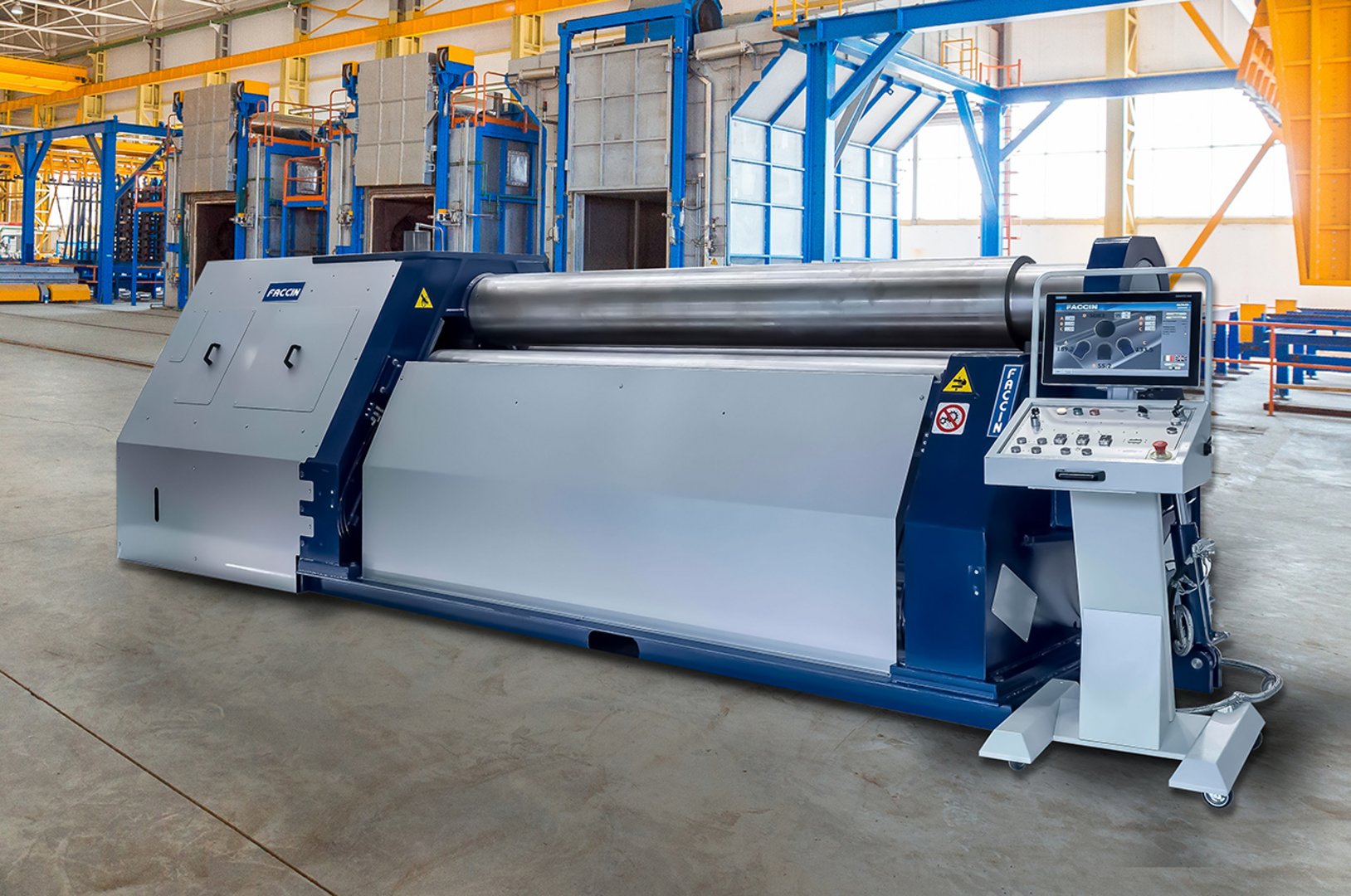

Hydraulic 4-roll plate bending machine 4HEL-2122
