General characteristics
| Cutting length | 1050 mm |
| Max. thickness - mild steel | 6 mm |
| Strokes | 30 1/min |
| Cutting angle | 2 ° |
| Back gauge | 750 mm |
| Motor power | 7 kW |
| Table height | 800 mm |
| Table width | 530 mm |
| Table length | 1355 mm |
Dimensions and weight
| Length | 1720 mm |
| Width | 1630 mm |
| Height | 1230 mm |
| Weight | 2000 kg |
Description
The machines feature a robust, welded steel frame for maximum cutting precision
Motorized back gauge 750 mm, ball screw spindles, NC control
2 cutting edges on the upper blade and 4 cutting edges on the lower blade
1000 mm squaring arm with scale, T-slot, and flip stop
2 support arms
Mechanical downholder
Manual cutting gap adjustment on the front
Balls in the table
Cutting line illumination
Foot pedal
Emergency stop button
Operating manual with EC declaration of conformity.
Includes the following optional equipment:
Blades suitable for cutting stainless steel

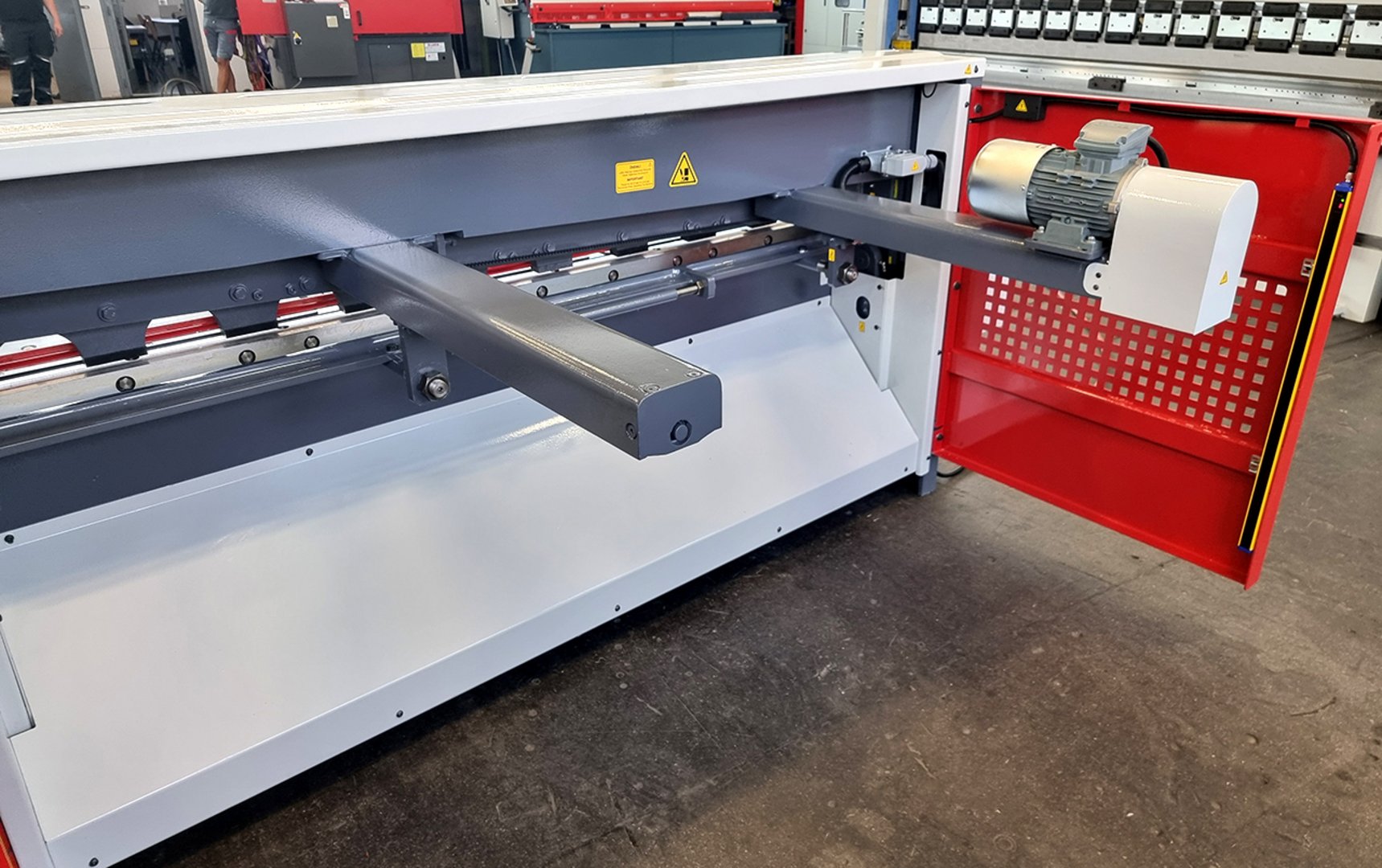

Rear light barrier protection
Further information
Brochures
Product video

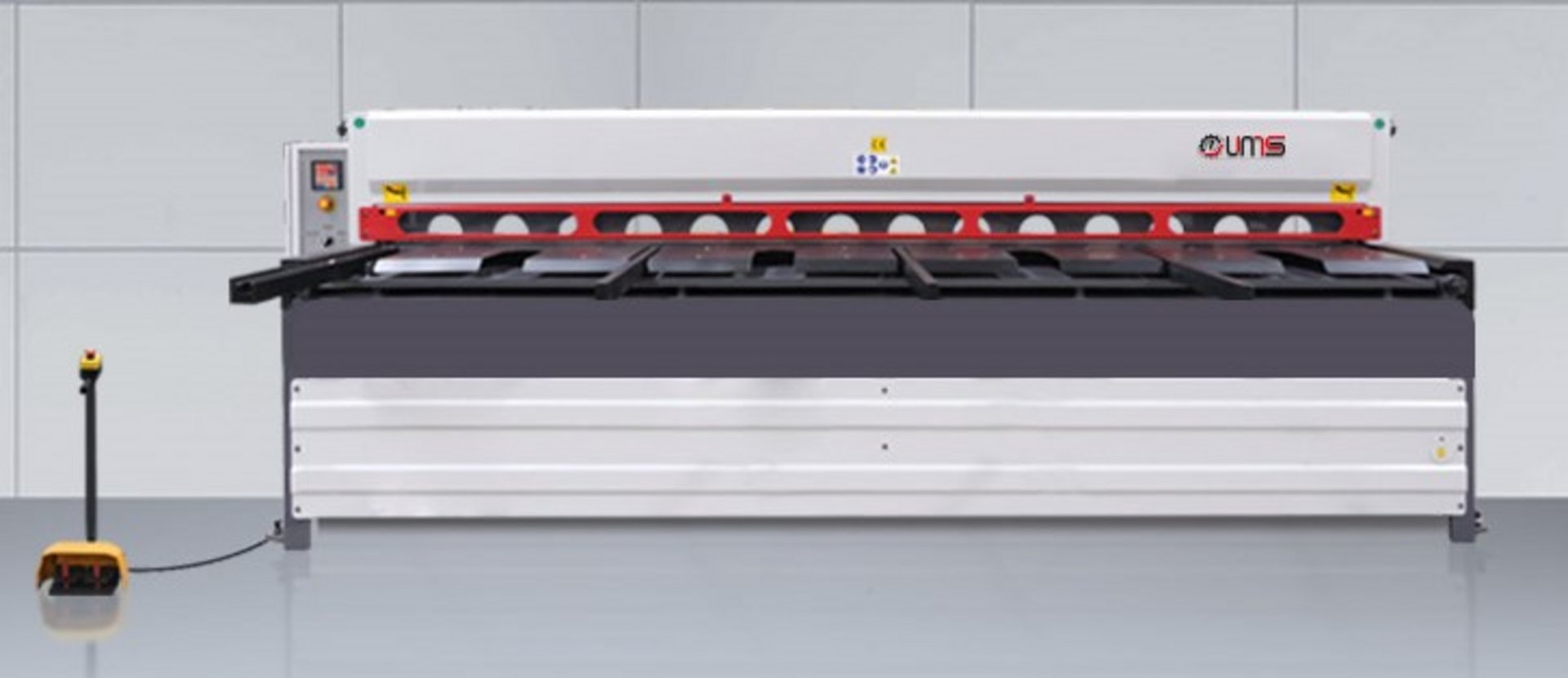

Motorized plate shear Comfort 1006
