General characteristics
| Cutting length | 2050 mm |
| Max. thickness - mild steel | 3 mm |
| Strokes | 35 1/min |
| Cutting angle | 1.5 ° |
| Back gauge | 750 mm |
| Motor power | 3 kW |
| Table height | 800 mm |
| Table width | 520 mm |
Dimensions and weight
| Length | 2720 mm |
| Width | 1575 mm |
| Height | 1230 mm |
| Weight | 1900 kg |

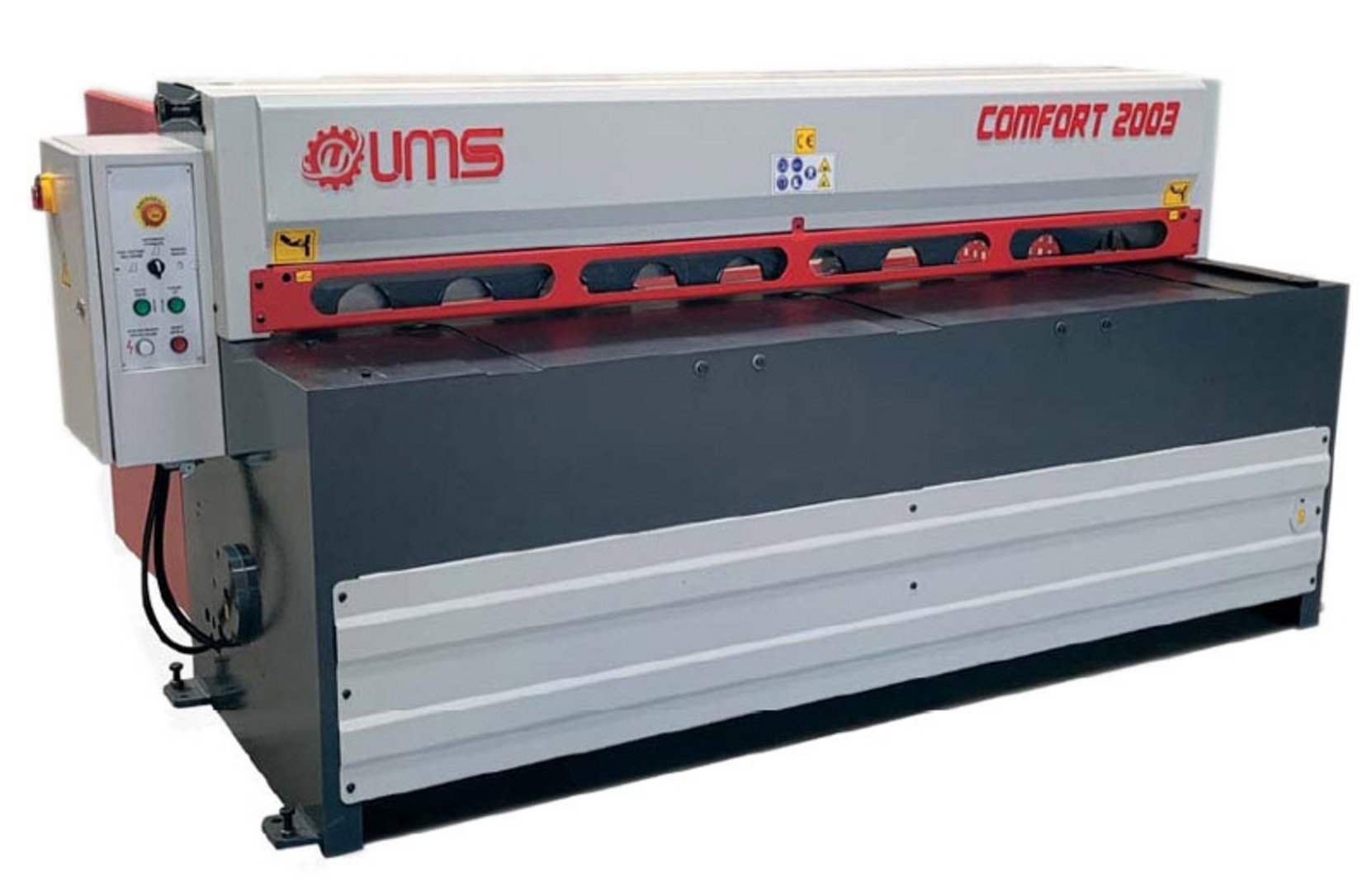

Description
The machines feature a robust, welded steel frame for maximum cutting precision
Motorized back gauge 750 mm, ball screw spindles, NC control
2 cutting edges on the upper blade and 2 cutting edges on the lower blade
800 mm squaring arm with scale
2 support arms
Mechanical downholder
Manual cutting gap adjustment on the front
Cutting line illumination
Foot pedal
Emergency stop button
Operating manual with EC declaration of conformity.
Includes the following optional equipment:
Blades suitable for cutting stainless steel
Rear light barrier protection
