Hydraulic CNC press brake HESSE by DURMA AD-R 30175
| Model | AD-R 30175 |
| Brand | HESSE by DURMA |
| Condition | new |
| Year of manufacture | 2022 |
| Bending force | 175 to |
| Bending length | 3050 mm |
| Stock number | 8266 |
| Origin | Türkiye |
General characteristics
| Bending force | 175 to |
| Bending length | 3050 mm |
| Axes | Y1 / Y2 und X axis |
| rapid speed Y-axis | 160 mm/s |
| Stroke | 265 mm |
| Inside distance between side frames | 2600 mm |
| Gap in side frame | 450 mm |
| Daylight | 530 mm |
| Power concept | hydraulic |
| Working speed Y-axis | 10 |
| Retractionspeed Y-axis | 100 |
| Back gauge travel X-axis | 650 mm |
| Back gauge speed X-axis | 500 |
| Back gauge speed R-axis | 140 mm/s |
| Back gauge travel R-axis | 250 mm |
| Table height | 900 mm |
| Table width | 104 mm |
| Motor power | 18.5 kW |
Dimensions and weight
| Length | 4250 mm |
| Width | 1800 mm |
| Height | 2890 mm |
| Weight | 10520 kg |
Description
3 axes (Y1, Y2, X)

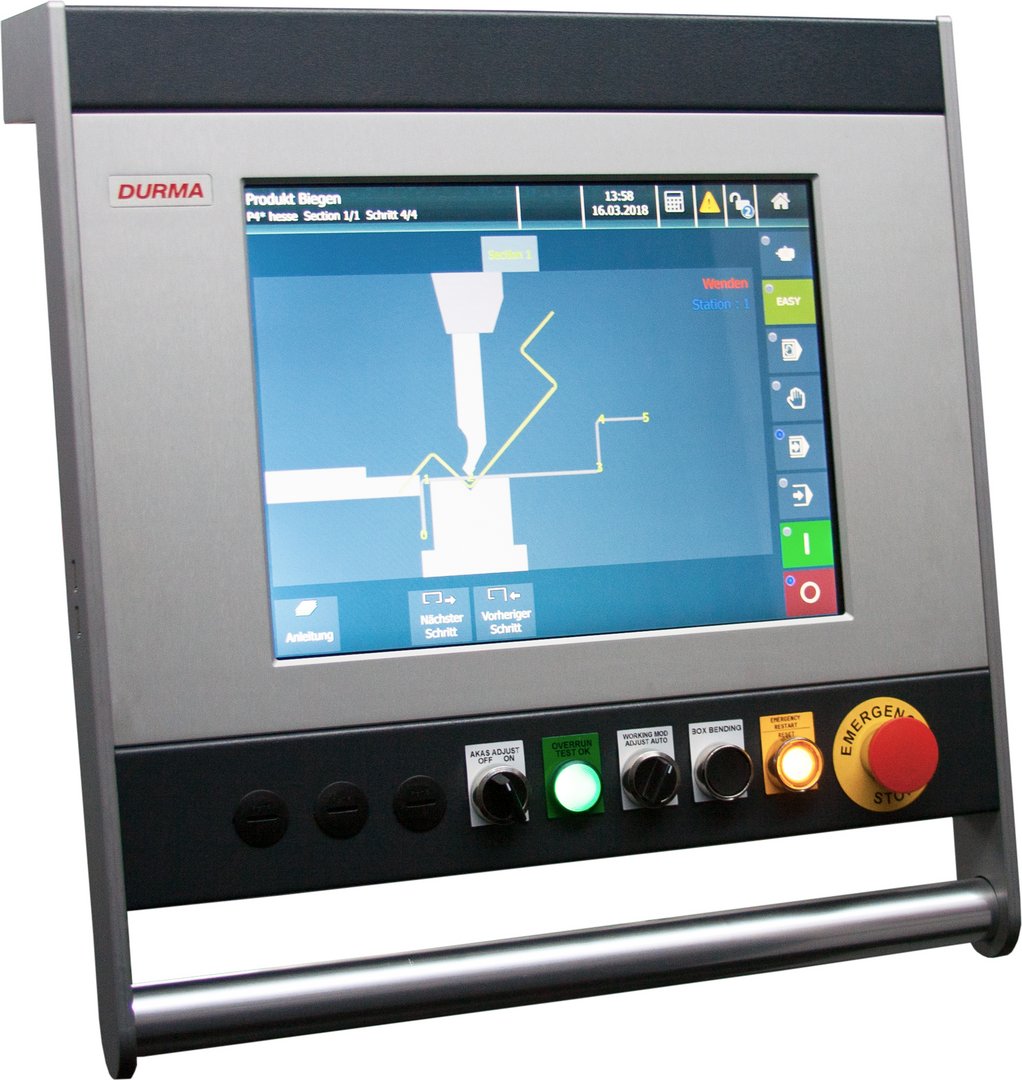

CNC control DT-15
- 2D grafic display 15"
- intuitive touch-screen control (simple drawing of the bending outline with your finger)
- user friendly programming in dialogue form
- automatic calculation of the bending sequence
- automatic calculation of the blank sheet size
- graphic product and tool memory
- correction possibility
- USB interfaces for backup and programm transportation
- PC software, generating programms on the PC and transfer to the machine by USB

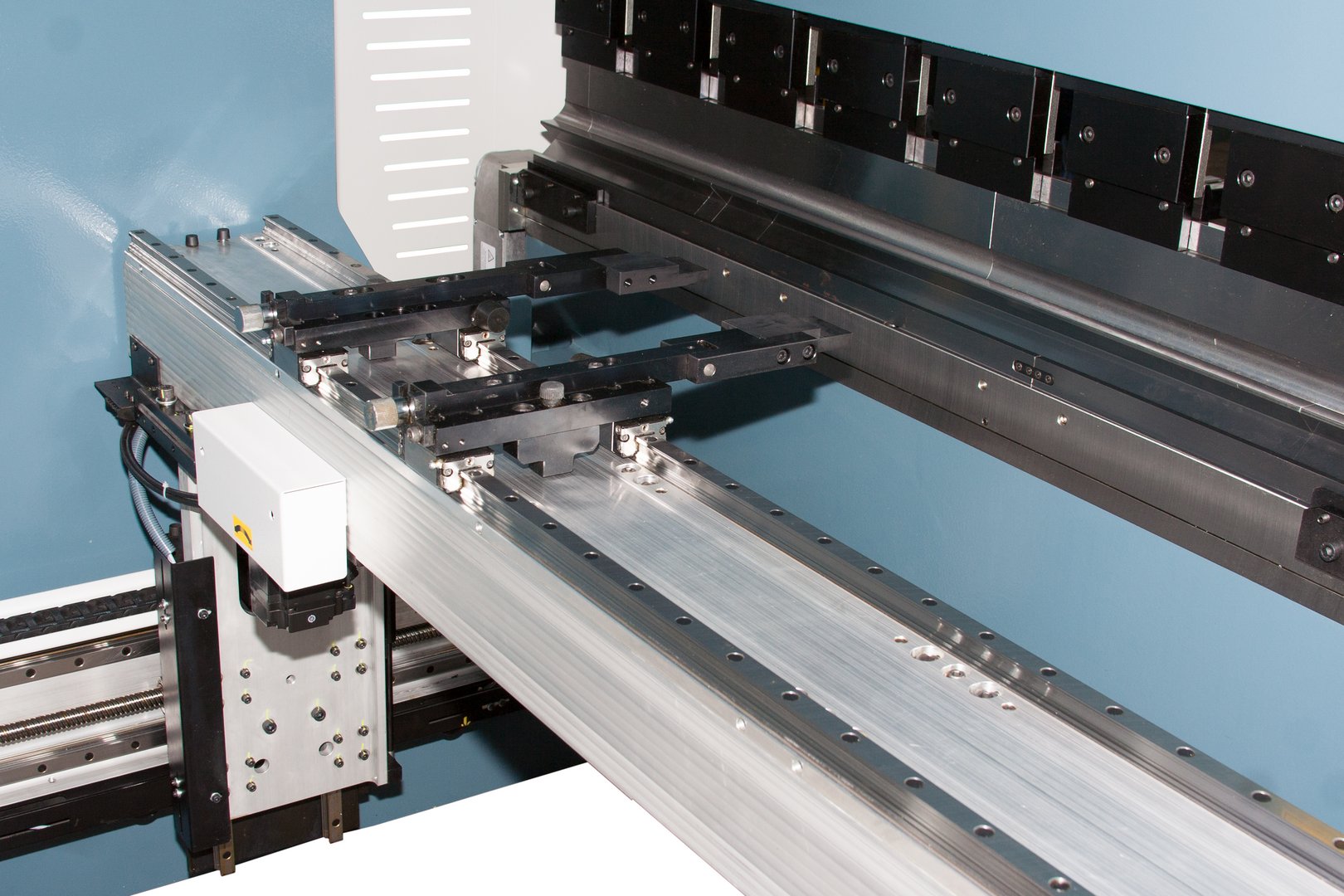

servo motorized back gauge on linear guides and ball screws
back gauge finger blocks on double linear guides
CNC crowning table
intermediate clamps for upper tool
upper tool 1010/A/75°/0,8/105, sectioned, bending radius hardened and ground
die holder for 60 mm dies
die type 2009/85° (V 16, 22, 35, 50 mm) sectioned, geteilt, bending radii hardened and ground
laser safety device Fiessler AKAS mounted on the upper beam
linear guided sheet support arms
protection covers on the sides and back side
according to CE rules
oilfilling
users manual in English or German
Advantages of AD-R compaired to PBF:
- more stroke, daylight opening and gap in side frame
- higher approach- and retraction speed of upper beam
- higher back gauge speed
- back gauge fingers on double instead of single linear guide
- more available options as Z1/Z2 axes, tandem execution, other CNC controls ...

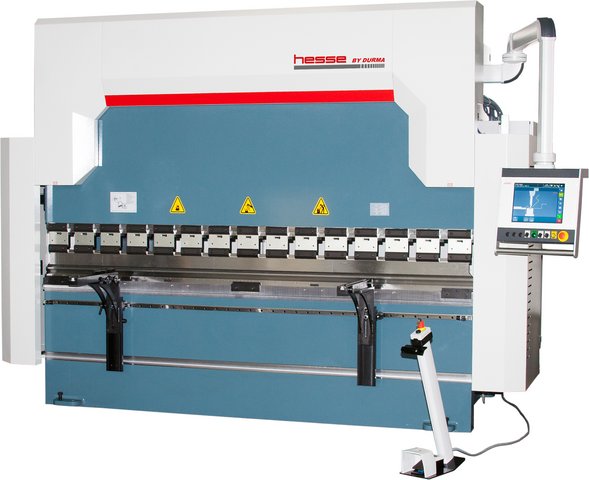

(sample photo)
Optional equipment:
| CNC controlled R-axis | € 6.379,-- |
| quick connecting terminals for the upper tool | € 842,-- |
| hydraulic or pneumatic tool clamping | on request |
