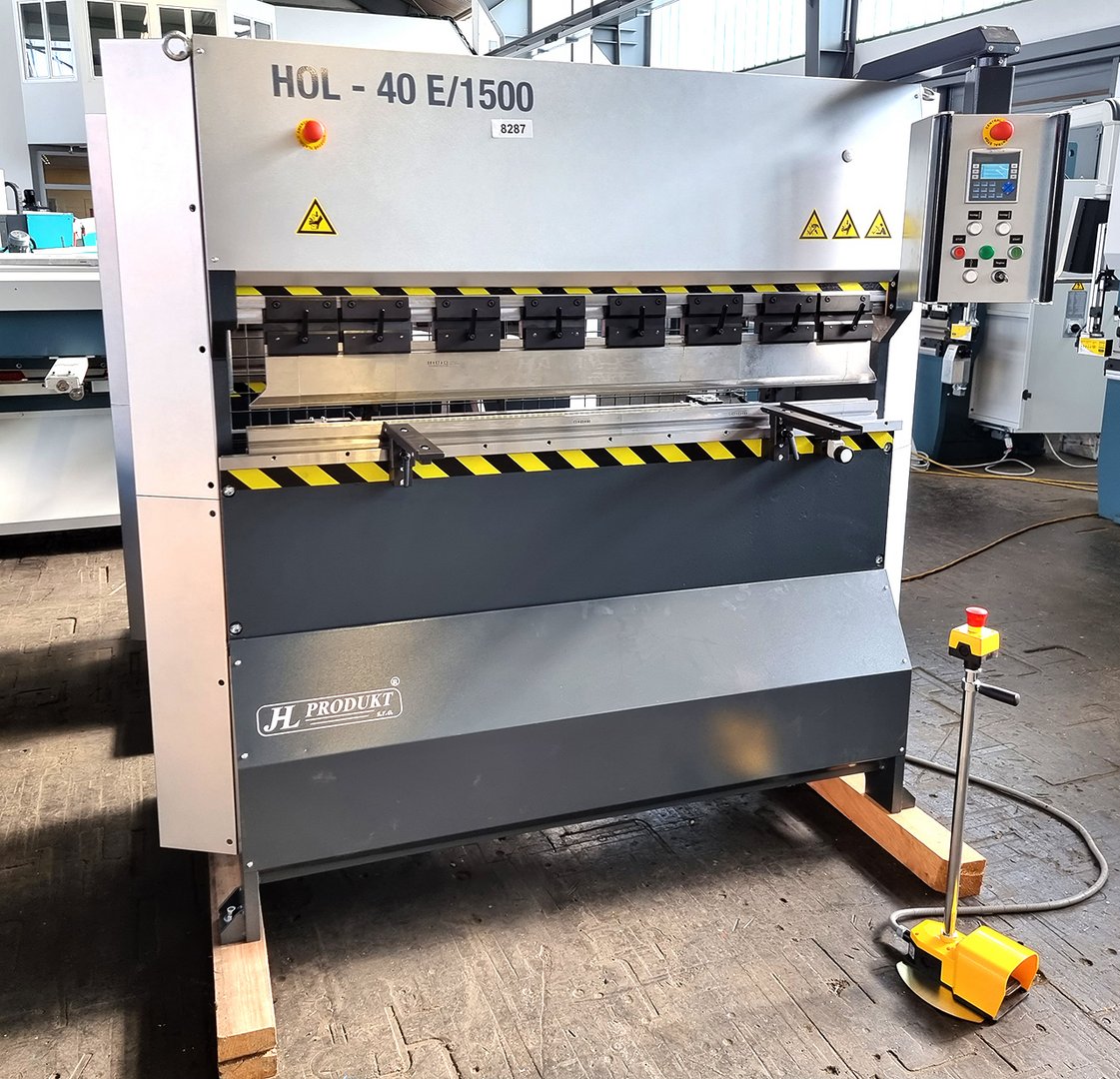

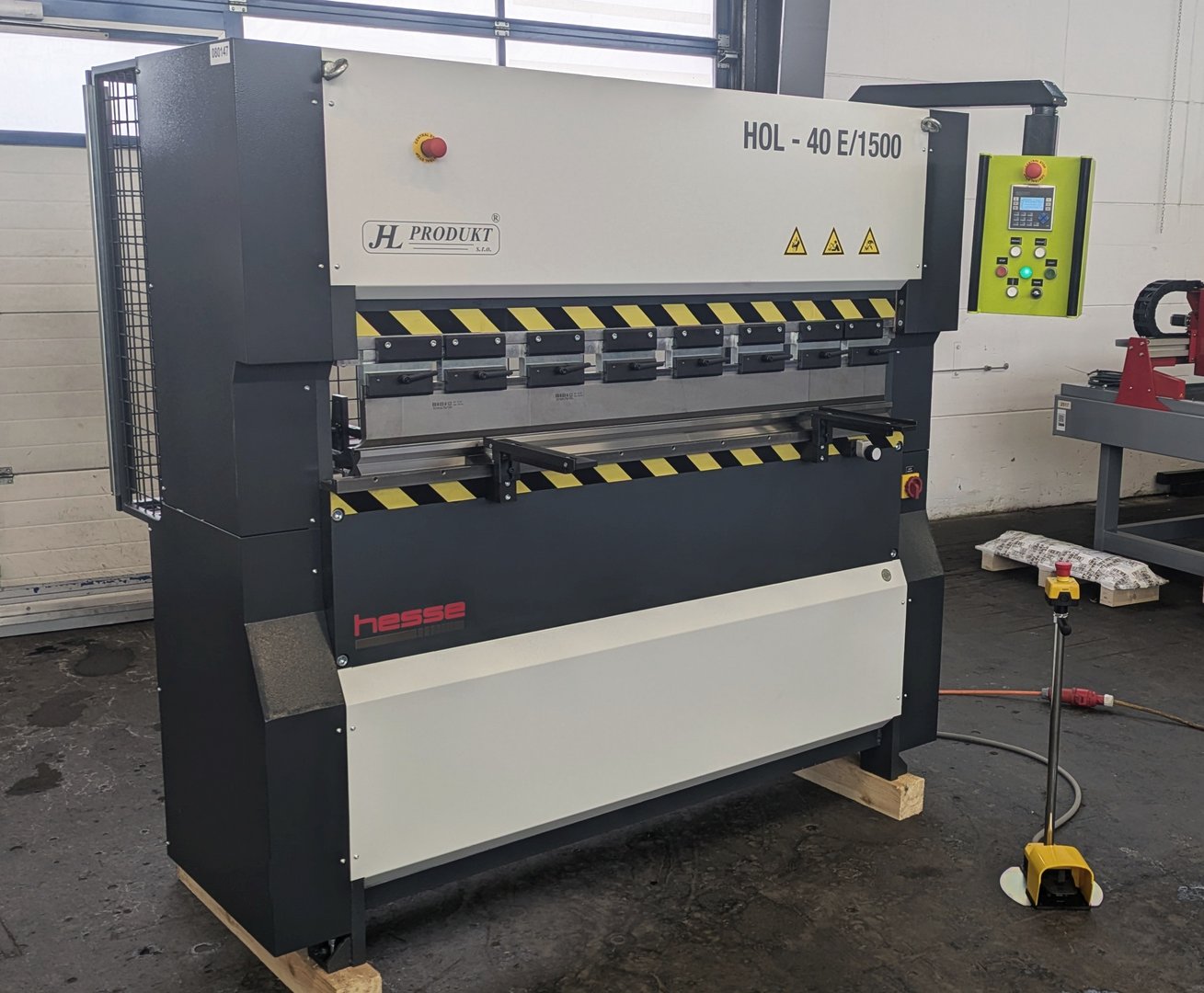

Hydraulic conventional press brake HESSE by JHL HOL-40E 1500
| Model | HOL-40E 1500 |
| Brand | HESSE by JHL |
| Condition | used |
| Year of manufacture | 2023 |
| pressing capacity | 40 to |
| Bending length | 1500 mm |
| Stock number | 8299 |
| Origin | Slowakia |
General characteristics
| pressing capacity | 40 to |
| Bending length | 1500 mm |
| Axes | X and Y axis |
| Stroke | 100 mm |
| Daylight | 310 mm |
| Power concept | hydraulic |
| Oiltank | 38 l |

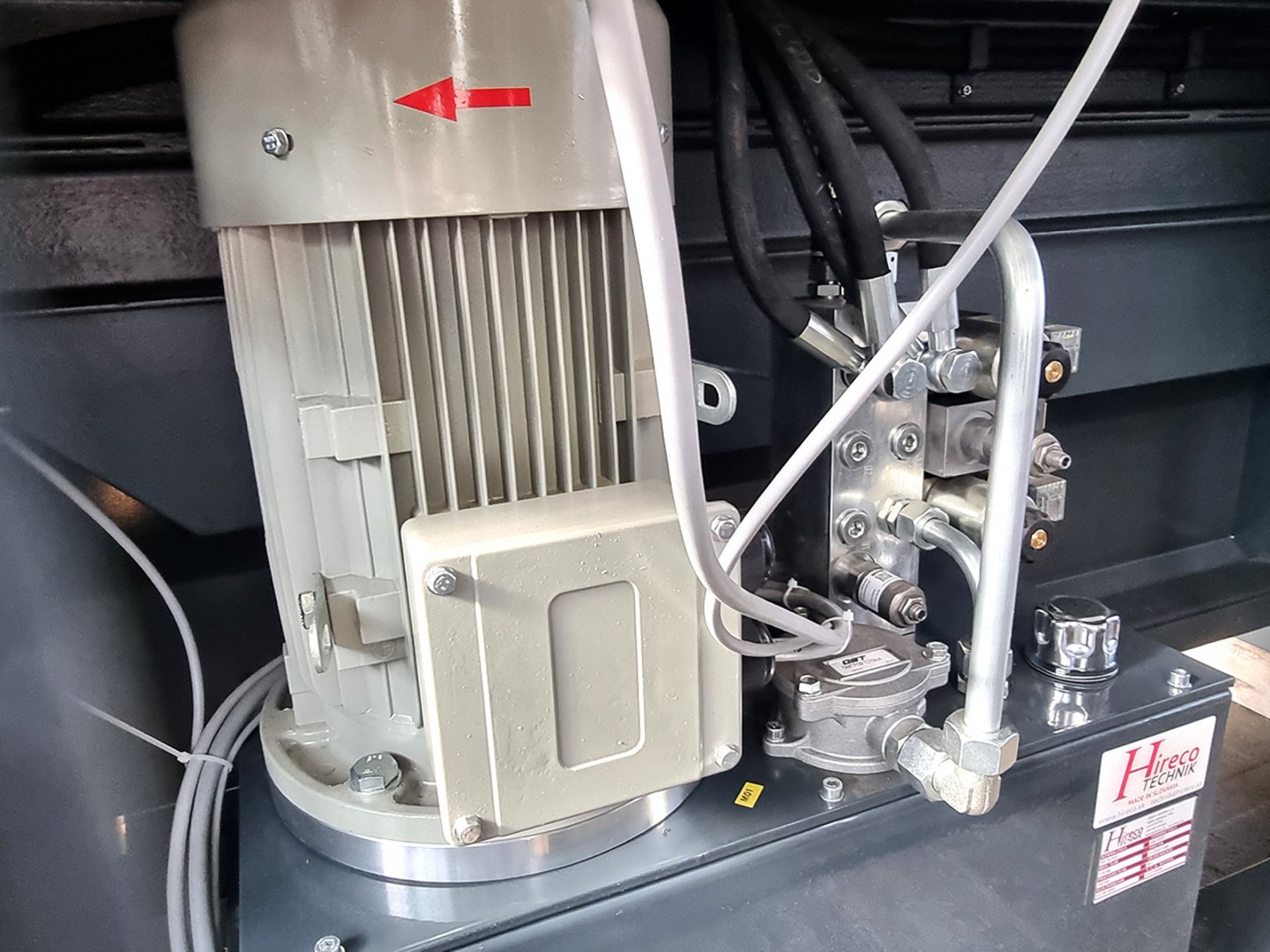

| Motor | 6 kW |

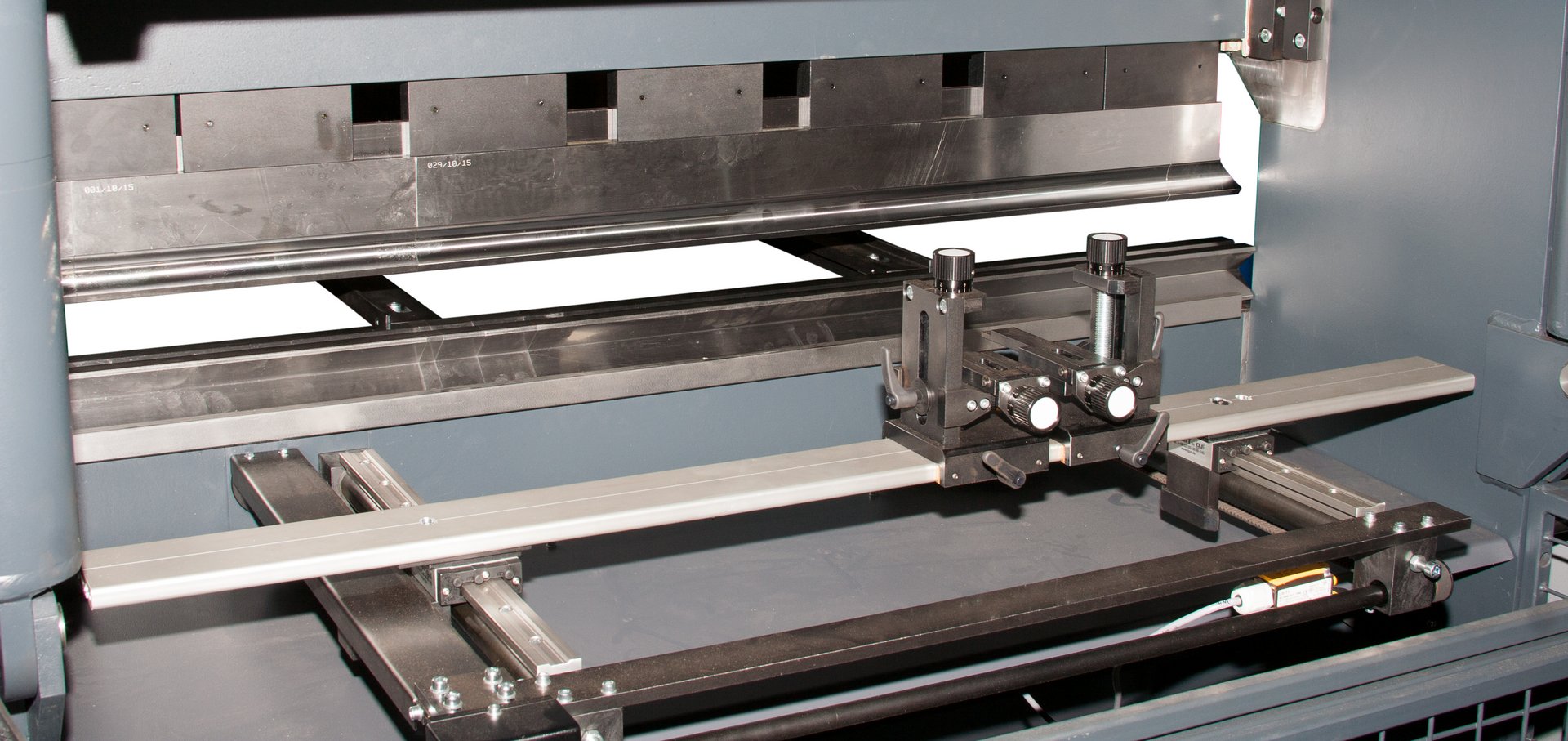

| Back gauge | 420 mm |
| Die | 1 |
| Geschwindigkeit | 10 mm/s |
| Retraction speed | 12 mm/s |
| Back gauge speed | 40 mm/s |
| Accuracy press beam | 0.02 +/- mm |
| Back gauge accuracy | 0.05 +/- mm |
Dimensions and weight
| Length | 2000 mm |
| Width | 950 mm |
| Height | 1900 mm |
| Weight | 1800 kg |
Description
demo machine / mint condition
net price
2 axes (Y and X)

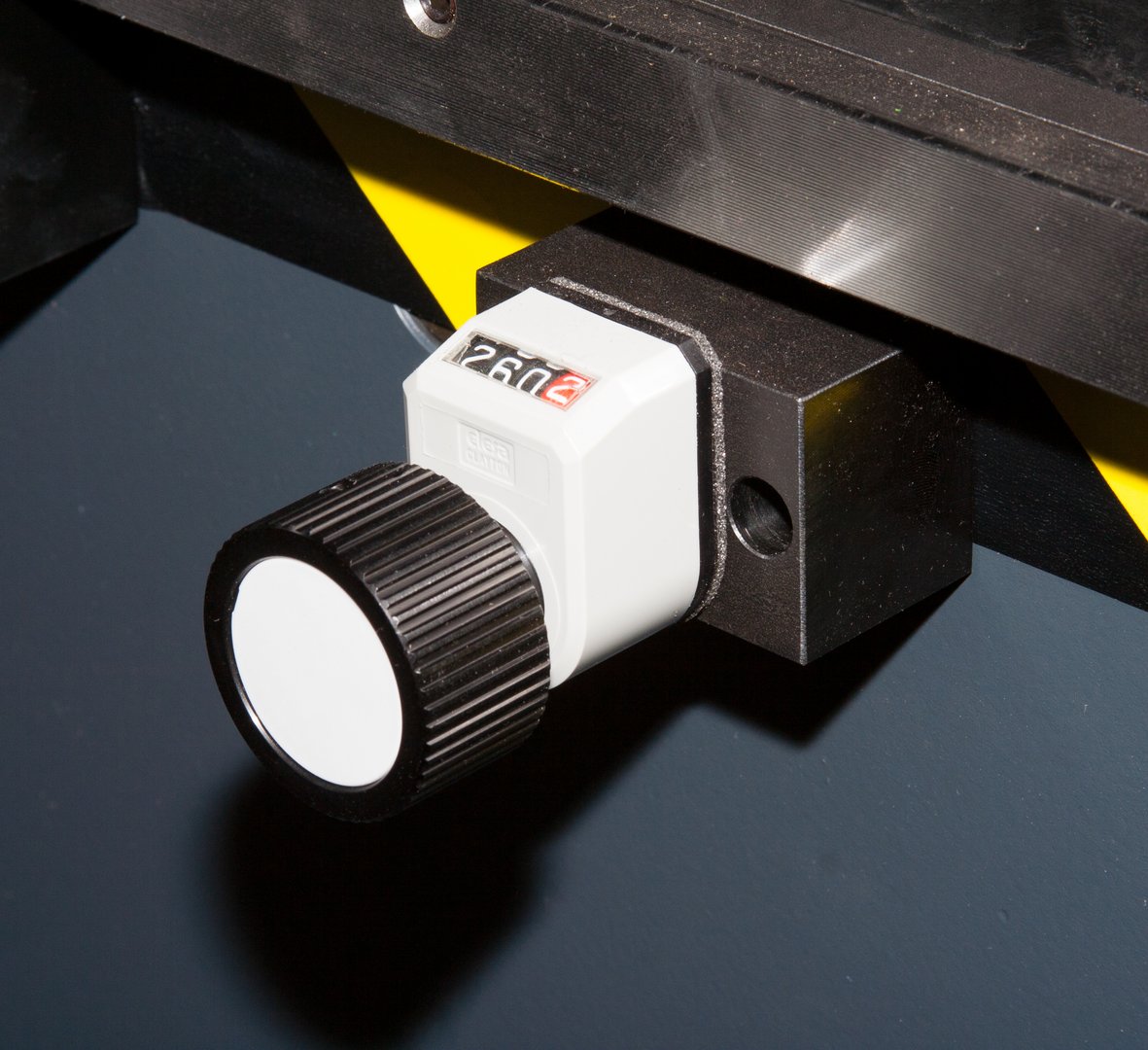

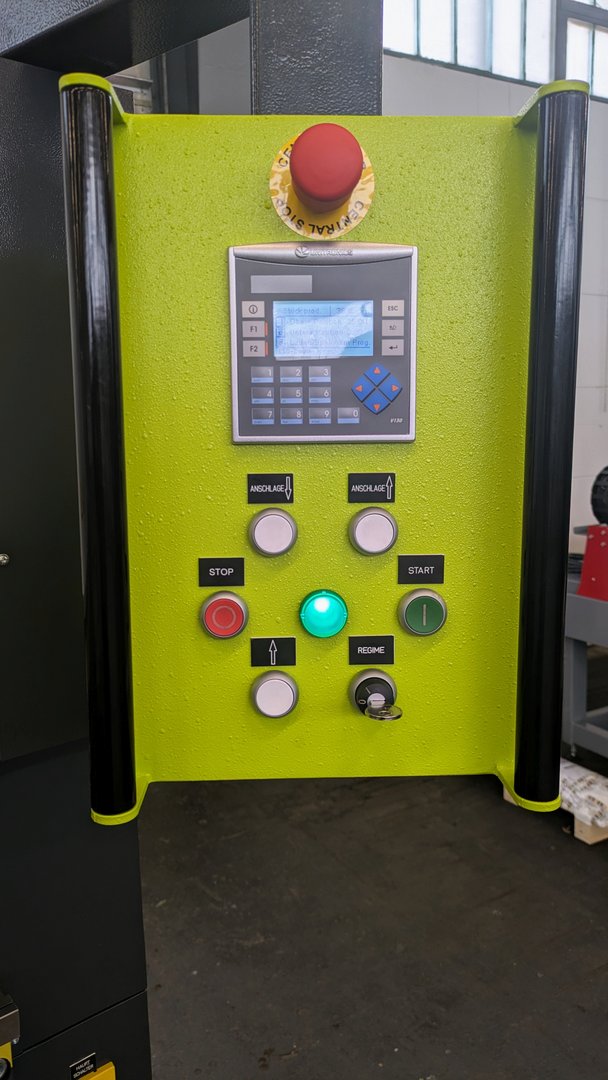

motorized backgauge with push button and manual fine adjustment with counter
preselection of press depth Y and upper dead point

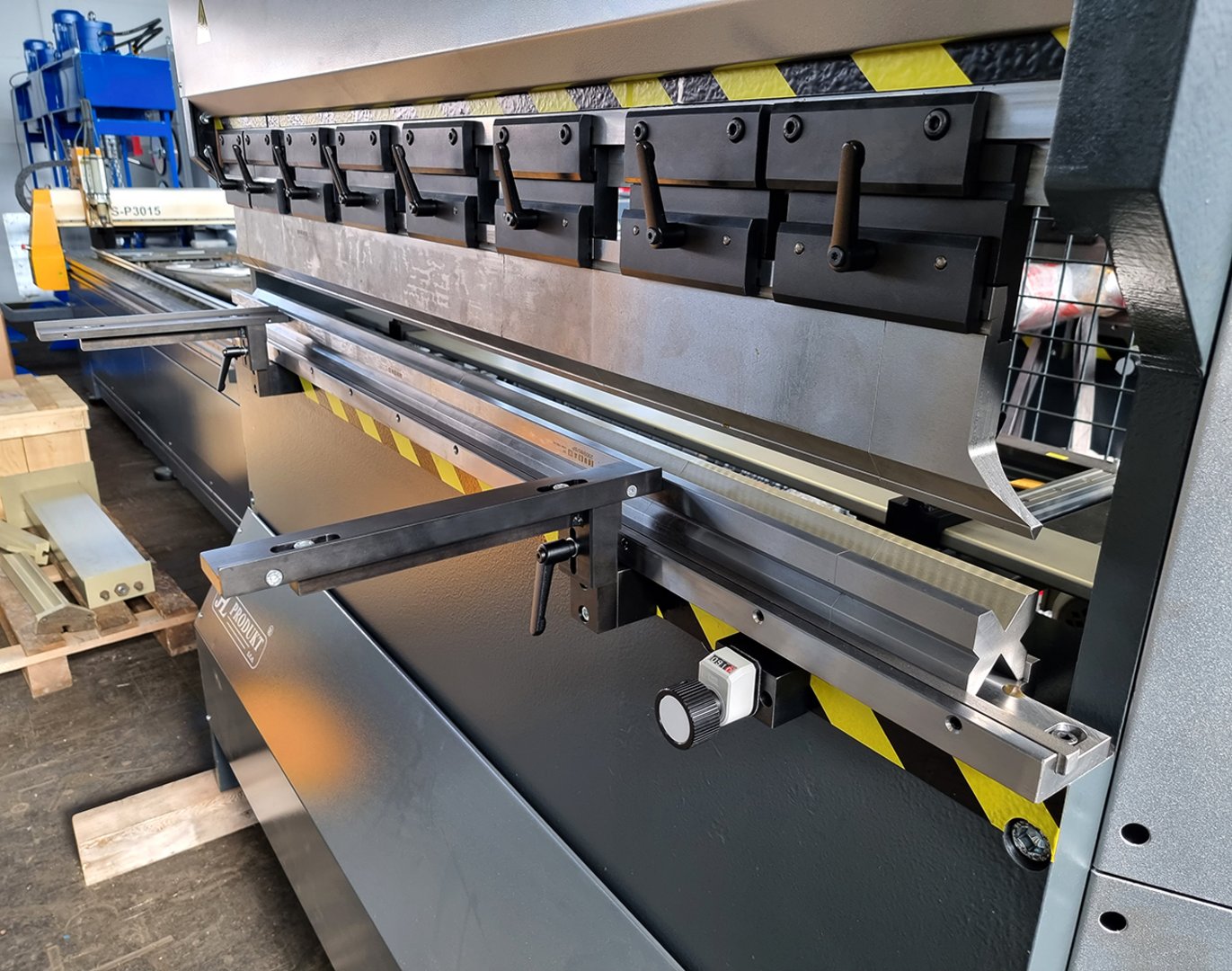

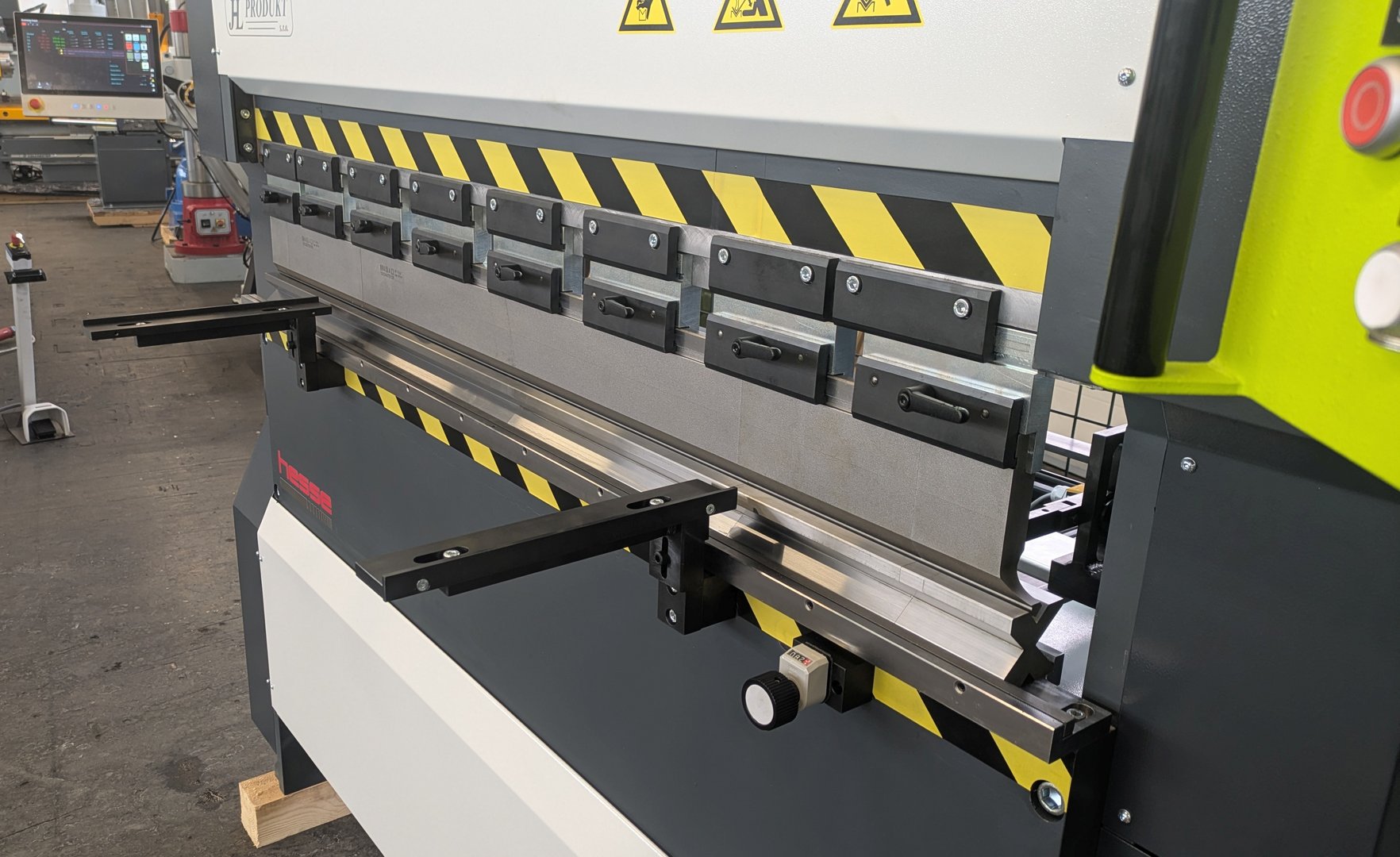

intermediate piece with quick-release lever for upper tool clamping
upper tool 1010/75/R0,8/105 1x835 mm + 1x835 mm divided
die type 2009/85° (V16/22/35/50 mm) 1x835 mm + 1x835 mm divided
2 support arms
according to CE rules
oilfilling
user manual in German
Further information
Brochures
Product video
Hydraulic conventional press brake HOL-40E 1500
