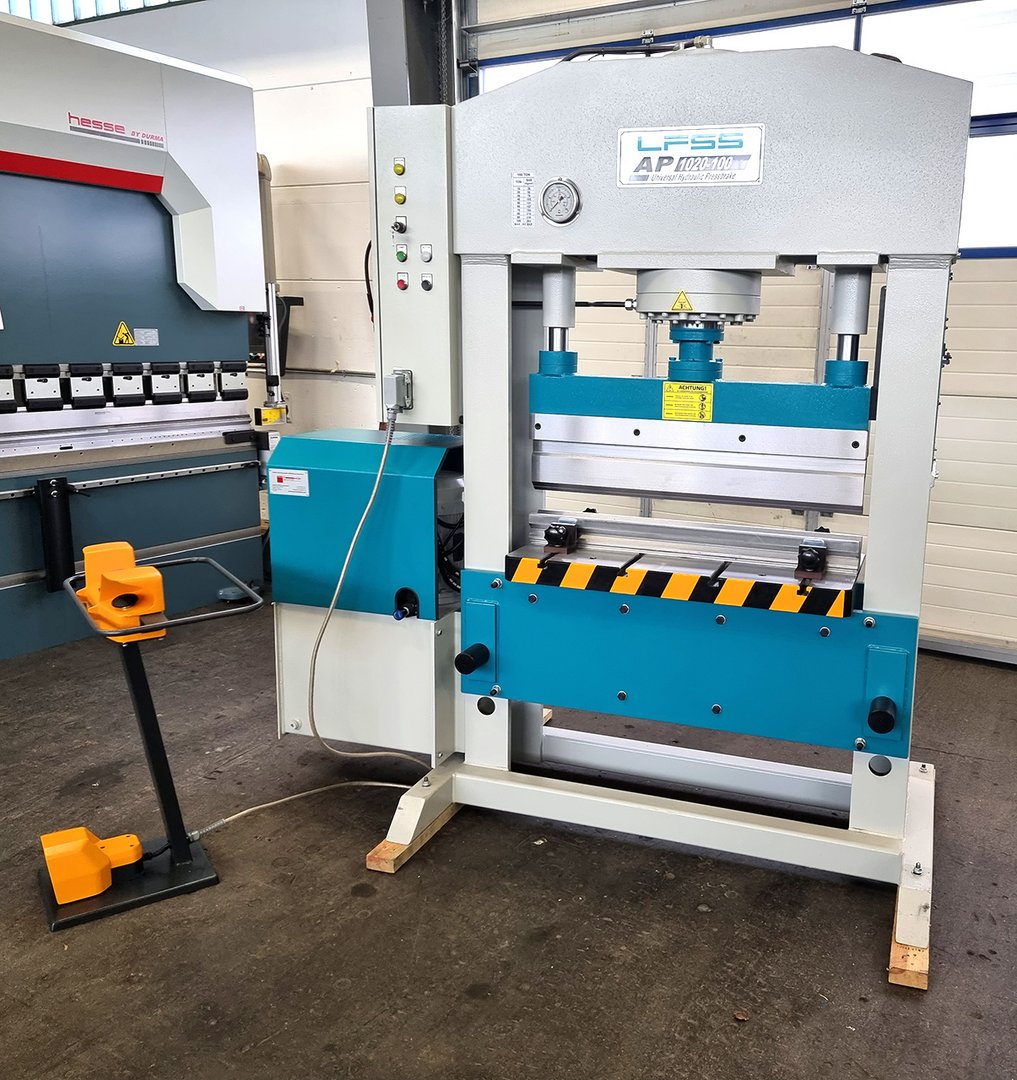

Workshop press with bending device HESSE by LFSS AP 1020/100
| Model | AP 1020/100 |
| Brand | HESSE by LFSS |
| Condition | used |
| Year of manufacture | 2023 |
| pressing capacity | 100 to |
| Bending length | 1000 mm |
| Stock number | 7280 |
| Origin | Türkiye |
General characteristics
| pressing capacity | 100 to |
| Bending length | 1000 mm |
| Stroke | 300 mm |
| Motor power | 7.5 kW |
| Die | 1 |
| Distance between table and toolholder | 680 mm |
| Distance between columns | 1020 mm |
| Working speed | 5 mm/s |
| Rapid speed | 10 mm/s |
| Max. bending capacity (mild steel) | 6 mm |
| Hole in table | 100 mm |
| Hole distance | 190 mm |
Dimensions and weight
| Length | 2110 mm |
| Width | 1000 mm |
| Height | 2275 mm |
| Weight | 1900 kg |
Description
demo machine / mint condition
net price (price for new machine € 19.550,00)
2 guidings

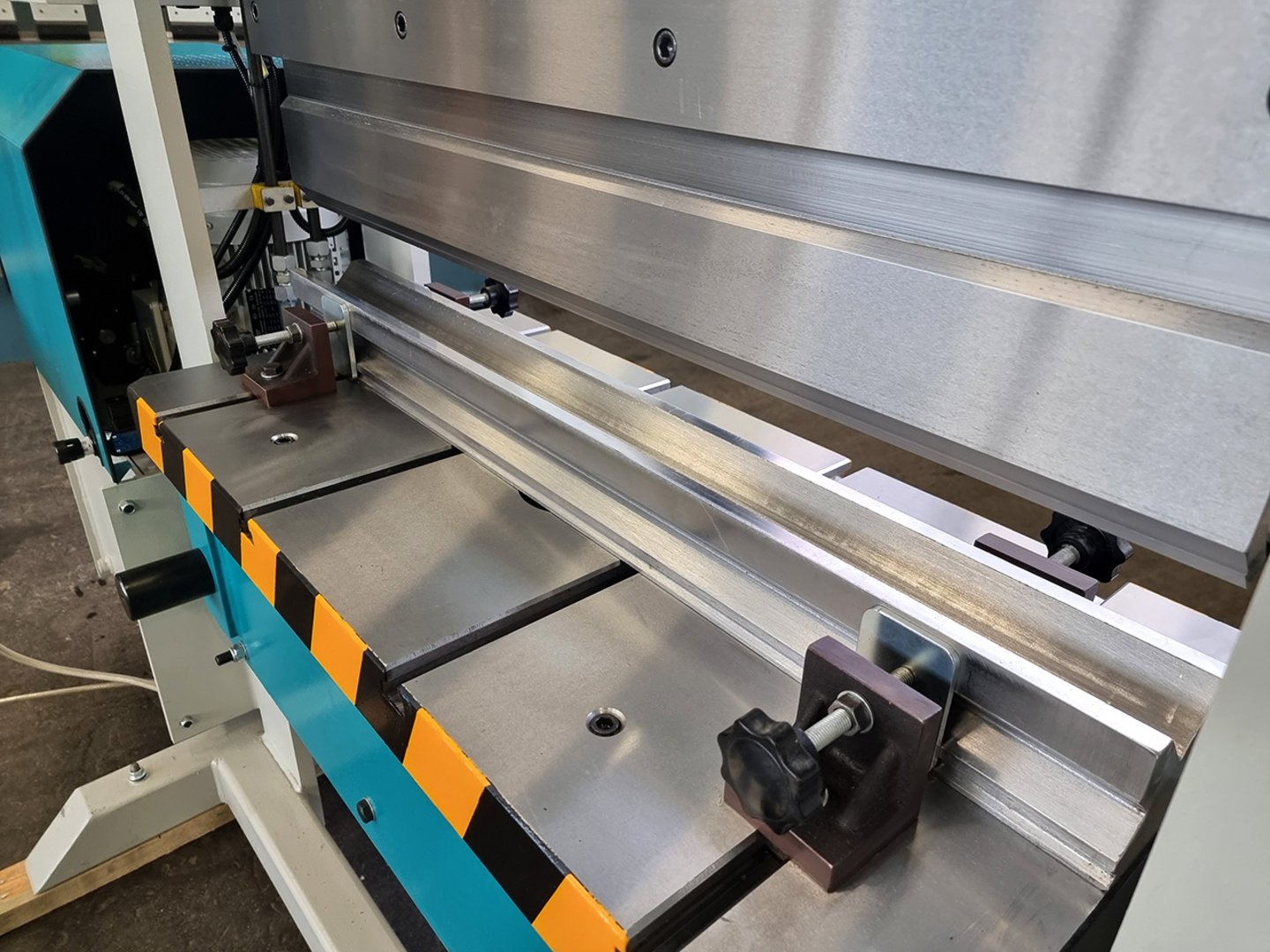

big upper tool holder and table with t-slots

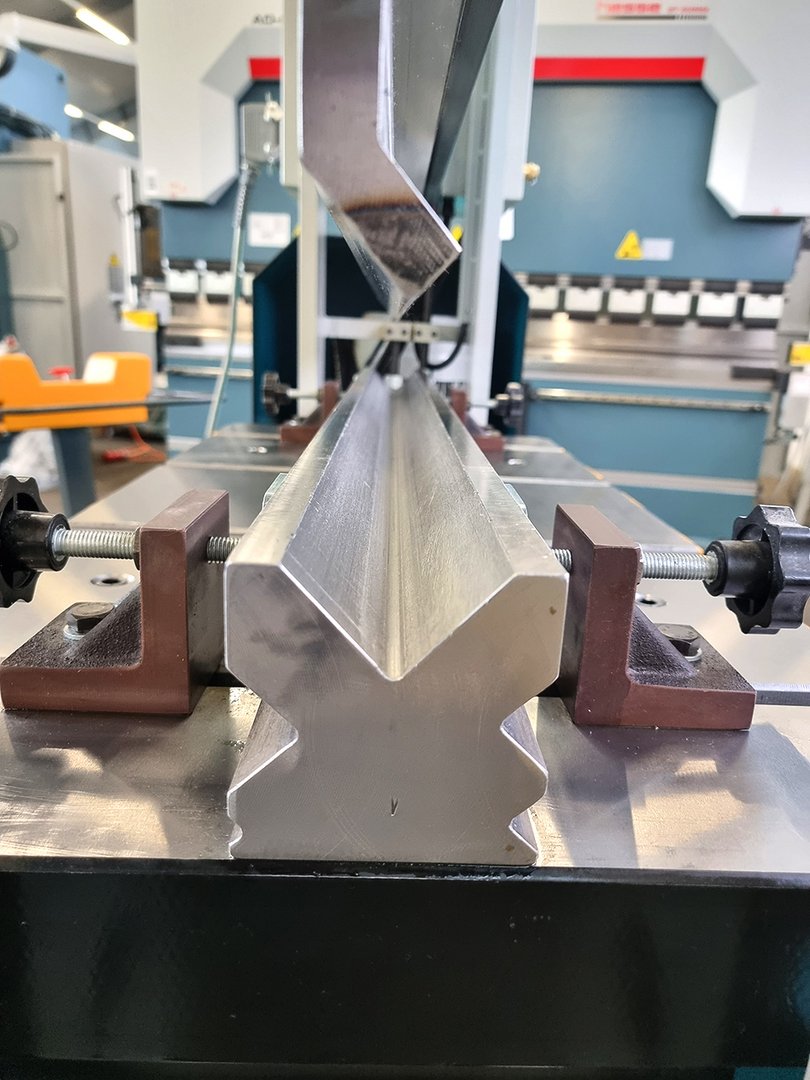

upper and lower pressbrake tool
manometer
rapid down move with automtic change to working speed
piston stops in every position
2 hand panel and foot pedal
height adjustable table
user manual in German and English
according to CE rules
