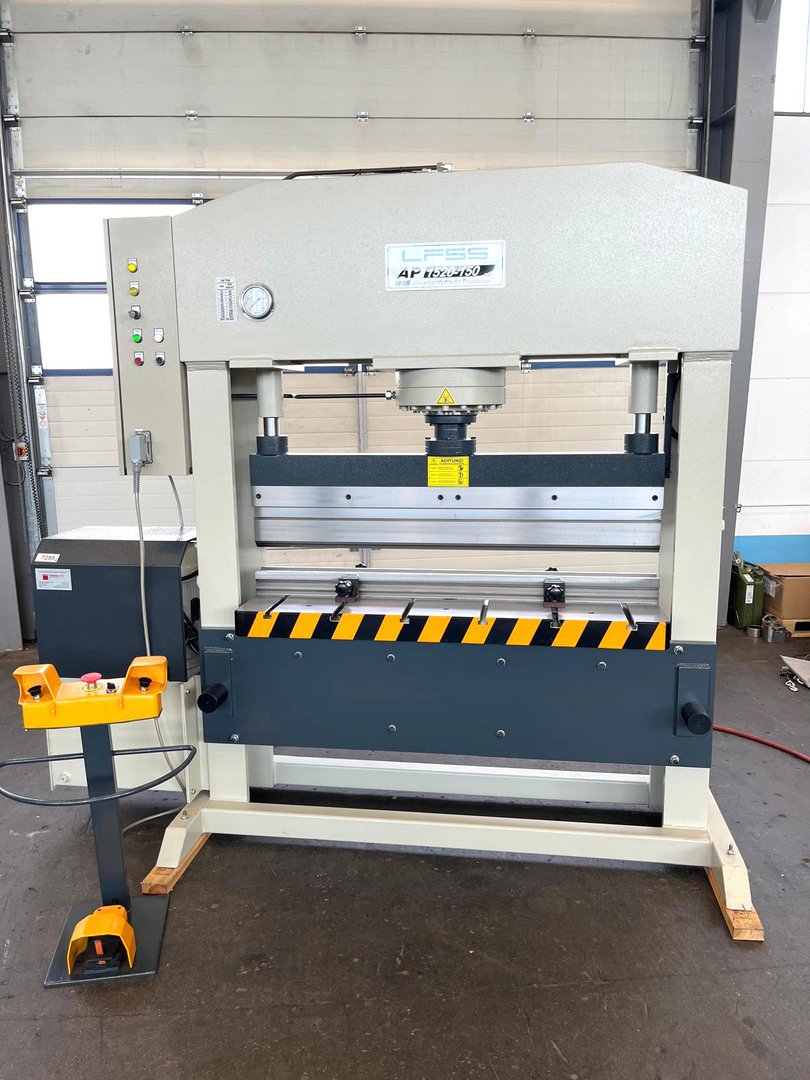

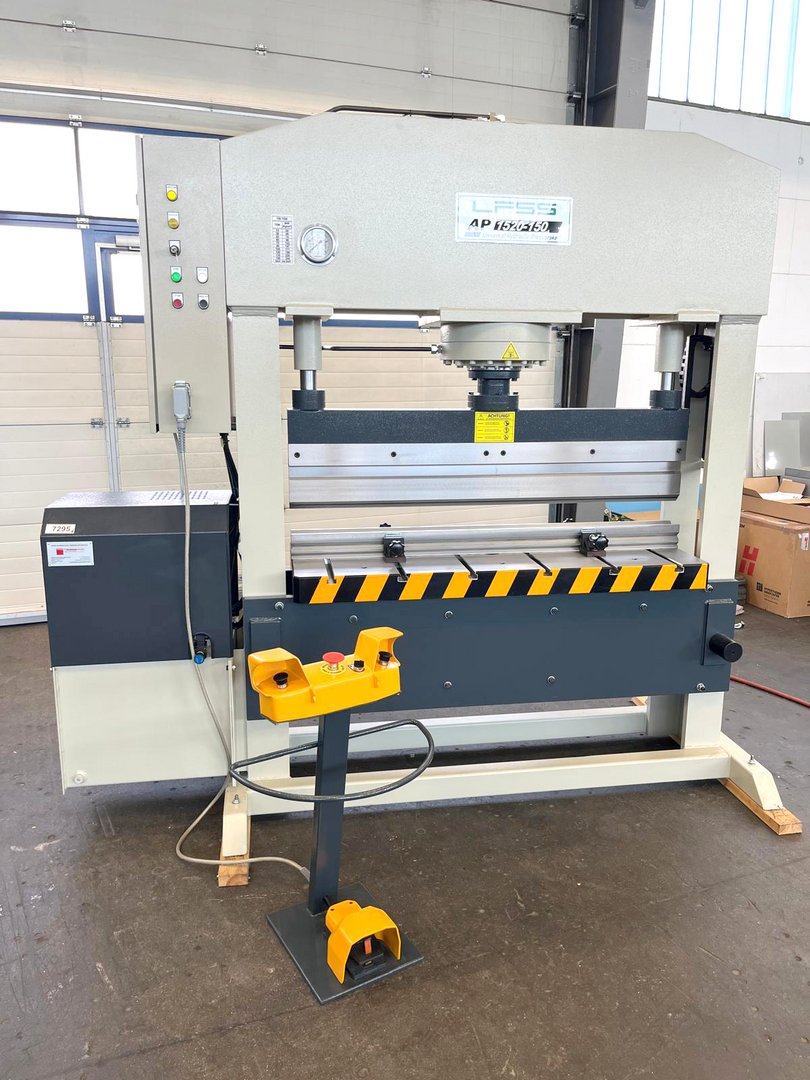

Workshop press with bending device HESSE by LFSS AP 1520/150
| Model | AP 1520/150 |
| Brand | HESSE by LFSS |
| Condition | new |
| Year of manufacture | 2023 |
| pressing capacity | 150 to |
| Bending length | 1520 mm |
| Stock number | 7295 |
| Origin | Türkiye |
General characteristics
| pressing capacity | 150 to |
| Bending length | 1520 mm |
| Stroke | 300 mm |
| Power concept | hydraulic |
| Motor | 11 kW |
| Distance between table and toolholder | 610 mm |
| Distance between columns | 1520 mm |
| Working speed | 5 mm/s |
| Rapid speed | 9 mm/s |
| Max. bending capacity (mild steel) | 10 mm |
| Hole in table | 100 mm |
| Hole distance | 190 mm |
Dimensions and weight
| Length | 2630 mm |
| Width | 1000 mm |
| Height | 2450 mm |
| Weight | 3270 kg |
Description
2 guidings
big upper tool holder and table with t-slots

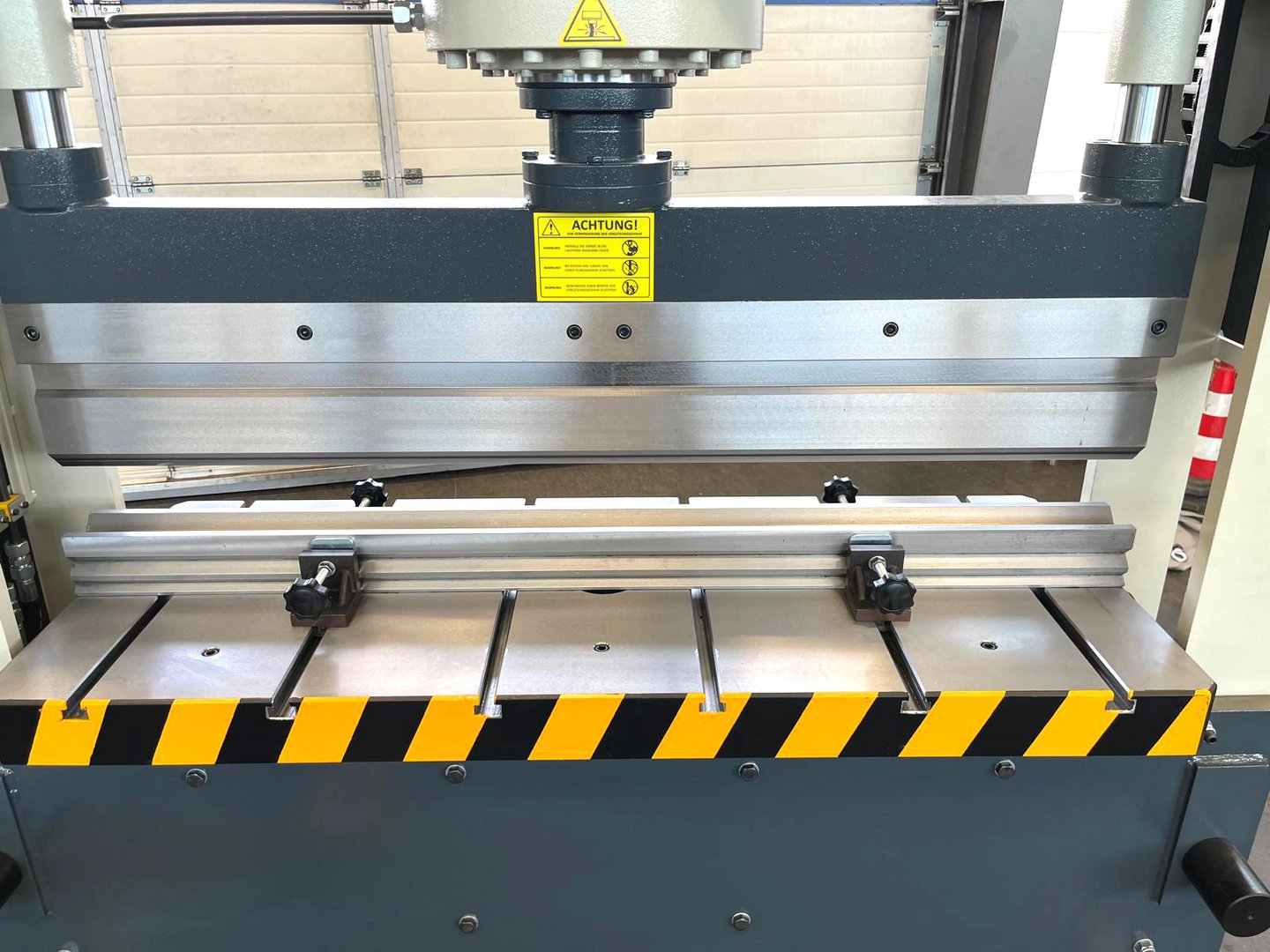

upper and lower pressbrake tool

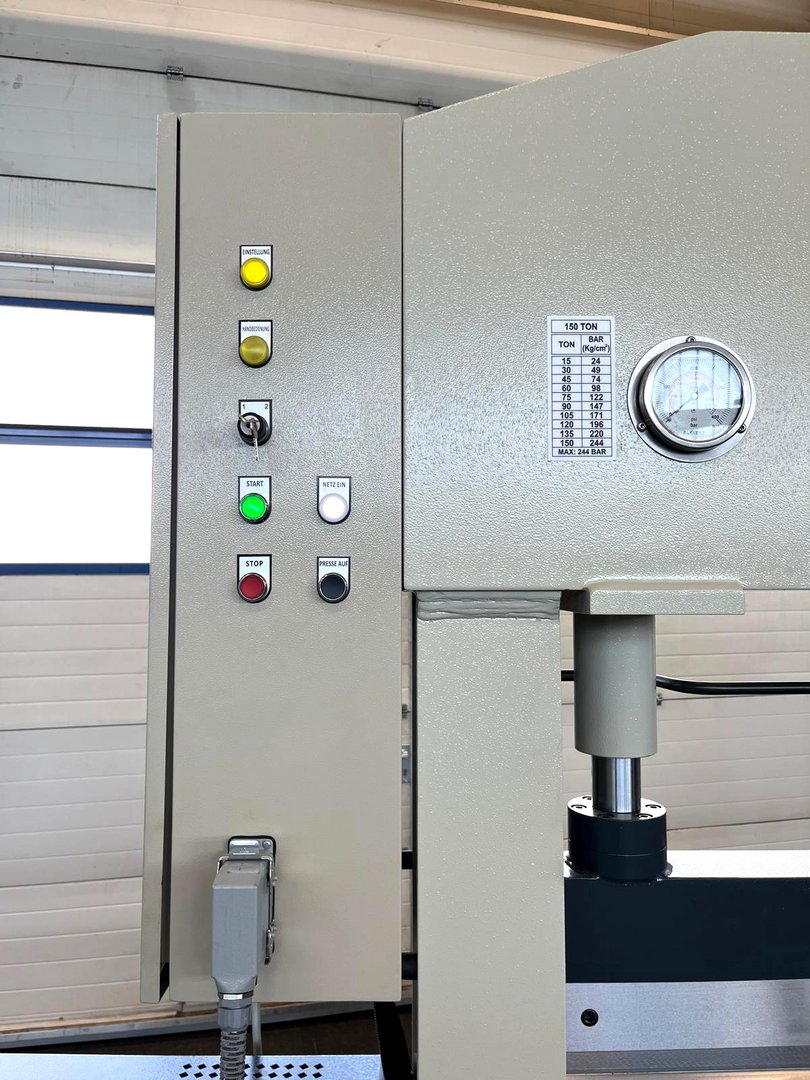

manometer
rapid down move with automtic change to working speed
piston stops in every position
2 hand panel and foot pedal
height adjustable table
user manual in German and English
according to CE rules
