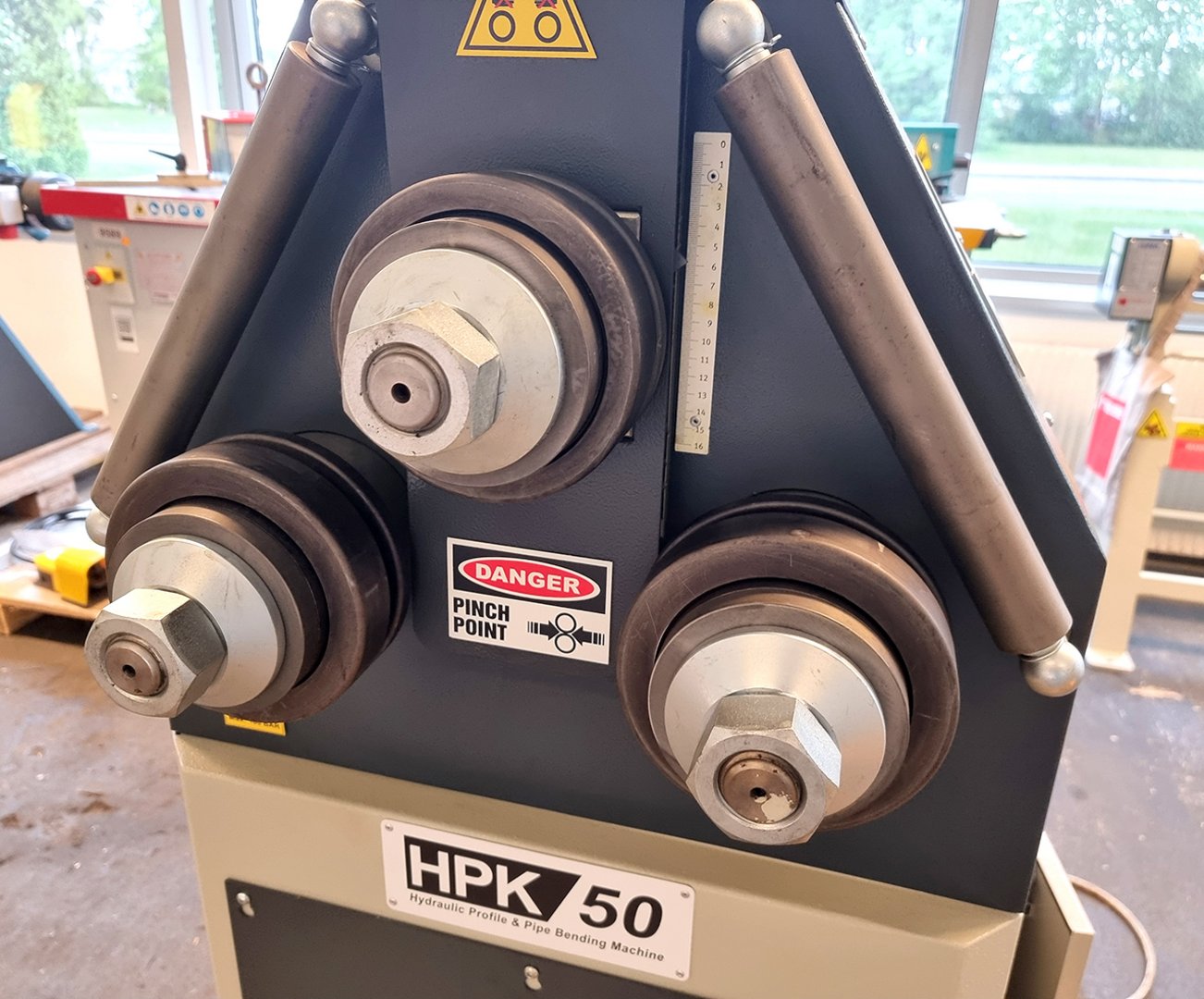

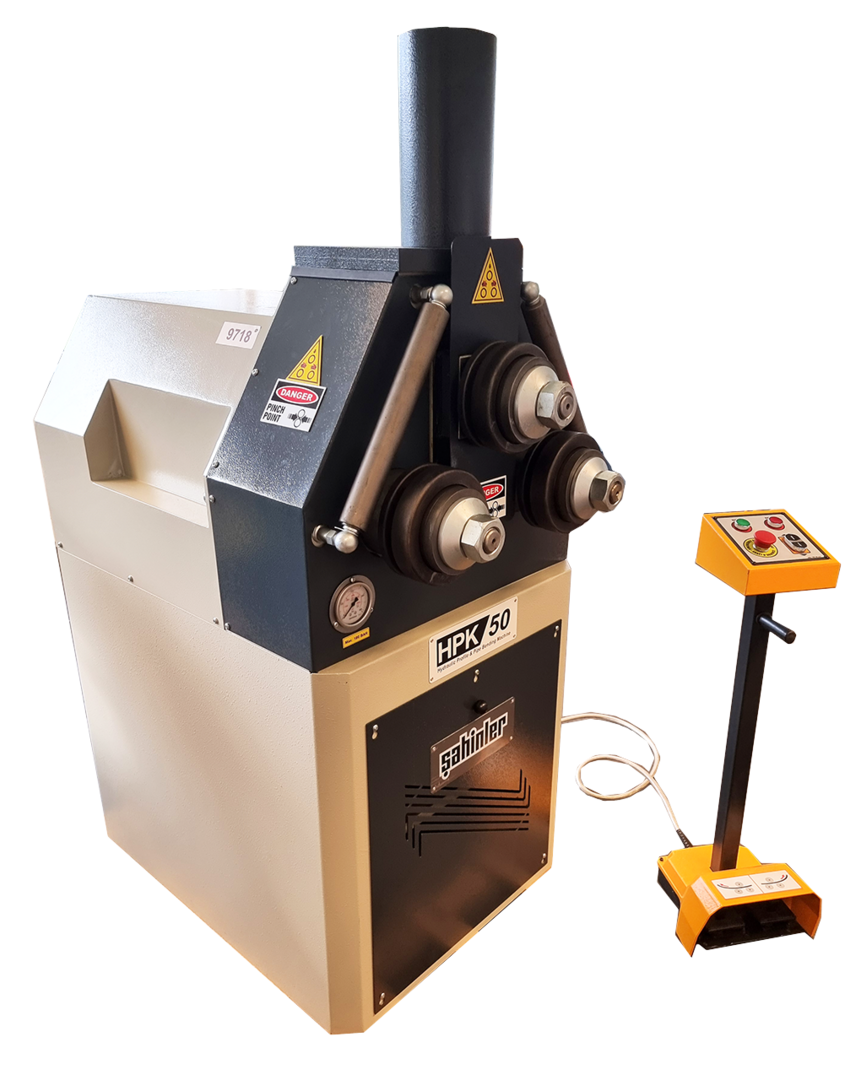

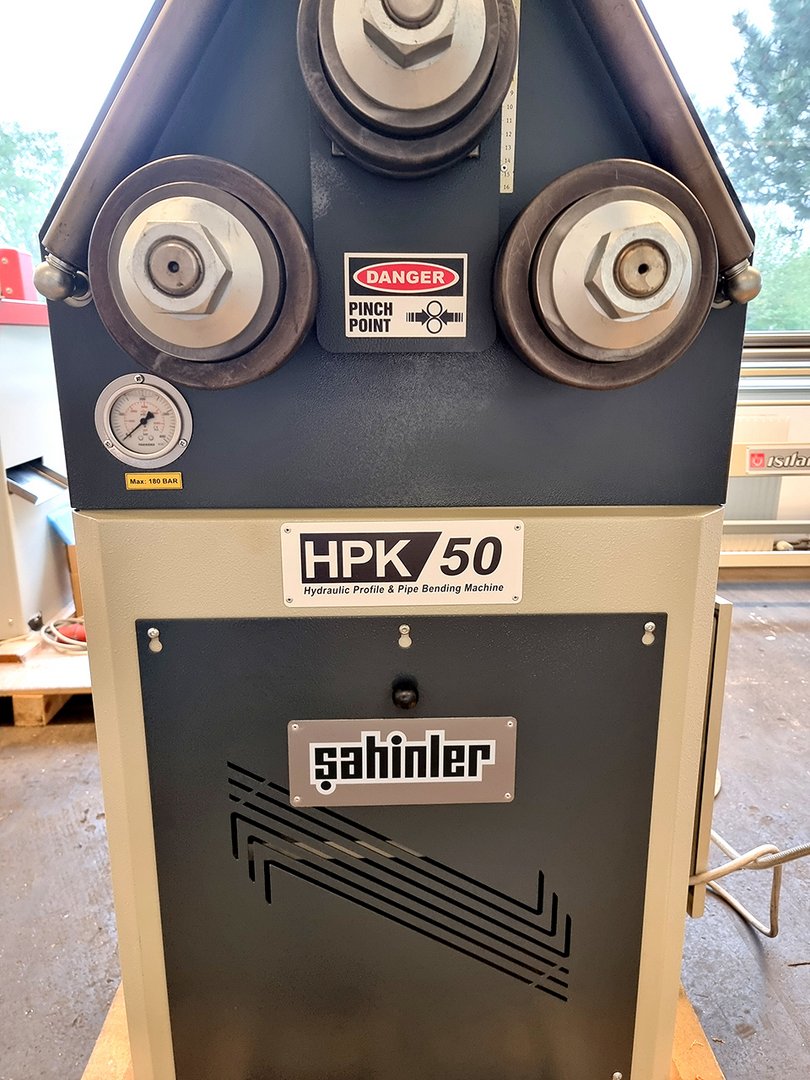

Profile bending machine with hydraulic feed of rolls HESSE by SAHINLER HPK 50
| Model | HPK 50 |
| Brand | HESSE by SAHINLER |
| Condition | new |
| Year of manufacture | 2024 |
| Shaft diameter | 50 |
| Stock number | 9718 |
| Origin | Türkiye |
General characteristics
| Shaft diameter | 50 |
| Upper roll diameter | 152 mm |
| Lower roll diameter | 162 mm |
| Driven rolls | 3 |
| Motor power | 1.1 kW |
| Speed | 4 m/min |
| Flat steel vertical position (section / min. diameter) | 60x10 mm / 600 mm; 20x10 mm / 300 mm |
| Flat steel horizontal position (section / min. diameter) | 100x15 mm / 600 mm; 50 x 10 mm / 300 mm |
| Square bar (section / min. diameter) | 35x35 mm / 600 mm; 15x15 mm / 300 mm |
| Round bar (section / min. diameter) | 35 mm / 600 mm; Dm. 20 mm / 300 mm |
| Tube (section / min. diameter) | 70x2 mm / 1200 mm; Dm. 25x1,5 mm / 400 mm; 2"x2,9 mm / 1000 mm; 1/2"x2,3 mm / 350 mm |
| Form tube vertical position (Querschnitt / min. Durchmesser) | 70x30x3 mm / 1500 mm; 30x15x2 mm / 400 mm |
| Form tube square (section / min. diameter) | 50x50x3 mm / 1600 mm; 20x20x2 mm / 400 mm |
| Angle leg outside (Querschnitt / min. Durchmesser) | 50x50x6 mm / 600 mm; 30x30x3 mm / 400 mm |
| Angle leg inside (section / min. diameter) | 50x50x6 mm / 900 mm; 30x30x3 mm / 600 mm |
Dimensions and weight
| Length | 810 mm |
| Width | 950 mm |
| Height | 1500 mm |
| Weight | 500 kg |
Description
3 mech. driven rolls (brake motor)
hardened shafts
top roll hydraulic adjustable

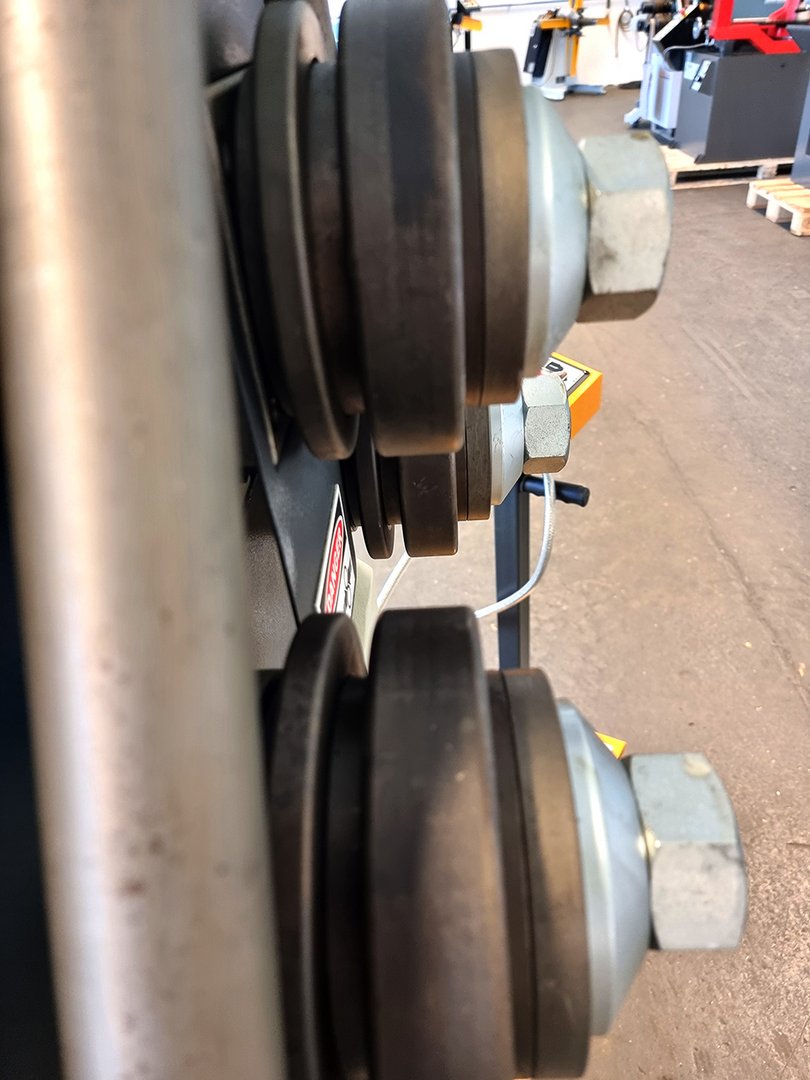

hardened universal rolls
lateral rolls adjustable in 1 axis
horizontal and vertical operation

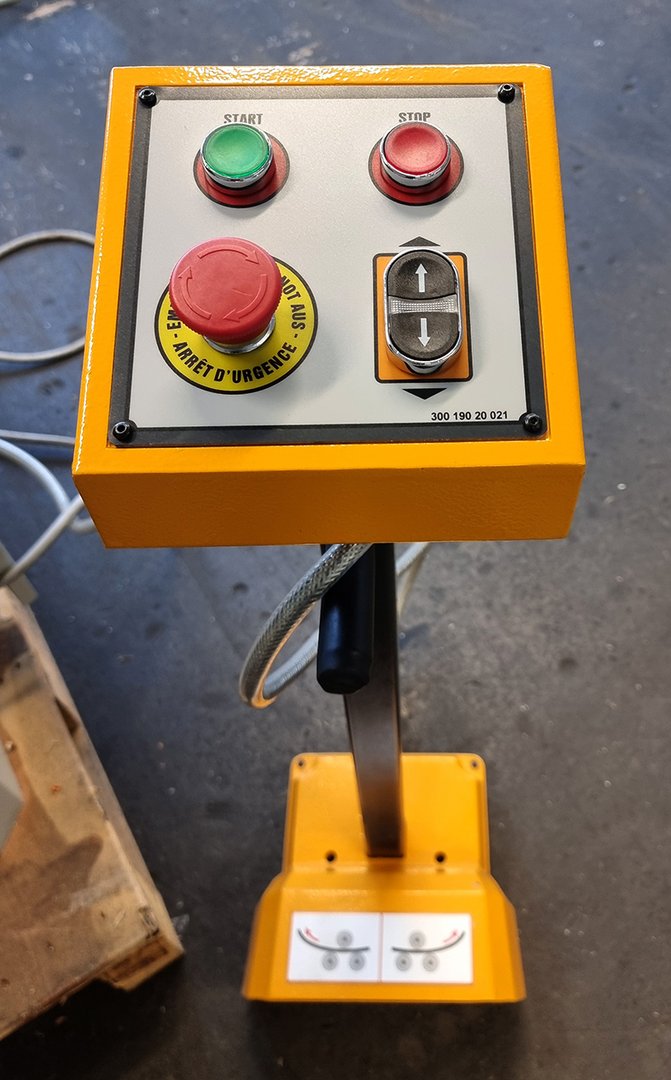

double foot pedal for for- and backward drive
machine and equipment according to the CE regulations
user manual in GERMAN and ENGLISH
