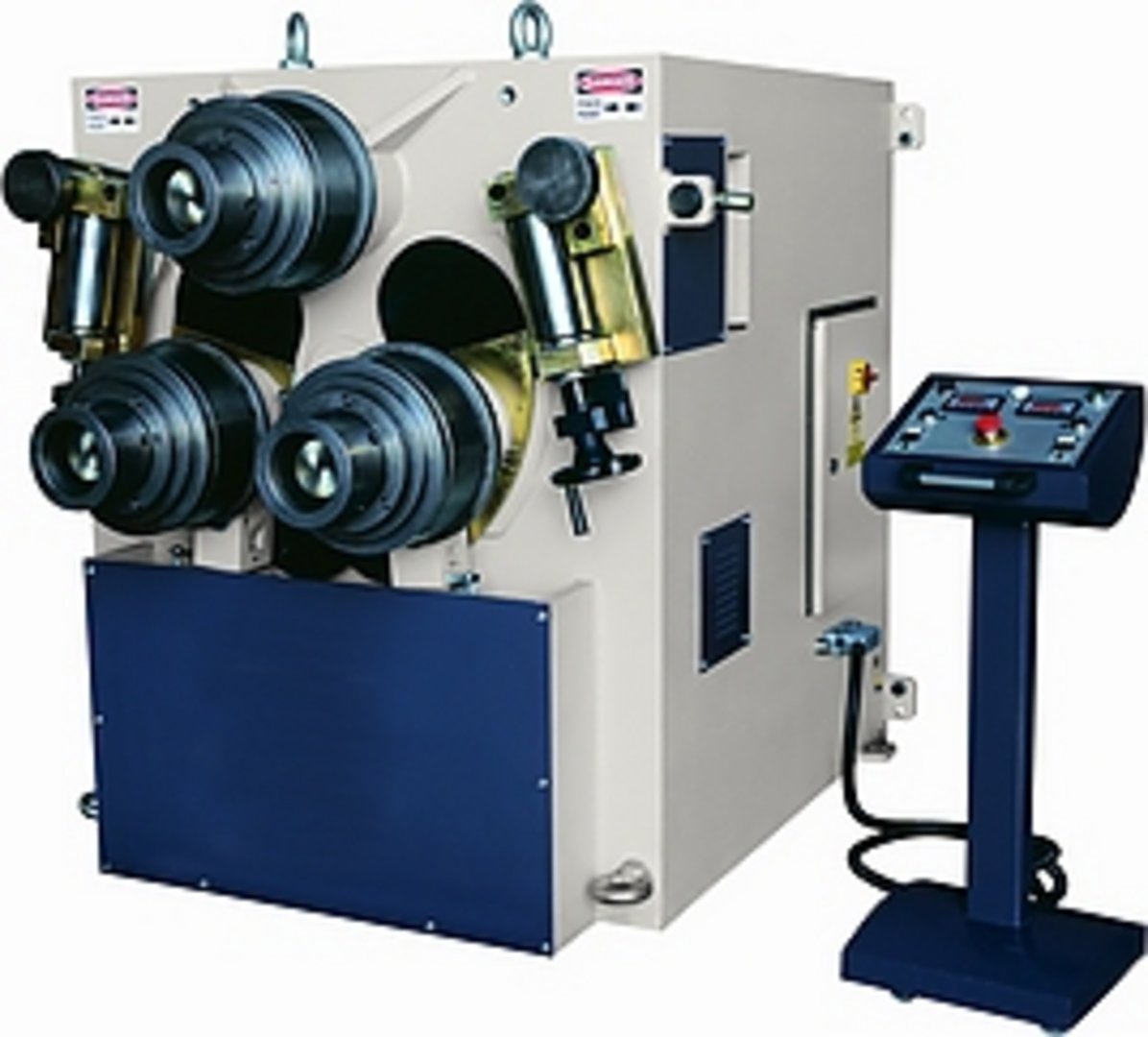

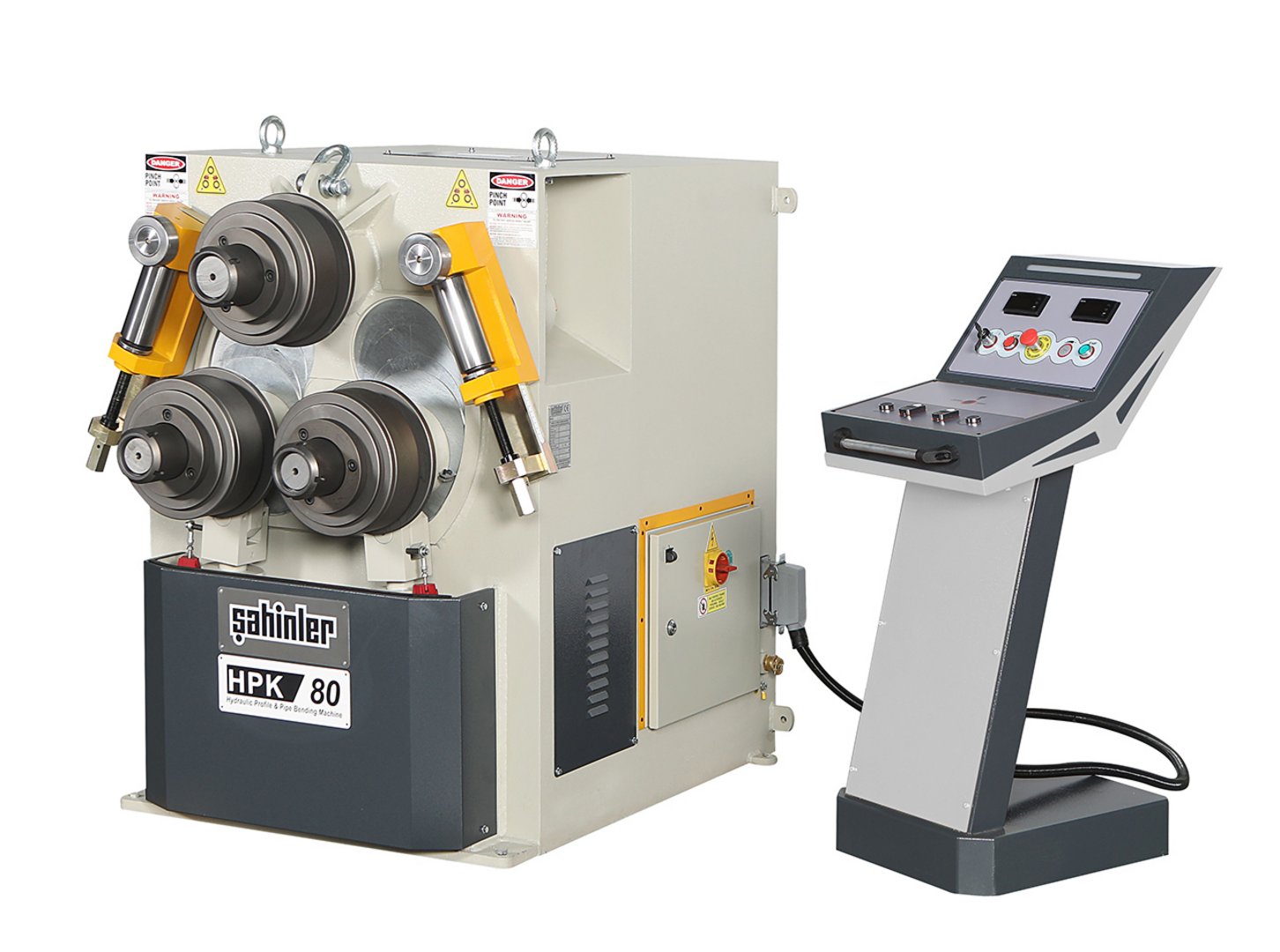

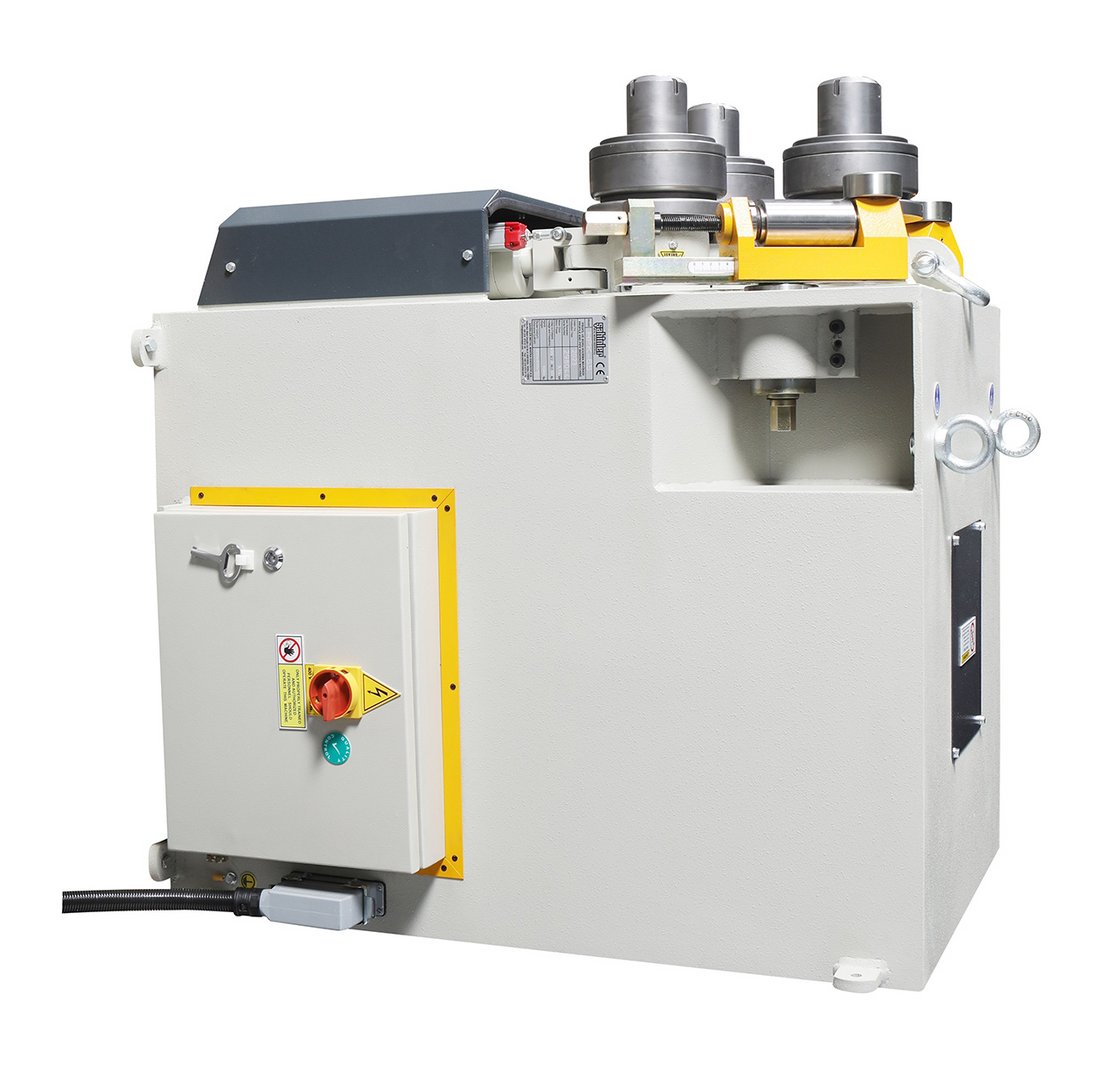

Profile bending machine with hydraulic feed of rolls HESSE by SAHINLER HPK 80
| Model | HPK 80 |
| Brand | HESSE by SAHINLER |
| Condition | new |
| Shaft diameter | 80 |
| Rolls diameter | 245 mm |
| Origin | Türkiye |
General characteristics
| Shaft diameter | 80 |
| Rolls diameter | 245 mm |
| Driven rolls | 3 |
| Motor power | 4 kW |
| Speed | 6 m/min |
| Flat steel vertical position (section / min. diameter) | 100x20 mm / 2000 mm; 80x20 mm / 800 mm; 30x10 / 300 |
| Flat steel horizontal position (section / min. diameter) | 125x25 mm / 600 mm; 60x5 mm / 300 mm |
| Square bar (section / min. diameter) | 45x45 mm / 500 mm; 15x15 mm / 380 mm |
| Round bar (section / min. diameter) | Ø 50 mm / 500 mm; Ø 15 mm / 380 mm |
| Tube (section / min. diameter) | Ø 100x2,5 mm / 1.200 mm; Ø 15x1 mm / 380 mm; Ø 3"x5,48 / 800 mm; Ø 1/2"x2,77 / 380 mm |
| Form tube vertical position (Querschnitt / min. Durchmesser) | 80x25x3 mm / 800 mm; 25x15x2 mm / 350 mm |
| Form tube square (section / min. diameter) | 70x70x3 mm / 1.300 mm; 25x25x2 mm / 350 mm |
| Angle leg outside (Querschnitt / min. Durchmesser) | 80x80x8 mm / 800 mm; 30x30x3 mm / 400 mm |
| Angle leg inside (section / min. diameter) | 70x70x7 mm / 700 mm; 30x30x3 mm / 450 mm |
| UPN leg outside (section / min. diameter) | UPN 140 / 1600 mm; UPN 120 / 900 mm; UPN 100 / 800 mm |
| UPN leg inside (section / min. diameter) | UPN 140 / 1.600 mm; UPN 120 / 1000 mm; UPN 100 / 800 mm |
| IPN horizontal position (section / min. diameter) | IPN 120 / 600 mm; IPN 80 / 400 mm |
Dimensions and weight
| Length | 1450 mm |
| Width | 1000 mm |
| Height | 1400 mm |
| Weight | 1700 kg |
Description
3 motor driven rolls
strong welded steel construction
lower rolls hydr. adjustable
digital read-out for lower rolls positions on seperate control panel
lateral rolls adjustable in 3 axes
horizontal and vertical operation
for- and backward drive
machine and equipment according to the CE regulations
