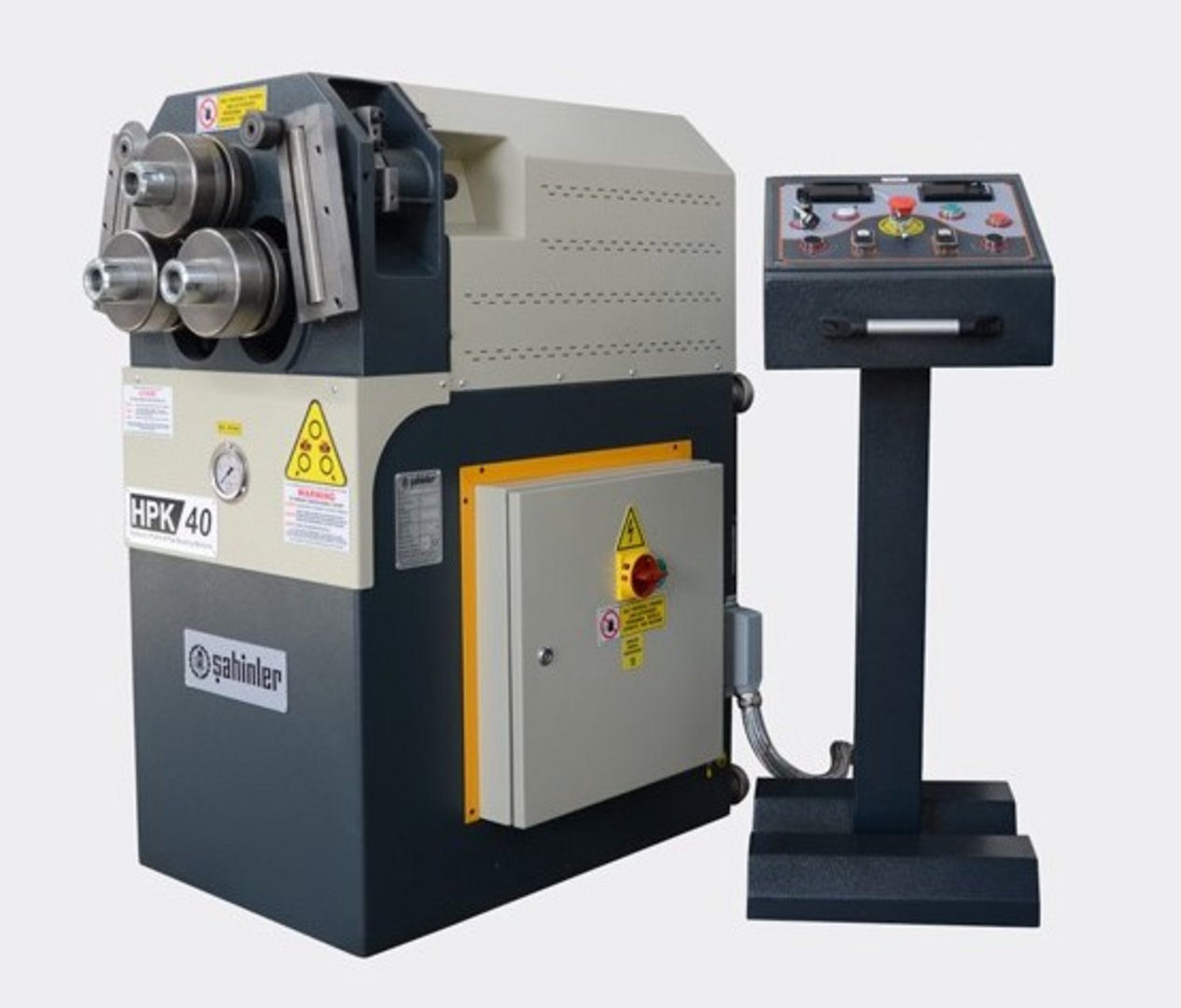

Profile bending machine with hydraulic feed of rolls HESSE by SAHINLER HPK 40
| Model | HPK 40 |
| Brand | HESSE by SAHINLER |
| Condition | new |
| Shaft diameter | 35 |
| Origin | Türkiye |
General characteristics
| Shaft diameter | 35 |
| Upper roll diameter | 137 mm |
| Lower roll diameter | 137 mm |
| Driven rolls | 3 |
| Motor power | 1.1 kW |
| Speed | 7 m/min |
| Flat steel vertical position (section / min. diameter) | 35x8 mm / 300 mm |
| Flat steel horizontal position (section / min. diameter) | 50x12 mm / 400 mm |
| Square bar (section / min. diameter) | 18x18 mm / 250 mm |
| Round bar (section / min. diameter) | Ø 22 mm / 200 mm |
| Tube (section / min. diameter) | Ø 40x1,5 mm / 500 mm |
| Form tube vertical position (Querschnitt / min. Durchmesser) | 30x15x2,5 mm / 500 mm |
| Form tube square (section / min. diameter) | 25x25x2 mm / 450 mm |
| Angle leg outside (Querschnitt / min. Durchmesser) | 35x35x5 mm / 400 mm |
| Angle leg inside (section / min. diameter) | 30x30x4 mm / 550 mm |
Dimensions and weight
| Length | 1050 mm |
| Width | 500 mm |
| Height | 1250 mm |
| Weight | 350 kg |
Description
3 mech. driven rolls (brake motor)
hardened and ground shafts
lower rolls hydraulic adjustable
horizontal and vertical operation
standard set of rolls
foot pedal for for- and backward drive
2 digital readouts
control panel
machine and equipment according to the CE regulations
user manual in GERMAN and ENGLISH
