General characteristics
| Punching power | 47 ton |
| Throat depth | 110 mm |
| Max. hole diameter | 27 mm |
| Max. oblong hole | 25x18 mm |
| Punching time | 8 s |
| Max. sheet thickness - mild steel | 16 mm |
| Working pressure | 700 bar |
Dimensions and weight
| Length | 479 mm |
| Width | 135 mm |
| Height | 388 mm |
| Weight | 117 kg |
Description

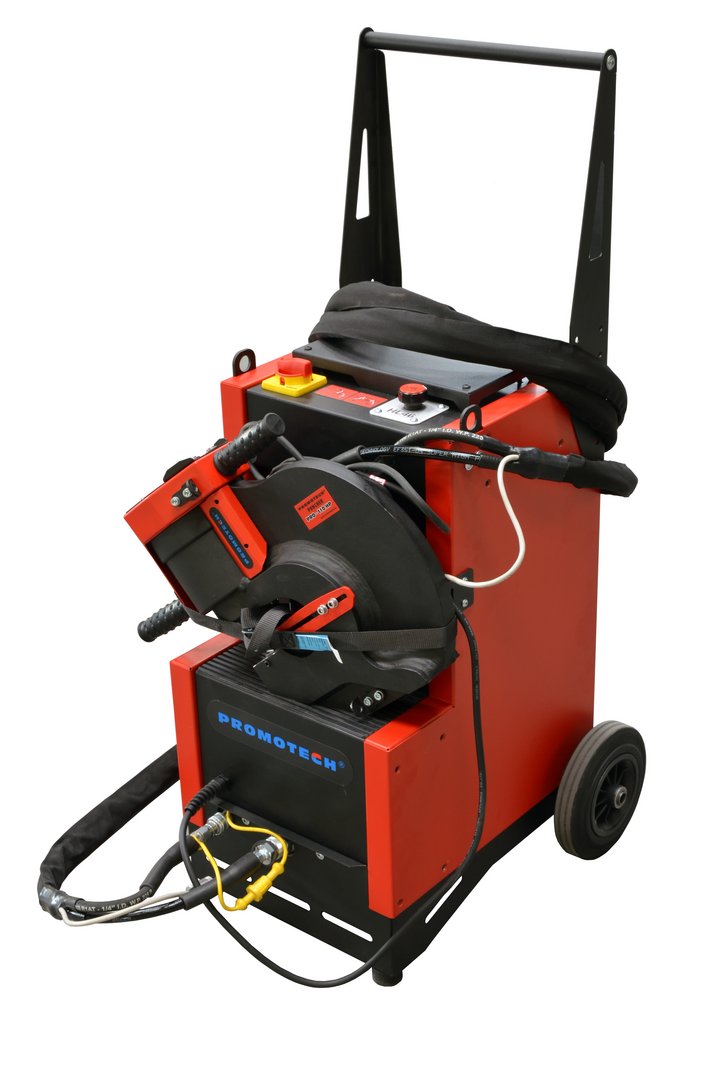

Mobile Hydraulics-Powerstation
Double action - fully automated process of punching and return
Wide range of hole diameters up to 27mm
Intelligent control system with inching and automatic load detection
Mode indicator light
Protection against accidental start-up
Optional:

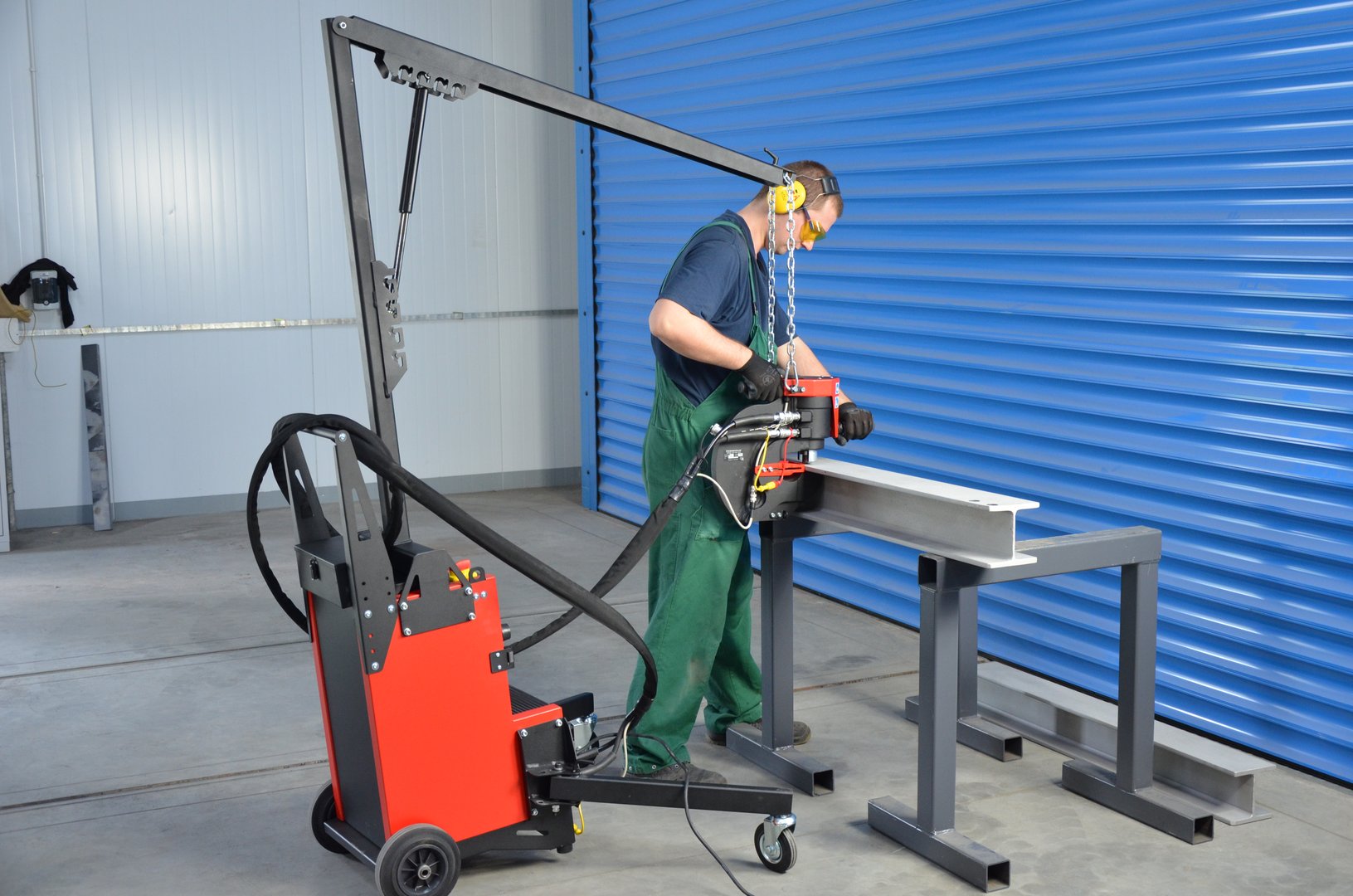

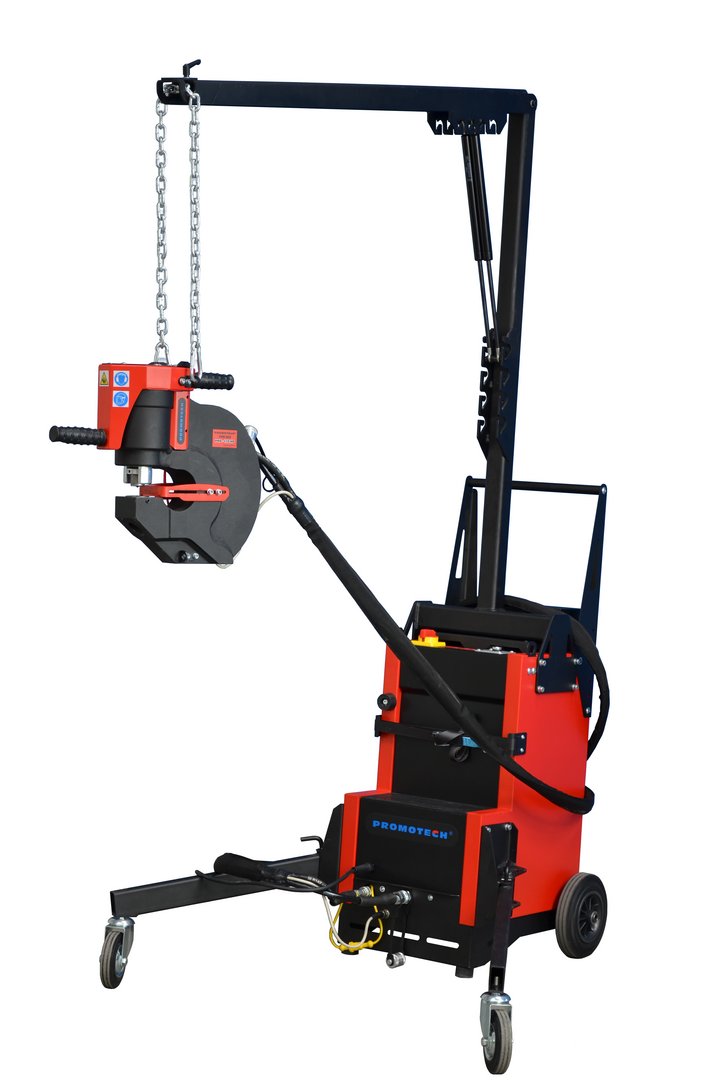

| Gantry punching station for increased productivity and operation comfort | € | 710,- |
Further information
Brochures
Product video

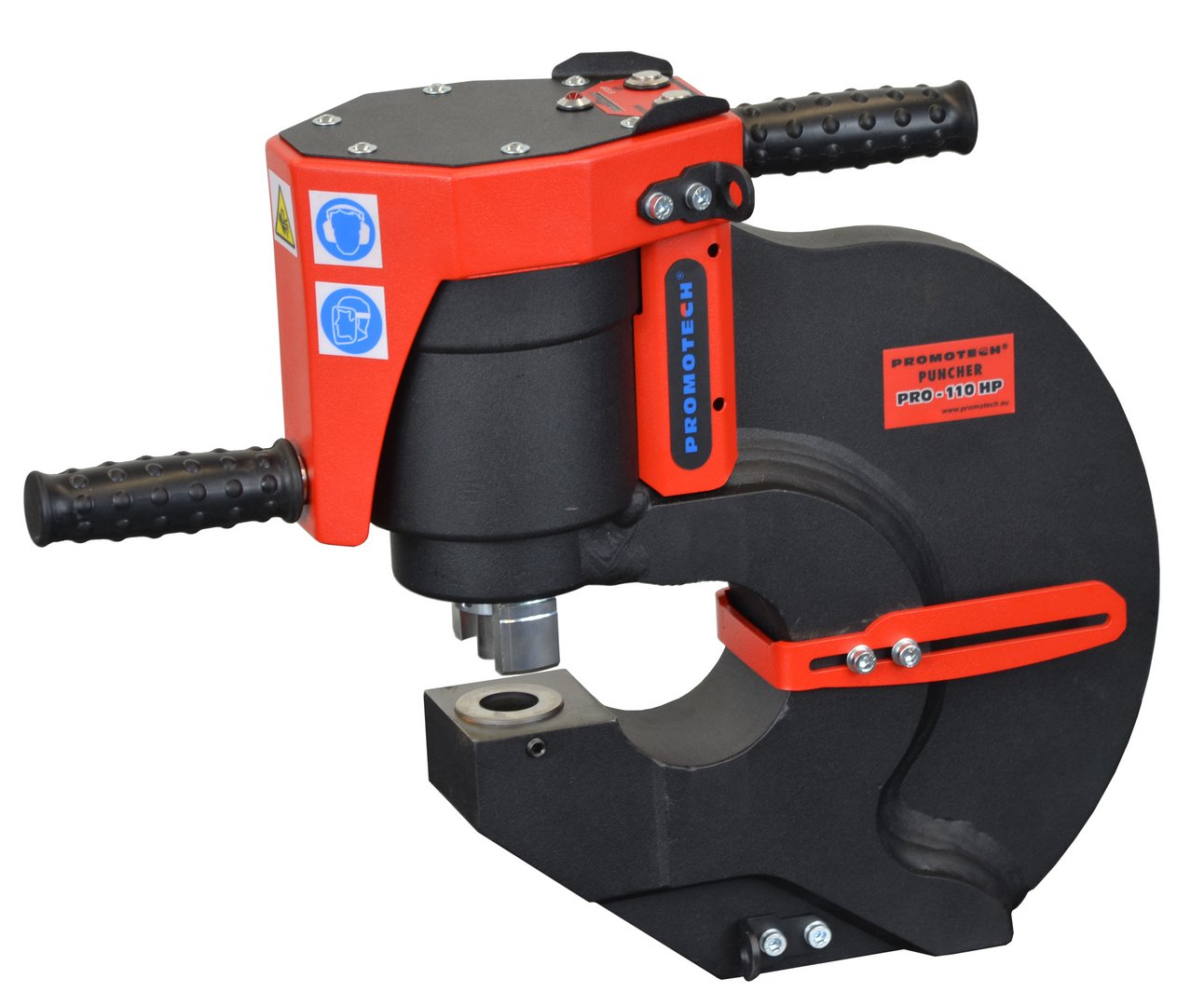

Portable punching machine PRO 110 HP
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
