General characteristics
| Working height | 820 - 940 mm |
| Maximal table load | 900 kg |
| Max. load per meter | 300 kg/m |
| width of rolls | 350 mm |
| diameter of rolls | 60 x 2 mm |
| axis diameter | 15 mm |
| max. gauge length | 2550 mm |
| roll gapping | 250 mm |
Dimensions and weight
| Length | 3000 mm |
Description
supply- and removal roller table
with lateral guidance
Further lengths:
| 1 meter | € 978,- |
| 2 meter | € 1.235,- |
| 4 meter | € 2.158,- |
| 6 meter | € 3.356,- |
Further lengths and roll widths on reques.

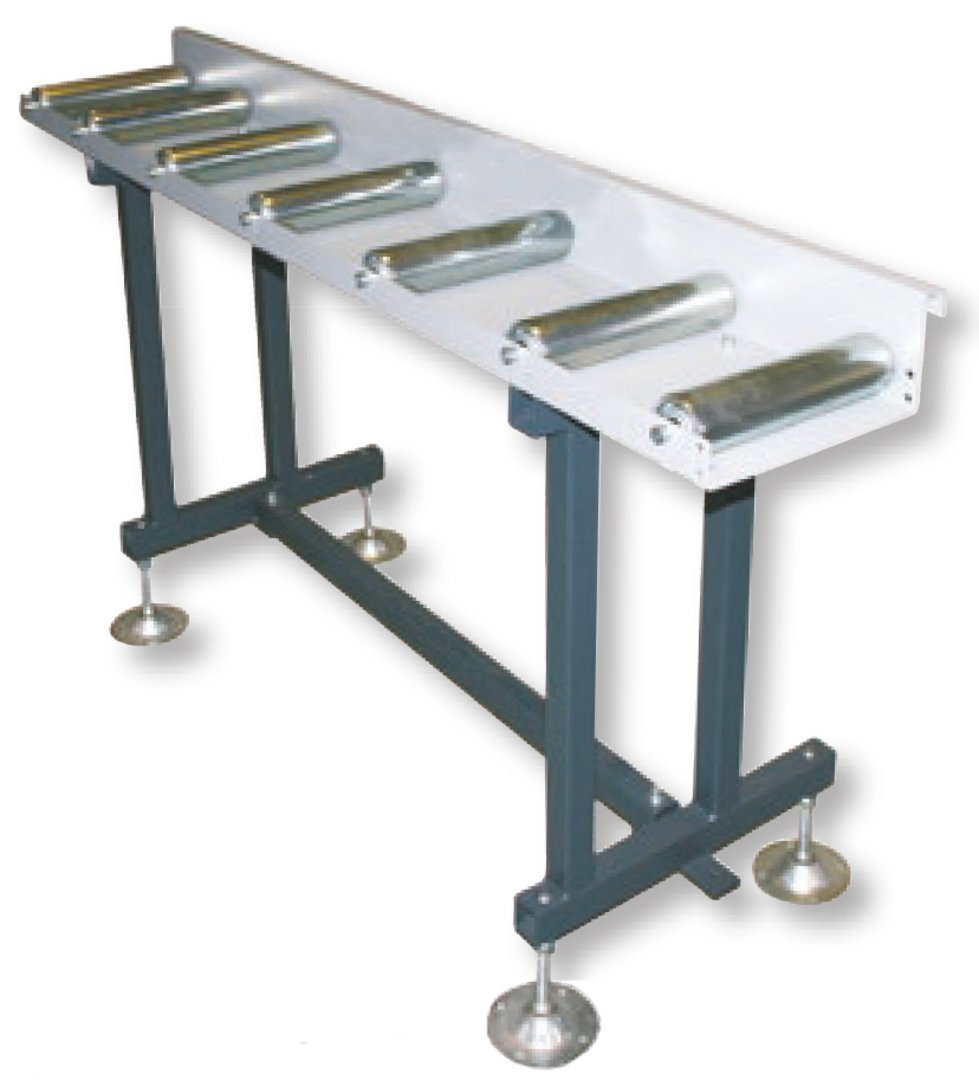

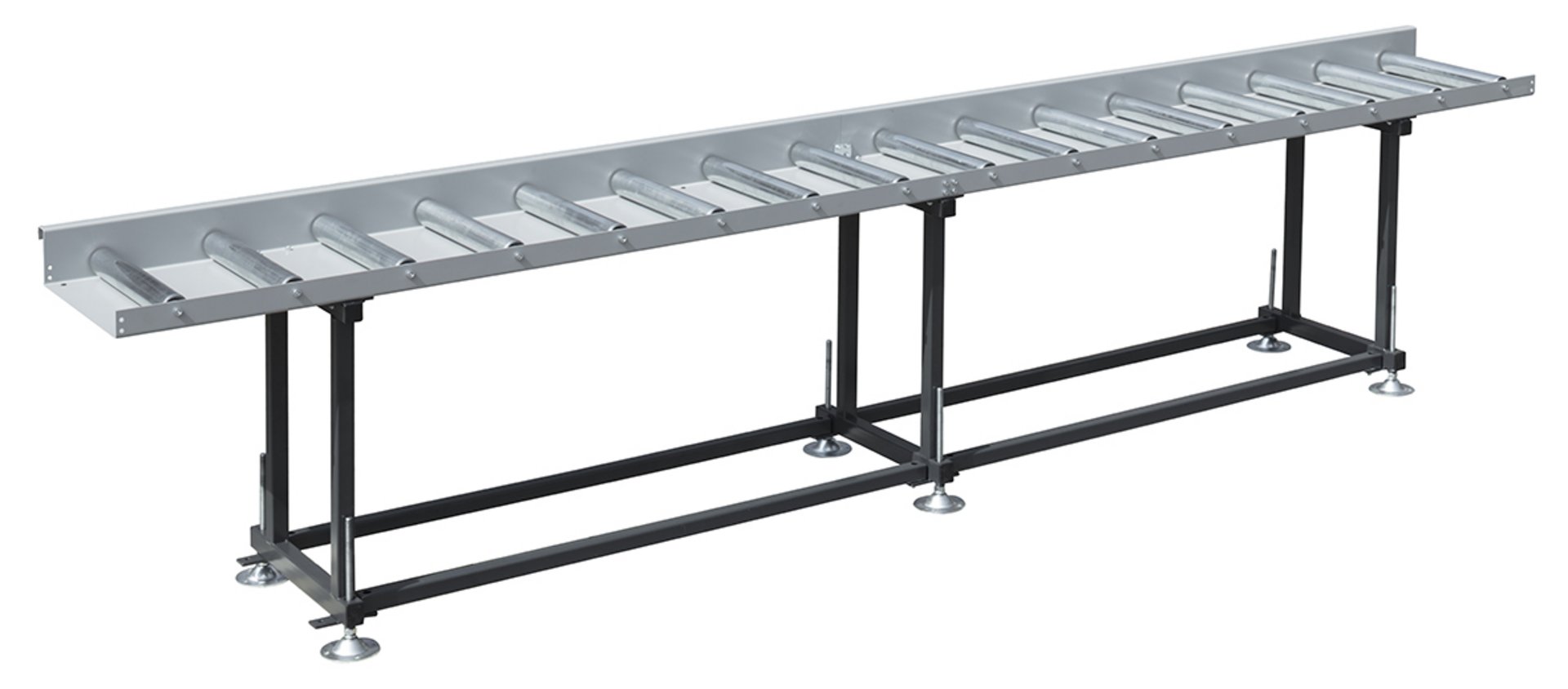

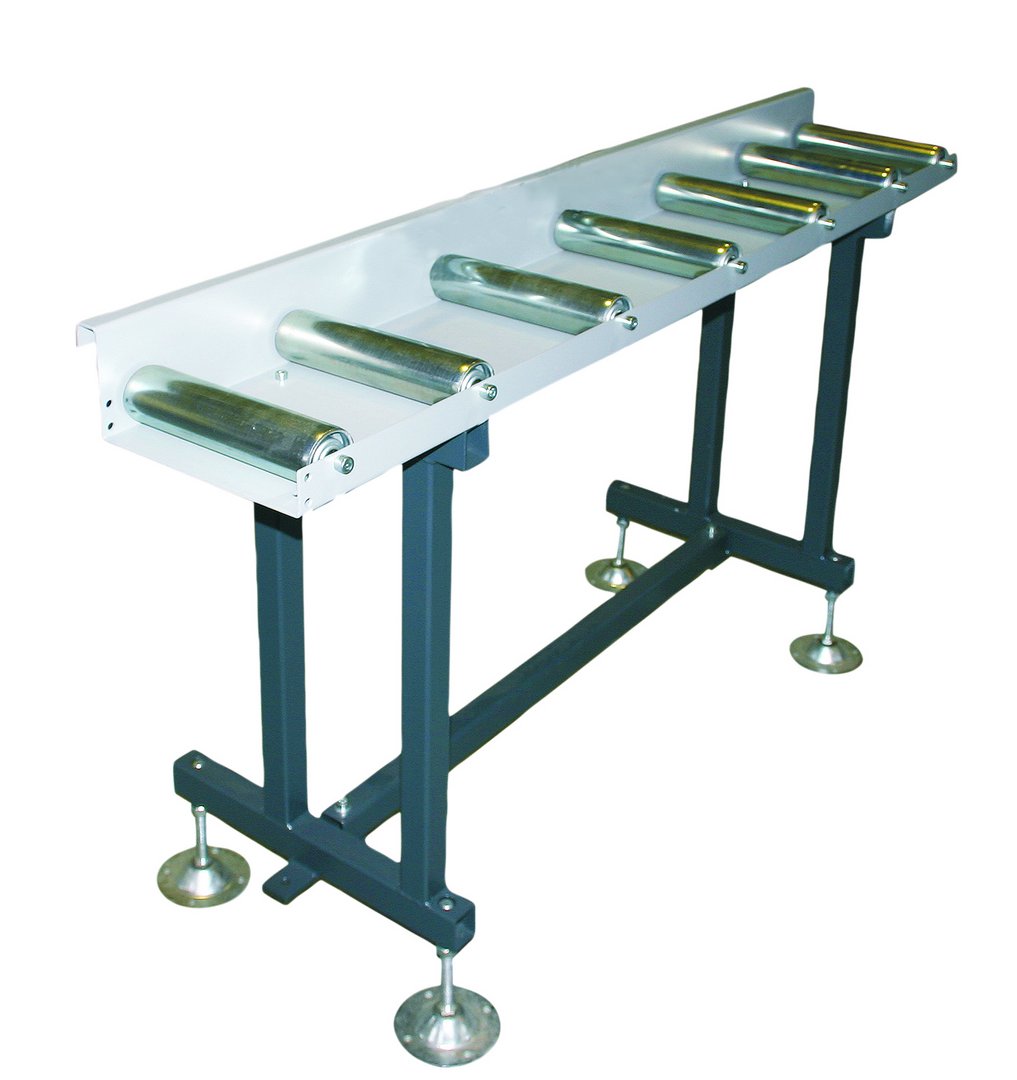

(sample photo)
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
