General characteristics
| Working height | 820 - 940 mm |
| Max. load per meter | 300 kg/m |
| width of rolls | 350 mm |
| diameter of rolls | 65 x 3 mm |
| axis diameter | 15 mm |
| max. gauge length | 2600 mm |
| roll gapping | 250 mm |
Dimensions and weight
| Length | 3000 mm |
Description

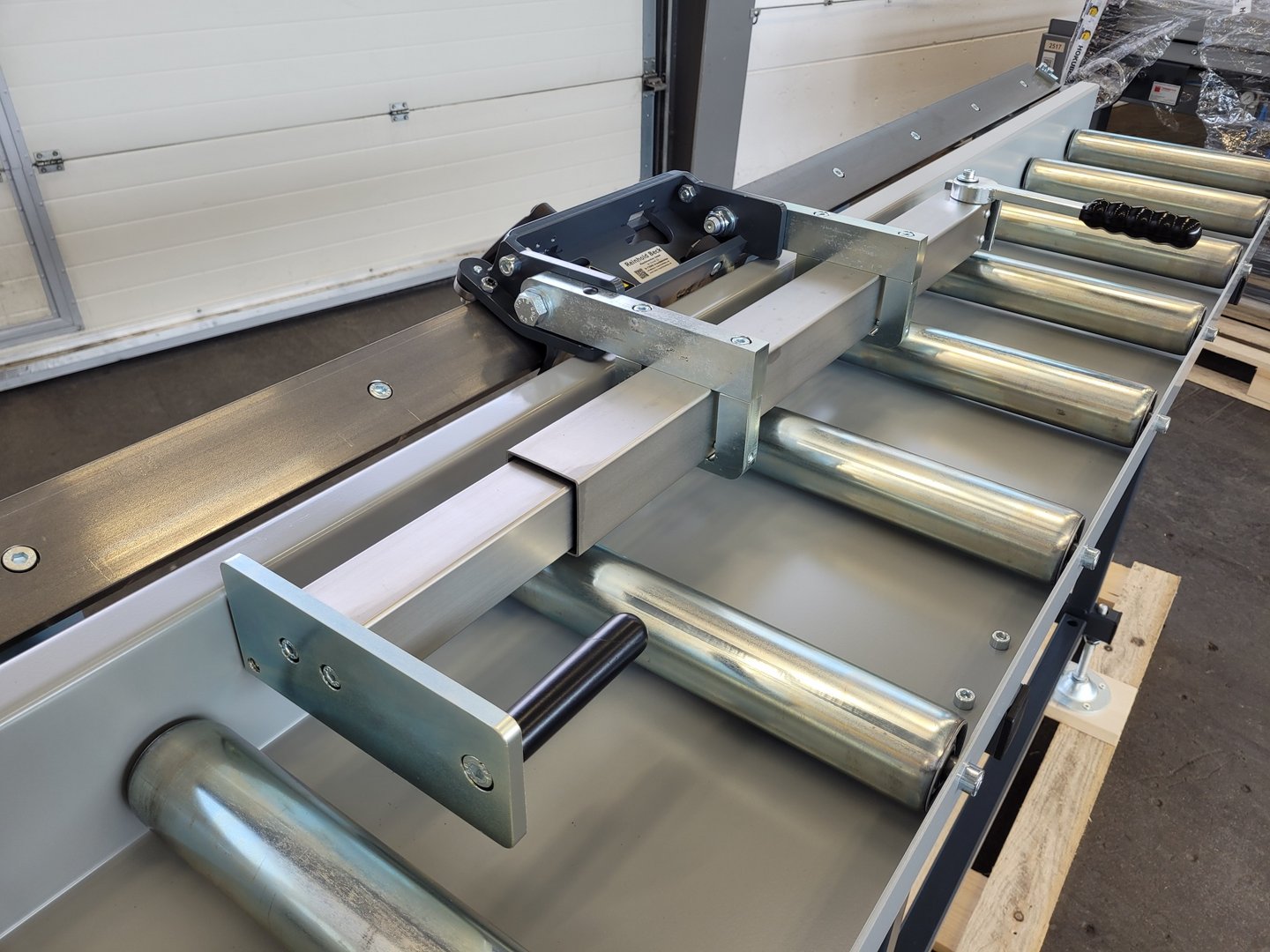

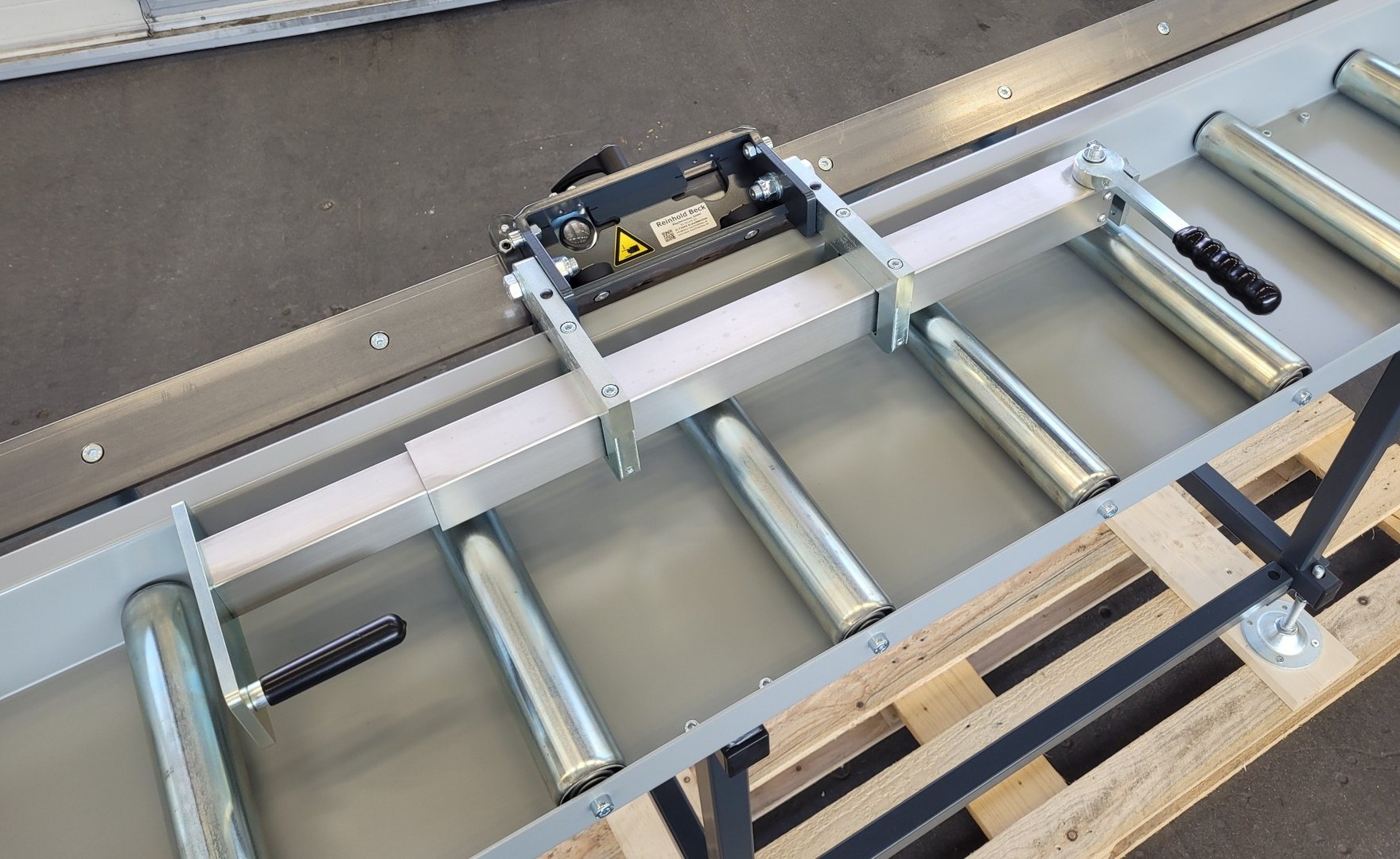

with mm-scale and magnifier on stop carriage
rolls and table with manual measuring system and a rigid flat steel guide
stop carriage 6-fold ball bearing mounted, manually slideable and fixable
fold up material stop
Incl. following option:
material depth stop arm sprung and adjustabel up to the
mechanical zero (man. dischargeable by eccentric lever (SZ05)
Further lengths and roll widths on request
