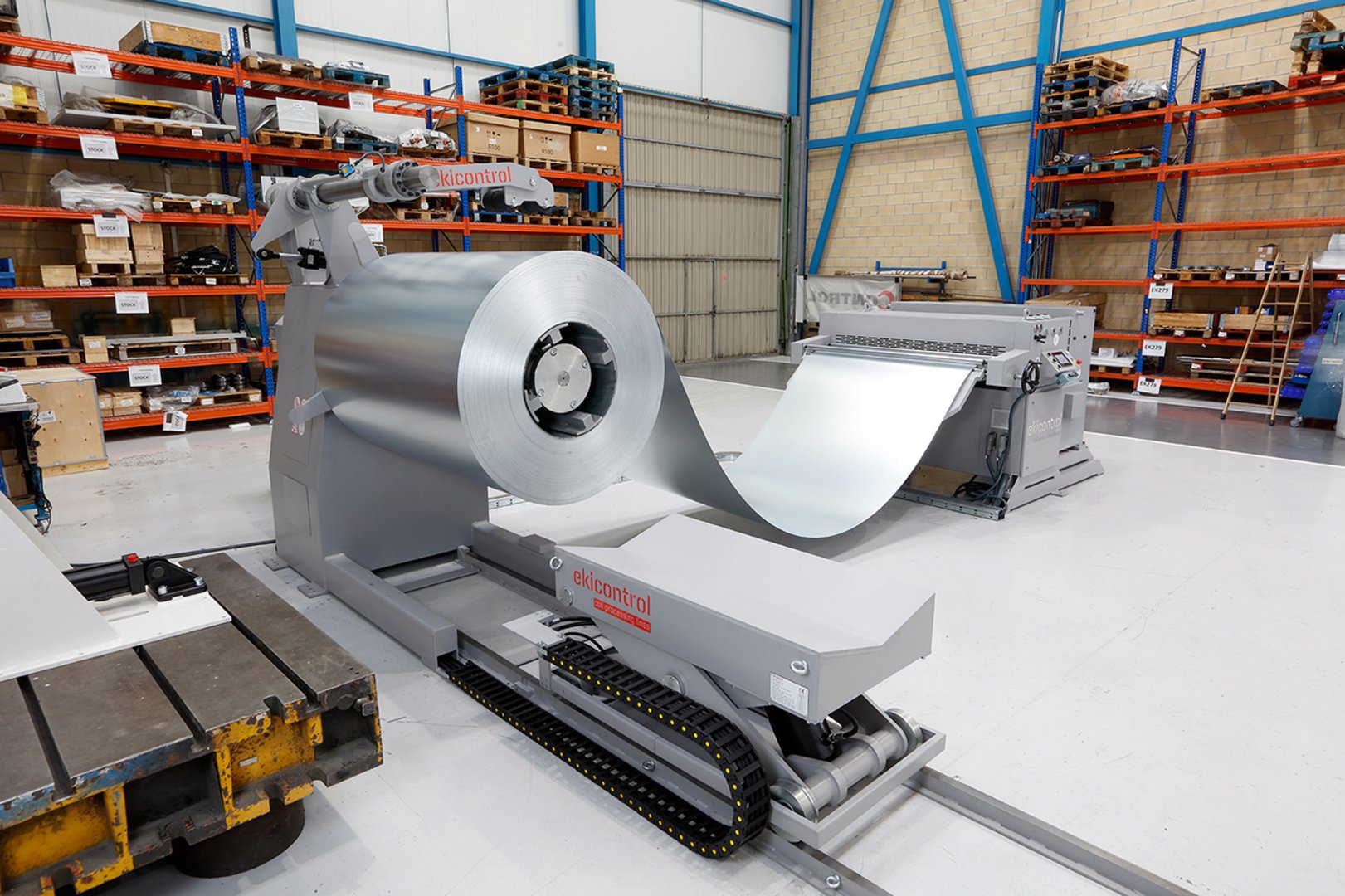

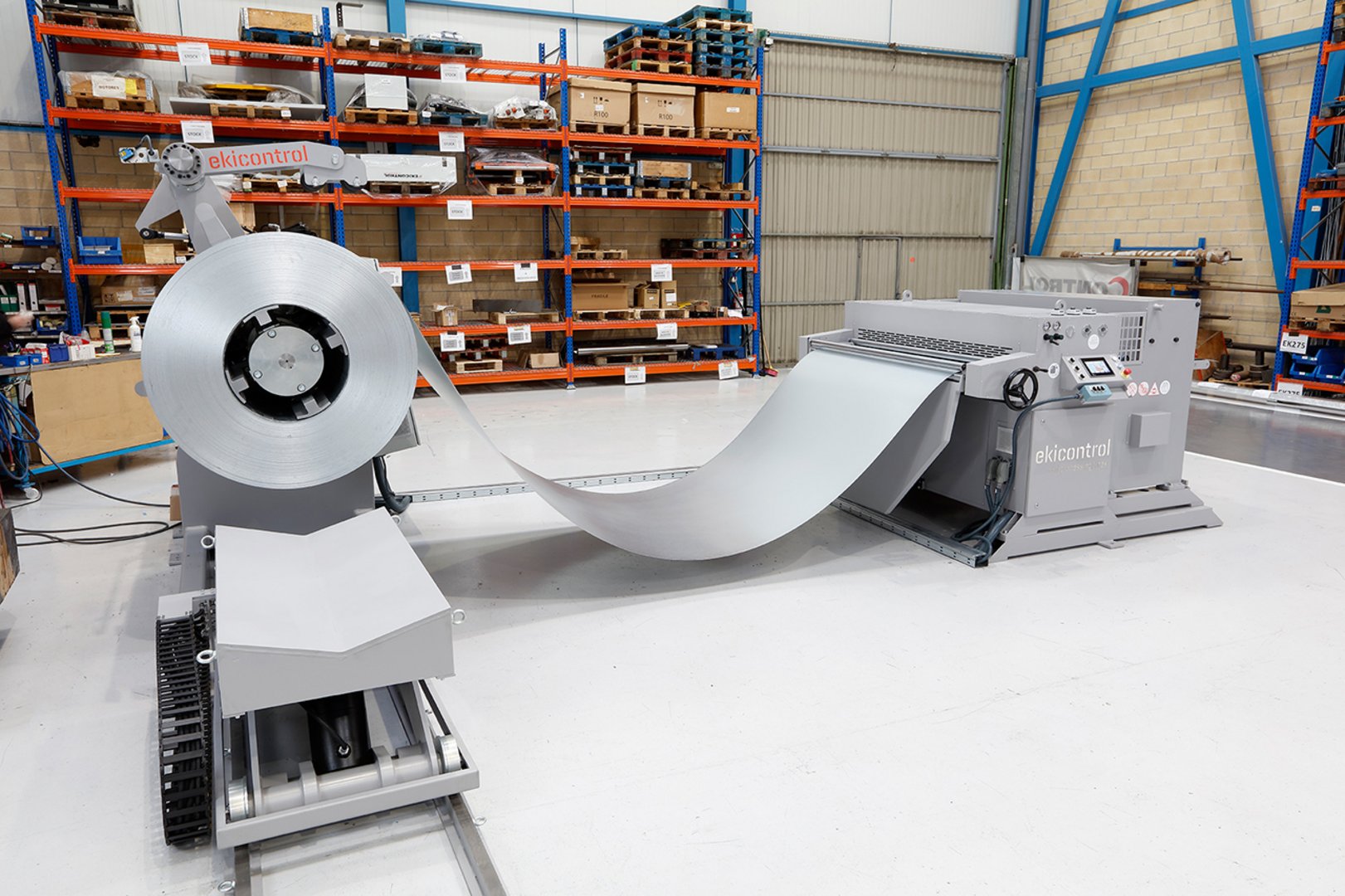

Cross-cutting system EKICONTROL ONECUT 20
| Model | ONECUT 20 |
| Brand | EKICONTROL |
| Condition | new |
| Origin | Spain |
General characteristics
Dimensions and weight
Description
Standard equipment
• Entry guide
• Feeding rolls
• 7 Straightening rolls
• Encoder
• Shear
• Variable speed of 0 to 20 mts/min
Options
• Film plastic device
• Motorised entry guide
• Hydraulic entry table
• Hydraulic dauble entry table
• Stackers 2, 3, 4, 6 meters.
| Material to be processed: | Width to process: | Thickness (R=450Nw/mm2) | Production speed: | Cutting accuracy: | Coil loading capacity: |
| Steel 420 Nw/mm2 Steel 700 Nw/mm2 Aluminium 200 Nw/mm2 |
750, 1000, 1250, 1500 mm |
from 0`5 to 1`5 - 2`0 - 3`0 - 4`0 mm |
up to 20 m/min | +/− 0`5 mm | 4,6,10,15 to |
If you are interested, please send us your enquiry with the following details:
- Coil weight
- Coil width
- Coil inner and outer diameter
- type of material
- Material thickness
- Number of slitting lines (only for slitting and cut-to-length lines)
- Material to be processed in tonnes per year
Further information
Brochures
Product video
Cross-cutting system ONECUT 20
