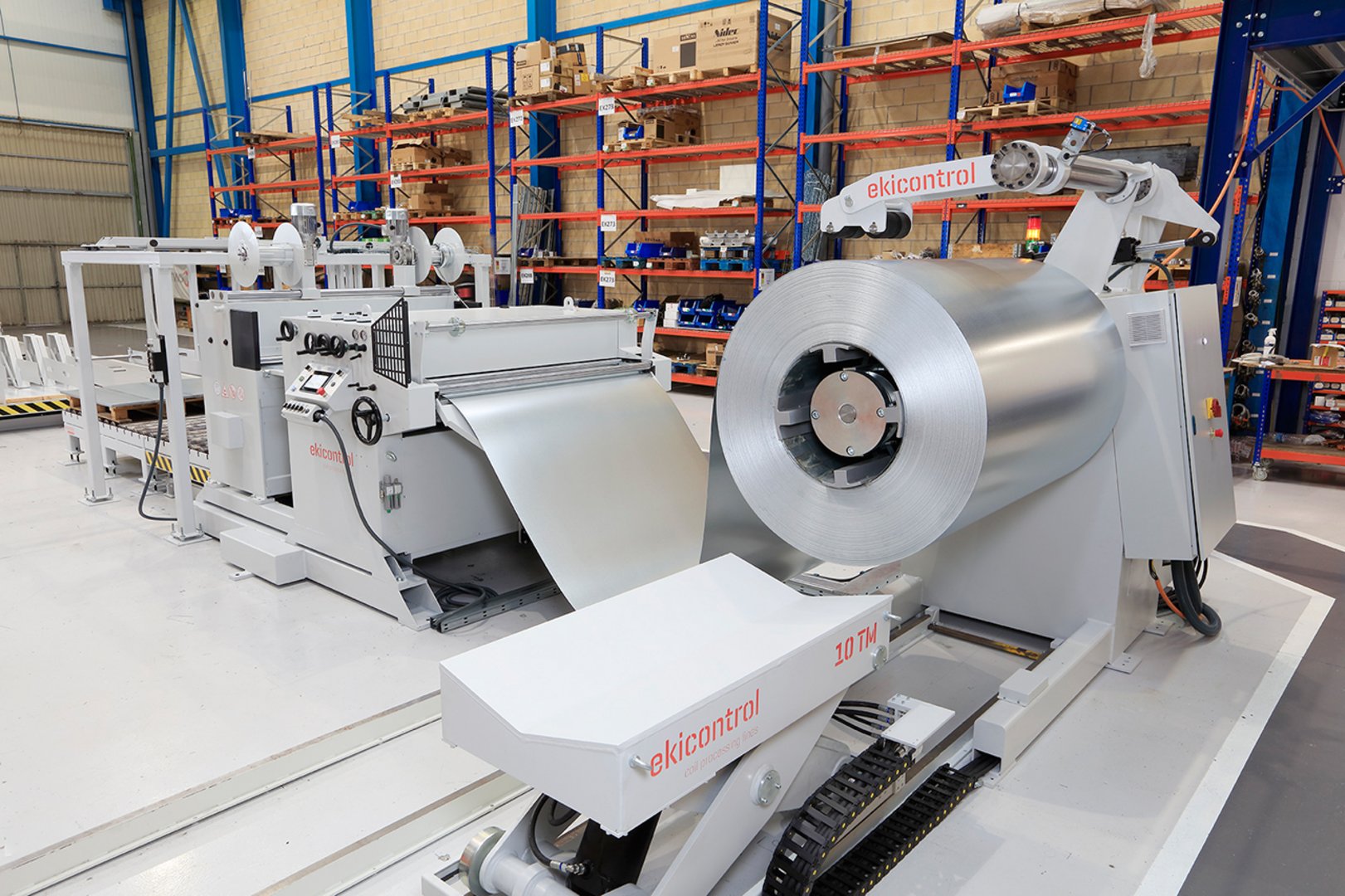

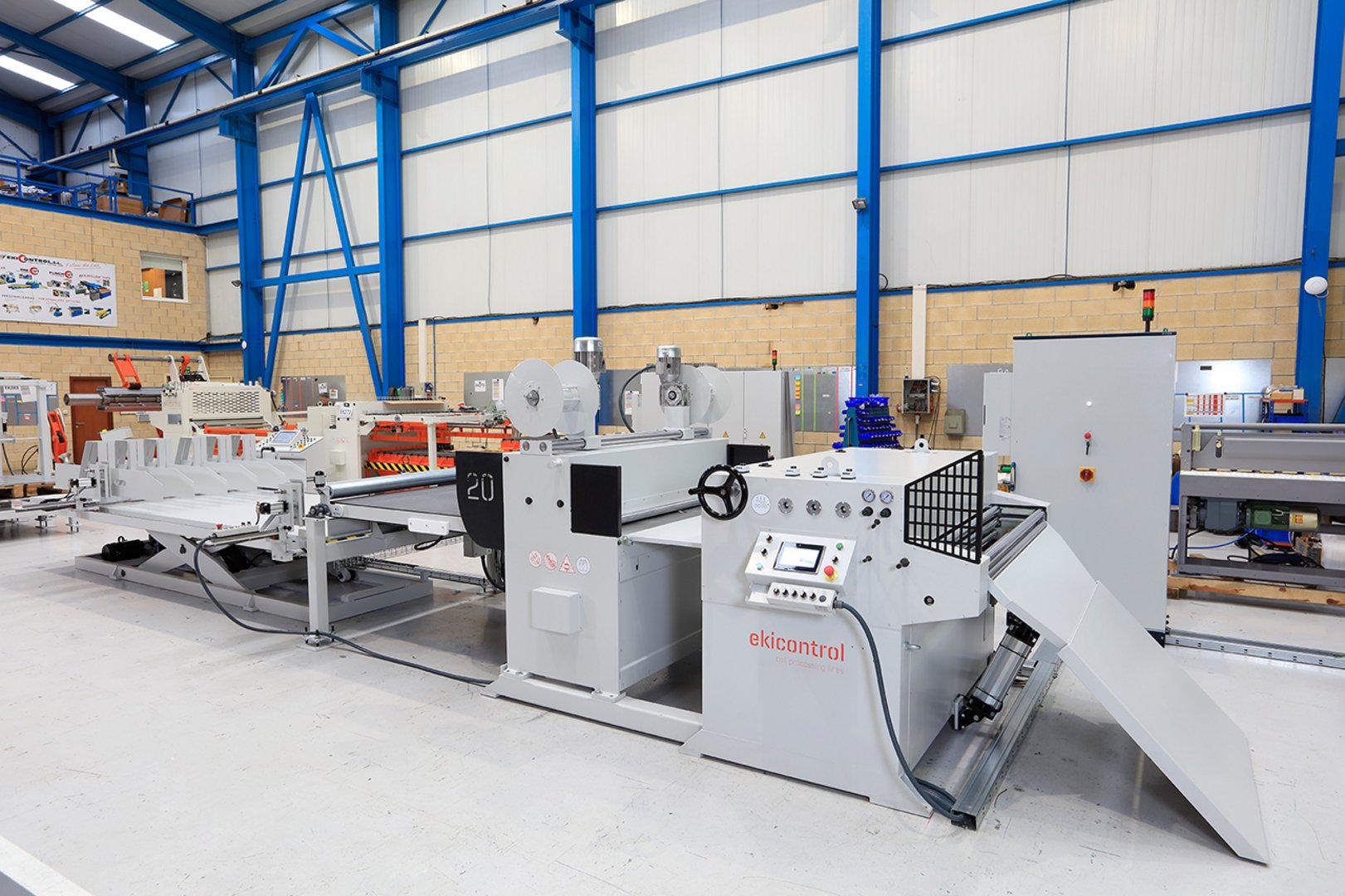

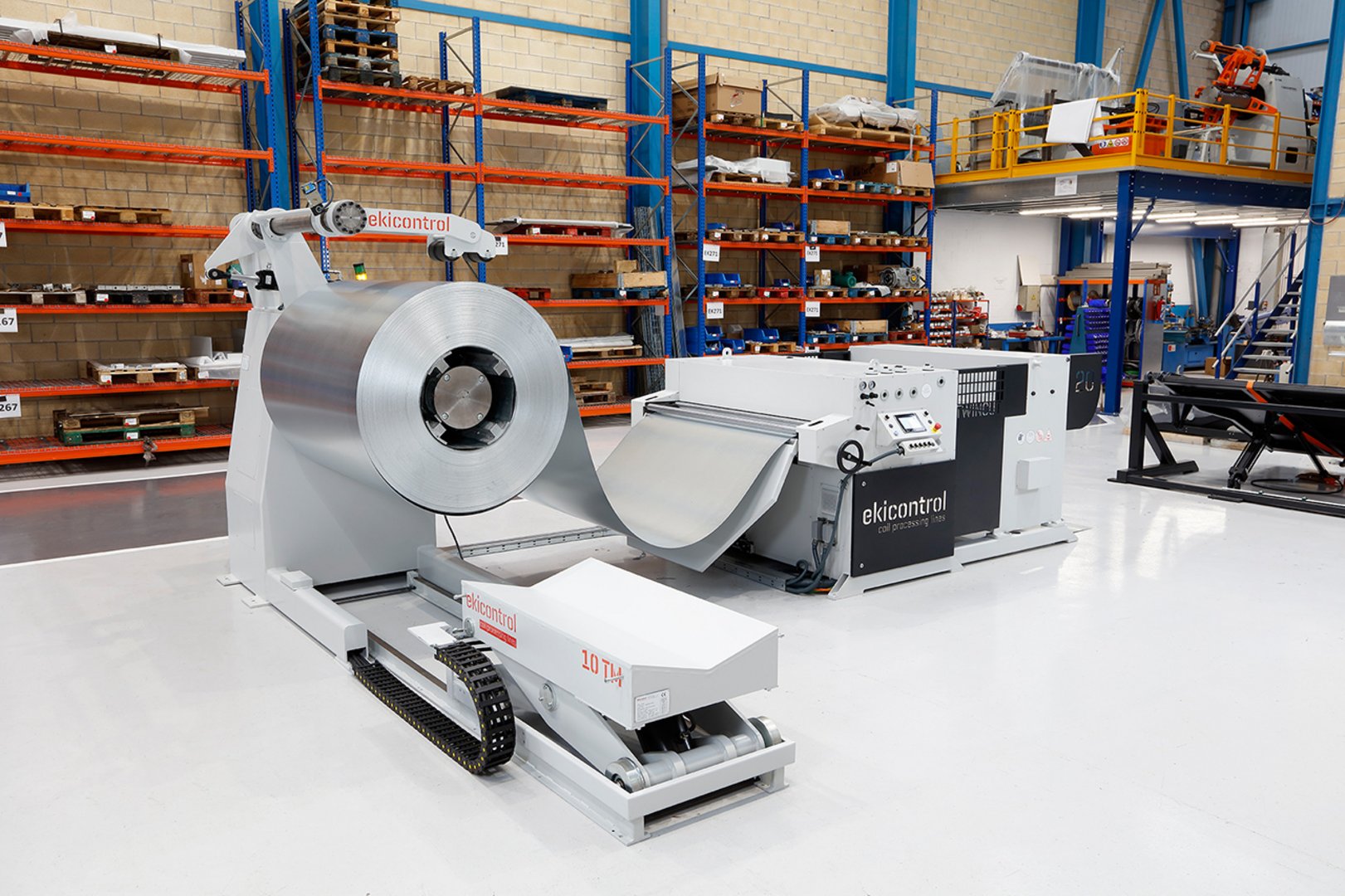

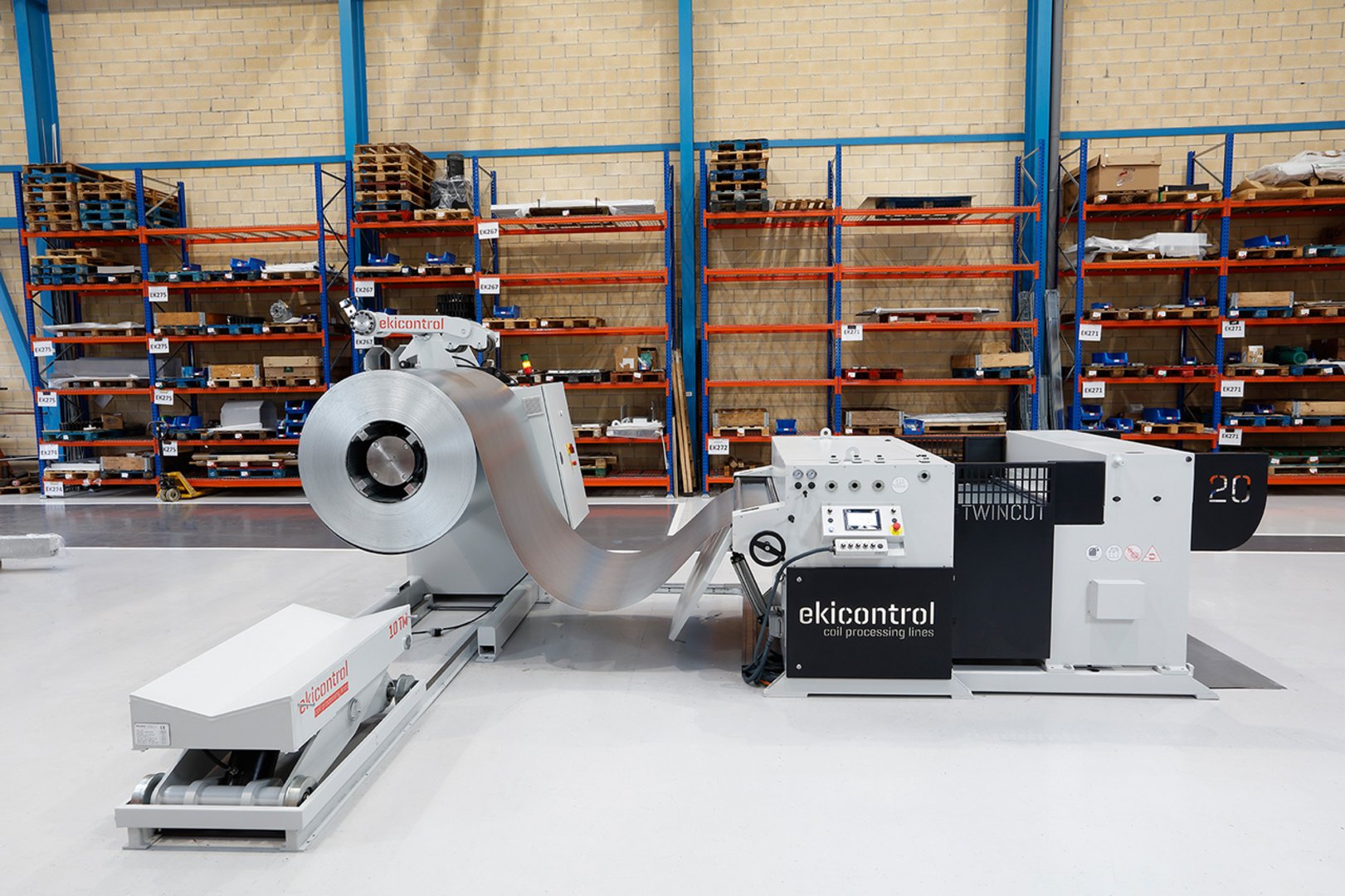

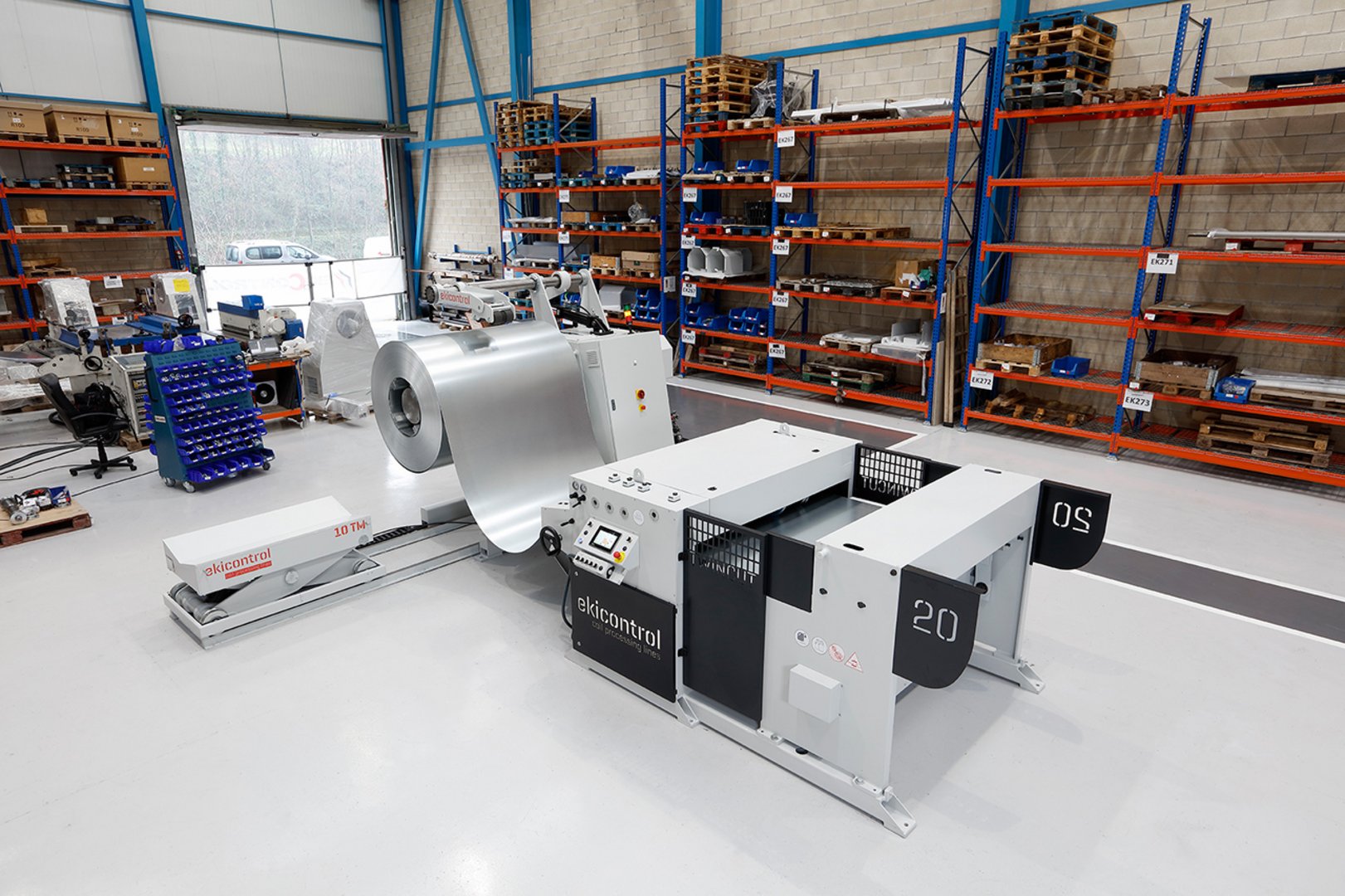

Slitting and cut-to-length line EKICONTROL TwinCut 20
| Model | TwinCut 20 |
| Brand | EKICONTROL |
| Condition | new |
| Origin | Spain |
General characteristics
Dimensions and weight
Description
Standard equipment
• Uncoiler
• Coil car
• Pneumatic input table
• Entry guide
• 7 Straightening rolls
• Slitting shaft with 3 sets of quickly adjustable circular blades
• Cut-to-length shears
• Servomotor
Options
• Hydraulic input table
• Film plastic device
• Scrap rewinders
• Additional circular blades
• Stacking tables
• Packers
| Model: | Width to process: | Cutting thickness (mm): | Coil weight (kg) | Number of straightening rolls: | Cutting accuracy: | Number of straightening rolls: | Production speed: |
| TwinCut 20 DM6 | 1000 1250 1500 |
0`5 - 2 | 6.000 | 3 - 6 |
|
2 + 7 | 20 m/min |
| TwinCut 20 DM10 | 10.000 | ||||||
| TwinCut 20 DM15 | 15.000 |
| Material to be processed: | Thickness: | N of simultaneous cuts: |
| Steel 420 Nw/mm2 | 2`00 mm | 3 |
| 1`50 mm | 4 | |
| 0`50 mm | 6 | |
| Steel 700 Nw/mm2 | 1`25 mm | 3 |
| 1`00 mm | 4 | |
| 0`50 mm | 6 | |
| Steel 200 Nw/mm2 | 4`00 mm | 3 |
| 2`00 mm | 5 | |
| 1`00 mm | 6 |
If you are interested, please send us your enquiry with the following details:
Coil weight
Coil width
Coil inner and outer diameter
type of material
Material thickness
Number of slitting lines (only for slitting and cut-to-length lines)
Material to be processed in tonnes per year
