General characteristics
| Flexion modulus | 4 cm³ |
| Standard steel tube | 42 x 3 mm |
| Furniture tube | 48 x 1,5 mm |
| FE35 (for hydraulic tubes) | 42 x 4 mm |
| Stainless steel AISI304-318 | 42 x 3 mm |
| Stainless steel AISI308 (food industry) | 42 x 2,5 mm |
| Brass soft | 50 x 3 mm |
| Hard copper and aluminium | 54 x 2 mm |
| Soft copper | 60 x 2 mm |
| Conduit tube (TAZ) | 60 x 2 mm |
| Mepla, Gebereit and similar | 50 x 4 mm |
| Roundbar solid (S275JO) | 30 mm |
| Flatsteel solid (S275JO) | 40x20 (liegend), 40x12 (stehend) mm |
| Max. bending radius | 260 mm |
| Min. bending radius | 10 mm |
| Max. bending speed | 4 r/min |
| Motor | 1.1 kW |
Dimensions and weight
| Length | 400 mm |
| Width | 570 mm |
| Height | 1000 mm |
| Weight | 80 kg |
Description
manual clamping
electronic preselection of bending angle
digital read our for Clamping position
30 programms with each 9 bends
material spring back compensation
overload protection
mobile by rolls and handle
foot pedal
tools not included
Alternatively also available as following models (prices on request):
MB 42M (single phase, 2 U/min)
MB 42PM (portable, single phase, 2 U/min)
Further information
Brochures
Product video

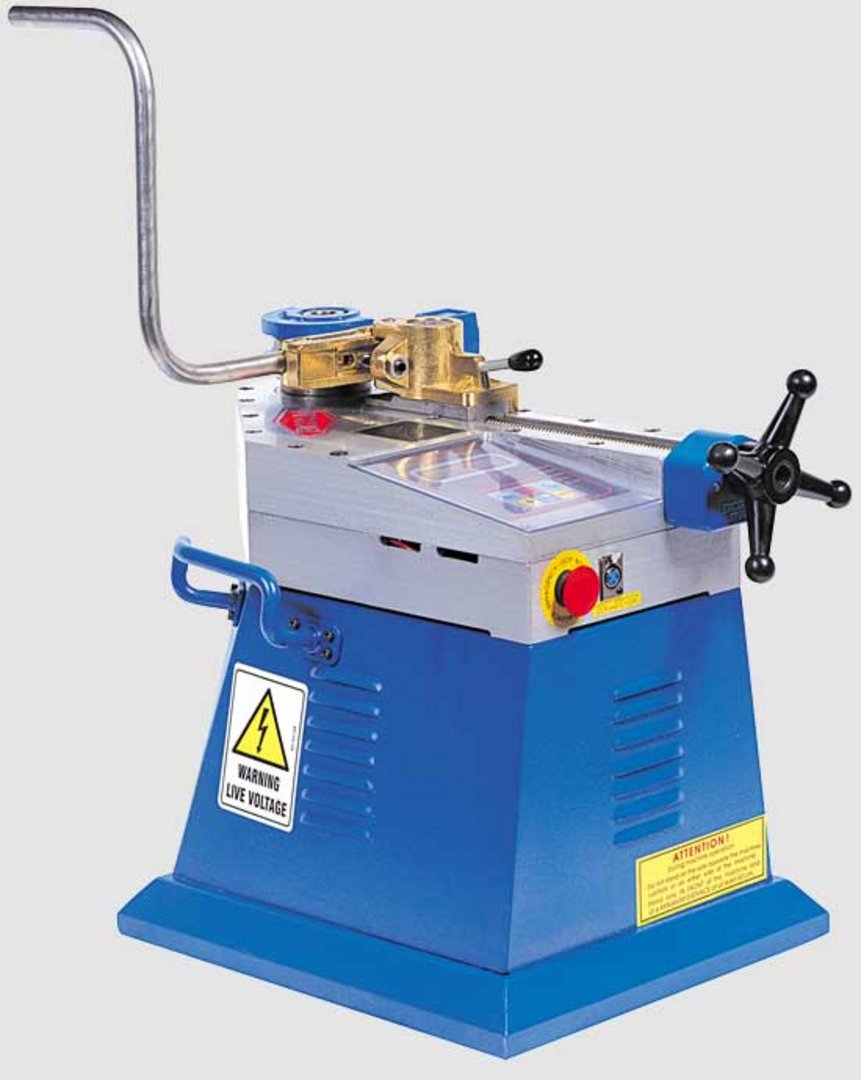

Tube bending machine without mandrel Medibender MB 42T
