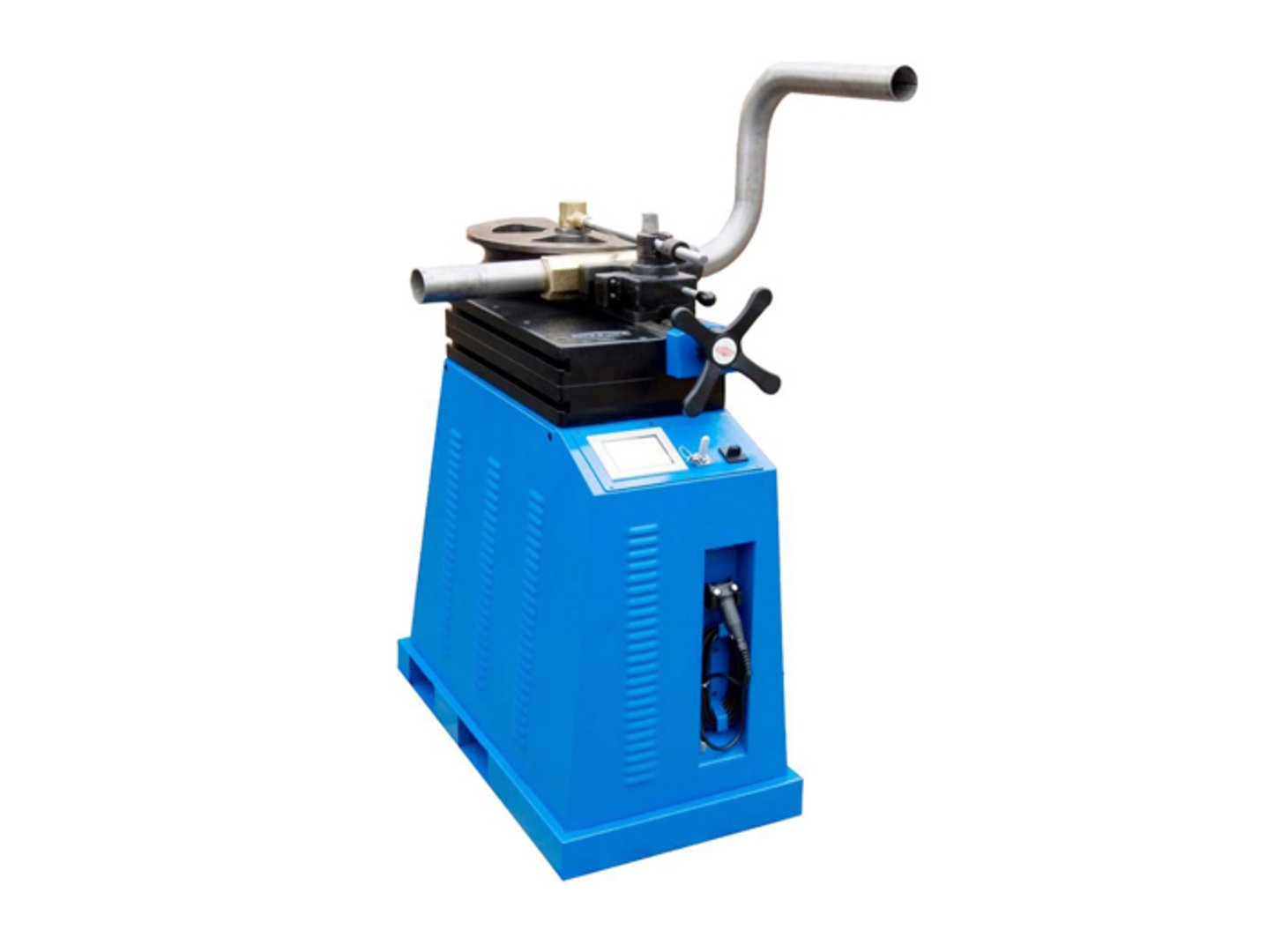

Tube bending machine without mandrel ERCOLINA Topbender TB 100 PT
| Model | Topbender TB 100 PT |
| Brand | ERCOLINA |
| Condition | new |
| Standard steel tube | 100 x 6 mm |
| Max. bending radius | 400 mm |
| Origin | Italy |
General characteristics
| Flexion modulus | 43 cm³ |
| Standard steel tube | 100 x 6 mm |
| Gas tube | 3" 1/2 x 5,74 mm |
| Furniture tube | 100 x 6 mm |
| FE35 (for hydraulic tubes) | 100 x 7,5 mm |
| Stainless steel AISI304-318 | 100 x 3,6 mm |
| Stainless steel AISI308 (food industry) | 100 x 3,6 mm |
| Brass soft | 114.3 x 6,3 mm |
| Hard copper and aluminium | 114,3 x 6,3 mm |
| Soft copper | 114,3 x 6,3 mm |
| Conduit tube (TAZ) | 100 x 6 mm |
| Mepla, Gebereit and similar | 100 x 5 mm |
| Roundbar solid (S275JO) | 70 mm |
| Squarebar solid (S275JO) | 60 x 60 mm |
| Flatsteel solid (S275JO) | 80 x 40 mm |
| Square profile (S275JO) | 100 x 60 x 4 bzw. 90 x 90 x 4 mm |
| T-profile (S275JO) | 90 x 90 x 6 mm |
| U-profile (S275JO) | 90 x 90 x 6 mm |
| Max. bending radius | 400 mm |
| Min. bending radius | 36 mm |
| Min. tube Ø | 10 mm |
| Max. bending speed | 0 - 1,3 r/min |
| Motor | 3.5 kW |
Dimensions and weight
| Length | 500 mm |
| Width | 1200 mm |
| Height | 850 mm |
| Weight | 480 kg |
Description
quick-change tooling system
digital display of bend
material spring back compensation
remote control of bend, return and emergency stop functions
accurate counterbending die positioning
footswitch
3 hexagonal tool holders
heavy-duty steel gear case
users manaul
tools not included, prices on request
