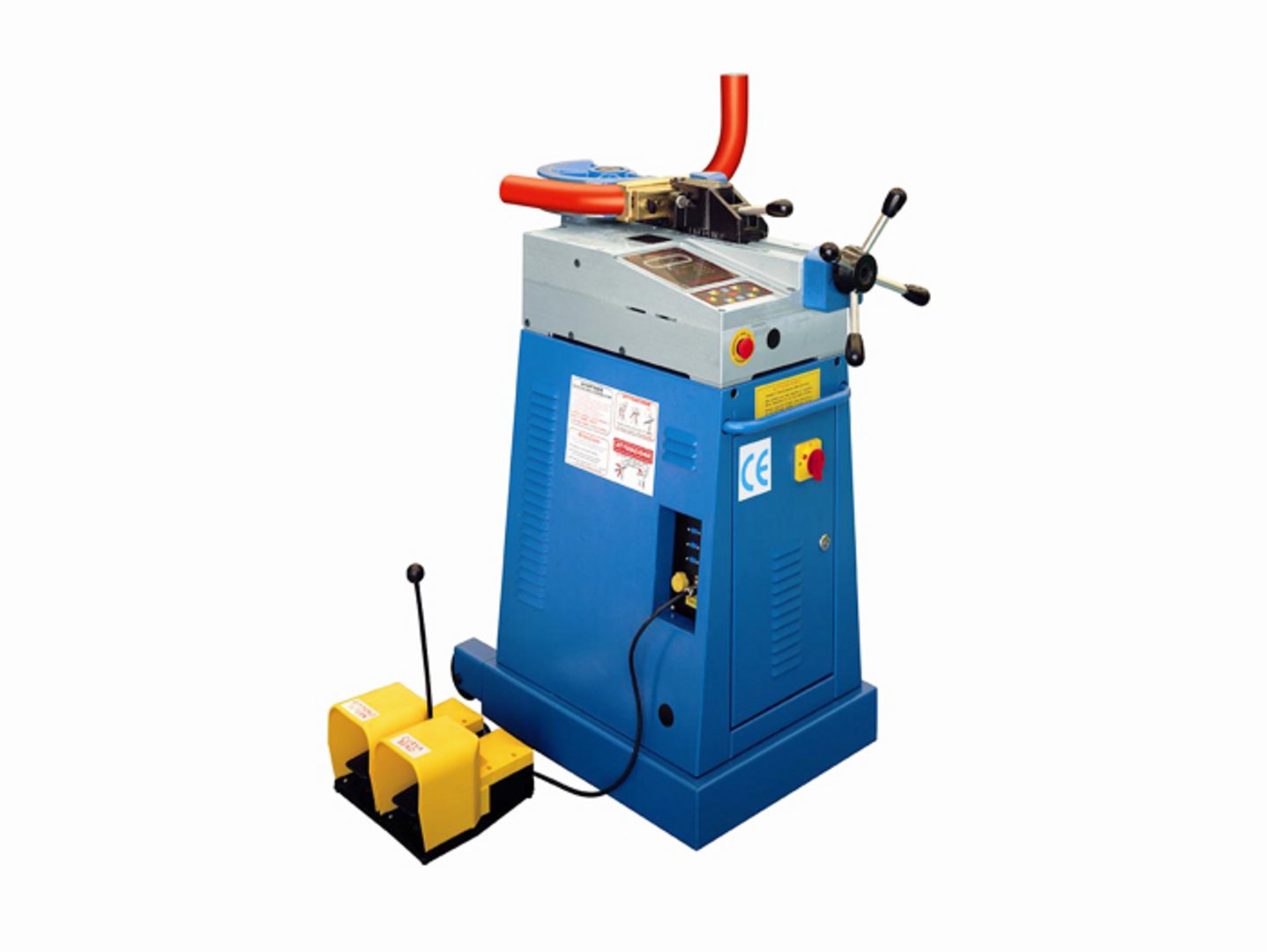

Tube bending machine without mandrel ERCOLINA Megabender MG 030 V2T
| Model | Megabender MG 030 V2T |
| Brand | ERCOLINA |
| Condition | new |
| Standard steel tube | 76 x 3 mm |
| Max. bending radius | 380 mm |
| Origin | Italy |
General characteristics
| Flexion modulus | 15 cm³ |
| Standard steel tube | 76 x 3 mm |
| Gas tube | 2"1/2 x 4 mm |
| Furniture tube | 76 x 3 mm |
| FE35 (for hydraulic tubes) | 70 x 5 mm |
| Stainless steel AISI304-318 | 70 x 4 mm |
| Stainless steel AISI308 (food industry) | 76 x 1,6 mm |
| Brass soft | 76 x 4 mm |
| Hard copper and aluminium | 76 x 6 mm |
| Soft copper | 76 x 6 mm |
| Conduit tube (TAZ) | 73 x 4 mm |
| Mepla, Gebereit and similar | 50 x 4 mm |
| Roundbar solid (S275JO) | 45 mm |
| Squarebar solid (S275JO) | 40 x 40 mm |
| Flatsteel solid (S275JO) | 10 x 90 mm |
| Square profile (S275JO) | 30 x 60 x 3 bzw. 60 x 60 x 3 mm |
| T-profile (S275JO) | 60 x 60 x 6 mm |
| U-profile (S275JO) | 50 x 20 x 6 mm |
| Max. bending radius | 380 mm |
| Min. bending radius | 10 mm |
| Min. tube Ø | 10 mm |
| Max. bending speed | 2/4 r/min |
| Motor | 3.5 kW |
Dimensions and weight
| Length | 370 mm |
| Width | 680 mm |
| Height | 910 mm |
| Weight | 193 kg |
Description
digital display of bend
material spring back compensation
quick-change tooling system
2 hexagonal tool holders (40 and 50 mm
accurate counterbending die positioning
foot pedal
users manual
tools not included
