General characteristics
| Tube diameter | 3/4" 26,9 mm, 1" 33,7 mm, 1¼" 42,4 mm, 1½" 48,3 mm, 2" 60,3 mm |
| Max. wall thickness | 5 mm |
| Max. wall thickness stainless steel | 3 mm |
Dimensions and weight
| Weight | 87 kg |
Description

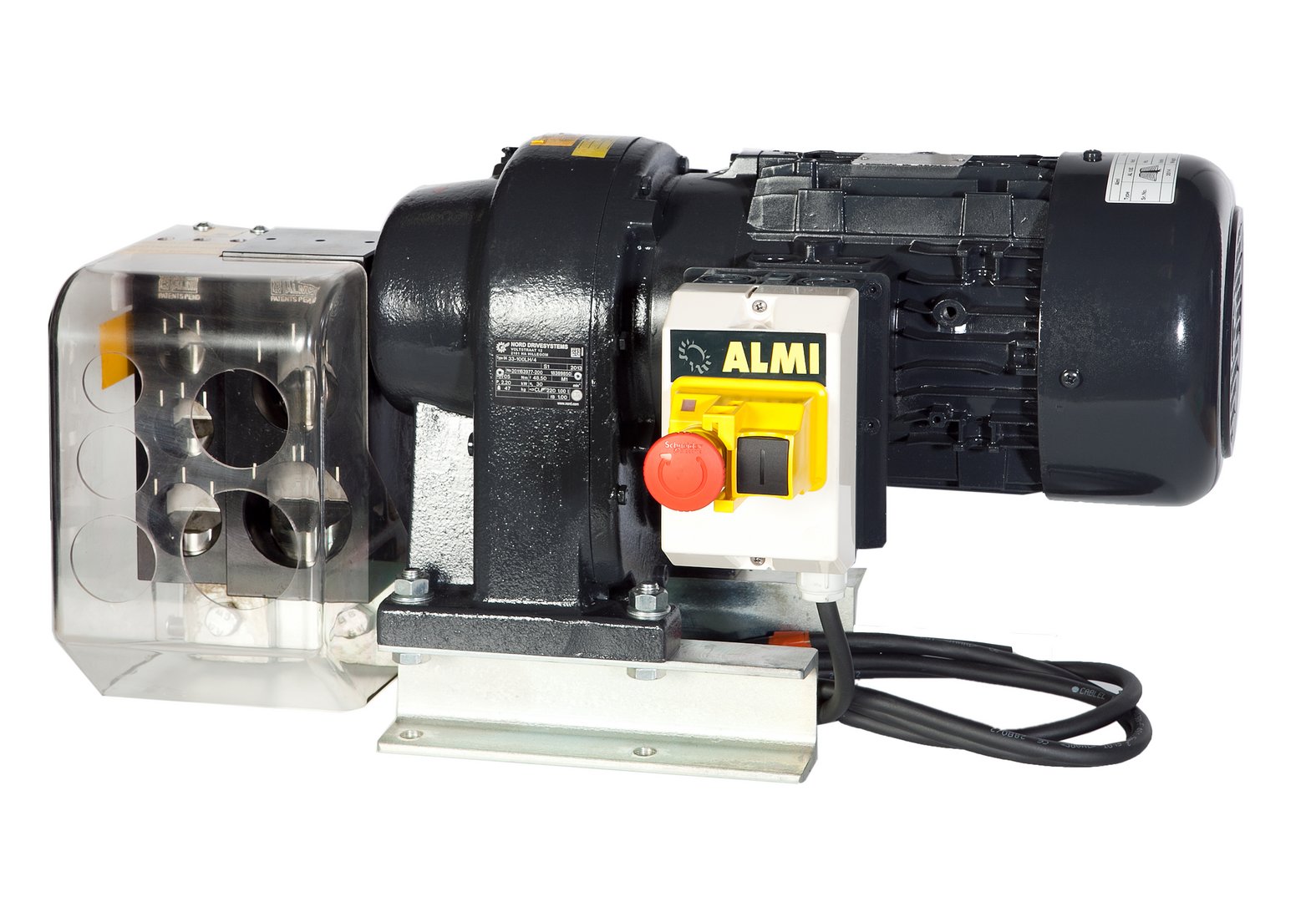

The motor driven AL 1-2E can be used to notch pipes with an external diameter of 26.9 mm (3/4"), 33.7 mm (1"), 42.4 mm (1 ¼"), 48.3 mm (1 ½") and 60.3 mm (2").
Do you often have to notch pipes? If so, the motor-driven AL1-2E equipped with a 2.2 kW electric motor is the ideal solution!
The motor forms one unit with the special eccentric shaft that drives the notching tool. The motor is also equipped with an on/off switch with a zero voltage protection and guard.
All the benefits in a nutshell: high productivity, low investments, simple and rapid operation, a number of diameters are readily available, ideal for double corner joints.
Further information
Brochures
Product video
Motorized notcher AL 1-2 E
