General characteristics
| Load capacity | 10000 kg |
| Load capacity per unit | 5000 to |
| Min. diameter | 900 mm |
| Max. diameter | 4500 mm |
| diameter of rolls | 300 mm |
| width of rolls | 2 x 70 mm |

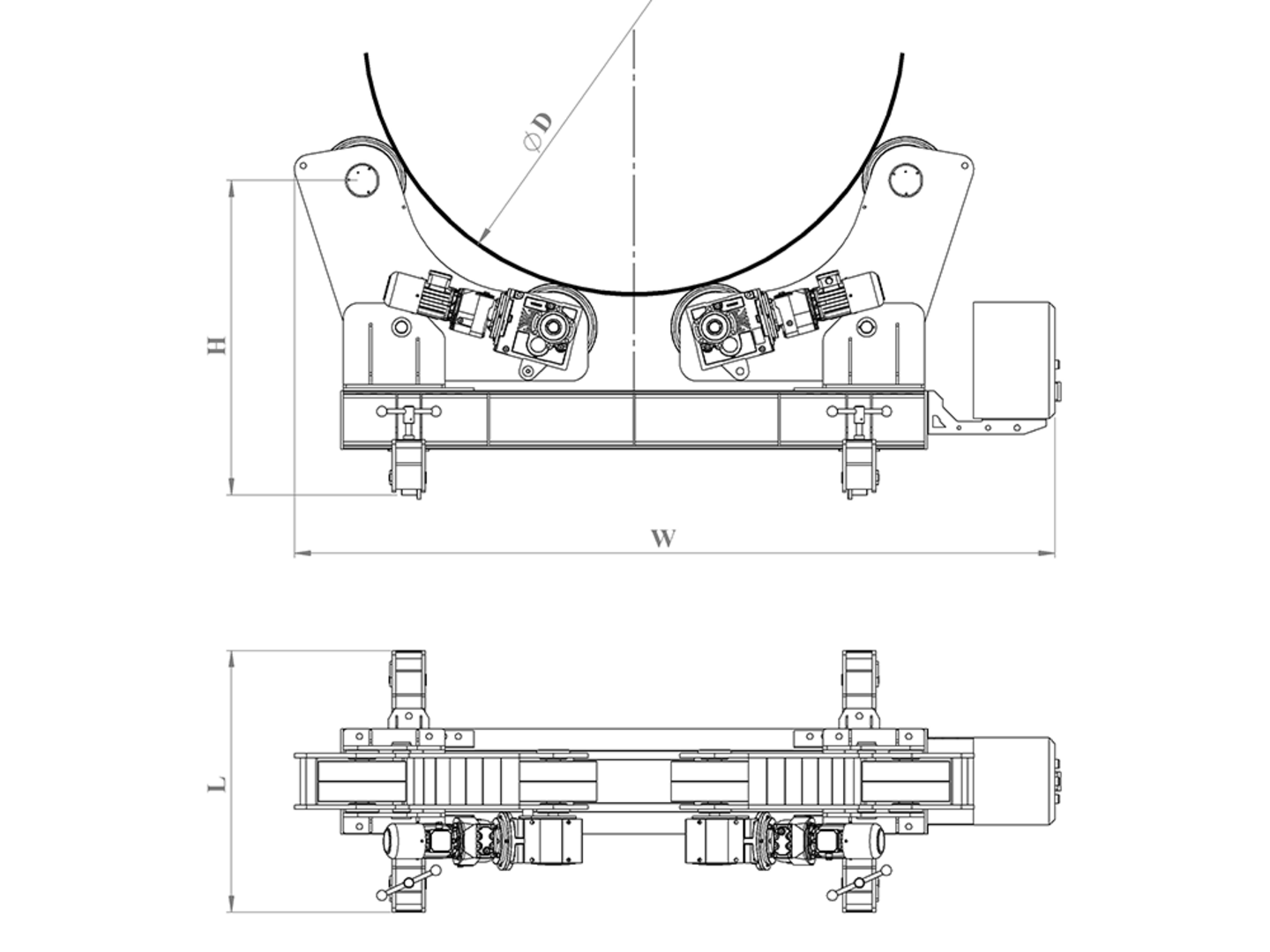

Dimensions and weight
Description

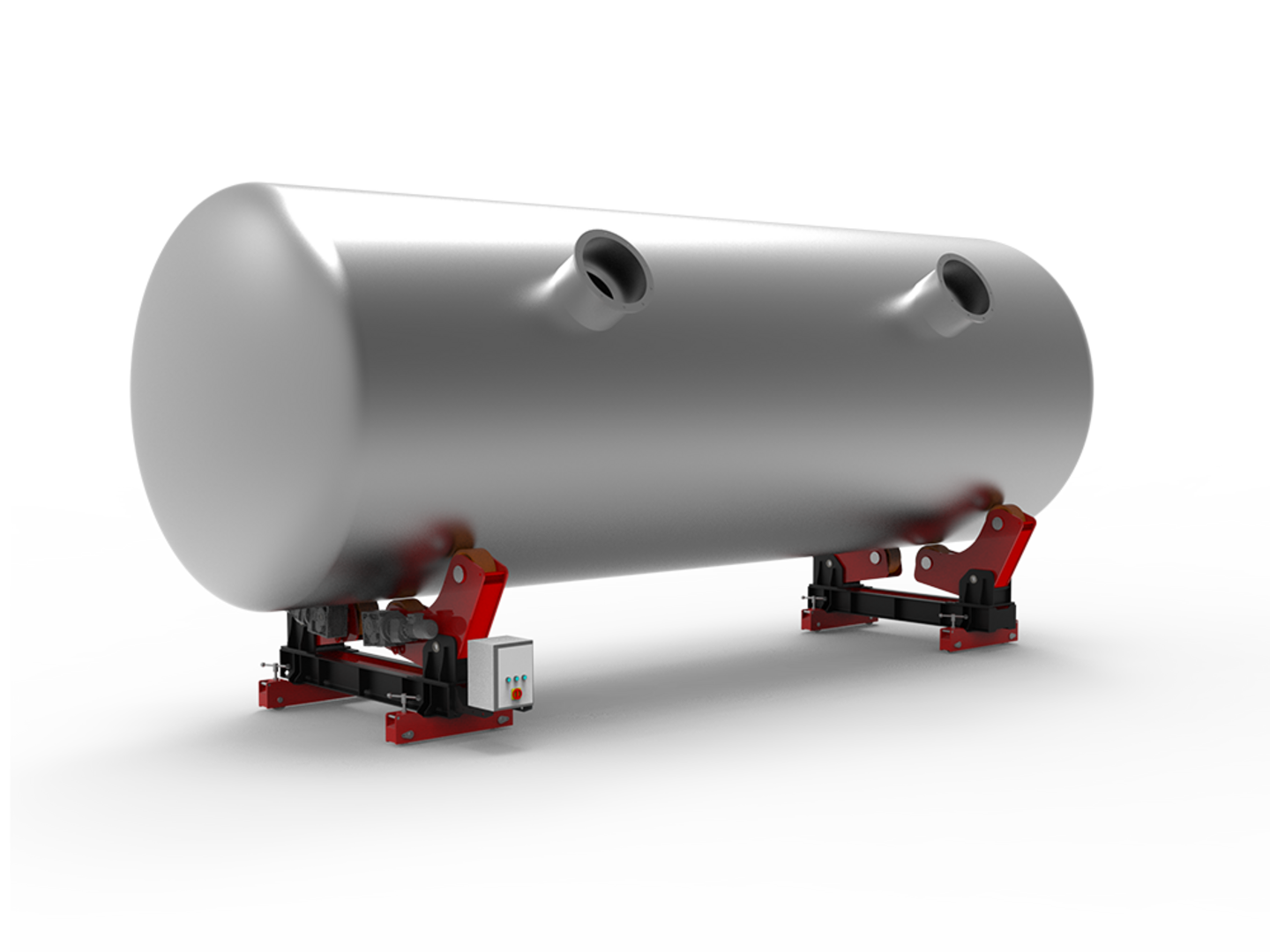

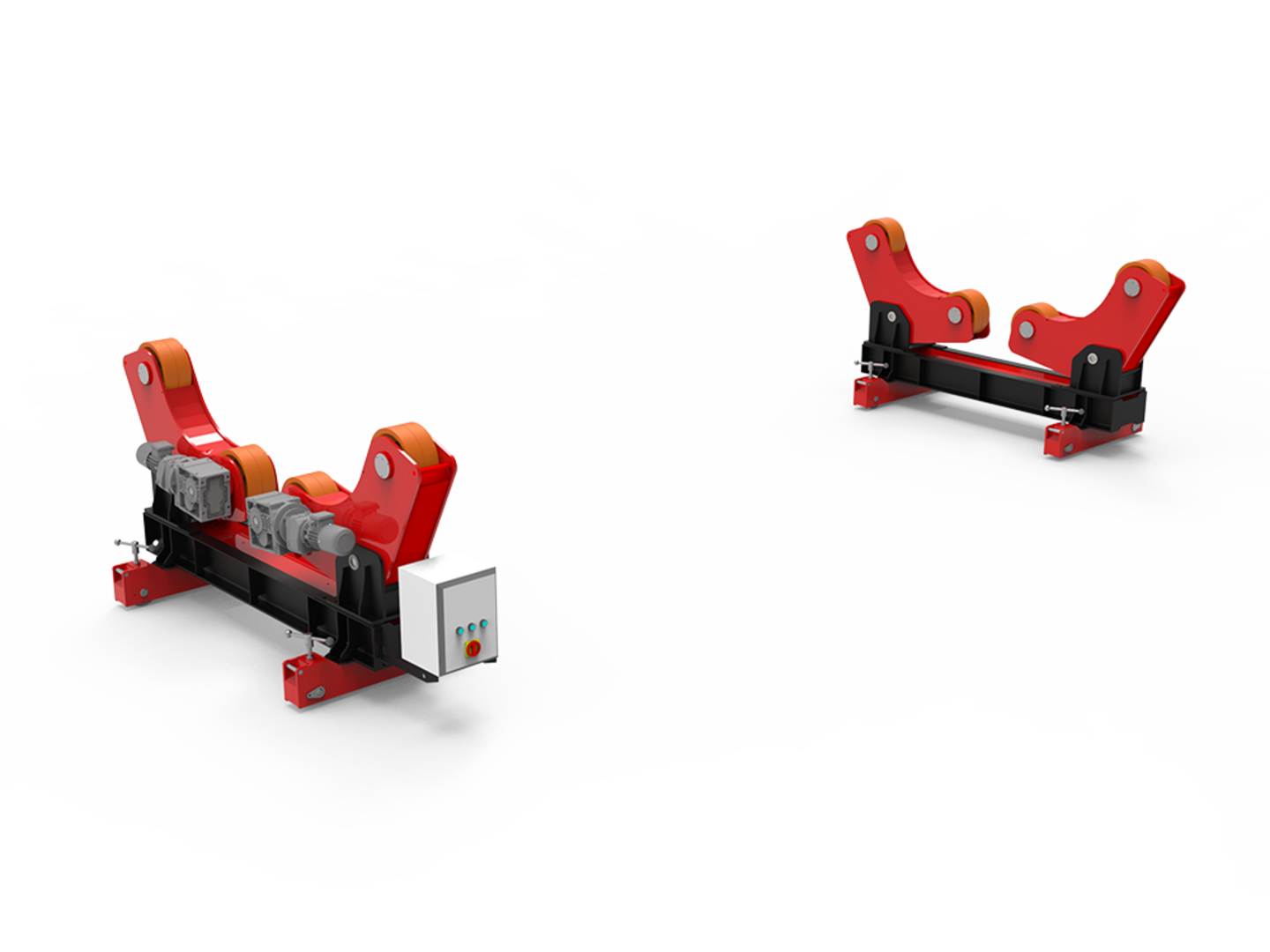

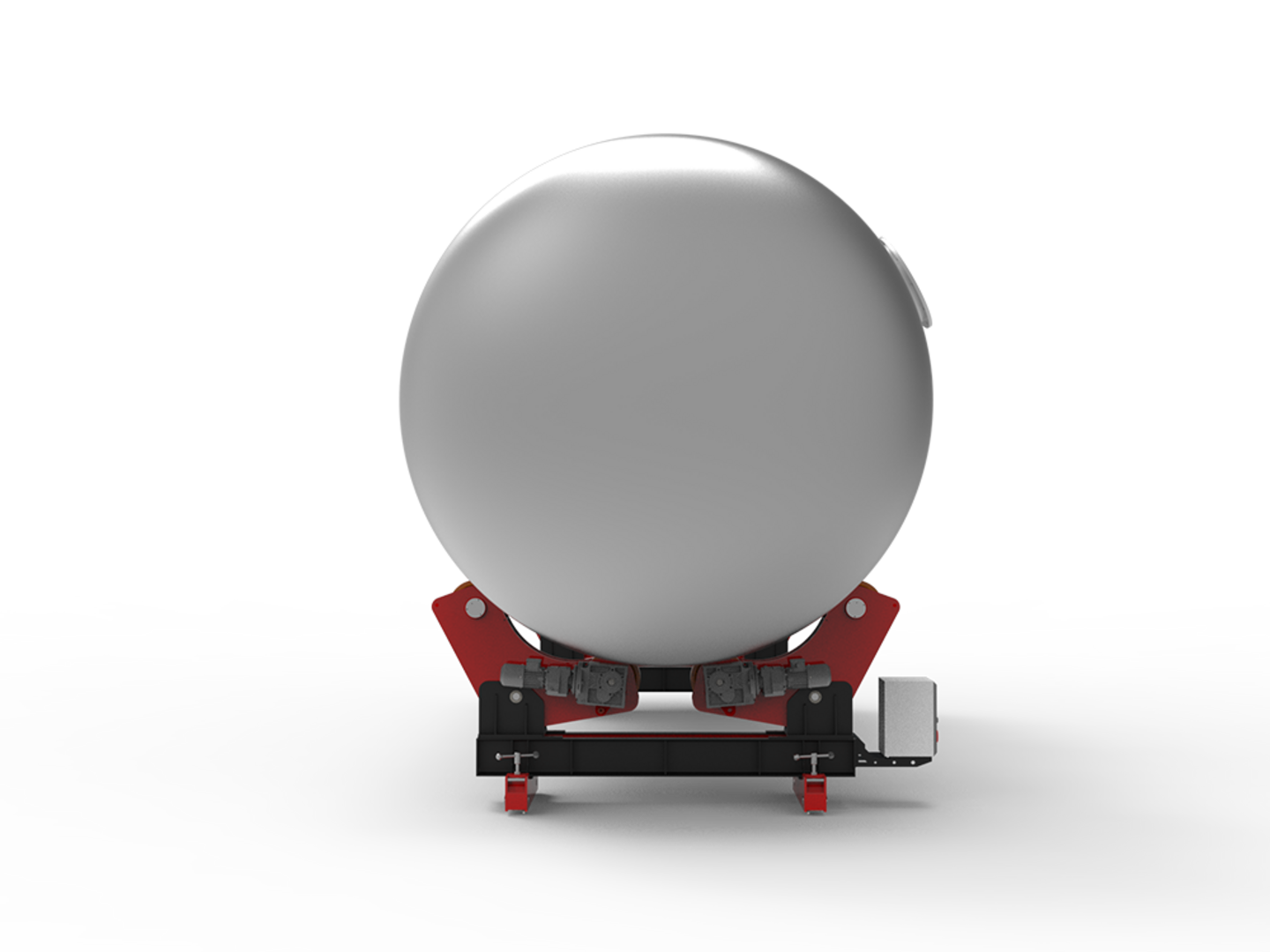

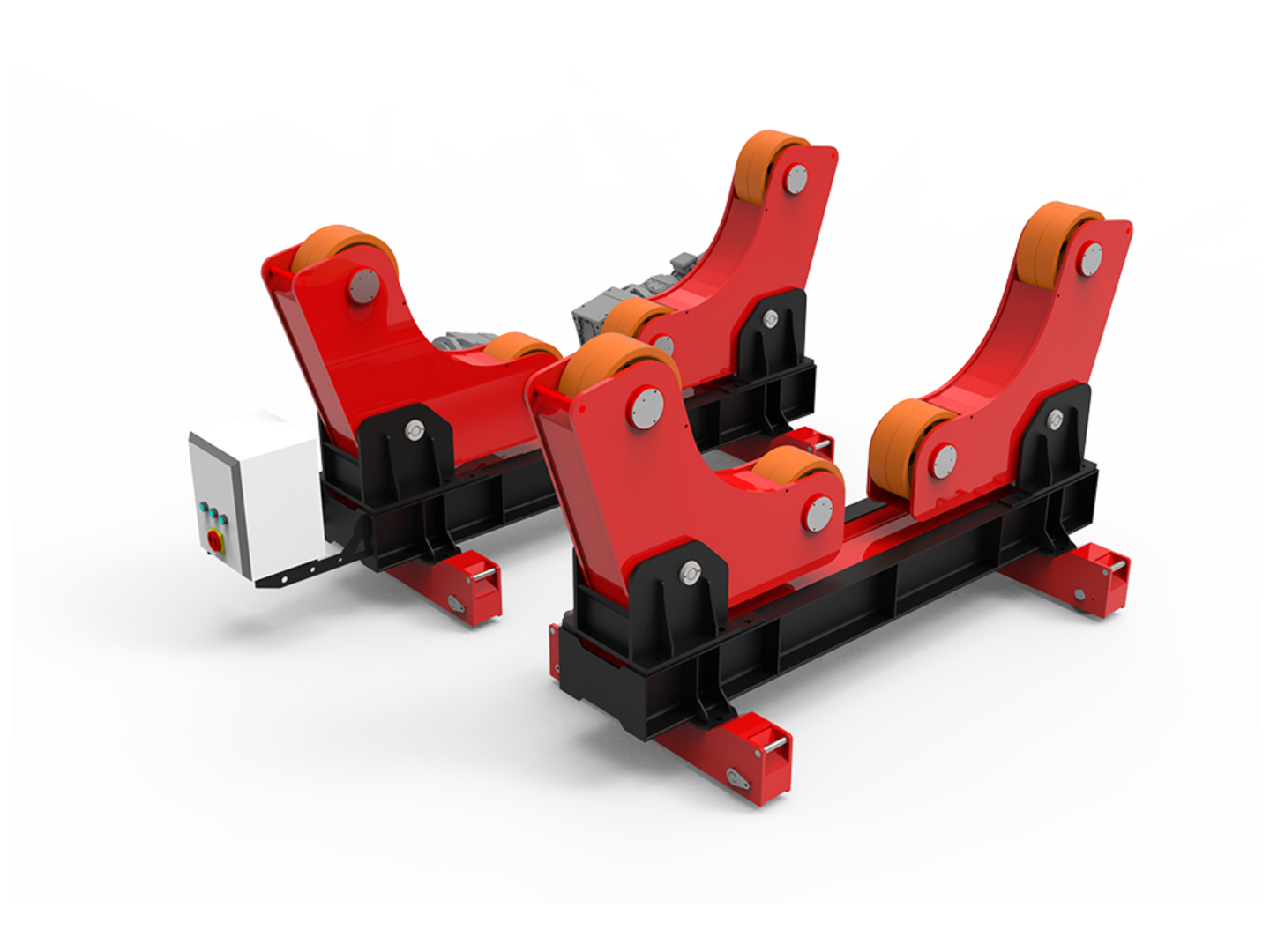

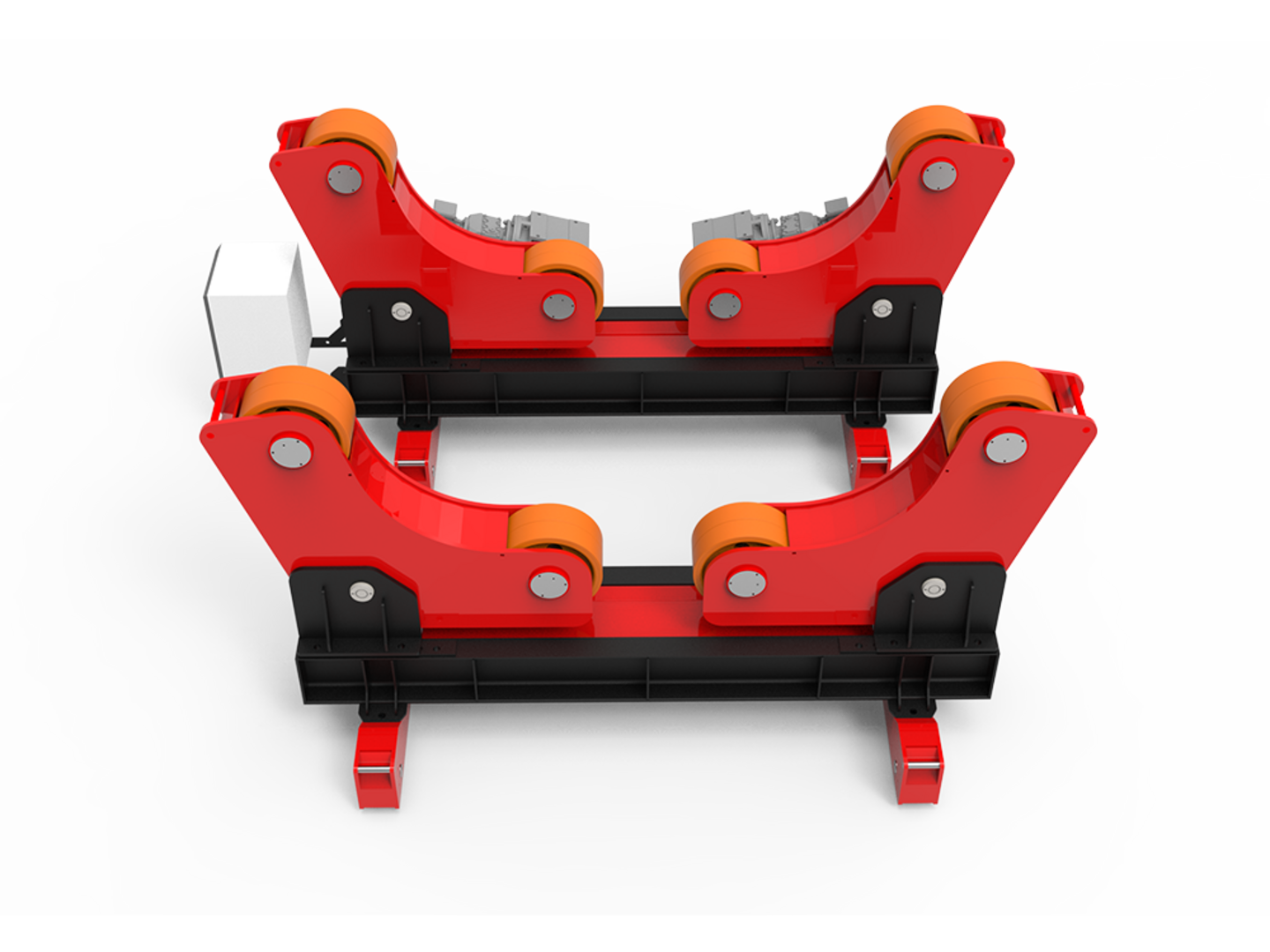

Rotatators are used across industries to facilitate production and simplify the assembly of tanks,
drums, as well as pressure vessels and cylinders of all types and sizes.
They increase speed and efficiency in both automatic and manual welding processes
by increasing productivity while minimizing additional work steps and crane use.
They allow the operator to control all functions, including clockwise and counterclockwise rotation,
with exceptionally smooth and precise speed control.
Roller material: Polyurethane
Standard rotators currently cover load capacities from 5 to 150 tons.
Capacity can be expanded up to 250 to upon request.
