General characteristics
| pressing capacity | 70 to |
| Cylinder fix or moveable | fix |
| Bending length | 1050 mm |
| Stroke | 500 mm |
| Daylight | 700 mm |
| Distance between columns | 900 mm |
| Rapid speed | 29 mm/s |
| Approaching speed with foot pedal mode | 10 mm/s |
| Working speed | 5 mm/s |
| Table | 800x600 mm |
| Upper clamping plate | 700x350 mm |
Dimensions and weight
| Length | 1700 mm |
| Width | 1000 mm |
| Height | 2300 mm |
| Weight | 1400 kg |
Description

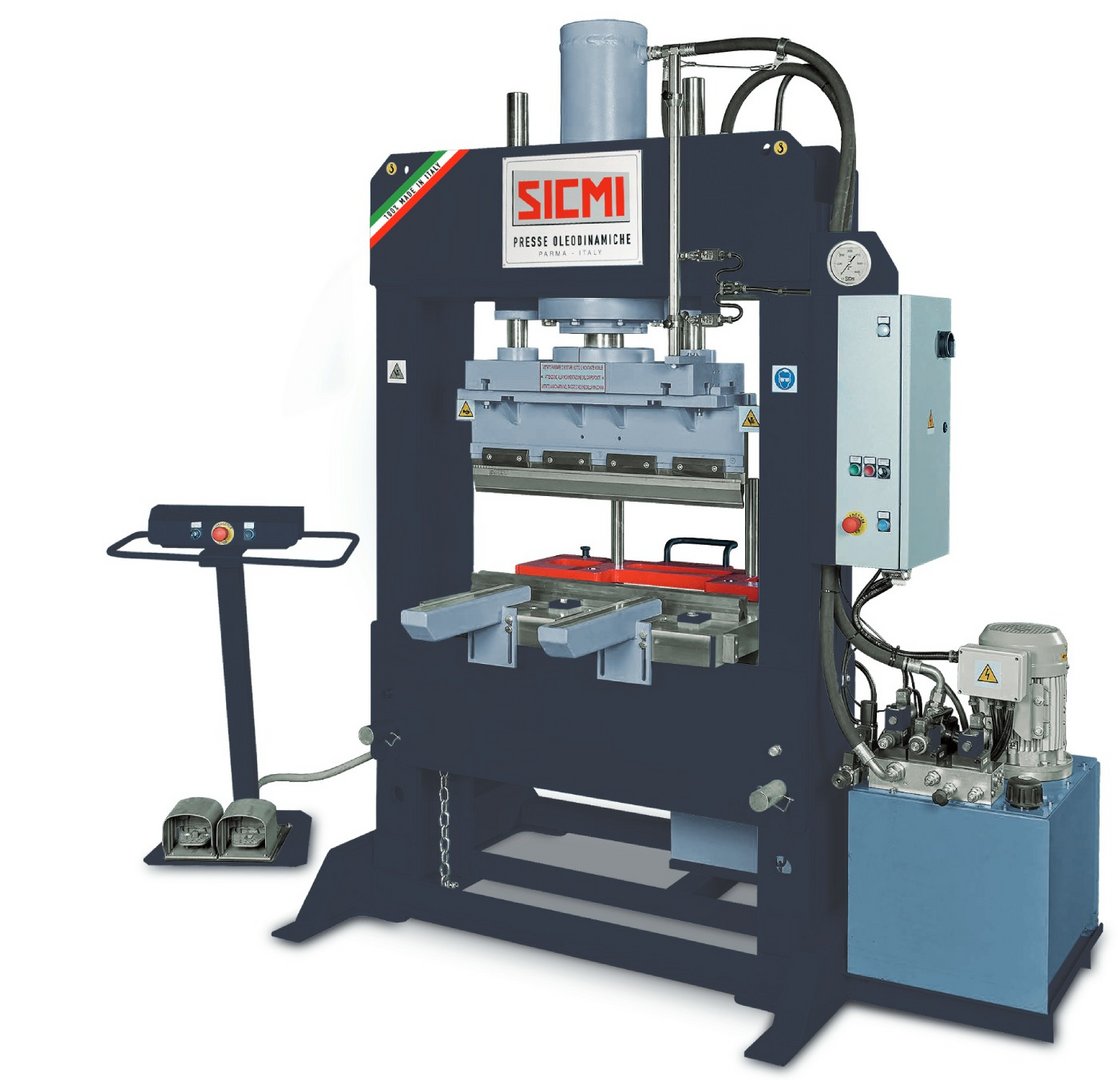

Hydraulic multifunction workshop press for pressing and straightening and optional bending
Version A (automatik): with 2-hand panel with limit micron switch for up/downstroke stop, automatic piston retraction, Siemens CPU
Version S (semiautomatik): 2-hand function by hand lever and pushbutton, limit micron switch for up/downstroke stop

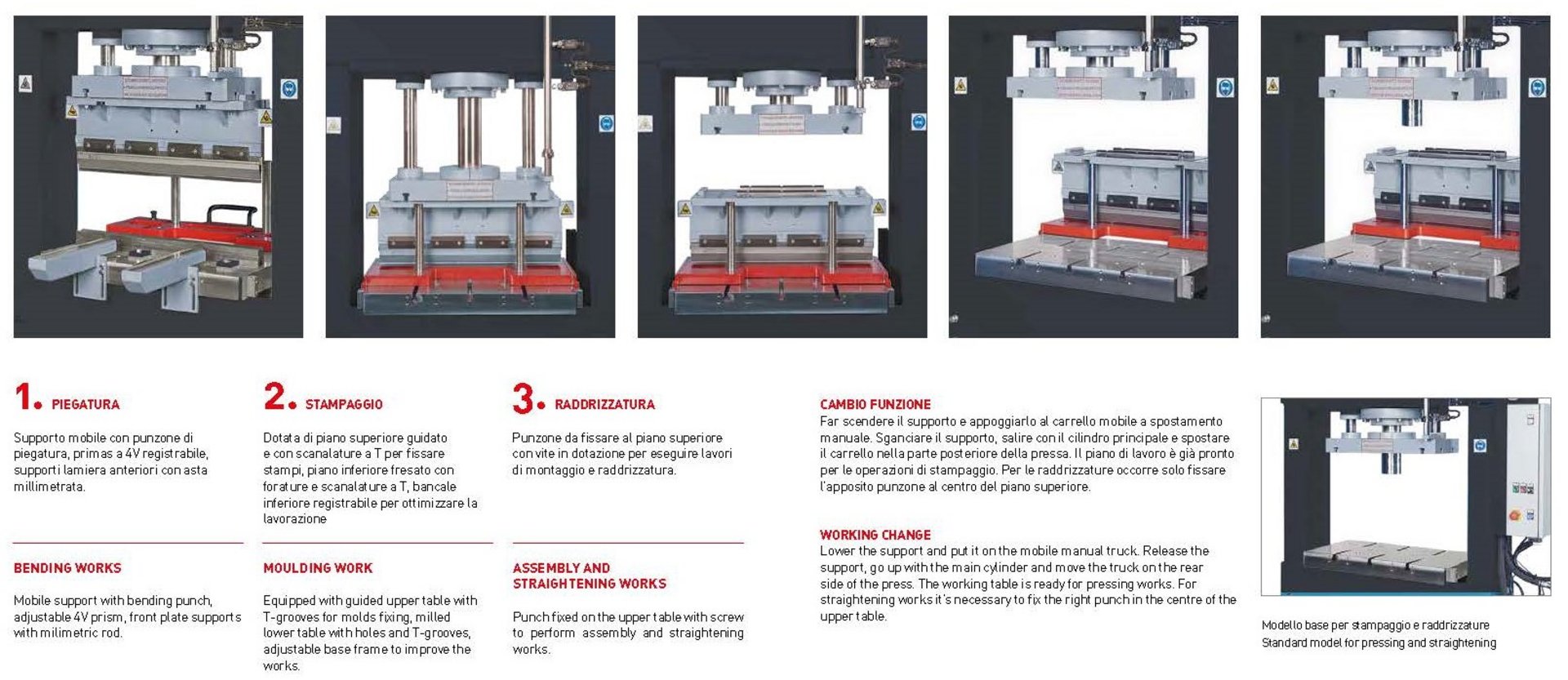

Standardmodel for pressing and straightening: table with t-sloats and straightening punch
Options:
Bending accessorie with tool holder, upper tool, dies with 4 slots and 2 frontal support arms
Mobile truck for quick assembly/disassembly of bending unit
Siemens control
Pressure switch
Heat exchanger
Piece counter
Timer
Plate supports for the rear side
Safety light guard
Alternative:
Version S (semiautomatik) € 20.500,00
