General characteristics
| pressing capacity | 150 to |
| Cylinder fix or moveable | fix |
| Bending length | 1250 mm |
| Stroke | 500 mm |
| Daylight | 700 mm |
| Distance between columns | 1500 mm |
| Rapid speed | 20 mm/s |
| Approaching speed with foot pedal mode | 10 mm/s |
| Working speed | 3 mm/s |
| Table | 1200x700 mm |
| Upper clamping plate | 1250x400 mm |
Dimensions and weight
| Length | 2400 mm |
| Width | 1200 mm |
| Height | 2800 mm |
| Weight | 5200 kg |
Description

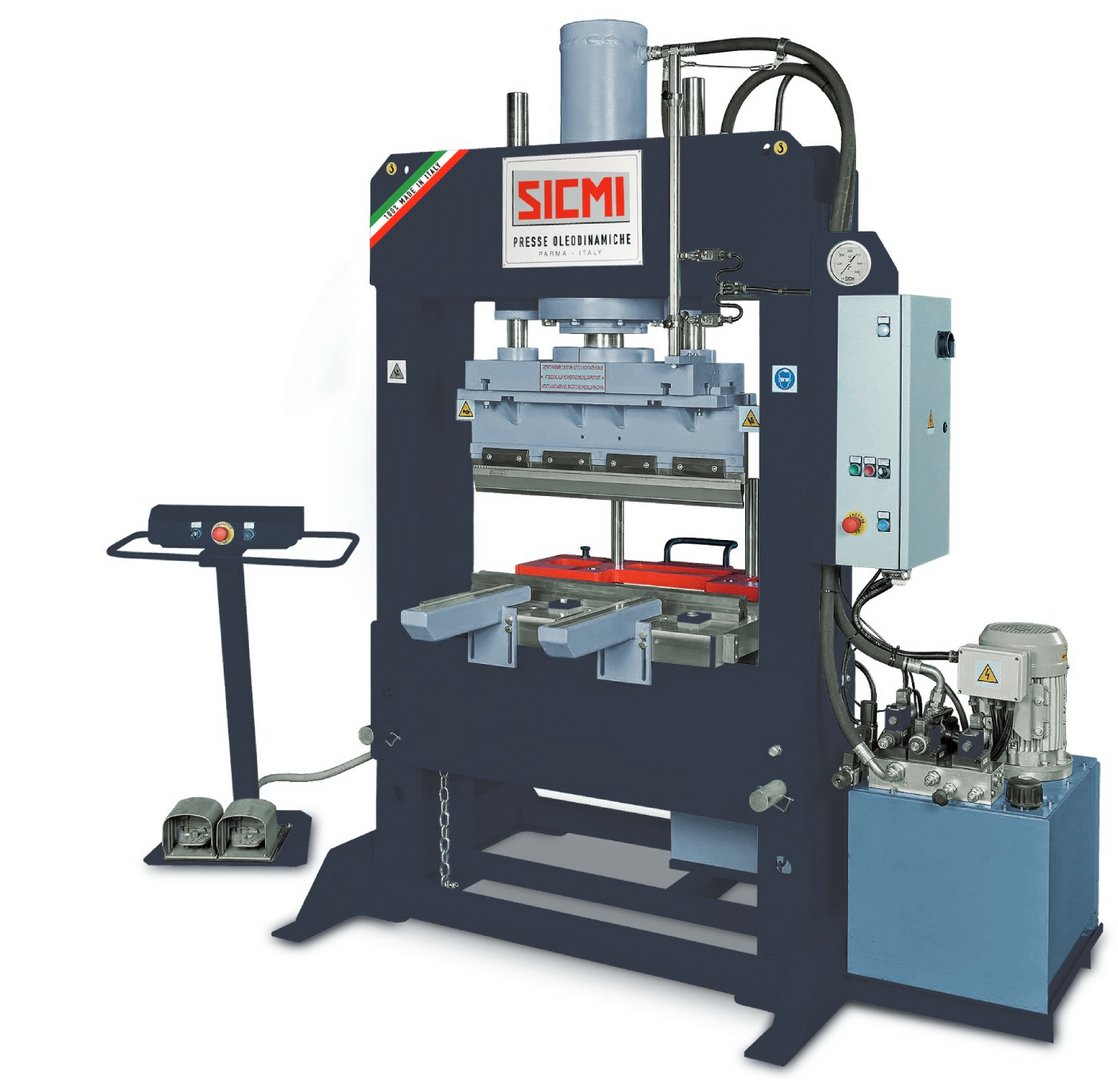

Hydraulic multifunction workshop press for pressing and straightening and optional bending
Version A (automatik): with 2-hand panel with limit micron switch for up/downstroke stop, automatic piston retraction, Siemens CPU
Version S (semiautomatik): 2-hand function by hand lever and pushbutton, limit micron switch for up/downstroke stop

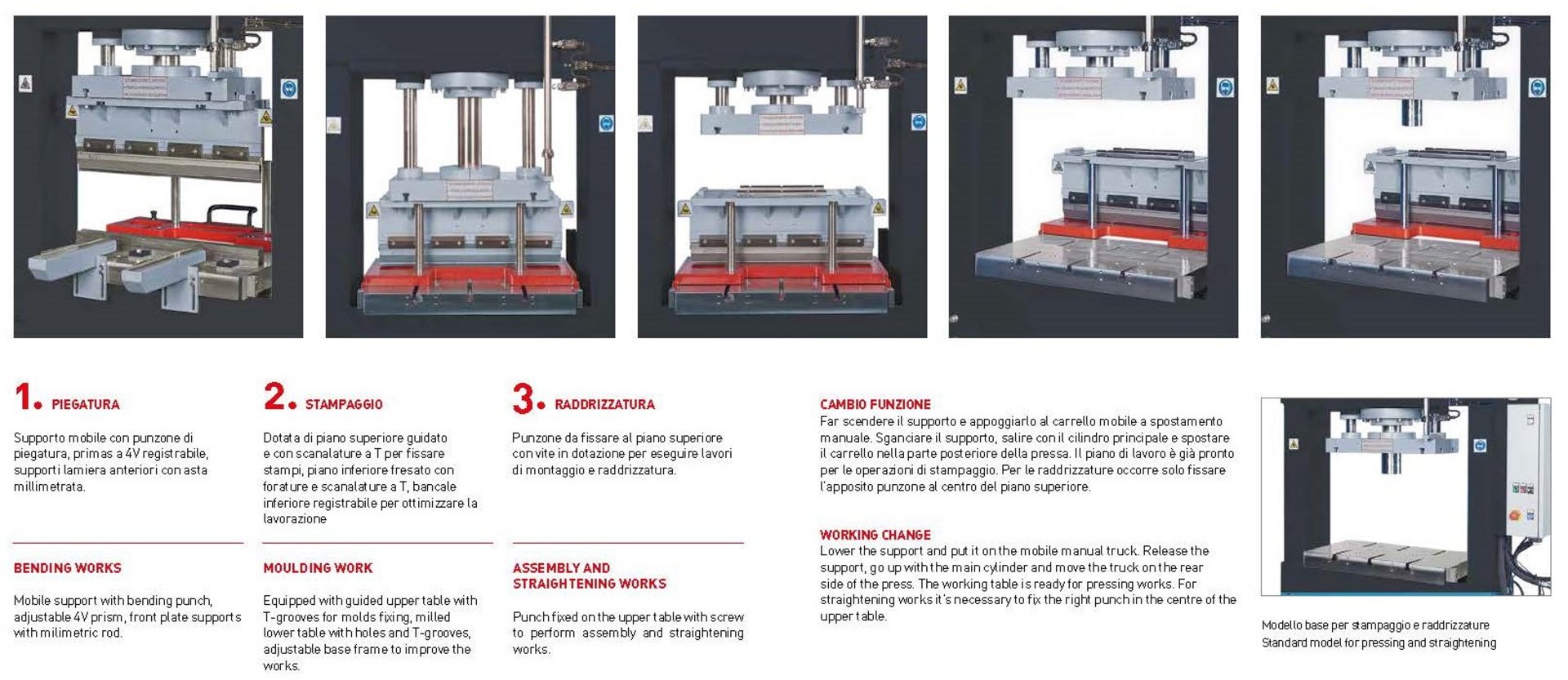

Standardmodel for pressing and straightening: table with t-sloats and straightening punch
Options:
Bending accessorie with tool holder, upper tool, dies with 4 slots and 2 frontal support arms
Mobile truck for quick assembly/disassembly of bending unit
Siemens control
Pressure switch
Heat exchanger
Piece counter
Timer
Plate supports for the rear side
Safety light guard
Alternative:
Version S (semiautomatik) € 47.000,00
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
