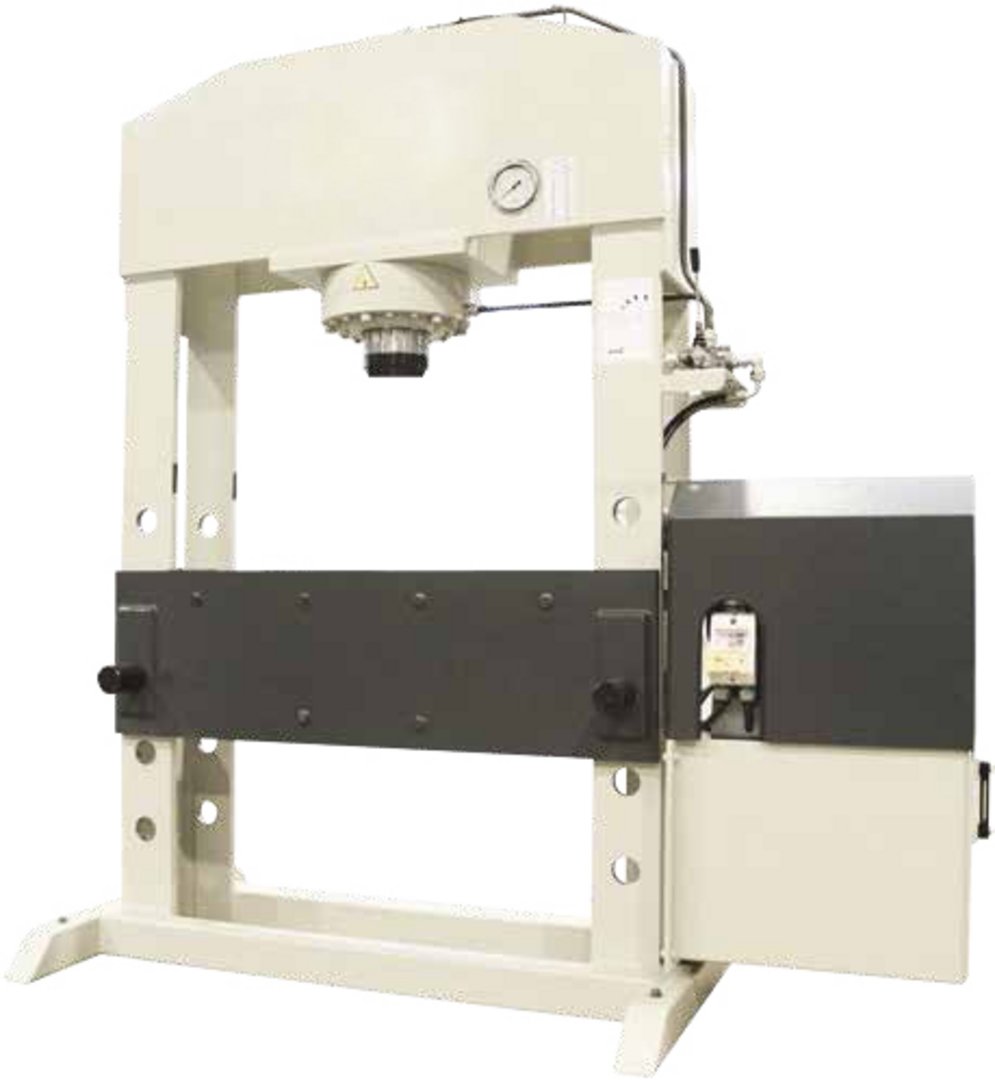

Hydraulic workshop press HESSE by LFSS DPM 1570-150
| Model | DPM 1570-150 |
| Brand | HESSE by LFSS |
| Condition | new |
| pressing capacity | 150 to |
| Distance between columns | 1570 mm |
| Origin | Türkiye |
General characteristics
| pressing capacity | 150 to |
| Cylinder fix or moveable | fix |
| Stroke | 300 mm |
| Distance between columns | 1570 mm |
| Piston diameter | 280x200 mm |
| Working speed | 5 mm/s |
| Retraction speed | 10 mm/s |
Dimensions and weight
| Length | 2500 mm |
| Width | 1000 mm |
| Height | 2270 mm |
| Weight | 2100 kg |
Description
steel welded frame
stop at any position
pressure manometer
safety valve against overloading
2 V-blocks
table height adjustable
table up-down movement attachment
control by operating lever
according to CE regulations user manual in GERMAN and ENGLISH
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
