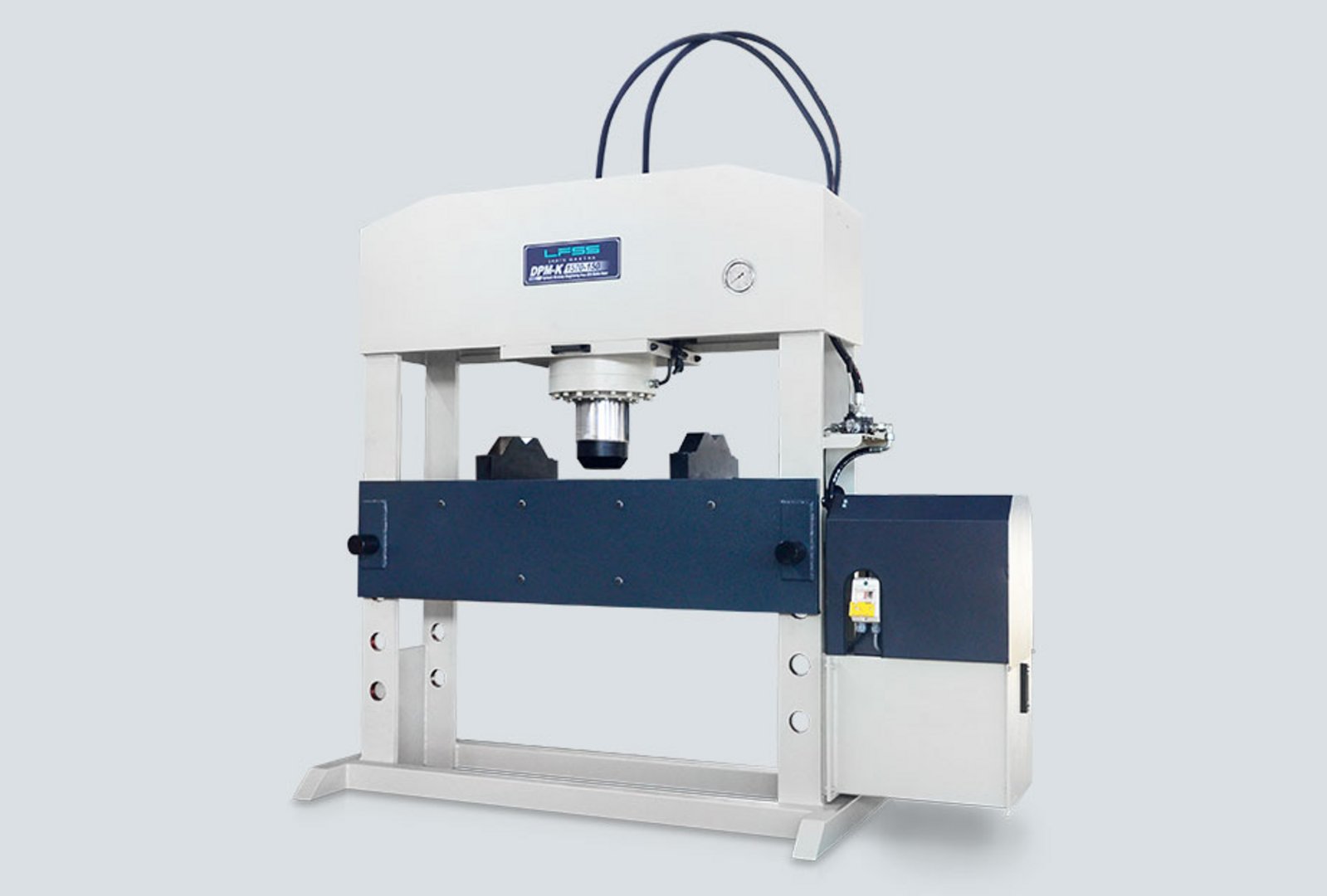

Hydraulic workshop press HESSE by LFSS DPM-K 775-30
| Model | DPM-K 775-30 |
| Brand | HESSE by LFSS |
| Condition | new |
| pressing capacity | 30 to |
| Distance between columns | 775 mm |
| Origin | Türkiye |
General characteristics
| pressing capacity | 30 to |
| Cylinder fix or moveable | horizontal moveable |
| Stroke | 200 mm |
| Distance between columns | 775 mm |
| Piston diameter | 125x80 mm |
| Working speed | 5 mm/s |
| Retraction speed | 10 mm/s |
Dimensions and weight
| Length | 1500 mm |
| Width | 700 mm |
| Height | 1800 mm |
| Weight | 400 kg |
Description
horizontal adjustable cylinder with clamping lever
steel welded frame
stop at any position
pressure manometer
safety valve against overloading
2 V-blocks
table height adjustable
table up-down movement attachment
control by operating lever
according to CE regulations user manual in GERMAN and ENGLISH
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
