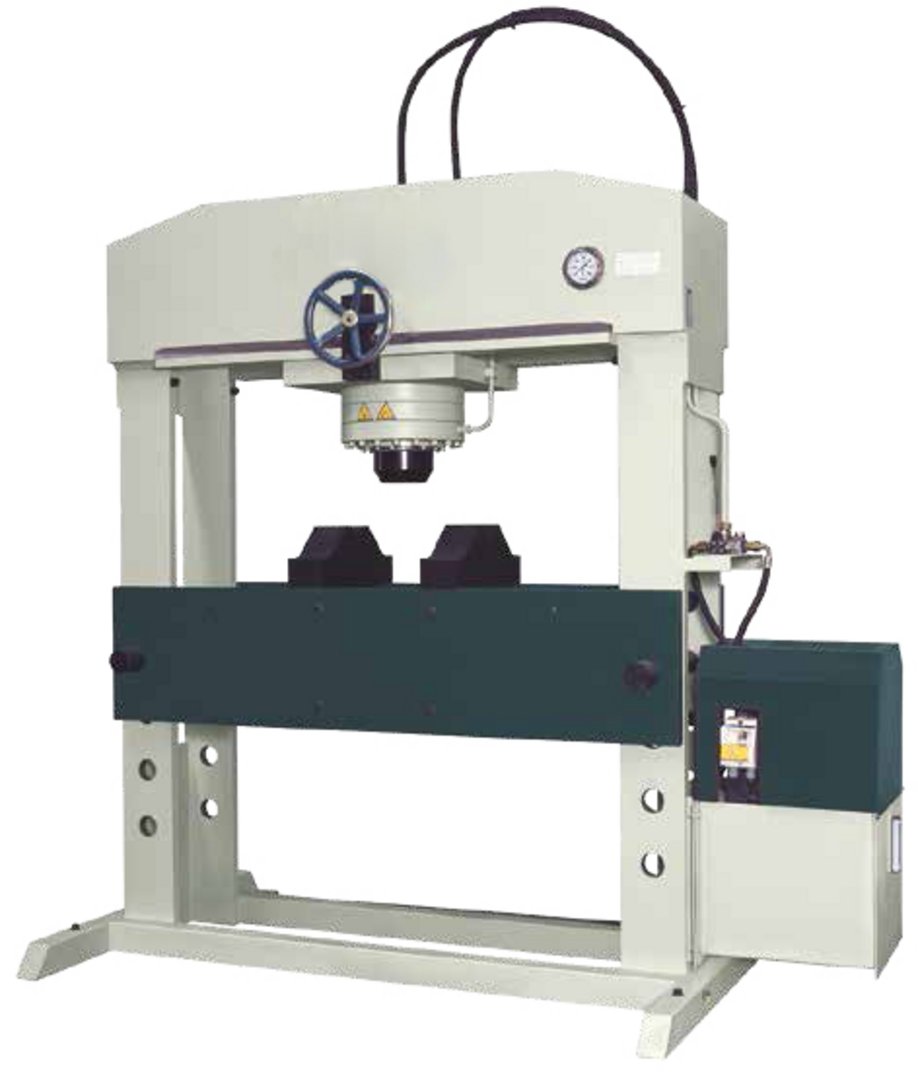

Hydraulic workshop press HESSE by LFSS DK 1570/150
| Model | DK 1570/150 |
| Brand | HESSE by LFSS |
| Condition | new |
| pressing capacity | 150 to |
| Distance between columns | 1570 mm |
| Origin | Türkiye |
General characteristics
| pressing capacity | 150 to |
| Cylinder fix or moveable | horizontal moveable |
| Stroke | 300 mm |
| Daylight | 750 mm |
| Distance between columns | 1570 mm |
| Piston diameter | 280x200 mm |
| Working speed | 5 mm/s |
| Retraction speed | 10 mm/s |
Dimensions and weight
| Length | 2560 mm |
| Width | 1000 mm |
| Height | 2480 mm |
| Weight | 2350 kg |
Description
horizontal movable cylinder by handwheel
steel welded frame
stop at any position
pressure manometer
safety valve against overloading
2 V-blocks
table height adjustable
table up-down movement attachment
control by operating lever
according to CE regulations user manual in GERMAN and ENGLISH
