General characteristics
| pressing capacity | 40 to |
| Cylinder fix or moveable | fix |
| Daylight | 900 mm |
| Distance between columns | 900 mm |
| Working speed | 5 mm/s |
Dimensions and weight
| Length | 1600 mm |
| Width | 700 mm |
| Height | 2050 (PSS: 2250) mm |
Description
The table can be lifted with a chain
Hydraulic unit with motor and pump
Adjustable maximum pressure
Manometer
Equipment compliant with CE regulations. Operating instructions in German and English.
Model versions:
|
PSS 40 TL: |
1 speed 4 mm/s, single-hand control with lever | € | 5.000,00 |
| PSS 40 L: | 2 speeds 9 / 3 mm/s, single-hand control with lever | € | 5.800,00 |
| PSS 40 NC: | 2 speeds 29 / 4 mm/s, two-hand control with lever and push button | € | 6.100,00 |
| PSS 40: | same as PSS 40 NC but with stroke 500 mm | € | 7.000,00 |
Further information
Product video

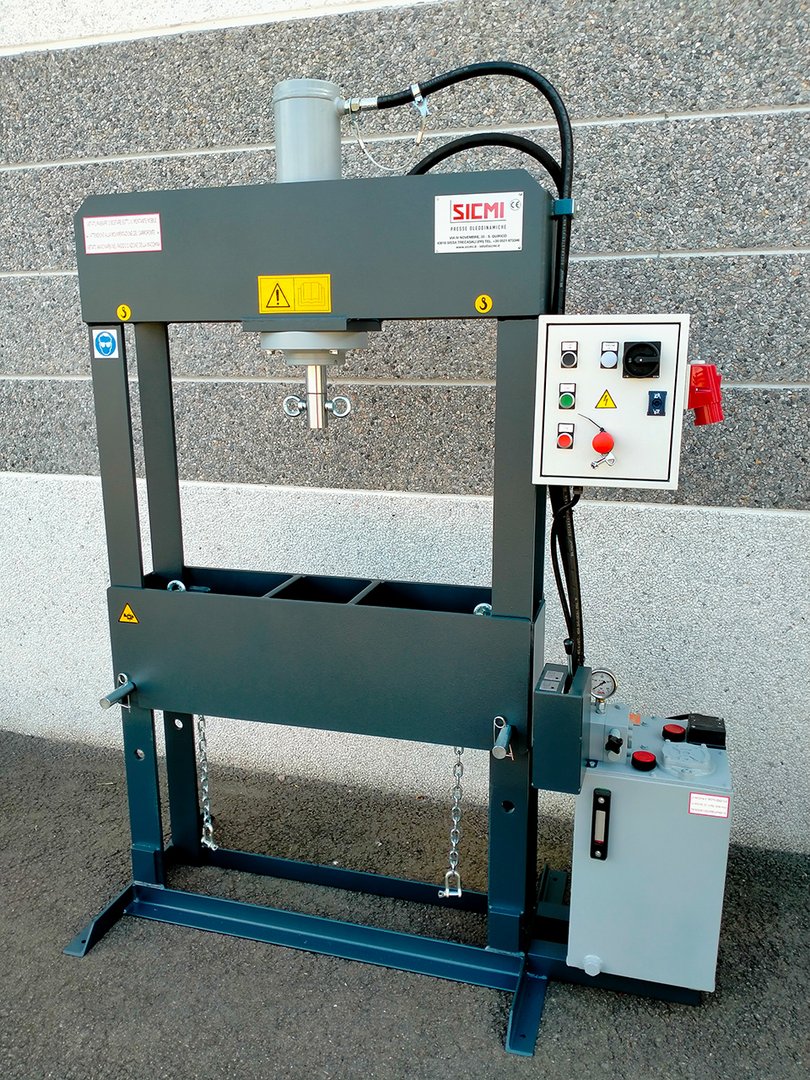

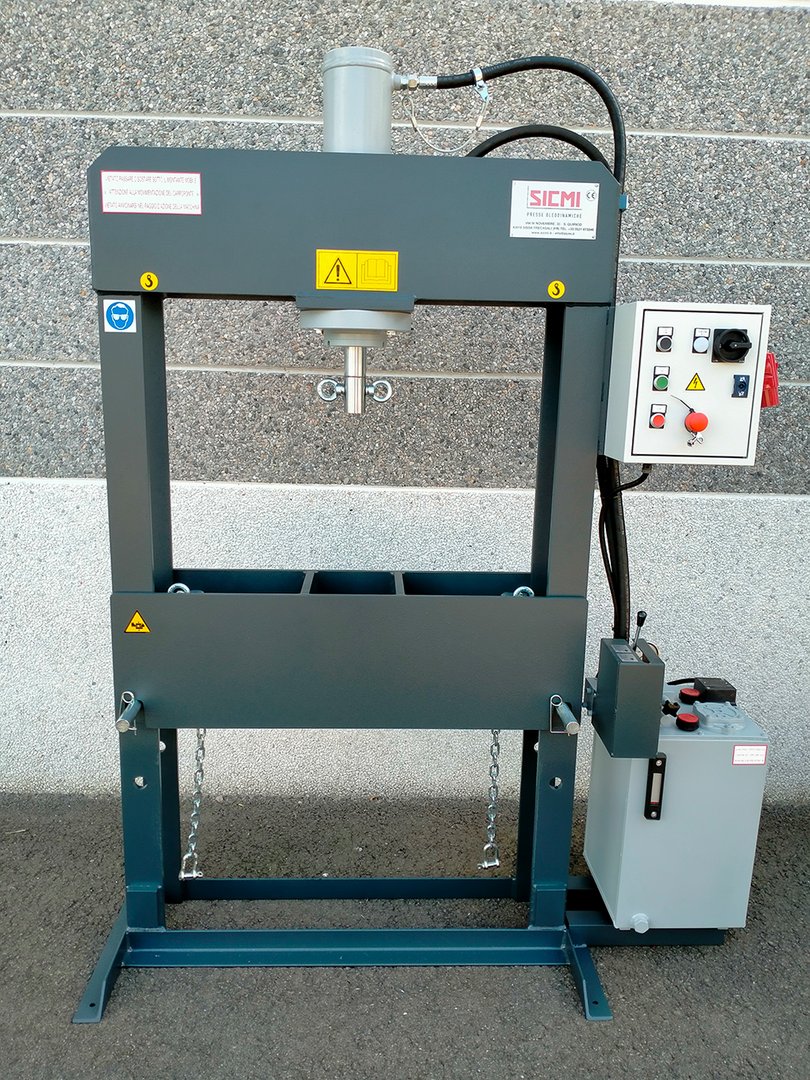

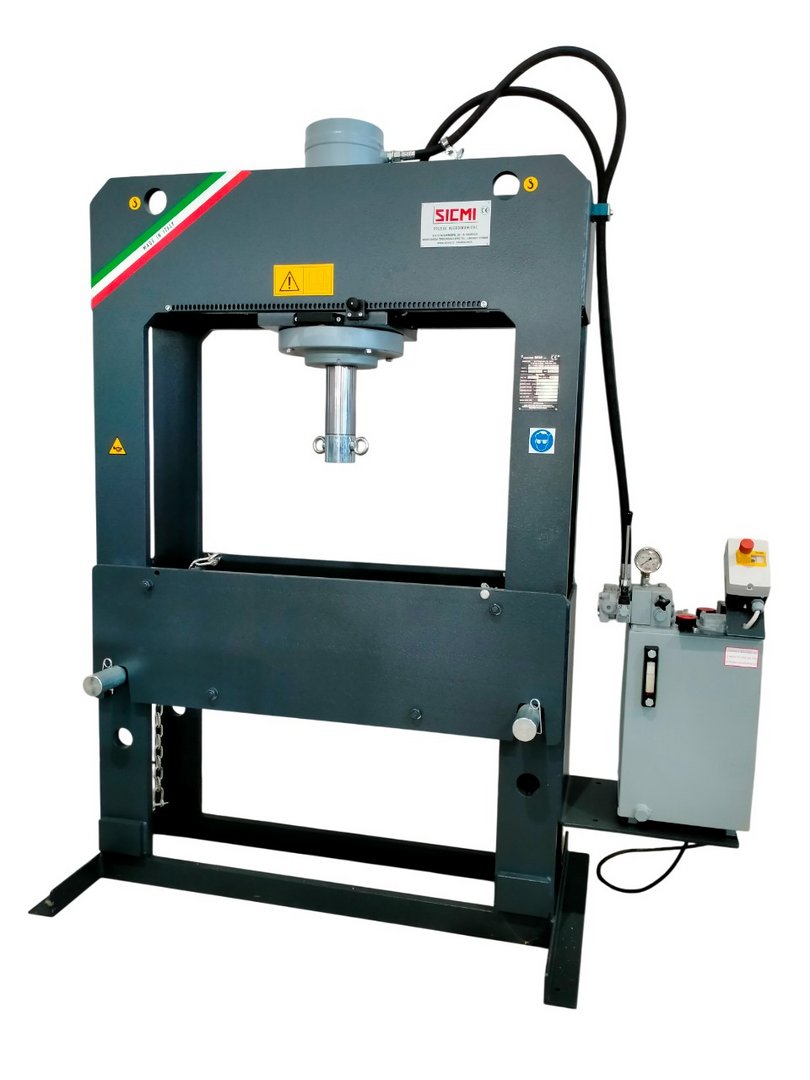

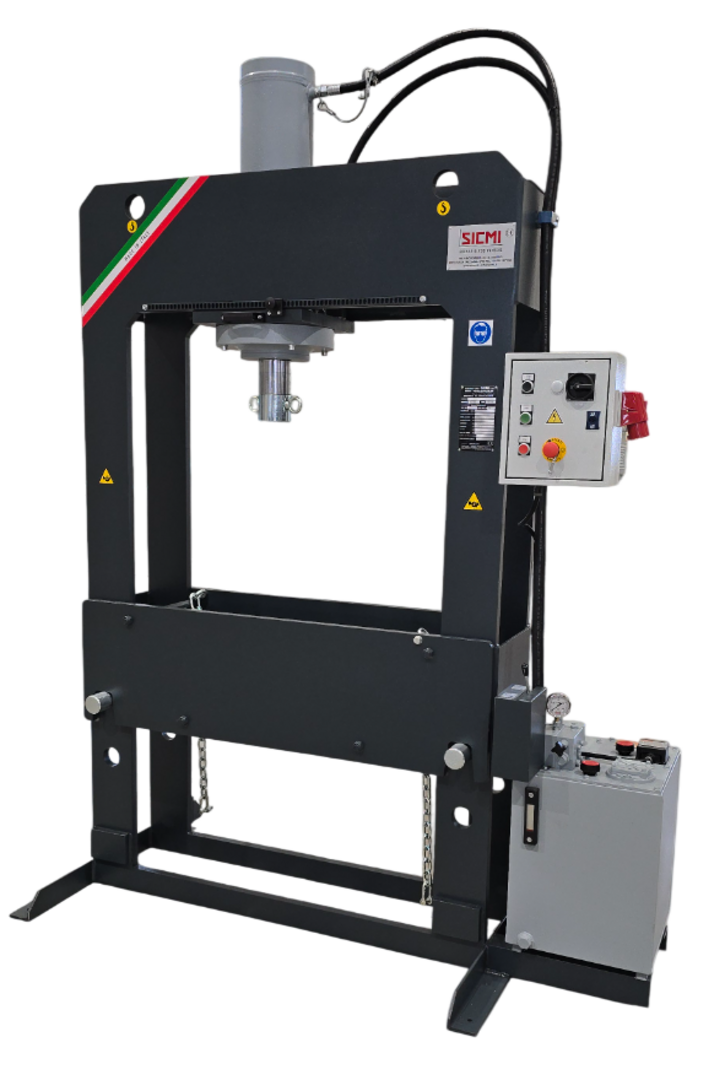

Hydraulic workshop press PSS 40 series
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
