General characteristics
| pressing capacity | 150 to |
| Cylinder fix or moveable | horizontal moveable |
| Stroke | 350 mm |
| Distance between columns | 1500 mm |
| Rapid speed | 22 mm/s |
| Working speed | 3 mm/s |
| Horizontal movable cylinder | 1000 mm |
Dimensions and weight
| Length | 2500 mm |
| Width | 1200 mm |
| Height | 2500 mm |
| Weight | 2500 kg |
Description
horizontal movable cylinder 1.000 mm
2 speeds

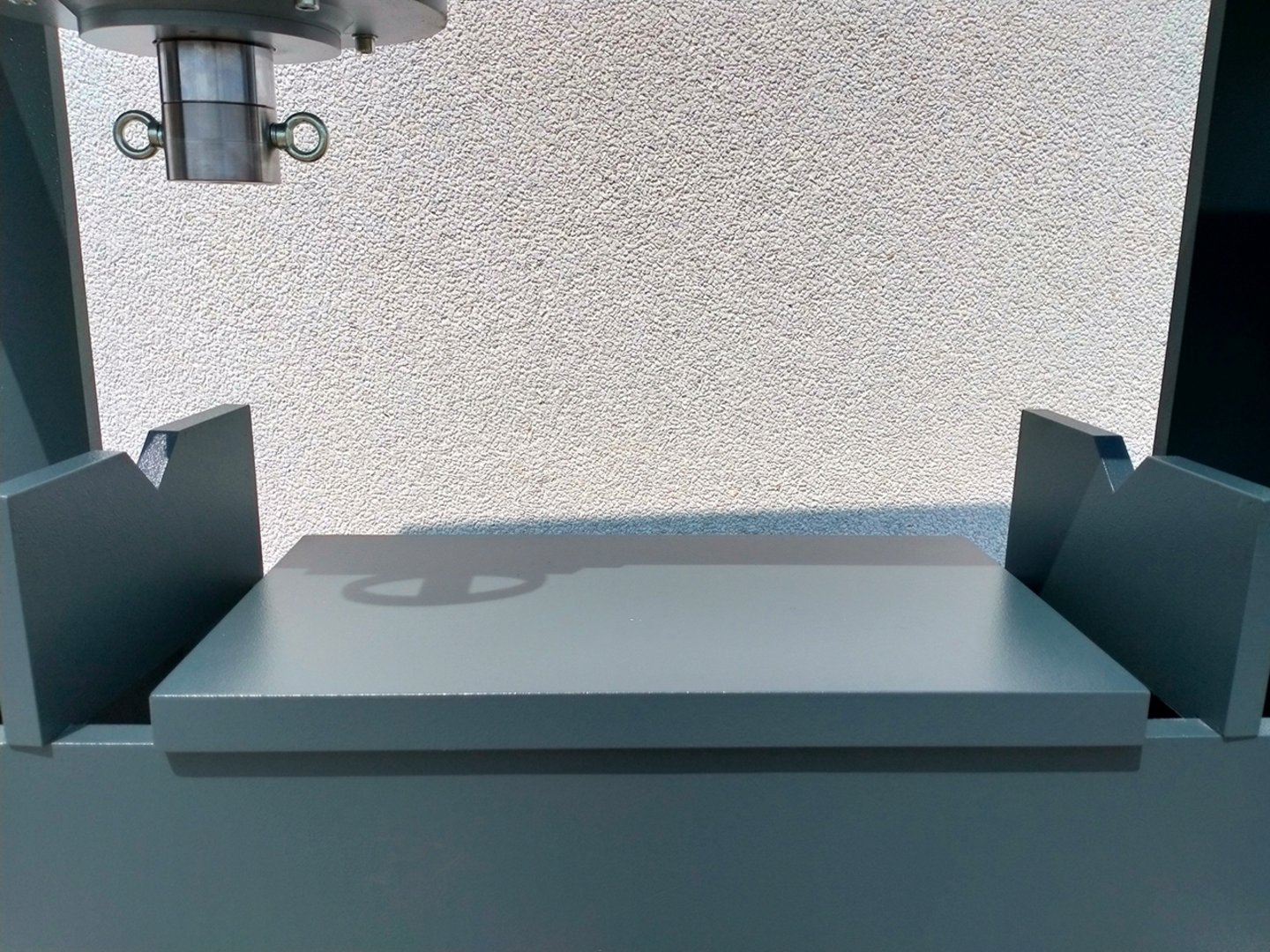

machine table can be liftet with chains

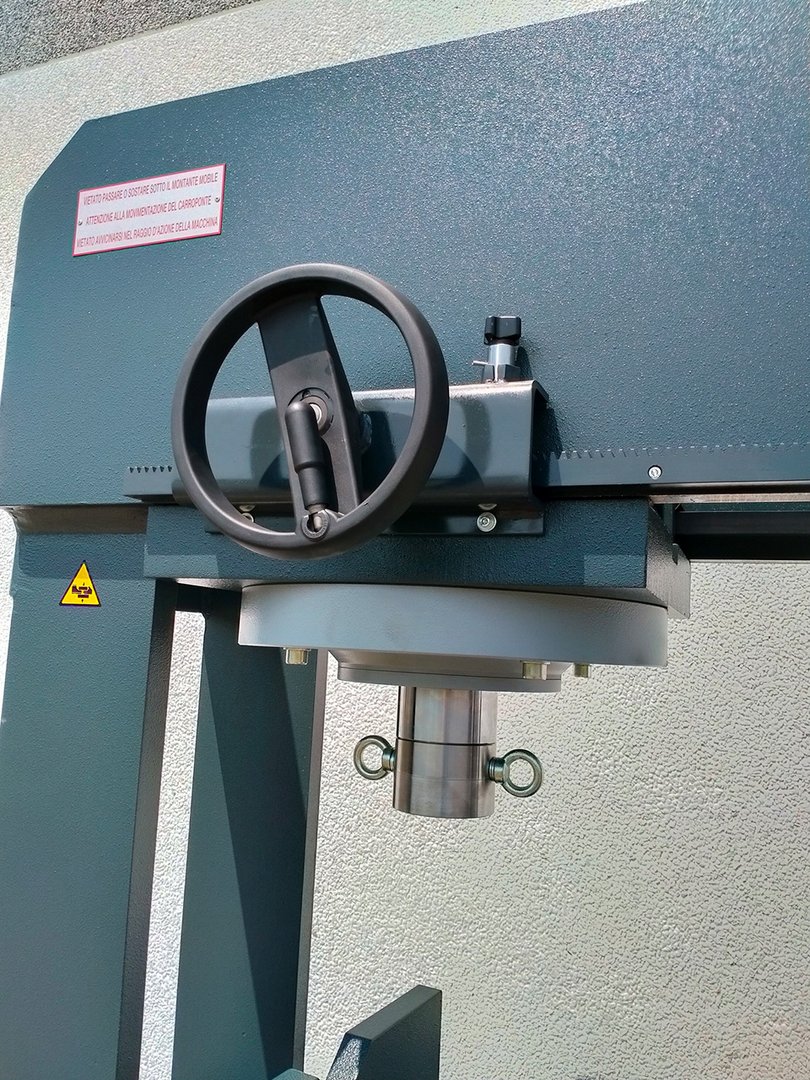

control by handwheel and push button (2-hand)
adjustable max. pressure
manometer
according to CE regulations user manual in GERMAN and ENGLISH

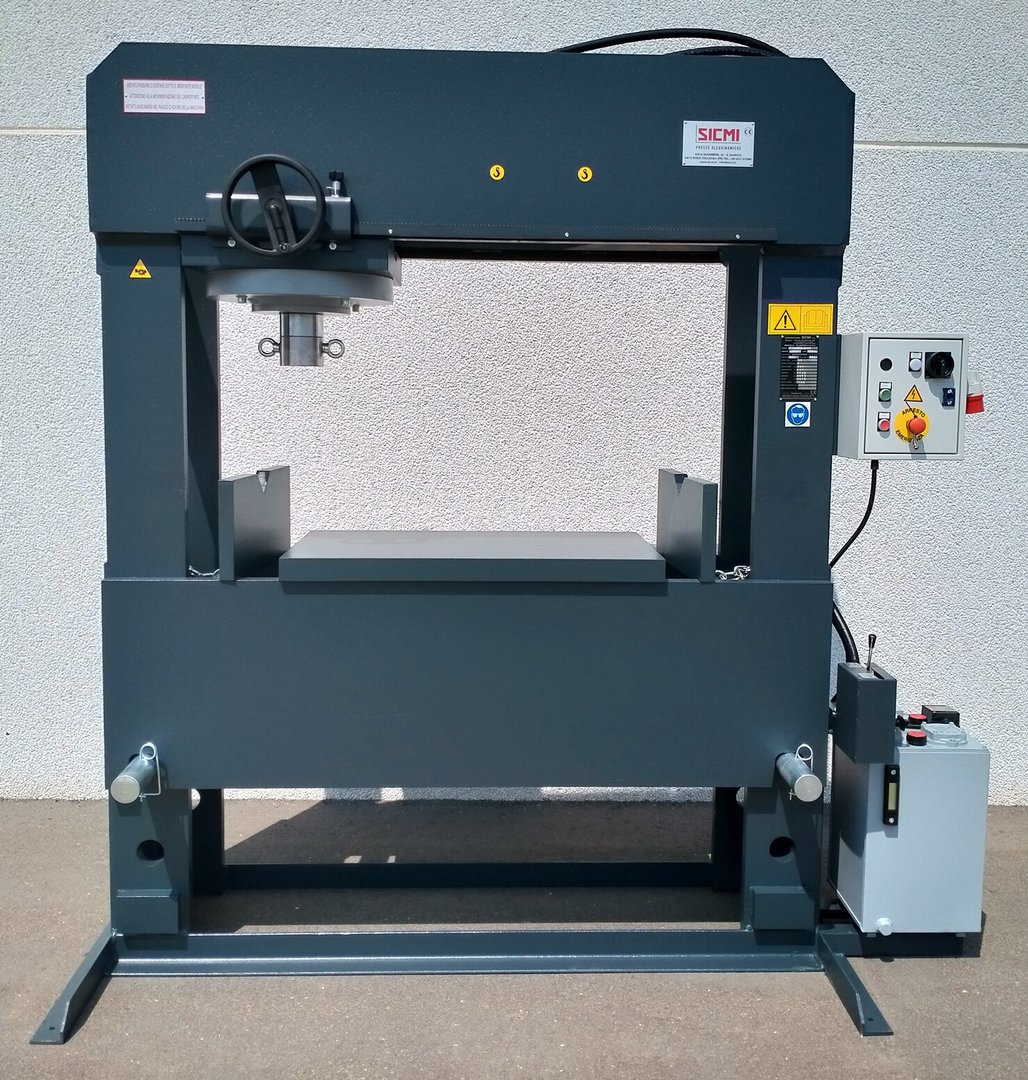

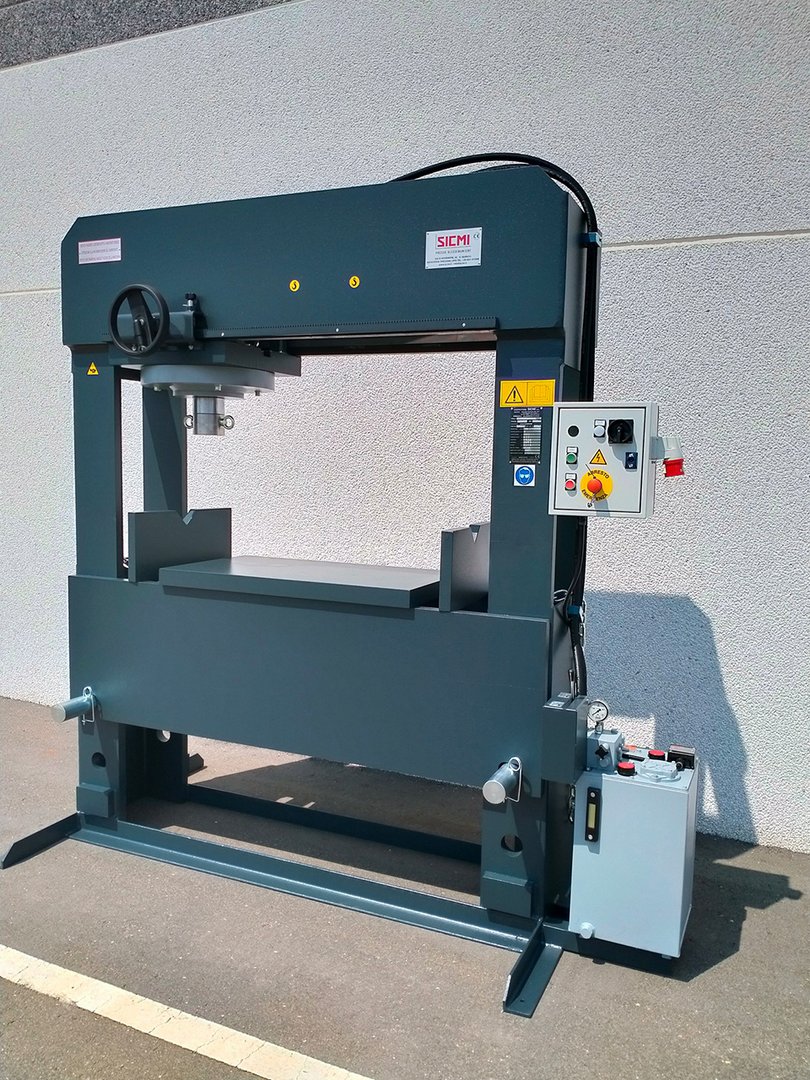

(sample photo)
Further information
Product video
Hydraulic workshop press PSS 150 M NC
