General characteristics
| pressing capacity | 100 to |
| Cylinder fix or moveable | horizontal moveable |
| Stroke | 350 mm |
| Distance between columns | 1500 mm |
| Rapid speed | 28 mm/s |
| Working speed | 2 mm/s |
| Horizontal movable cylinder | 1150 mm |
Dimensions and weight
| Length | 2400 mm |
| Width | 1000 mm |
| Height | 2250 mm |
| Weight | 1500 kg |
Description
horizontal movable cylinder 1.150 mm
2 speeds
machine table can be liftet with chains
control by handwheel and push button (2-hand)
adjustable max. pressure
manometer
according to CE regulations user manual in GERMAN and ENGLISH

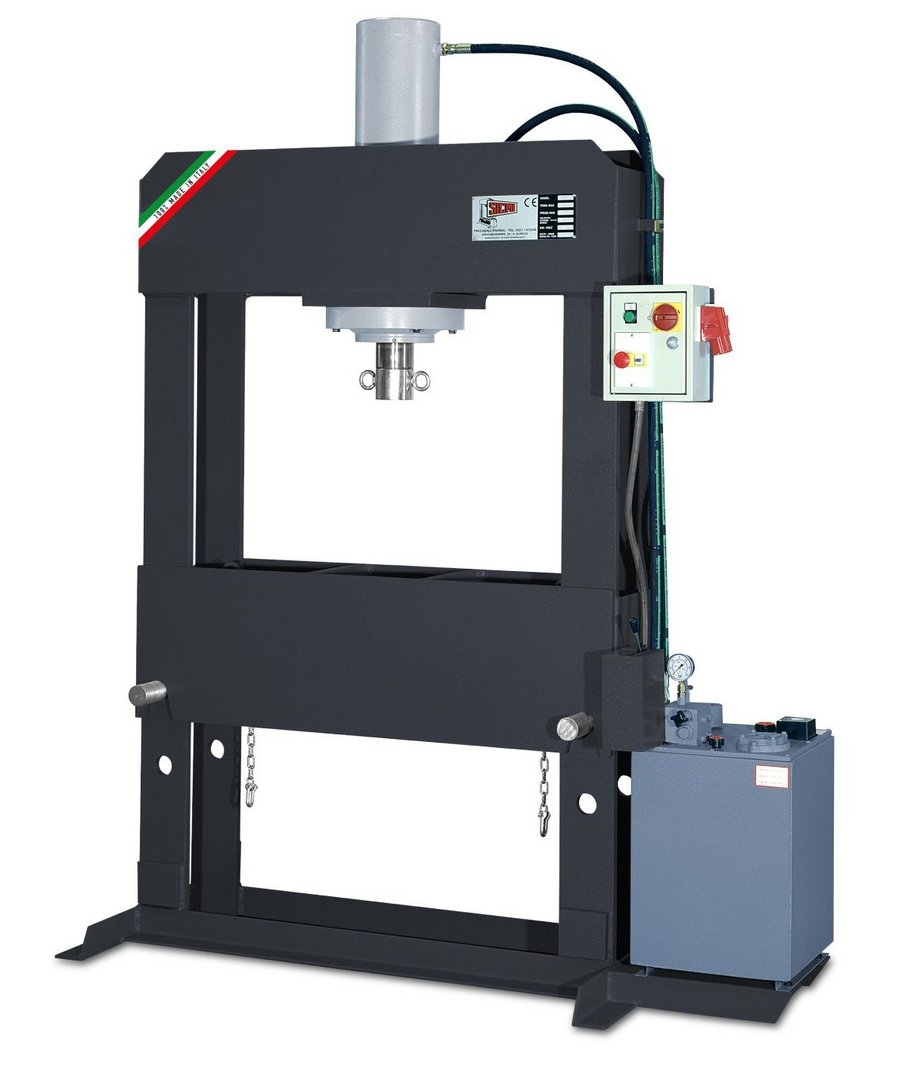

(sample photo)
Further information
Product video
Hydraulic workshop press PSS 100 MC NC
