General characteristics
| pressing capacity | 100 to |
| Cylinder fix or moveable | fix |
| Stroke | 350 mm |
| Distance between columns | 1050 mm |
| Rapid speed | 28 mm/s |
| Working speed | 2 mm/s |
Dimensions and weight
| Length | 1900 mm |
| Width | 850 mm |
| Height | 2250 mm |
| Weight | 1030 kg |
Description
2 speeds

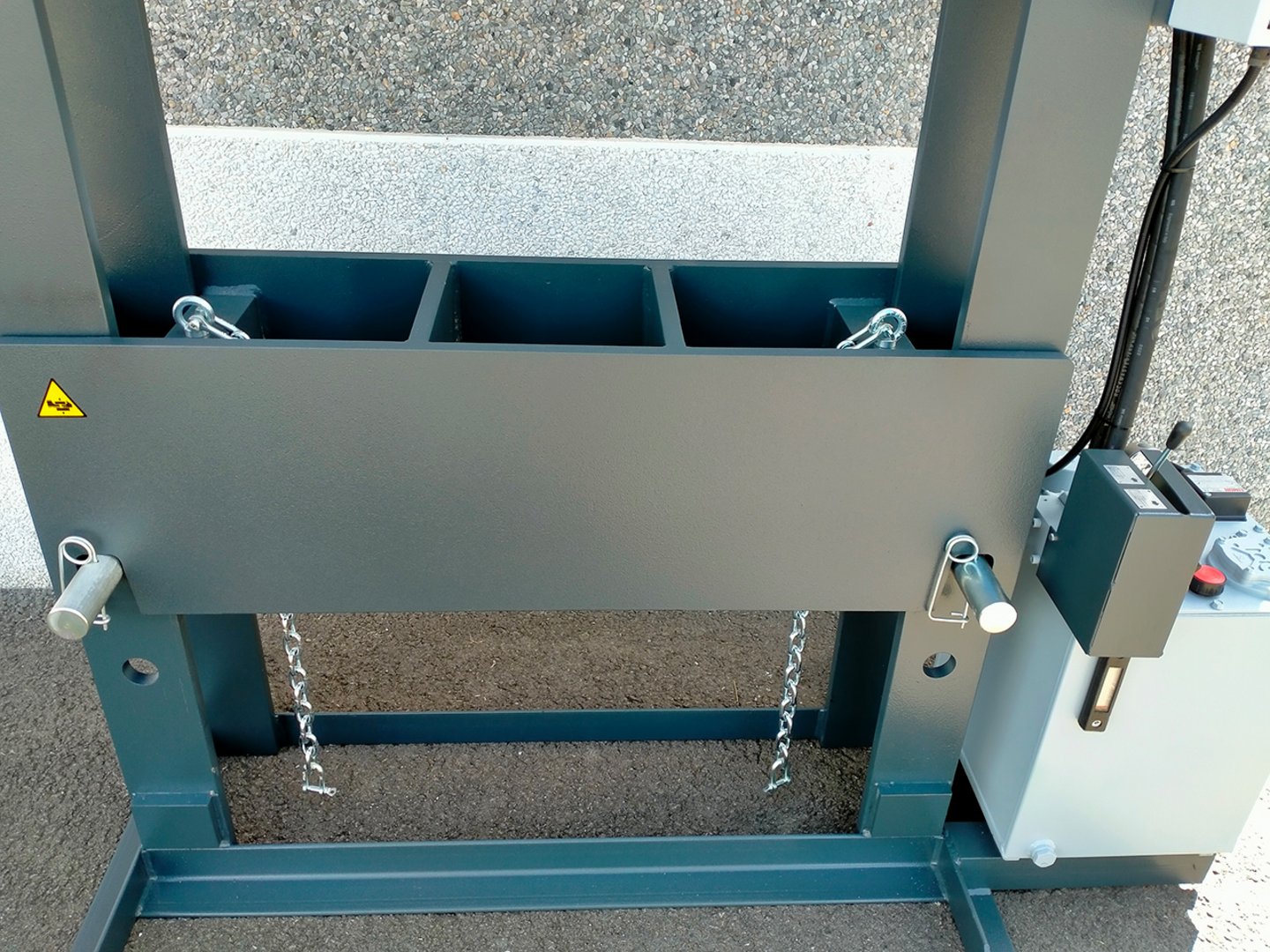

machine table can be liftet with chains
control by handwheel and push button (2-hand)
adjustable max. pressure
manometer
according to CE regulations user manual in GERMAN and ENGLISH

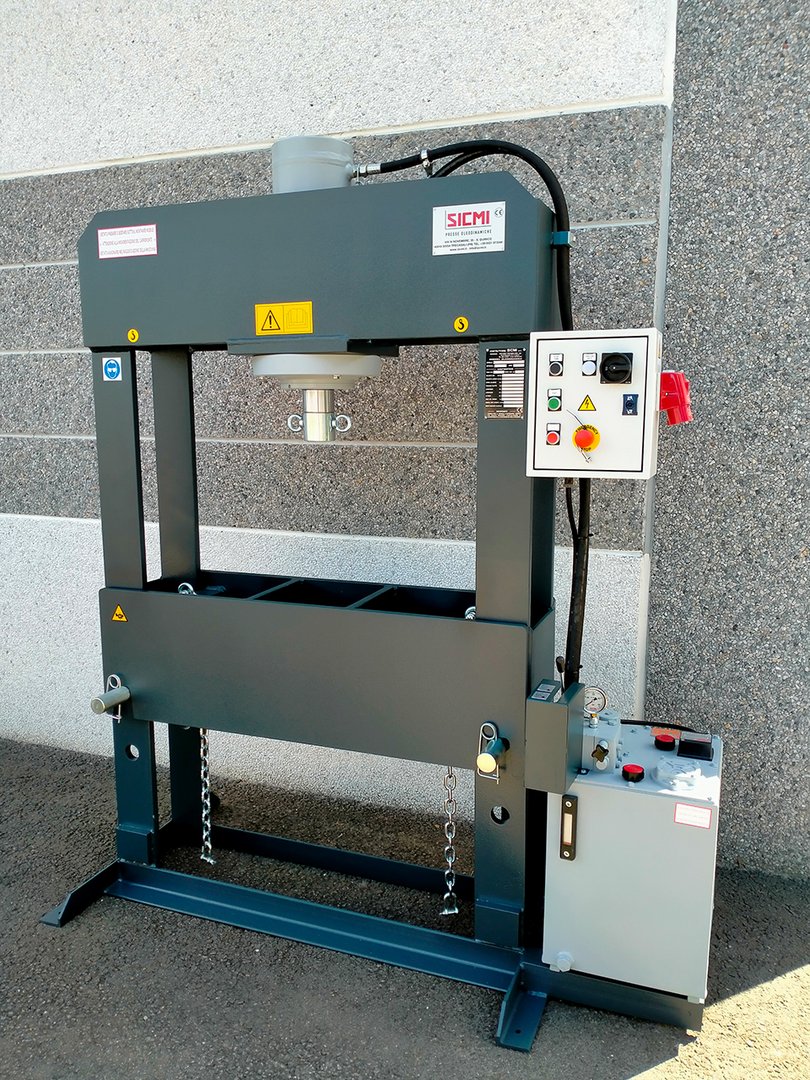

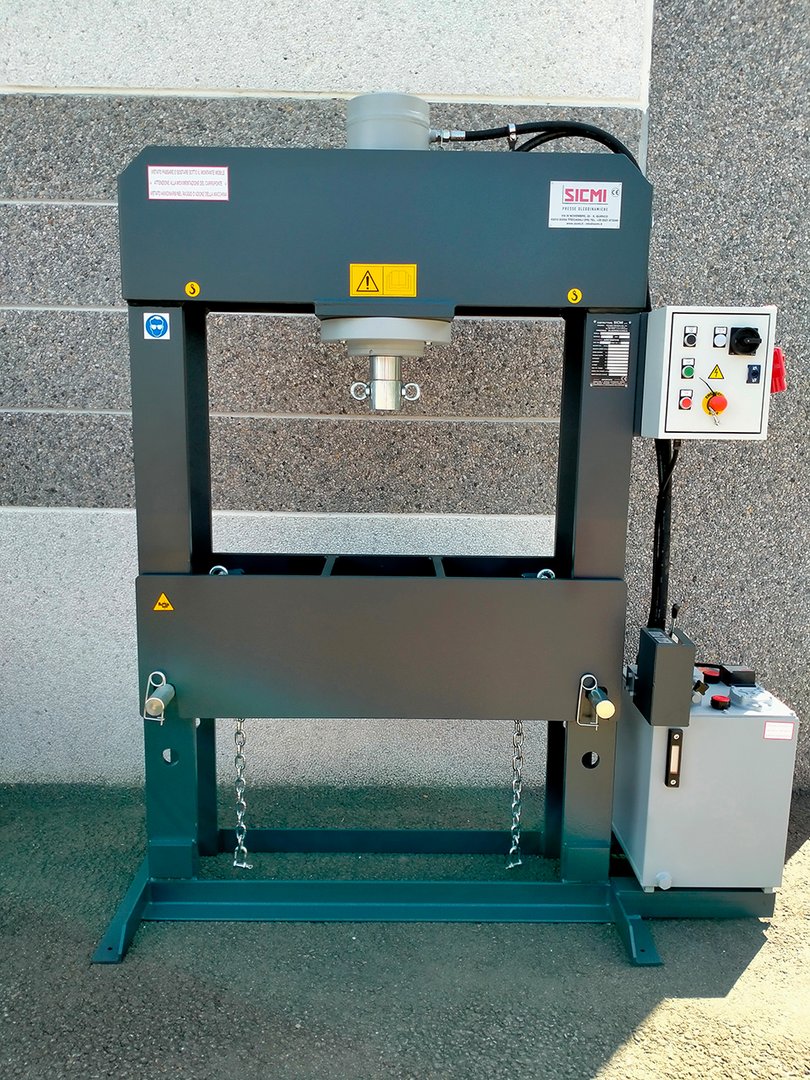

(sample photo)
Further information
Product video
Hydraulic workshop press PSS 100 NC
