General characteristics
| pressing capacity | 100 to |
| Cylinder fix or moveable | horizontal moveable |
| Stroke | 500 mm |
| Daylight | 700 mm |
| Distance between columns | 1550 mm |
| Rapid speed | 25 mm/s |
| Working speed | 2 mm/s |
Dimensions and weight
| Length | 2400 mm |
| Width | 1200 mm |
| Height | 2450 mm |
| Weight | 1960 kg |
Description
Horizontal movable cylinder 1.050 mm
2 speeds
control by handwheel and push button (2-hand)
adjustable max. pressure
manometer
according to CE regulations user manual in GERMAN and ENGLISH

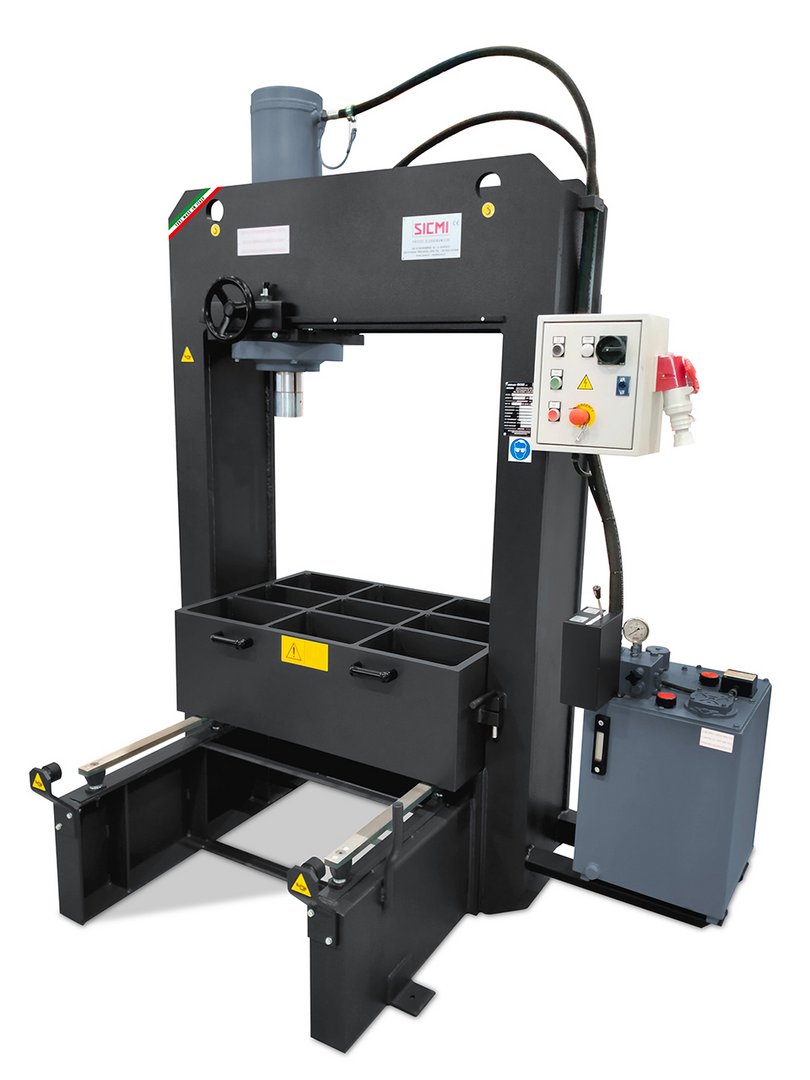

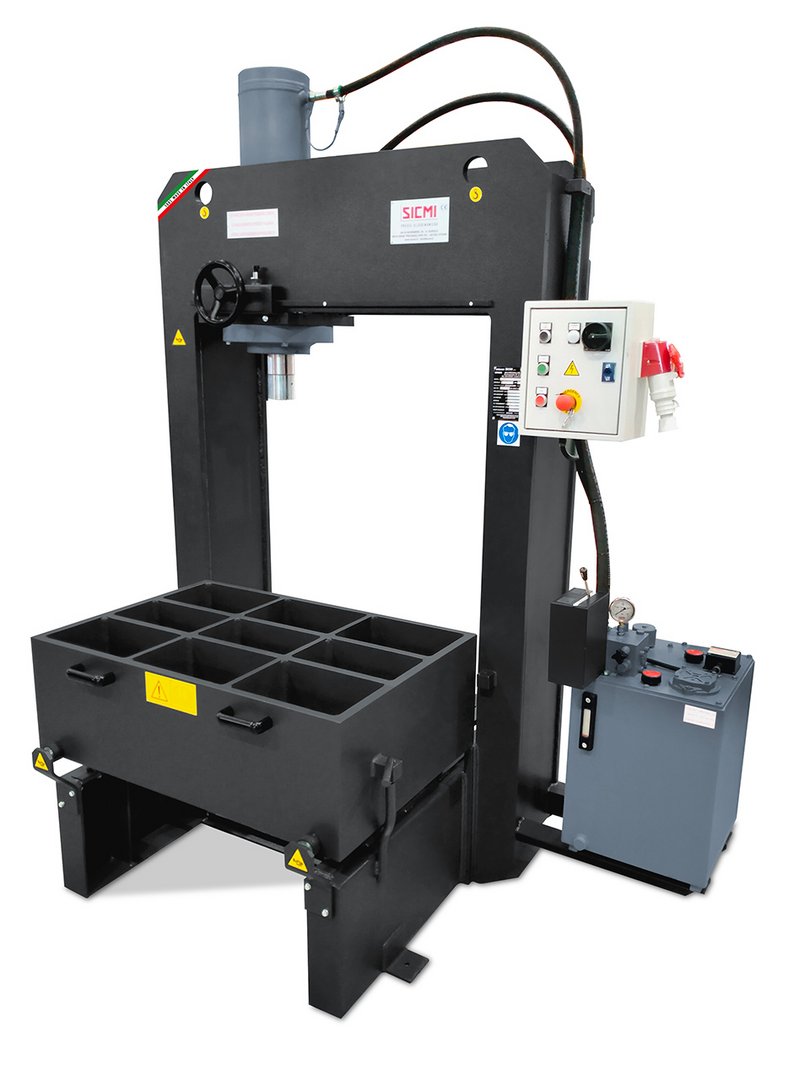

(sample photo)
Further information
Brochures
Product video
Hydraulic workshop press PBM 100 MC
