General characteristics
| pressing capacity | 70 to |
| Cylinder fix or moveable | horizontal moveable |
| Stroke | 350 mm |
| Distance between columns | 900 mm |
| Rapid speed | 29 mm/s |
| Working speed | 3 mm/s |
| Horizontal movable cylinder | 550 mm |
Dimensions and weight
| Length | 1700 mm |
| Width | 700 mm |
| Height | 2100 mm |
| Weight | 720 kg |
Description
horizontal movable cylinder 550 mm
2 speeds
machine table can be liftet with chains
control by handwheel and push button (2-hand)
adjustable max. pressure
manometer
according to CE regulations user manual in GERMAN and ENGLISH

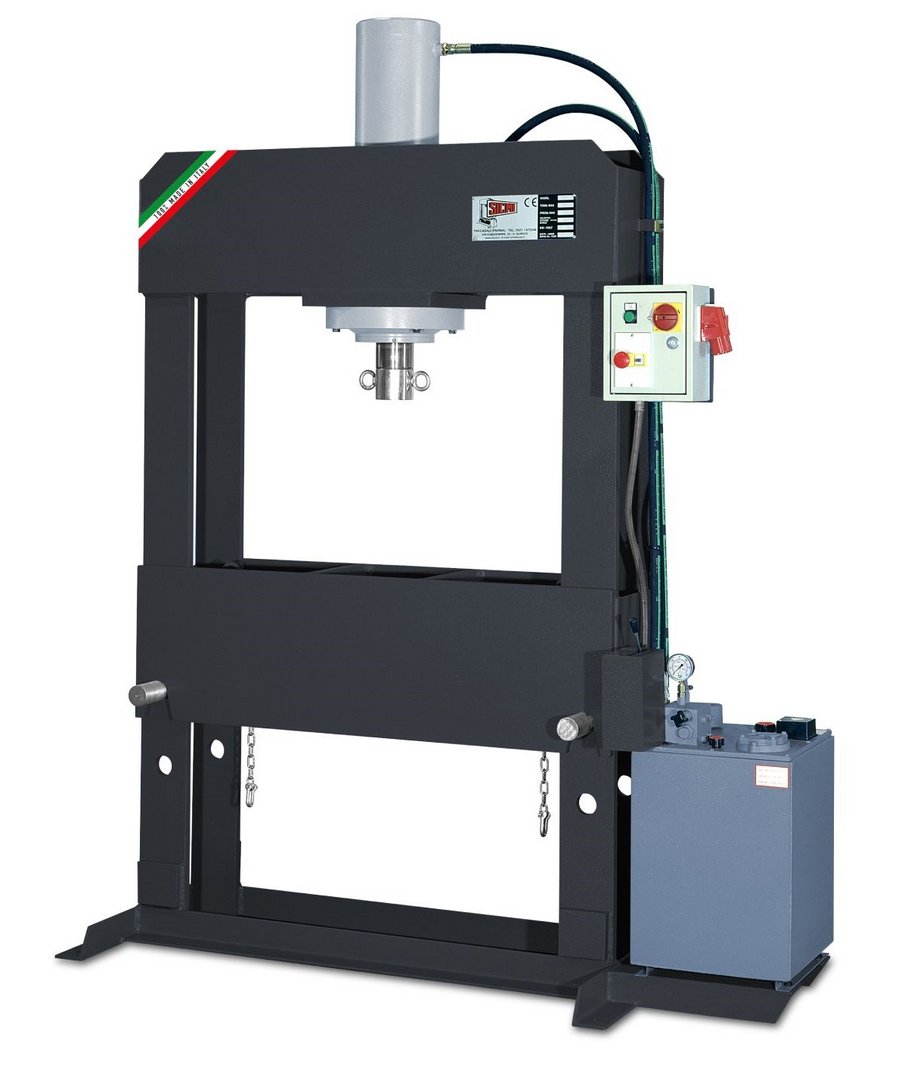

(sample photo)
Further information
Product video
Hydraulic workshop press PSS 70 M NC
