General characteristics
| pressing capacity | 70 to |
| Cylinder fix or moveable | fix |
| Stroke | 500 mm |
| Daylight | 700 mm |
| Distance between columns | 900 mm |
| Rapid speed | 20 mm/s |
| Working speed | 2 mm/s |
Dimensions and weight
| Length | 1700 mm |
| Width | 1000 mm |
| Height | 2400 mm |
| Weight | 980 kg |
Description
2 speeds
control by handwheel and push button (2-hand)
adjustable max. pressure
manometer
according to CE regulations user manual in GERMAN and ENGLISH

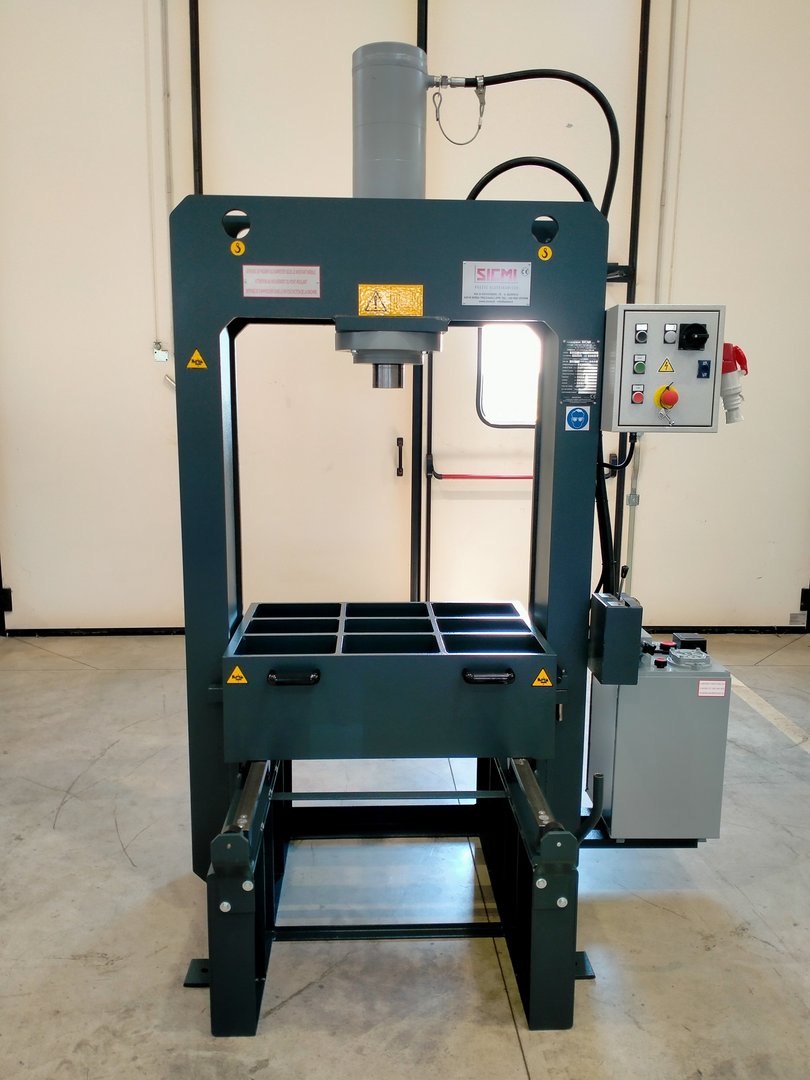

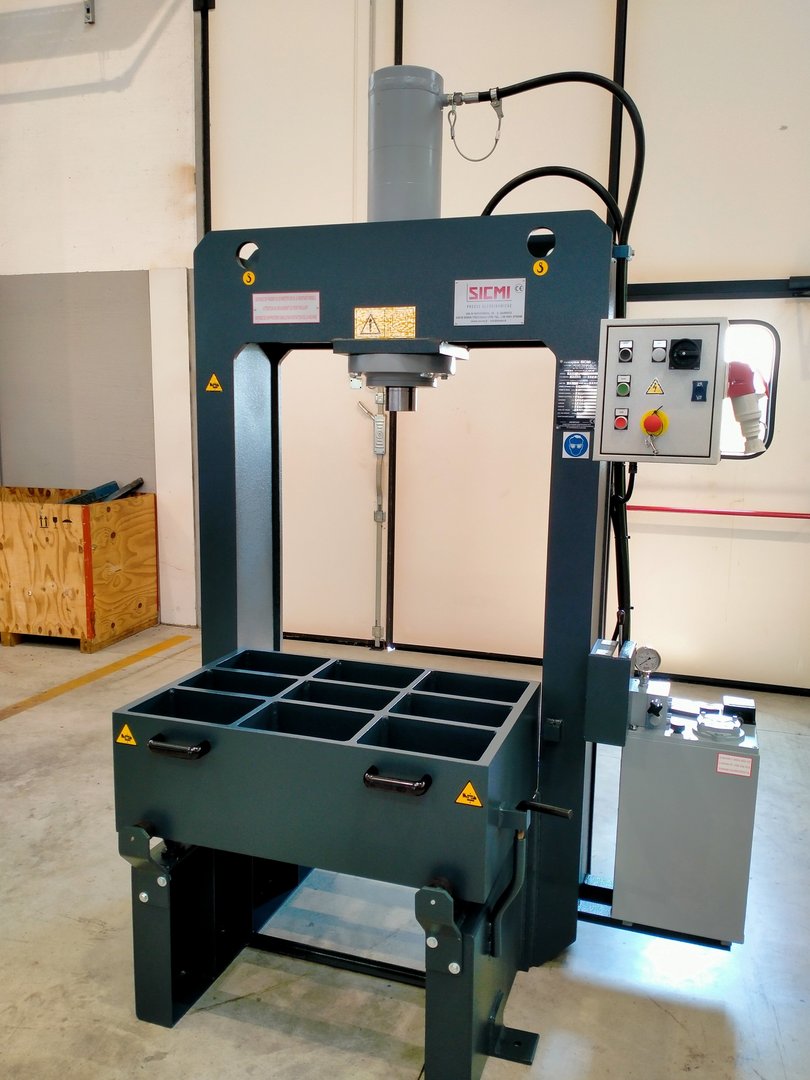

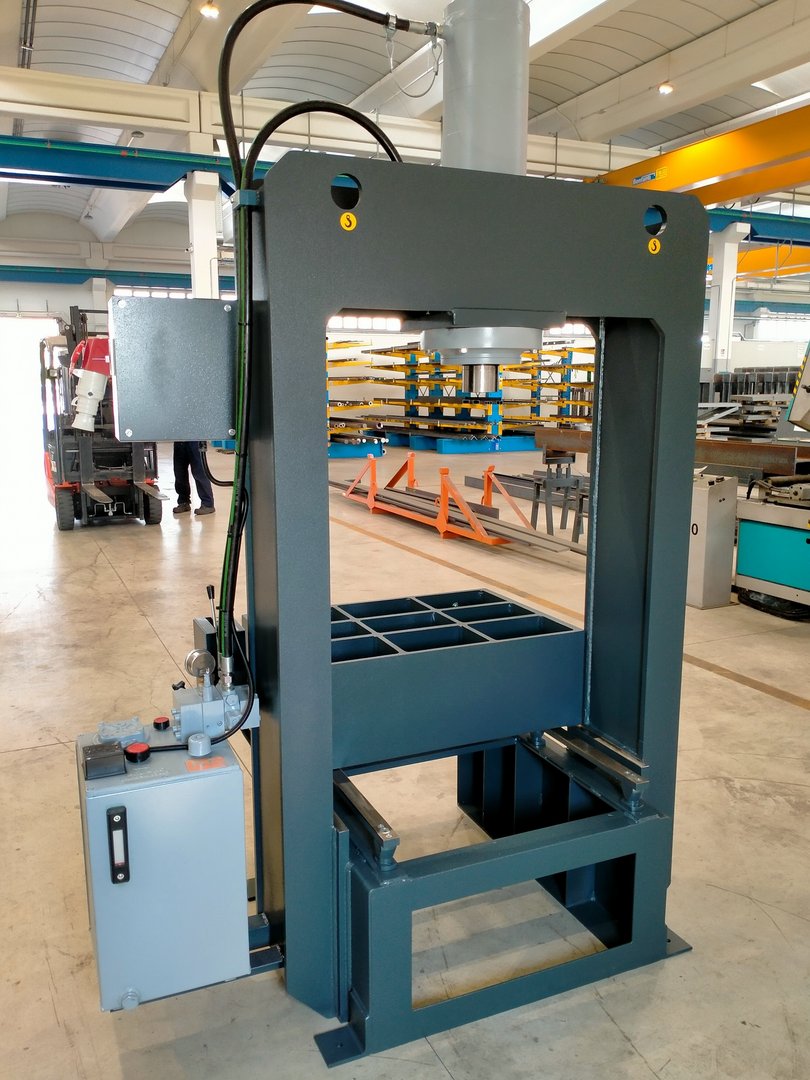

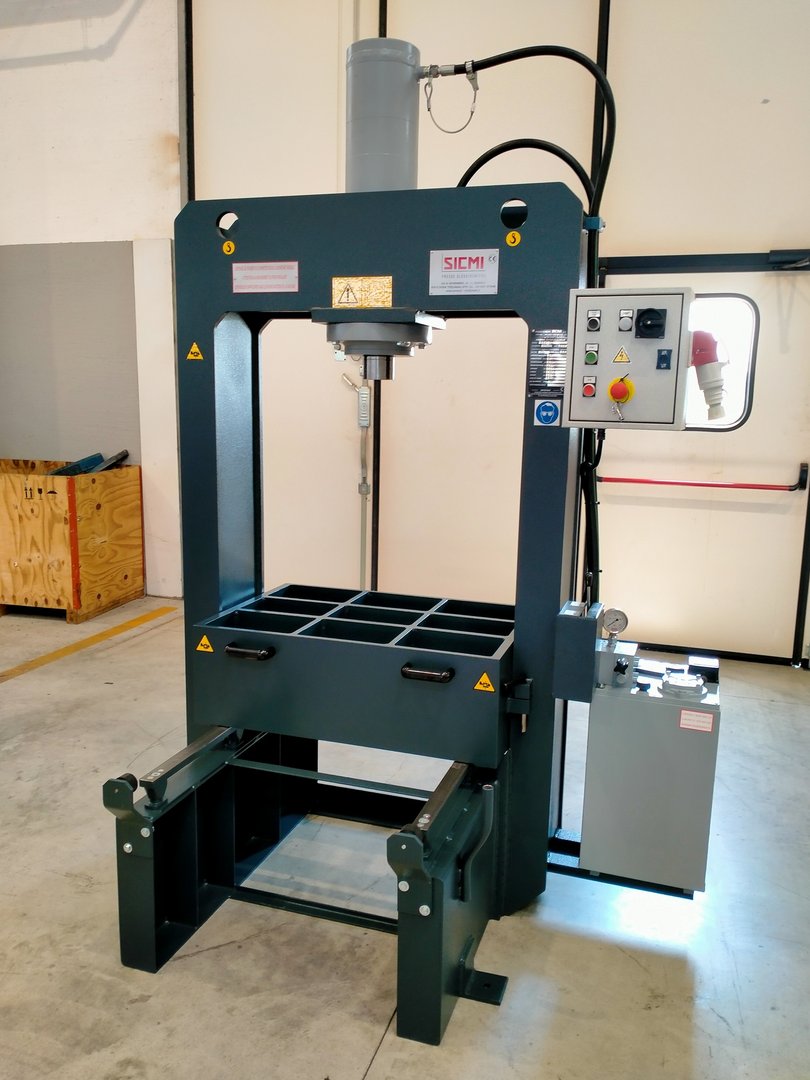

(sample photo)
Further information
Brochures
Product video
Hydraulic workshop press PBM 70
